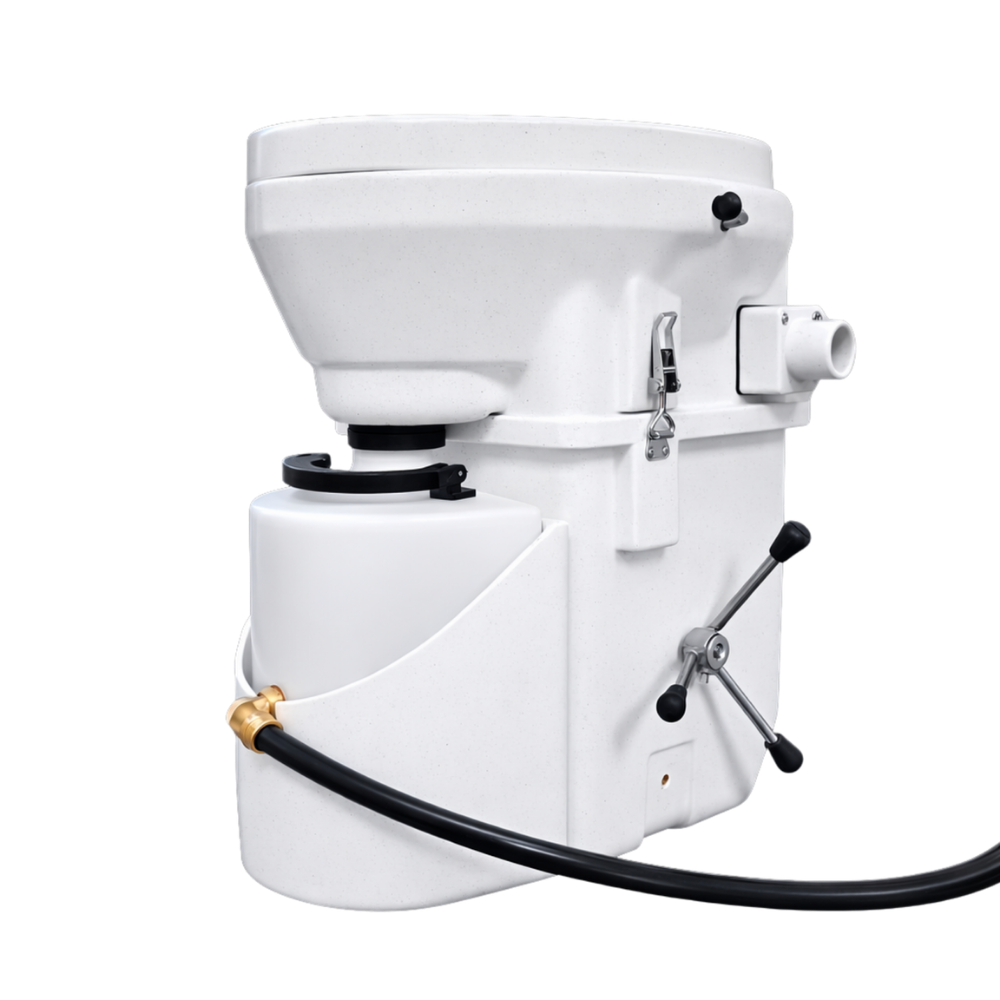

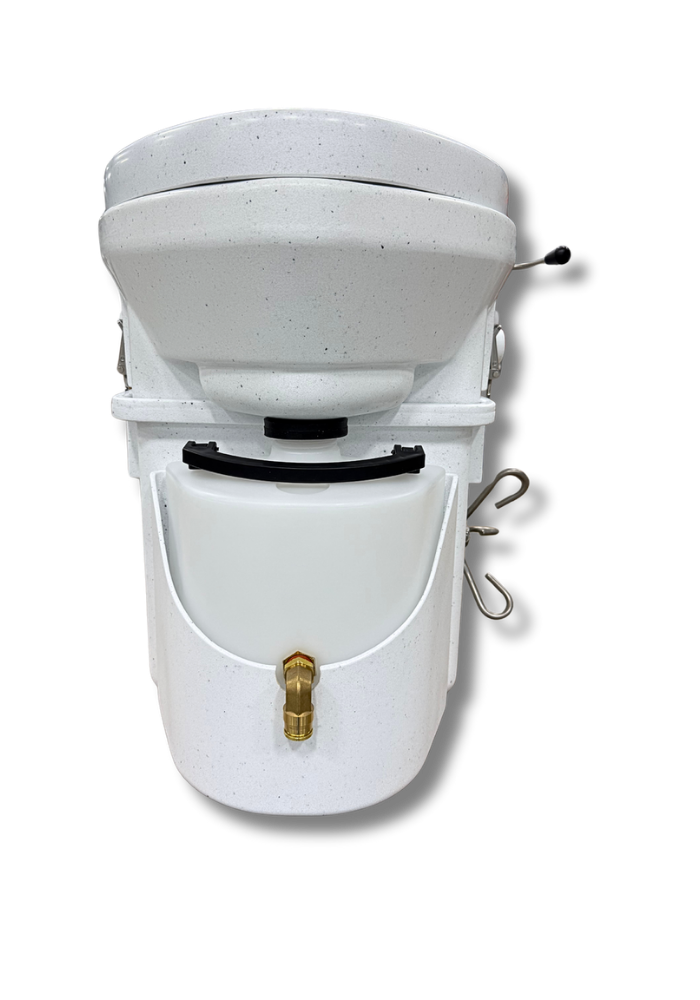

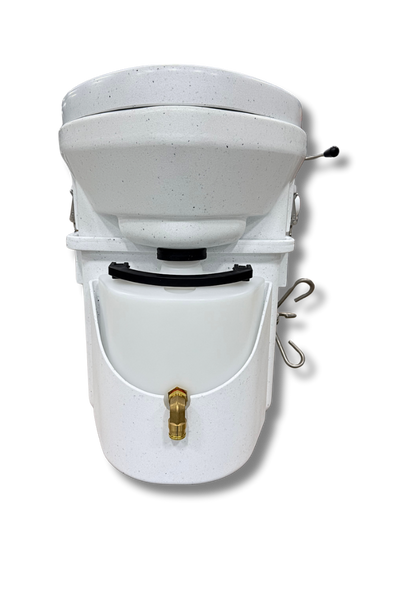

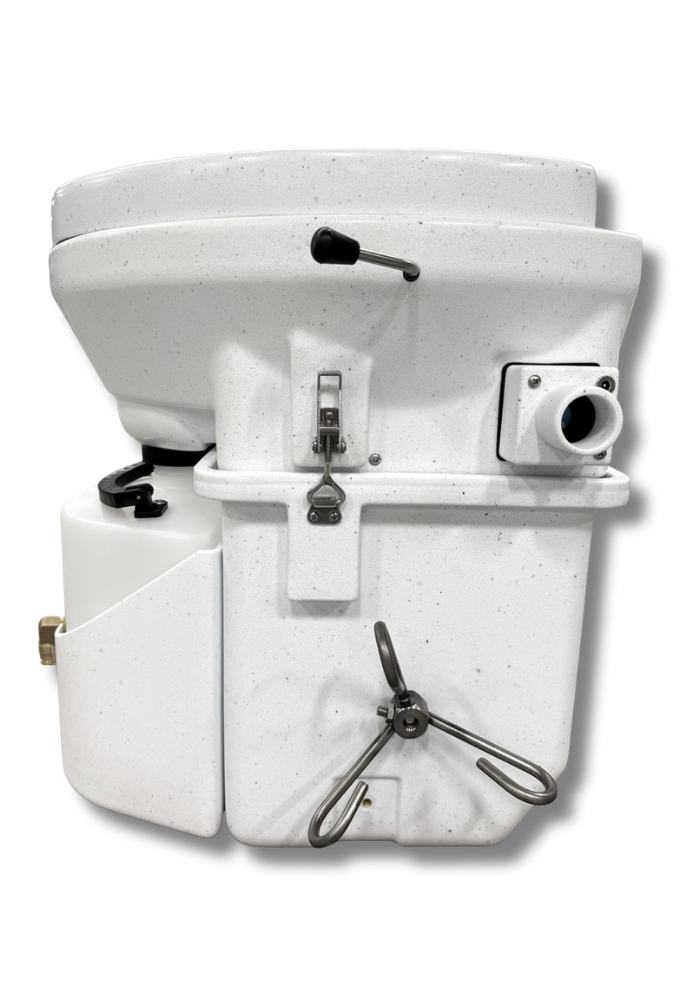

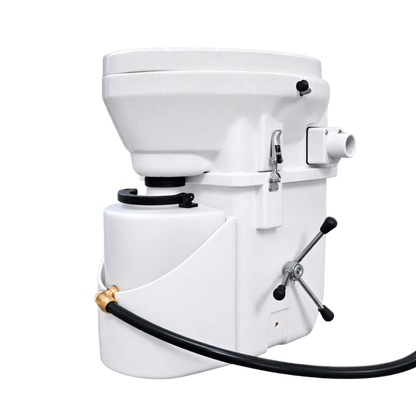

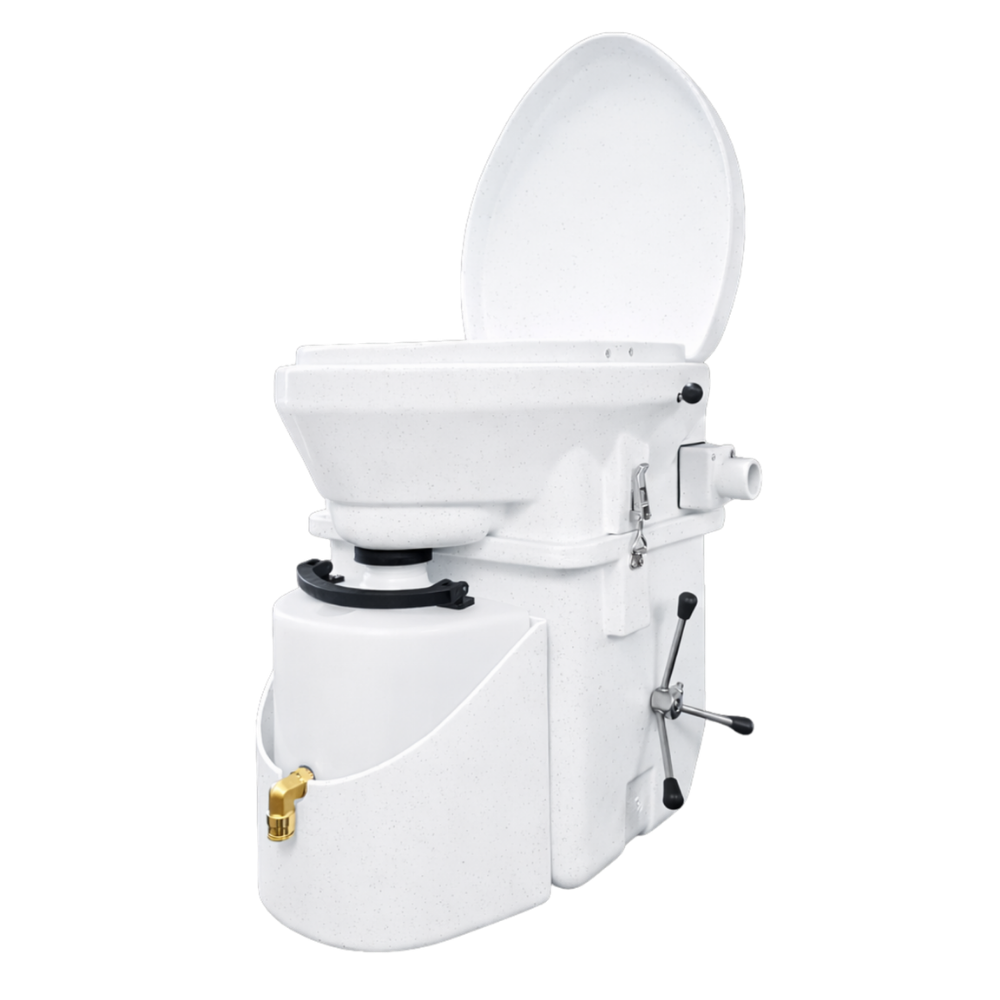

Nature's Head® Urine Diverter Composting Toilet — Spider Handle or Foot Spider Handle

Product Description The Nature's Head® Urine Diverter Toilet is built on the same proven, self-contained composting toilet design trusted for off-grid sanitation — with one key upgrade. Instead of storing liquid waste in an onboard bottle, this model includes an integrated urine diverter system that routes liquid waste directly to an external tank or containment area via a hose connection. The result is significantly reduced maintenance frequency and a seamless fit for any installation already utilizing a gray water tank.

Compact at 21"H x 20"W x 19"D and weighing just 23 lbs., this waterless toilet is well-suited for RVs, boats, cabins, tiny homes, and off-grid structures where efficient waste management matters. Like all Nature's Head systems, it separates liquid and solid waste at the source to reduce odors and support the composting process. The solids bin holds approximately 60–80 solid uses before emptying. The urine diverter bottle features a rust-resistant 1/2" NPT brass swivel fitting with 360° movement and a quick-connect hose connection designed to help prevent leaks. The removable diverter kit allows quick access for compost material changes and easy cleaning.

• Waterless, self-contained composting toilet based on the proven Nature's Head design
• Integrated urine diverter system routes liquid waste to an external tank — reduces how often liquid waste needs to be emptied

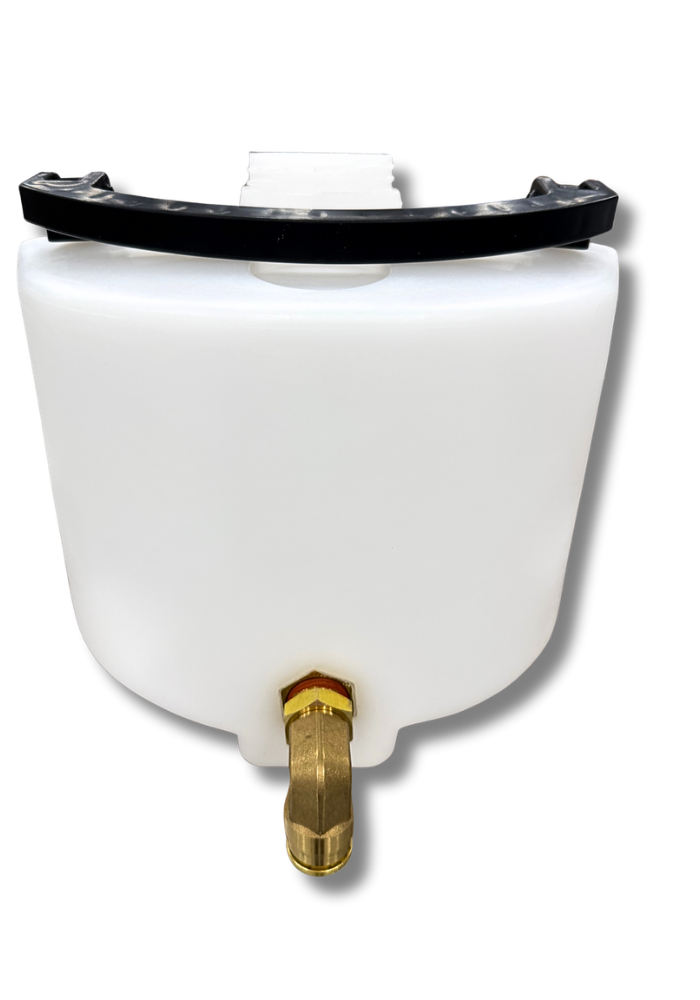

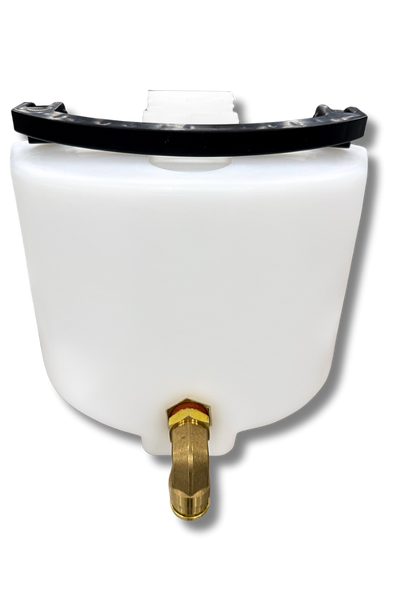

• Urine diverter bottle with 1/2" NPT brass swivel fitting featuring 360° movement and quick-connect hose connection

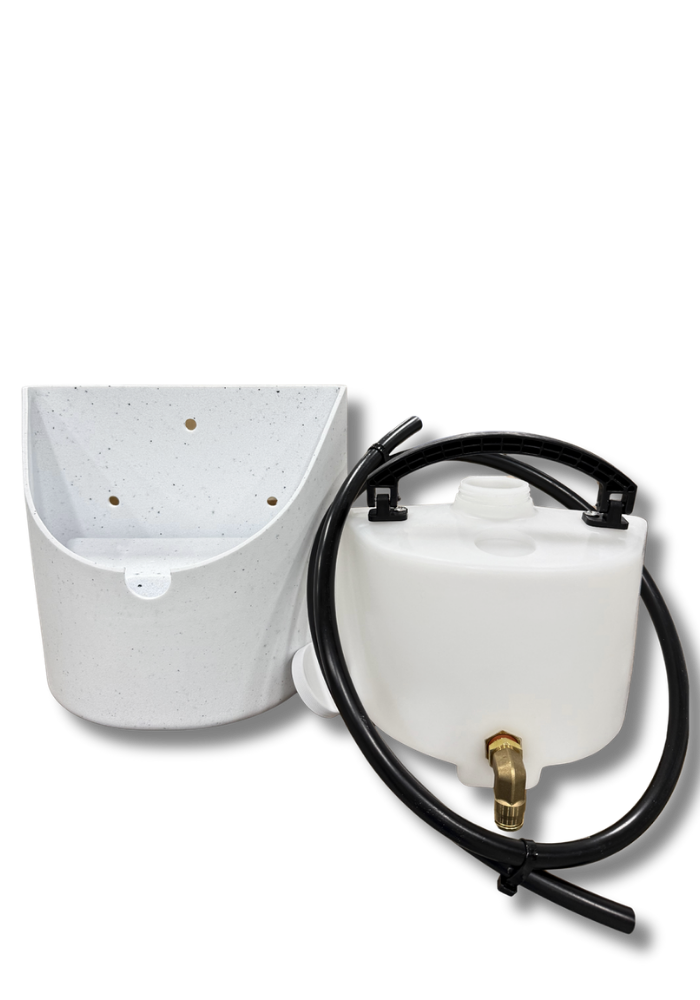

• Removable urine diverter kit for easy access during compost changes and cleaning
• Compatible with existing gray water systems — route urine directly into your wastewater setup
• Separates liquid and solid waste to reduce odors and support efficient composting
• Solids bin holds approximately 60–80 solid uses before emptying (varies by composting medium and conditions)
• Available in Spider Handle or Foot Spider Handle configuration
• Spider Handle: hand-operated with plastic knobs for easy grip
• Foot Spider Handle: looped handle ends operable by hand or foot
• Compact and lightweight — 23 lbs., 21"H x 20"W x 19"D
• 12V fan pre-installed for continuous ventilation
• White granite color
• Ideal for RVs, boats, cabins, tiny homes, and off-grid living

Specifications

What's In The Box?

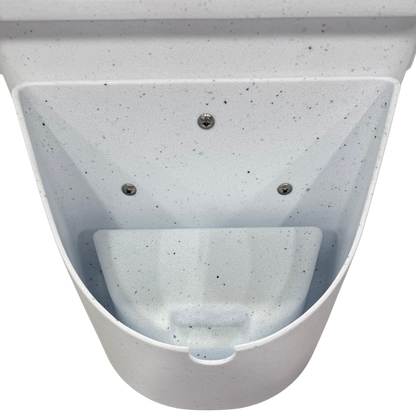

Toilet (white granite color) Urine diverting bottle with hose fitting Bottle holder Inside vent flange Agitator handle (Spider Handle or Foot Spider Handle, depending on selected option) Allen wrench (for handle installation) (2) mounting brackets with knobs and screws 18" single pin cable for 12V fan hookup (fan pre-installed on unit) Fuse and fuse holder for 12V application 5 feet of 1½" hose with ends 5 ft. polyurethane hose (for urine diverter system) Spray bottle Installation and User Guide Warranty Card

FAQs

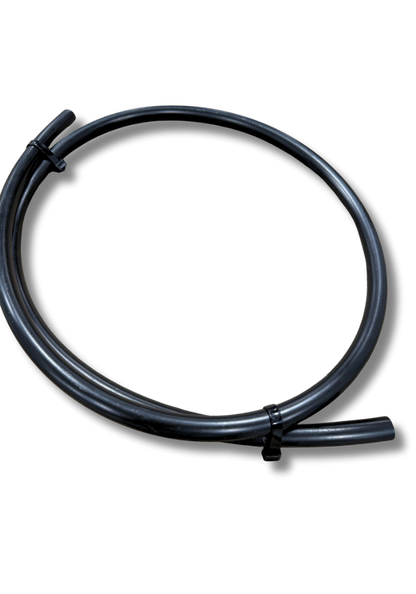

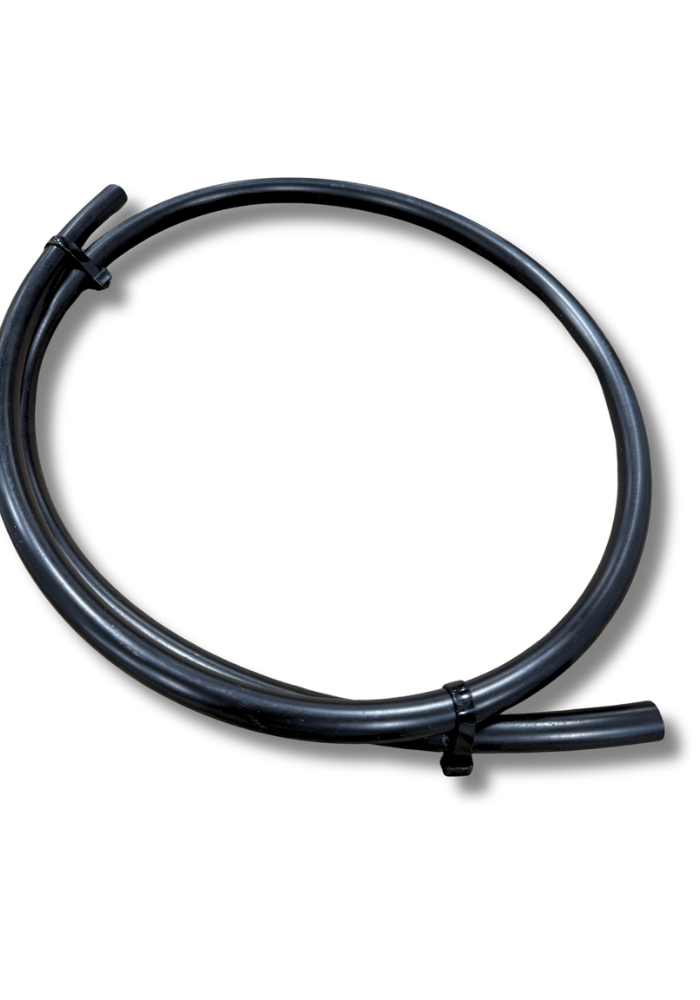

Q: How does the urine diverter system work? A: The urine diverter replaces the standard liquids bottle with a specially designed diverter bottle equipped with a hose fitting. Liquid waste is routed through a 5 ft. polyurethane hose to an external tank or containment area, eliminating the need to frequently empty an onboard bottle. The 1/2" NPT brass swivel fitting offers 360° movement so the hose can be directed in whatever direction best suits your installation.

Q: Can the urine diverter be connected to a gray water tank? A: Yes. The urine diverter is especially well-suited for installations that already utilize a gray water system, allowing liquid waste to be routed directly into the existing wastewater setup instead of requiring a separate container.

Q: Is the urine diverter kit removable? A: Yes. The urine diverter kit is removable, allowing quick access for compost material changes and easy cleaning.

Q: What is the difference between the Spider Handle and Foot Spider Handle options? A: The Spider Handle is designed to be operated by hand with plastic knobs for easy grip. The Foot Spider Handle features looped handle ends that can be operated by hand or foot for added convenience. Both options effectively mix the composting medium.

Q: How often does the solids bin need to be emptied? A: The solids bin holds approximately 60–80 solid uses before emptying, though this varies depending on the composting medium used and operating conditions.
