Jackery Explorer 5000 Plus + 5000 Plus Battery Pack + Smart Transfer Switch
Jackery Explorer 5000 Plus + 5000 Plus Battery Pack + Smart Transfer Switch
SKU: 60-505000-US00013
- Regular price
- Price: $6,999.00
- Regular price
- List Price: $7,699.00
- Sale price
- Price: $6,999.00
- Unit price
- per
Couldn't load pickup availability
Low stock: 3 left
- Free Shipping - Quick and Easy
- Enjoy Tax-Free Shopping (Excludes NY)
- Easy 30 Day Returns
Price Guarantee
Price Guarantee
At PowerGen Store, we are committed to offering you the best prices online. If you find a lower price at another online store within two months of your purchase, just let us know.
Click Here to review full Price Guarantee Policy
Shipping Policy
Shipping Policy
At PowerGen Store, we are dedicated to ensuring our customers enjoy a smooth and efficient shipping experience. As a special benefit for our valued customers, we are pleased to offer FREE SHIPPING to United States. To guarantee timely delivery of your orders, we have built a comprehensive network of couriers. Please see the detailed information below regarding our shipping Policy.
Click Here to read out full Shipping Policy
Return Policy
Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Click Here to review our full Returns Policy
PRODUCT DESCRIPTION
Description

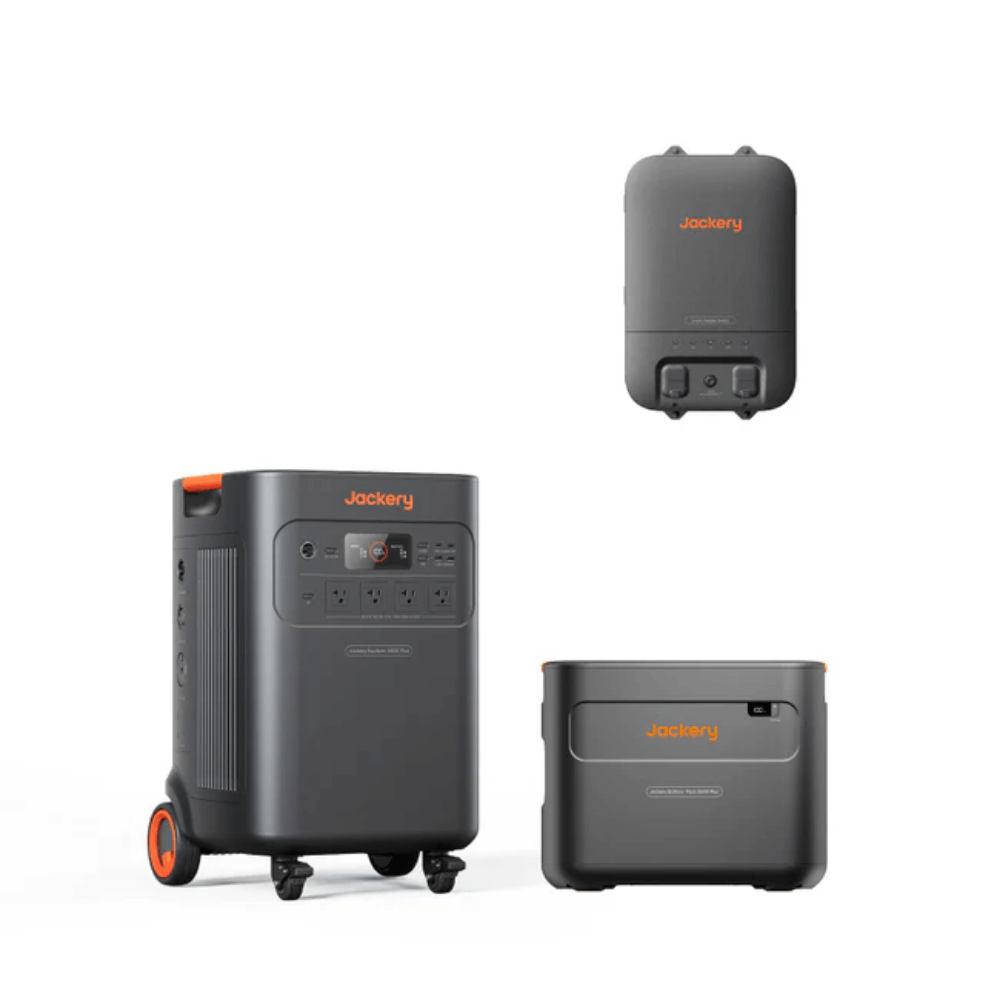

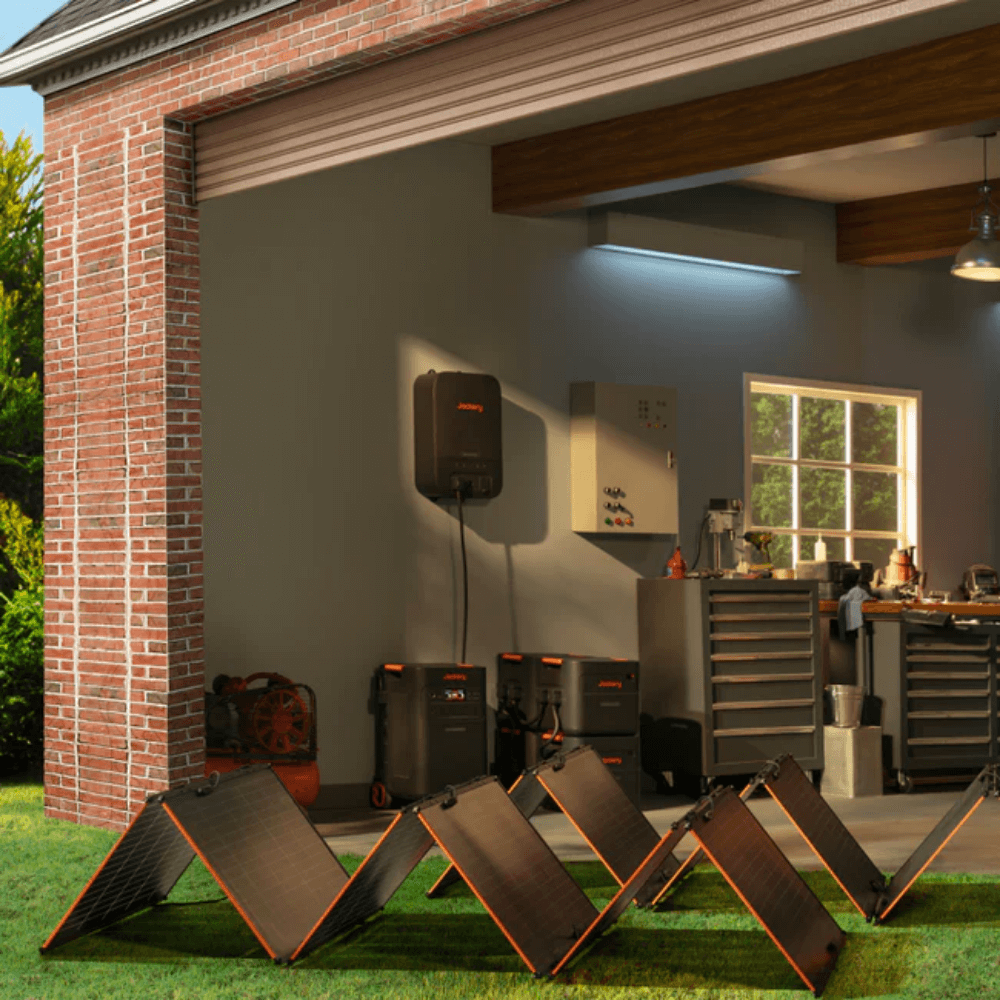

Whole-Home Backup Power Starts Here: Jackery Explorer 5000 Plus + 5000 Plus Battery Pack + Smart Transfer Switch
Experience uninterrupted, scalable, and intelligent power with the Jackery Explorer 5000 Plus + 5000 Plus Battery Pack + Smart Transfer Switch. Built for whole-home energy independence, this high-capacity solution delivers seamless backup, smart control, and extended runtime during outages, emergencies, or off-grid living. Designed for flexibility and power-hungry demands, it's the most advanced residential backup system Jackery has ever built.
Features and Benefits:
Massive Power Capacity: The Explorer 5000 Plus and companion Battery Pack deliver a combined 10 kWh of LiFePO4 energy storage for powering your entire home.
Expandable System: Easily add more battery packs to scale capacity up to 40 kWh to fit long-term backup or off-grid needs.
Seamless Power Transfer: The Smart Transfer Switch ensures automatic switchover to battery power within milliseconds—keeping lights, refrigerators, medical equipment, and routers running without disruption.
Smart App Control: Monitor usage, check status, and manage energy from anywhere with Jackery’s mobile app.

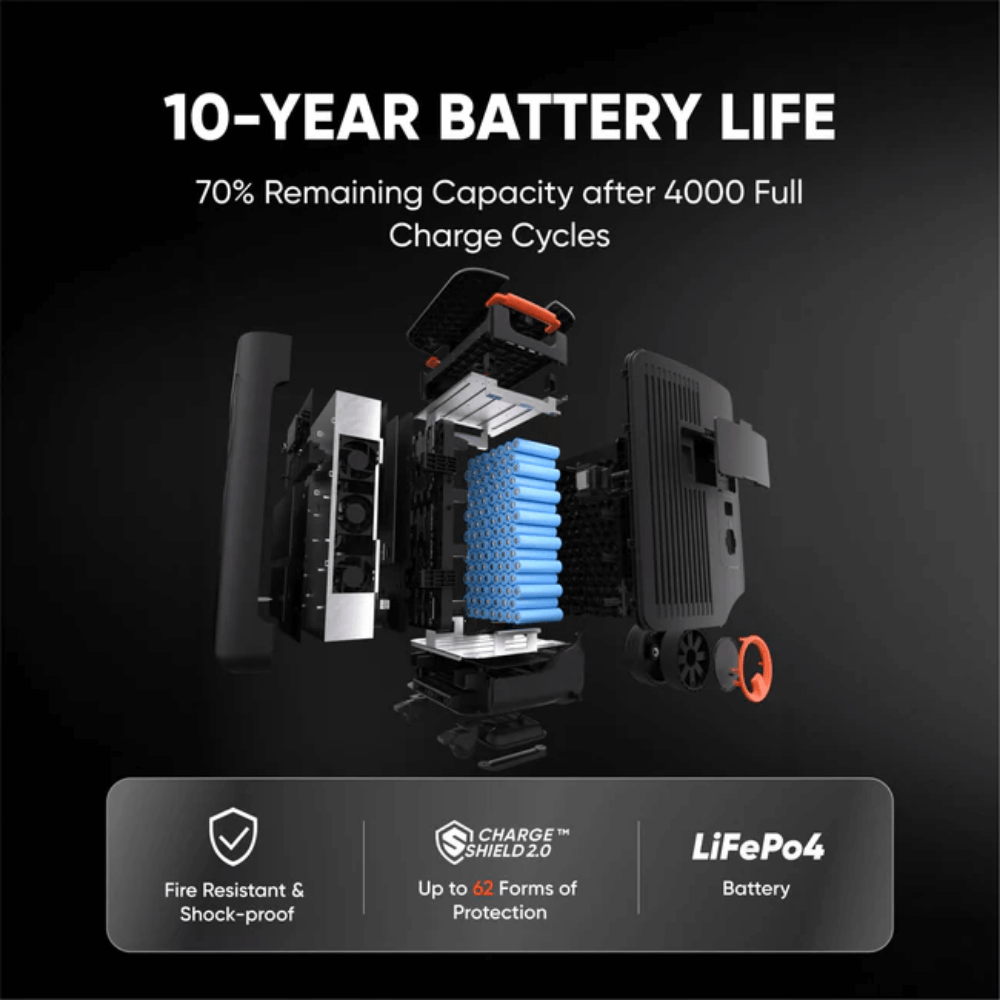

Durable, Long-Life Battery: Premium LiFePO4 battery chemistry ensures 4000+ cycles for reliable use over 10+ years.
Eco-Friendly and Silent: Delivers clean, quiet power with no fumes, noise, or fuel required.
All-in-One Backup Kit: The Jackery Explorer 5000 Plus + 5000 Plus Battery Pack + Smart Transfer Switch offers complete peace of mind in a single, easy-to-use package.
Perfect for emergency readiness or sustainable energy independence, this kit turns your home into a resilient power hub—ready for anything.
Specifications

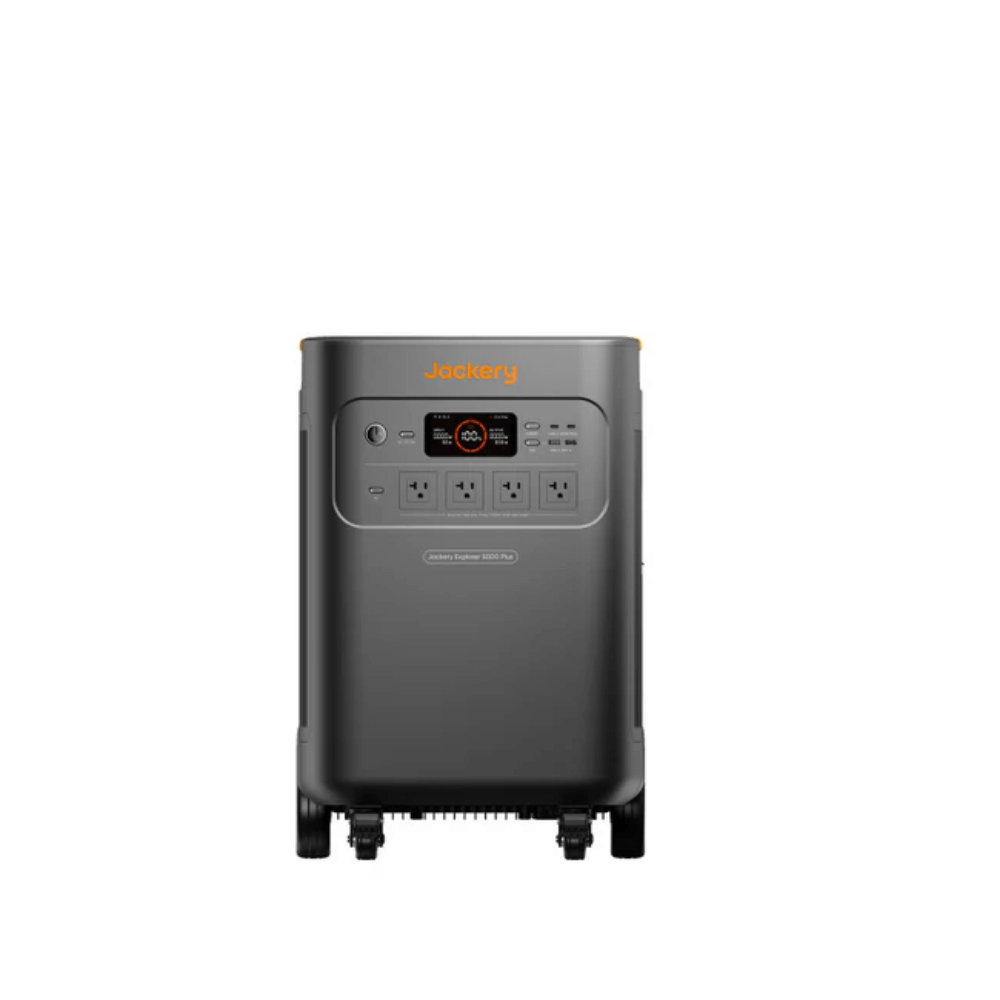

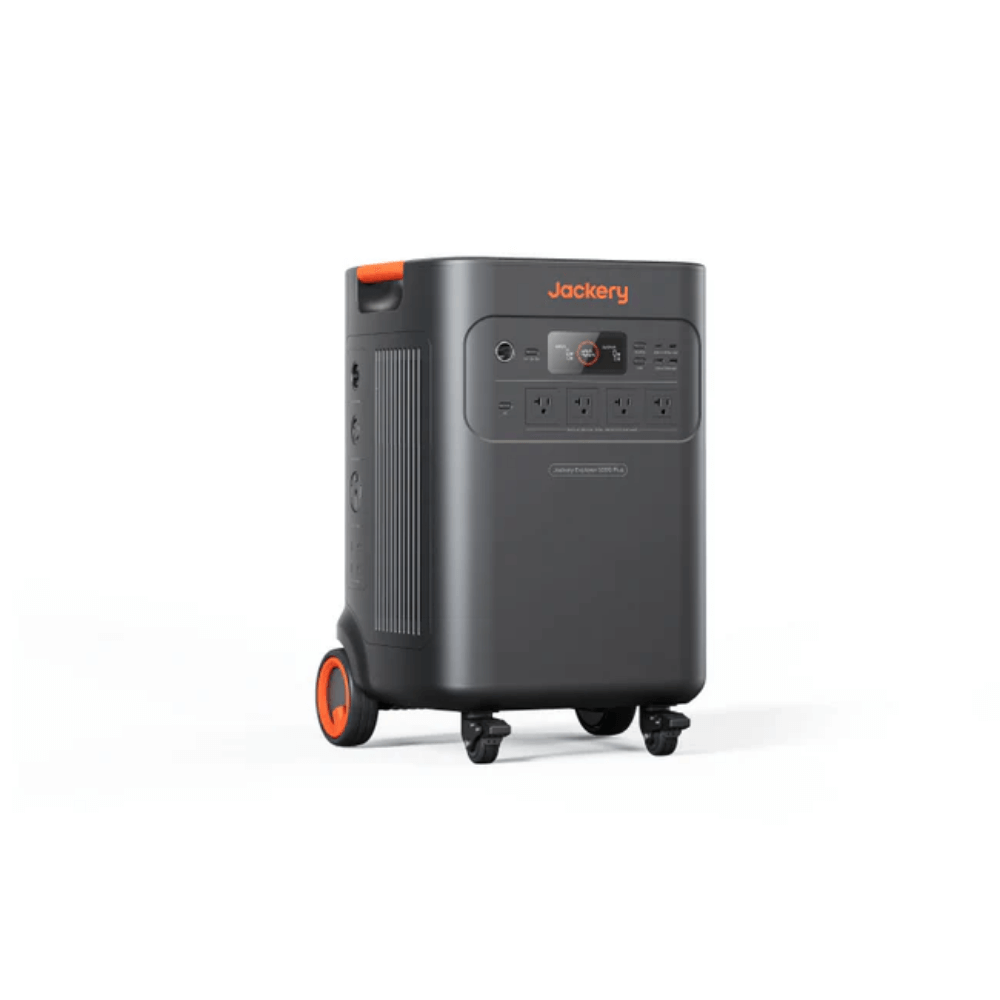

Jackery Explorer 5000 Plus
| Category | Specification |
|---|---|
| General | |
| Weight | About 134.5 lbs (61 kg) |
| Dimensions | 16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm |
| Charge Temperature | 32 |
| Discharge Temperature | 5 |
| Warranty | 5 Years |
| Battery | |
| Capacity | 45Ah / 112V DC (5040 Wh) |
| Cell Chemistry | LiFePO4 |
| Cycle Life | 4000 cycles to 70%+ capacity |

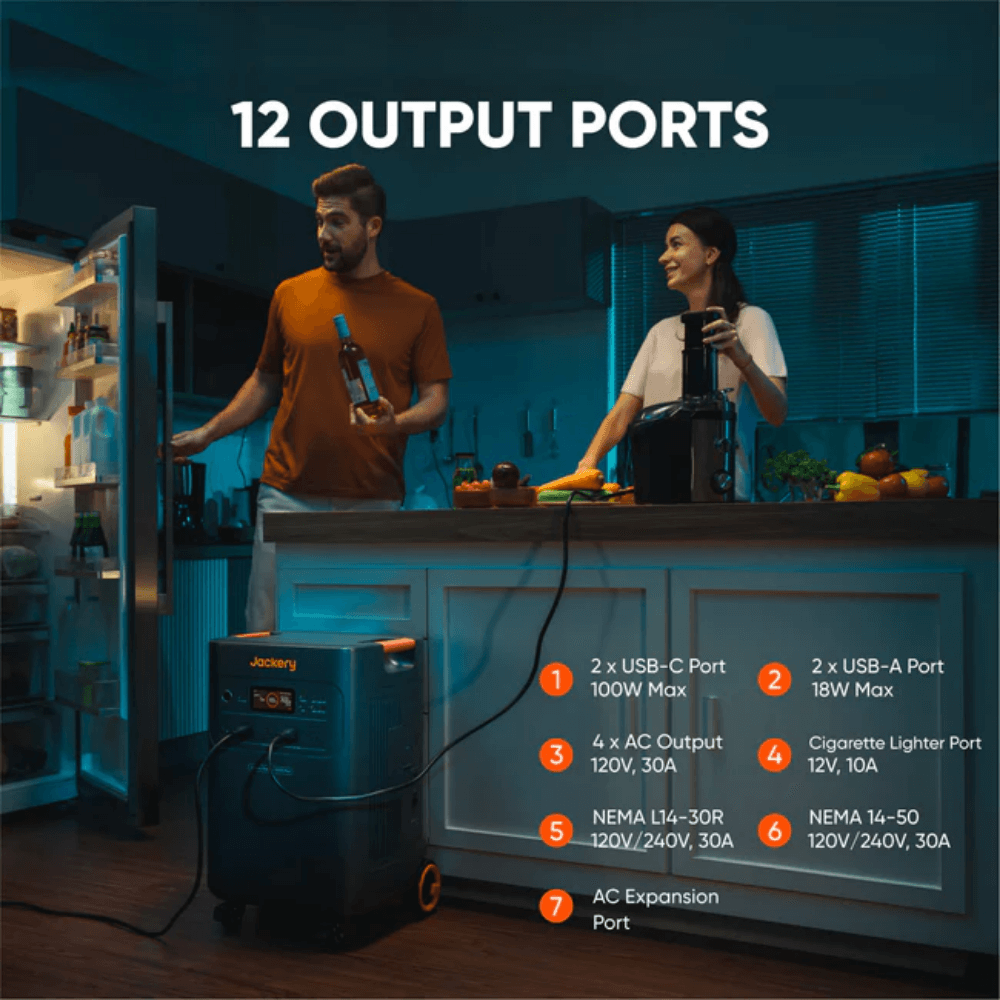

| Output Ports | |
| AC Output | (4x) 120V, 20A, 2400W (1x) NEMA L14-30R/14-50: 120V/240V ~ 60Hz, 30A, 7200W Max |
| AC Total Output | 7200W Max, 14400W Surge |
| USB-C Output | (2x) 100W Max: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A |
| USB-A Output | (2x) 18W Max: 5–6V⎓3A, 6–9V⎓2A, 9–12V⎓1.5A |
| Car Port (Cigarette) | 12V⎓10A |
| AC Expansion Port | 240V ~ 60Hz, 30A, 7200W |
| DC Expansion Port | 80.5V–126V⎓41A Max |
| Input Ports | |
| AC Input (Charge Mode) | 120V ~ 60Hz, 15A Max |
| AC Input/Output (Bypass) | 120V ~ 60Hz, 12A Max240V ~ 60Hz, 16.7A Max |
| AC Expansion Port (Input) | 240V ~ 60Hz, 16.7A Max |
| DC Expansion Input | 80.5V–126V⎓98A Max |
| High-PV Input | 135V–450V⎓15A Max |
| Low-PV Input | (2x) DC 8mm Ports: 16–60V⎓10.5A Max (Double to 21A / 1200W Max)11–16V⎓8A Max (Double to 8A Max) |
| Charging Time | |
| AC Adapter | 3.5 Hours |
| Car Adapter | Not Supported |
| Other Specifications | |

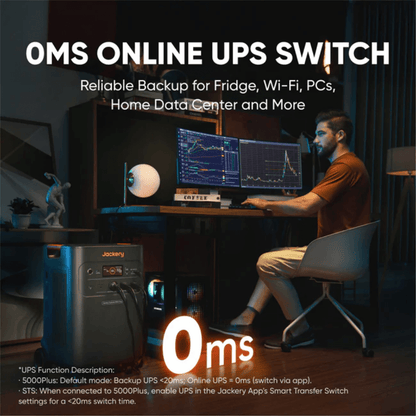

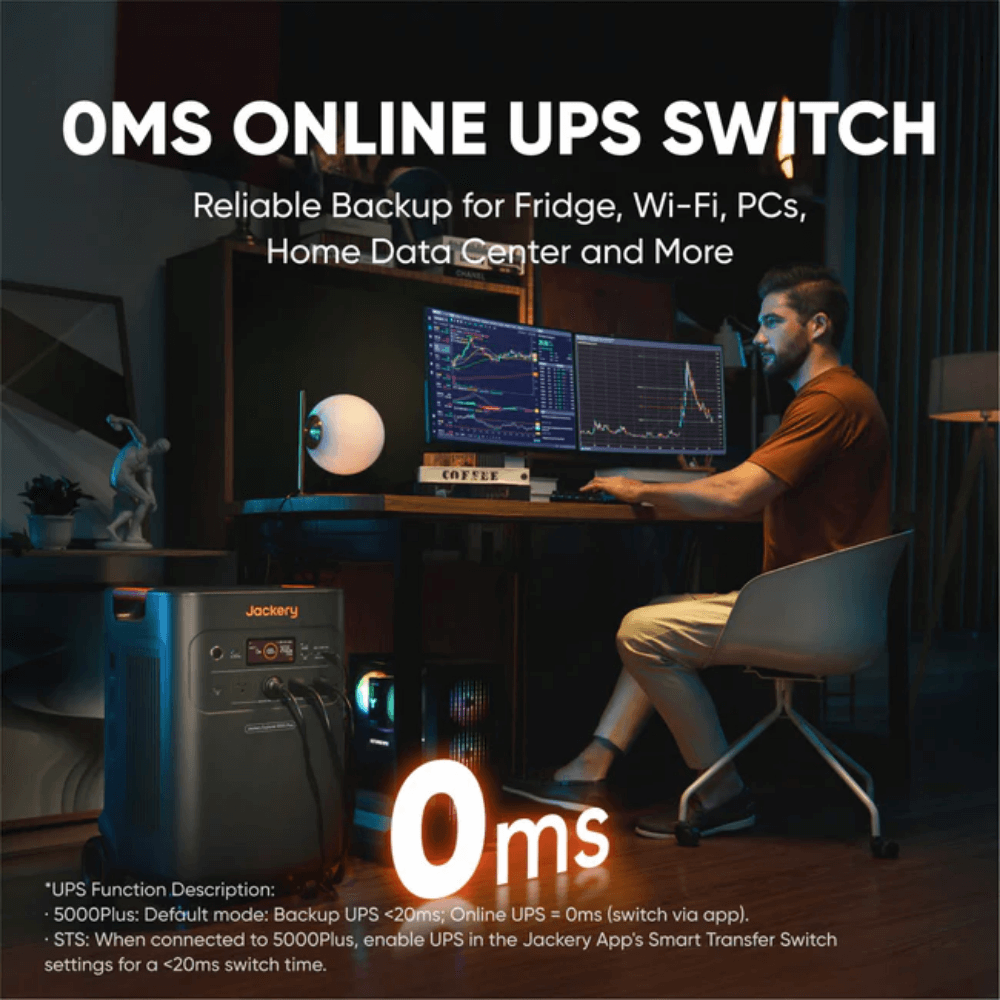

| UPS | Backup: <20ms, Online: 0ms |
| Inverter Topology | Non-isolated |
| Power Factor | ≥0.98 |
| Entire Unit Type | Type 1 |
Jackery Battery Pack 5000 Plus
| Category | Specification |
|---|---|
| General | |
| Capacity | 45Ah / 112V DC (5040 Wh) |
| Weight | About 81.57 lbs (37 kg) |
| Dimensions | 16.5 × 13.5 × 13.2 in / 41.8 × 34.4 × 33.6 cm |
| Battery Lifecycles | 4000 cycles to 70%+ capacity |
| Warranty | 5 Years |
| Charge Temperature | 32 |
| Discharge Temperature | 5 |
| Ports | |
| DC Expansion Port Input | 80.5V–126V⎓41A Max |
| DC Expansion Port Output | 80.5V–126V⎓98A Max |
Jackery Smart Transfer Switch
| Category | Specification |
|---|---|
| General | |
| Dimensions | 22 × 14.7 × 7.87 in / 56 × 37.4 × 20 cm |
| Weight | About 25.57 lbs (11.6 kg) |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Ports | |
| AC Voltage (Nominal) | 120V / 240V ~ 60Hz |
| Feed-In Type | Split Phase |
| Max Input Current | 100A (Grid) / 60A (Power Station) |
| Max Output Current | 60A (Home Load) / 33.4A (Power Station) |
| Max Input Short-Circuit Current | 10KA |
| Overvoltage Category | IV |
| UPS | ≤20ms |
| Enclosure Type | NEMA Type 1 |
| Number of Load Branches | 12 |
| Main Circuit | 2 AWG |
| Branch Circuit | 14 AWG, 12 AWG, 10 AWG |
| Communication | Wi-Fi and Bluetooth |
