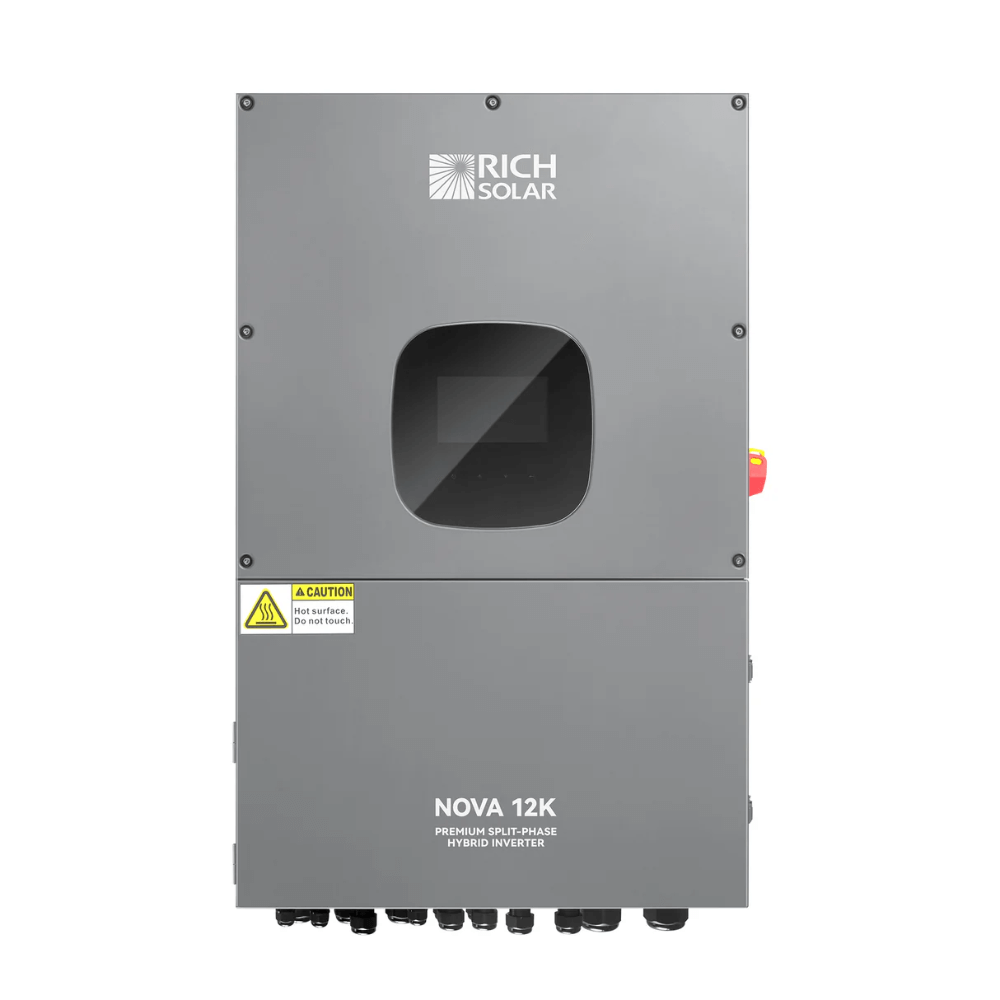

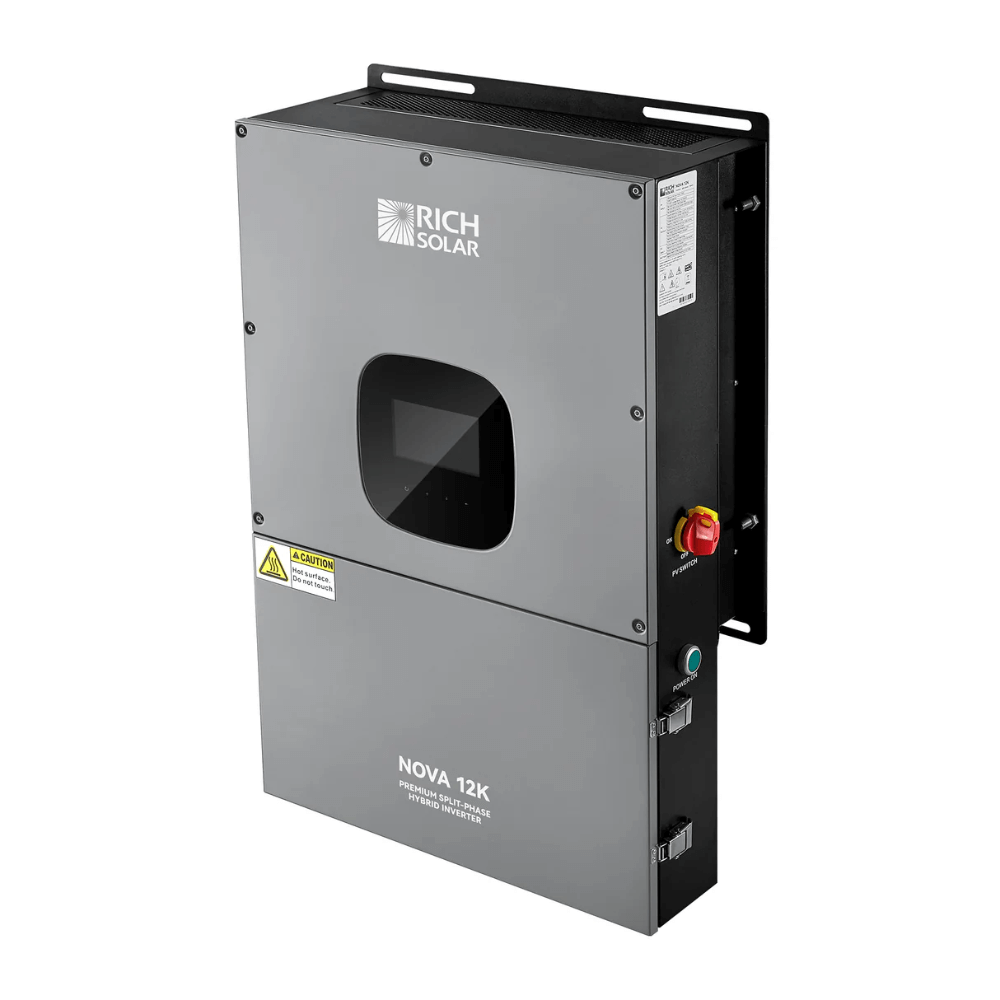

RICH SOLAR - NOVA 12K - 12000 Watt 48V Split Phase Hybrid Inverter – Maximum Power, Ultimate Control
The RICH SOLAR - NOVA 12K - 12000 Watt 48V Split Phase Hybrid Inverter delivers exceptional off-grid and hybrid performance for residential and commercial solar systems. With advanced real-time monitoring, scalable parallel design, and full BMS integration, it ensures long-lasting, efficient power management. Built to meet the toughest U.S. safety standards, this inverter combines flexibility, safety, and high efficiency in one powerful solution.
Features and Benefits
- Supports 120/240V or 120/208V split-phase output, making it versatile for home and business systems.
- Handles up to 6 parallel units for scalable power expansion.
- Built-in real-time monitoring via WiFi and mobile app for complete energy visibility.
- BMS integration ensures smart battery management and extended battery life.

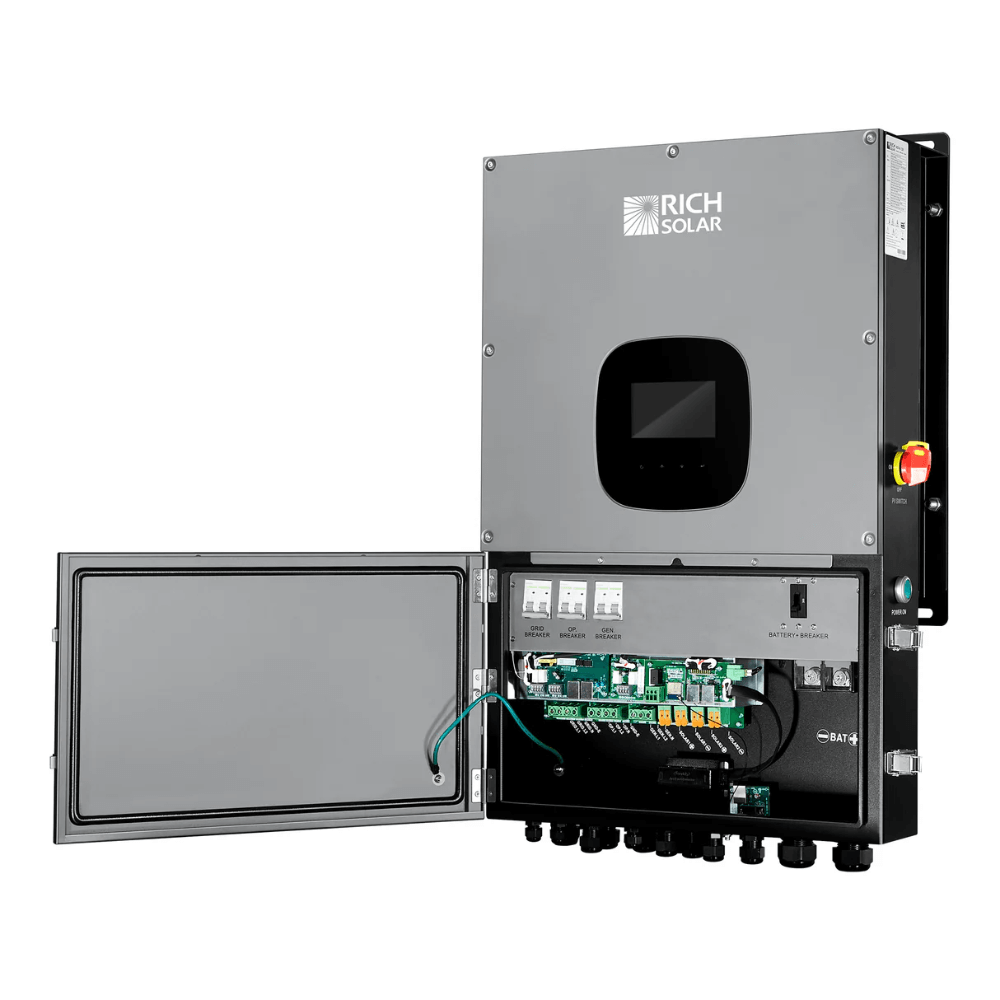

- Integrated 300A DC + 60A AC breaker for enhanced system protection.
- 91% DC-to-AC conversion efficiency with pure sine wave output.
- Multi-mode flexibility: grid-tie, off-grid, or hybrid operation.
- Certified to UL, CSA, IEEE, CEC, and FCC standards for compliance and safety.
Specifications
| Category | Specification |
|---|---|
| Input (Solar) | |
| Maximum PV Input Power | 12000W |
| Voltage Range | 120–550VDC |
| Startup Voltage | 125V |
| MPPT Inputs | Dual (2 × 18A, 30A peak) |
| Output (AC) | |
| Rated Output Power | 10000VA / 10000W |
| Nominal Output Voltage | 120VAC (P-N) / 208VAC (P-P) / 240VAC (P-P) |
| Output Voltage Range | 105.5–132VAC per phase |
| Nominal Output Current | 41.7A per phase |
| Efficiency | 91% DC-to-AC |
| Battery | |
| Nominal DC Voltage | 48VDC |
| Battery Voltage Range | 40–62VDC |
| Max Solar Charging Current | 200A |
| Max AC Charging Current | 200A |
| Max Total Charging Current | 200A |
| Safety & Protection | |
| Breakers | 300A DC + 60A AC Integrated |
| Ground Fault Detection | NEC 690.5 |
| AFD/RSD Compliance | NEC 690.11 / 690.12 |
| PV Lightning Protection | Yes |
| Operating Environment | |
| Temperature Range | -13°F to 140°F (derating above 113°F) |
| Protection Degree | IP65 |

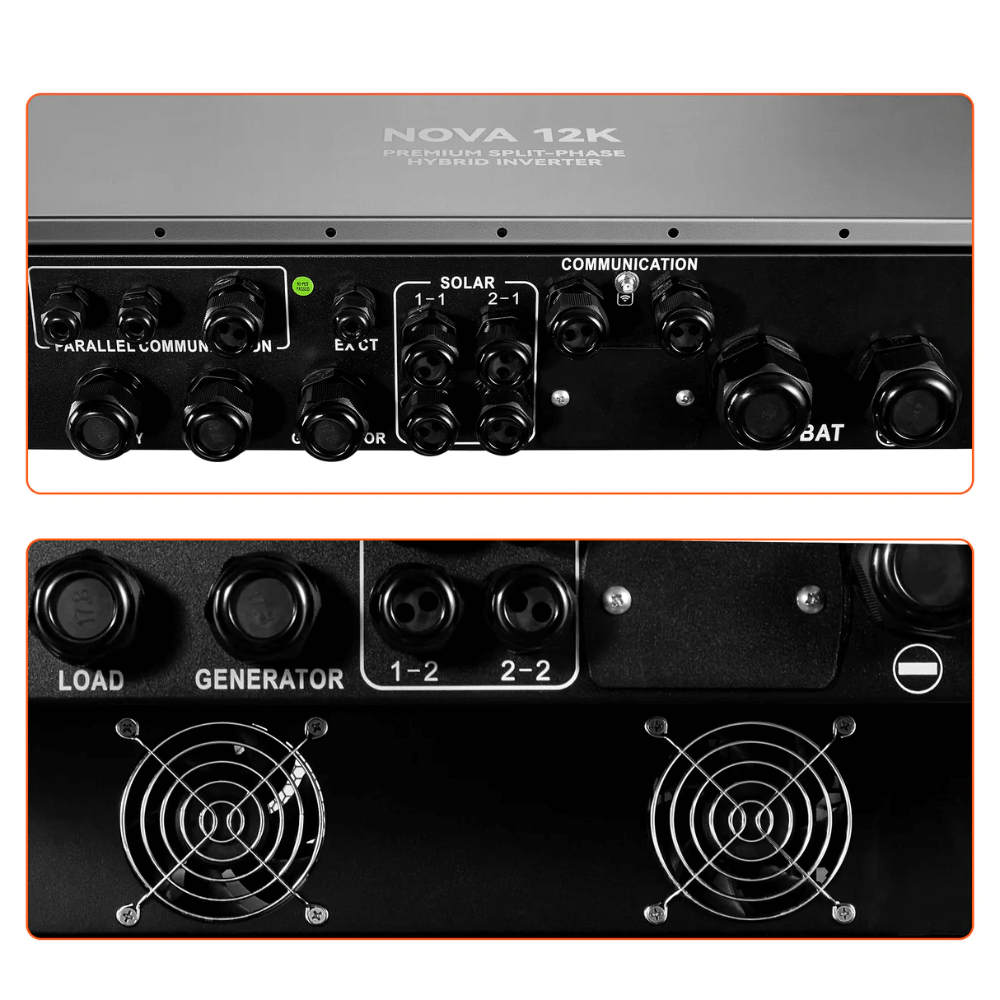

| Communication | RS232, RS485, Wi-Fi, USB |
| Physical | |

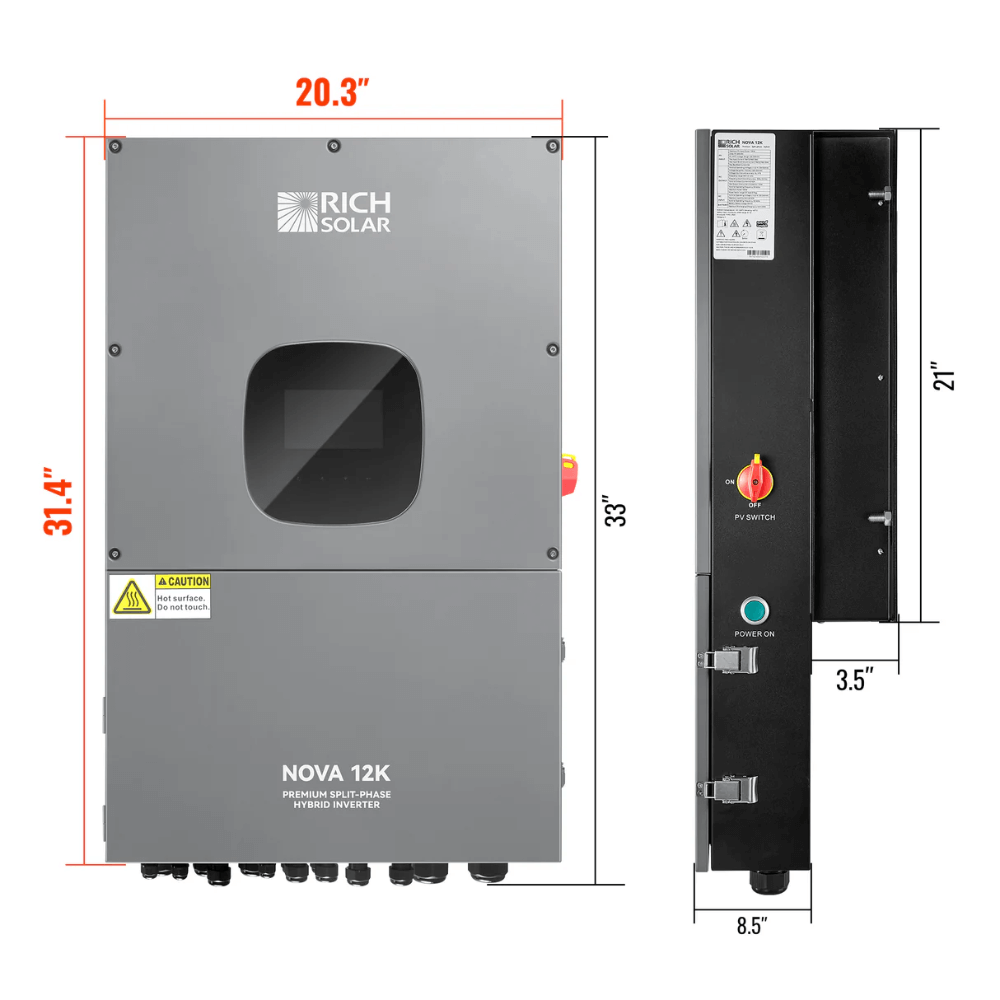

| Dimensions (LxWxH) | 8.5 × 20.3 × 28.1 in (215 × 516 × 714 mm) |
| Net Weight | 112 lb (51 kg) |
| Certifications | |
| Standards | UL 1741SA/SB, CSA C22.2 No.107.1, IEEE 1547 |
| Listings | CEC-listed, FCC Part 15 Class B |
| Grid Compliance | CA Rule 21, HECO Rule 14H |
What’s in the Box
- 1 × RICH SOLAR - NOVA 12K - 12000 Watt 48V Split Phase Hybrid Inverter
- Integrated breakers (DC and AC)
- RS485 communication interface cable
- User manual and installation guide
- Mounting hardware set
FAQs
-
What is the power capacity of the RICH SOLAR - NOVA 12K?
It delivers up to 12000W PV input and 10000W AC output, making it ideal for large residential or commercial solar systems. -
Can this inverter work with batteries?
Yes, it integrates seamlessly with 48V battery banks and supports full BMS communication. -
Does it support grid-tied and off-grid applications?
Yes, the NOVA 12K operates in grid-tie, off-grid, or hybrid modes for maximum flexibility. -
Can I expand the system if I need more power?
Yes, up to six units can be connected in parallel to scale system capacity. -
How is the inverter protected against faults?
It includes ground fault detection, lightning protection, integrated breakers, and AFD/RSD compliance for maximum safety. -
Is it compliant with U.S. standards?
Yes, it meets UL, CSA, IEEE, CEC, FCC, CA Rule 21, and HECO Rule 14H requirements. -
Does it have remote monitoring?
Yes, it supports WiFi connectivity and mobile app access for real-time system monitoring.
