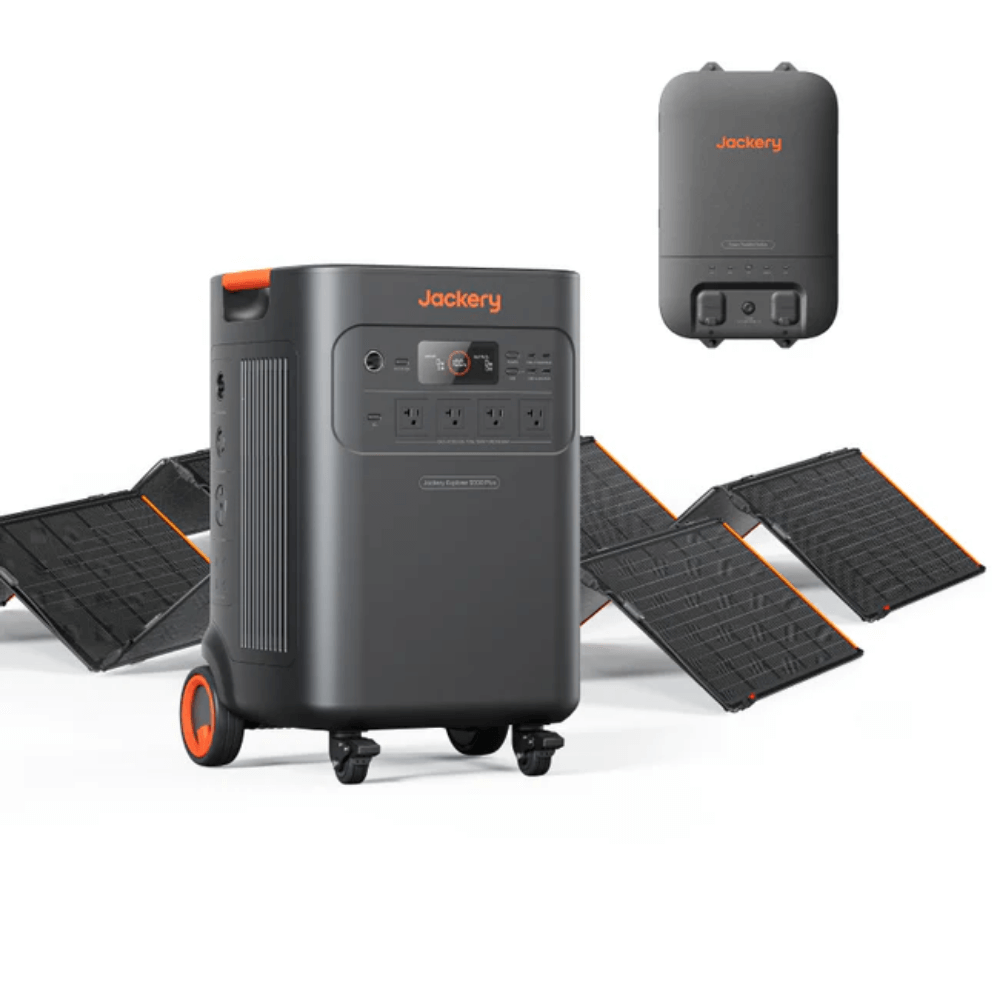

Jackery Explorer 5000 Plus + Solar Saga 500X x 2 + Smart Transfer Switch
Jackery Explorer 5000 Plus + Solar Saga 500X x 2 + Smart Transfer Switch
SKU: 60-5050-USA112
- Regular price
- Price: $5,199.00
- Regular price
- List Price: $6,499.00
- Sale price
- Price: $5,199.00
- Unit price
- per
Couldn't load pickup availability
Low stock: 3 left
- Free Shipping - Quick and Easy
- Easy 30 Day Returns
Manufacture's Warranty
Manufacture's Warranty
Manufactures Warranty - PowerGen Store is an Authorized Dealer for all of our Suppliers, so every product you purchase includes the Full Manufactures Warranty provided directly by the Manufacturer. See Manufacture's Website for More Details
Price Guarantee
Price Guarantee
At PowerGen Store, we are committed to offering you the best prices online. If you find a lower price at another online store within two months of your purchase, just let us know.
Click Here to review full Price Guarantee Policy
Shipping Policy
Shipping Policy
At PowerGen Store, we are dedicated to ensuring our customers enjoy a smooth and efficient shipping experience. As a special benefit for our valued customers, we are pleased to offer FREE SHIPPING in the Contiguous 48 United States (See below for Alaska & Hawaii). To guarantee timely delivery of your orders, we have built a comprehensive network of couriers. Please see the detailed information below regarding our shipping Policy.
Click Here to read out full Shipping Policy
Return Policy
Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Click Here to review our full Returns Policy
PRODUCT DESCRIPTION
Description

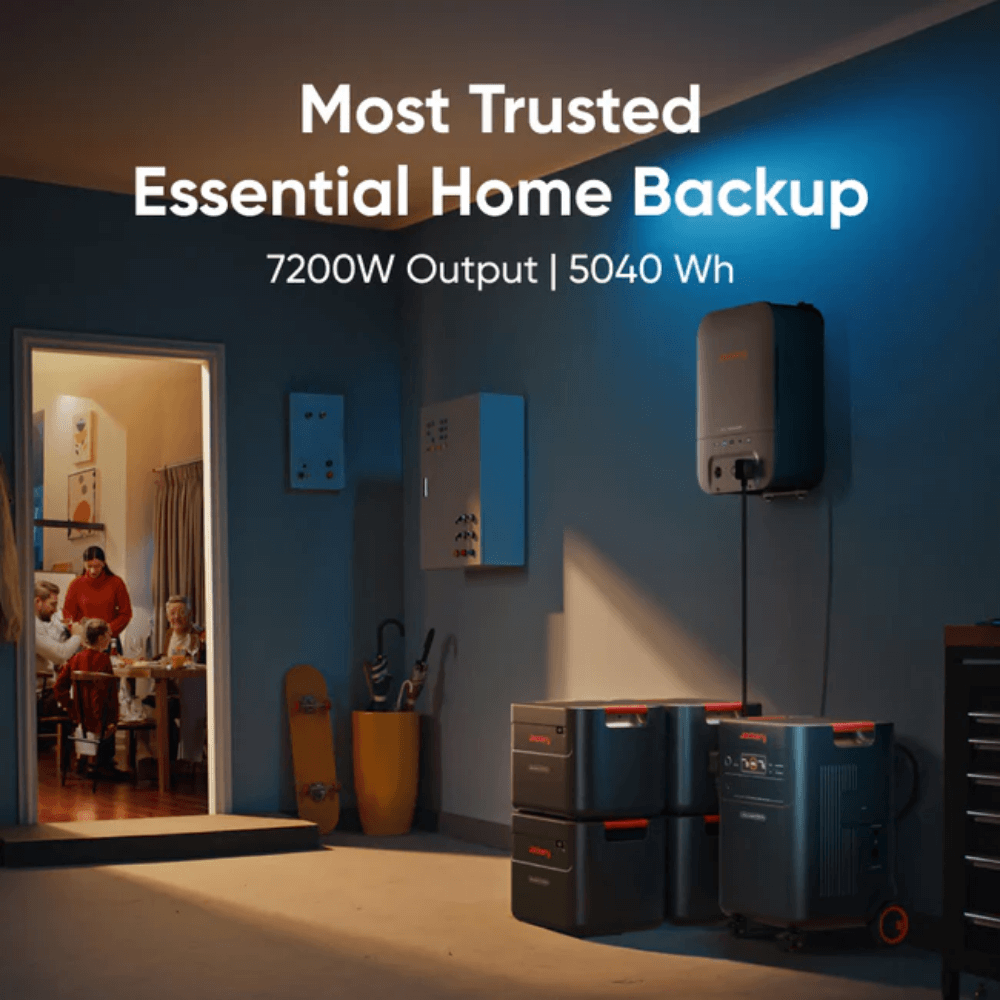

Whole-Home Backup Power Without Compromise

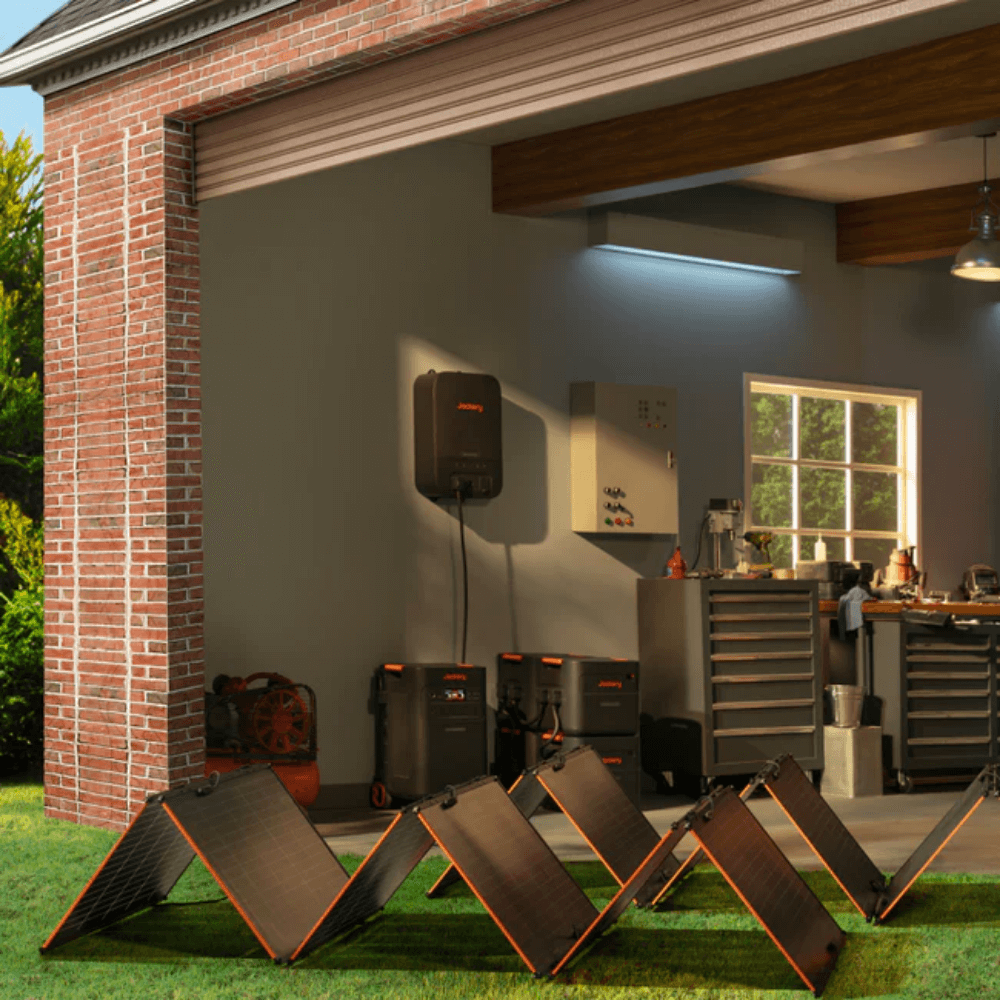

The Jackery Explorer 5000 Plus + Solar Saga 500X x 2 + Smart Transfer Switch bundle delivers the ultimate all-in-one energy solution for your home, RV, or off-grid setup. Whether you're preparing for outages or powering your lifestyle sustainably, this system offers high-capacity storage, fast solar recharging, and seamless integration into your home's electrical panel. Enjoy peace of mind with quiet, reliable, and smart-controlled energy—day or night.
Features & Benefits:
-
Massive Backup Capacity
The Jackery Explorer 5000 Plus offers 5kWh of power with expandable options, capable of running major appliances, tools, and essentials. -
Rapid Solar Charging
Includes 2 Solar Saga 500X panels, optimized for high conversion efficiency and fast recharging to keep you powered longer and more sustainably. -
Smart Power Management
The Smart Transfer Switch provides UPS-level backup with ≤20ms response time, keeping your home running without interruption during outages. -
Seamless Home Integration
Connect directly to your home’s electrical system for automatic load transfer and reliable power wherever it’s needed. -

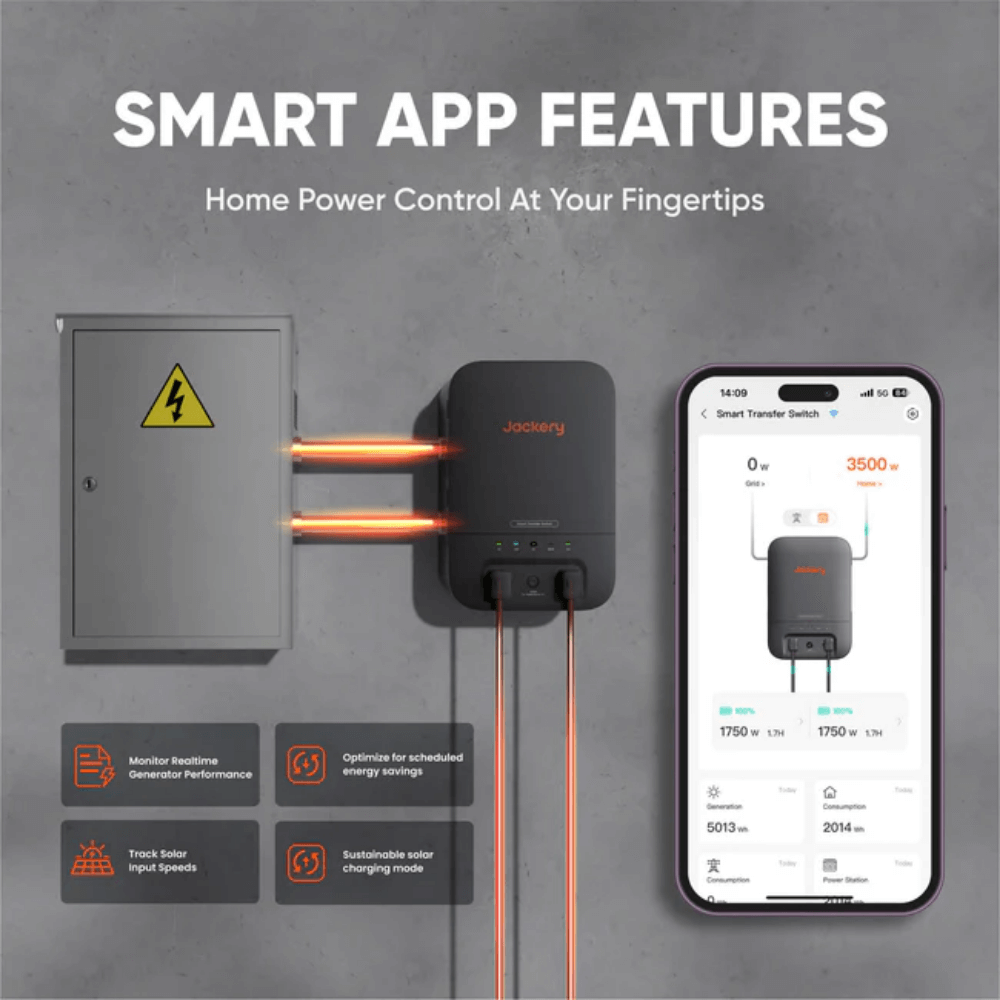

Remote Monitoring
Built-in Wi-Fi and Bluetooth allow for real-time control and energy management via the Jackery app. -

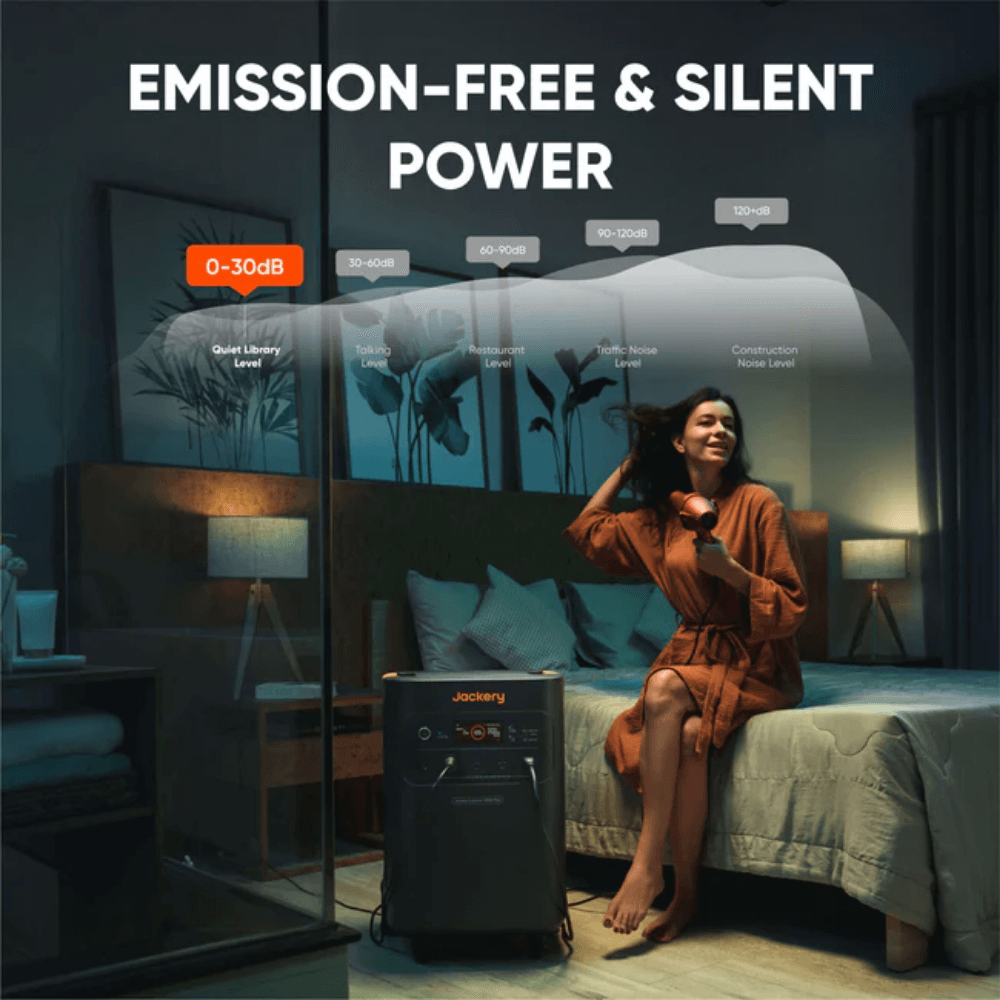

Silent, Emission-Free Operation
No noise, no fumes—ideal for indoor use, emergency scenarios, or off-grid living. - The Jackery Explorer 5000 Plus + Solar Saga 500X x 2 + Smart Transfer Switch bundle is the intelligent, scalable way to take control of your power—whether you're home, away, or off the grid.
Specifications

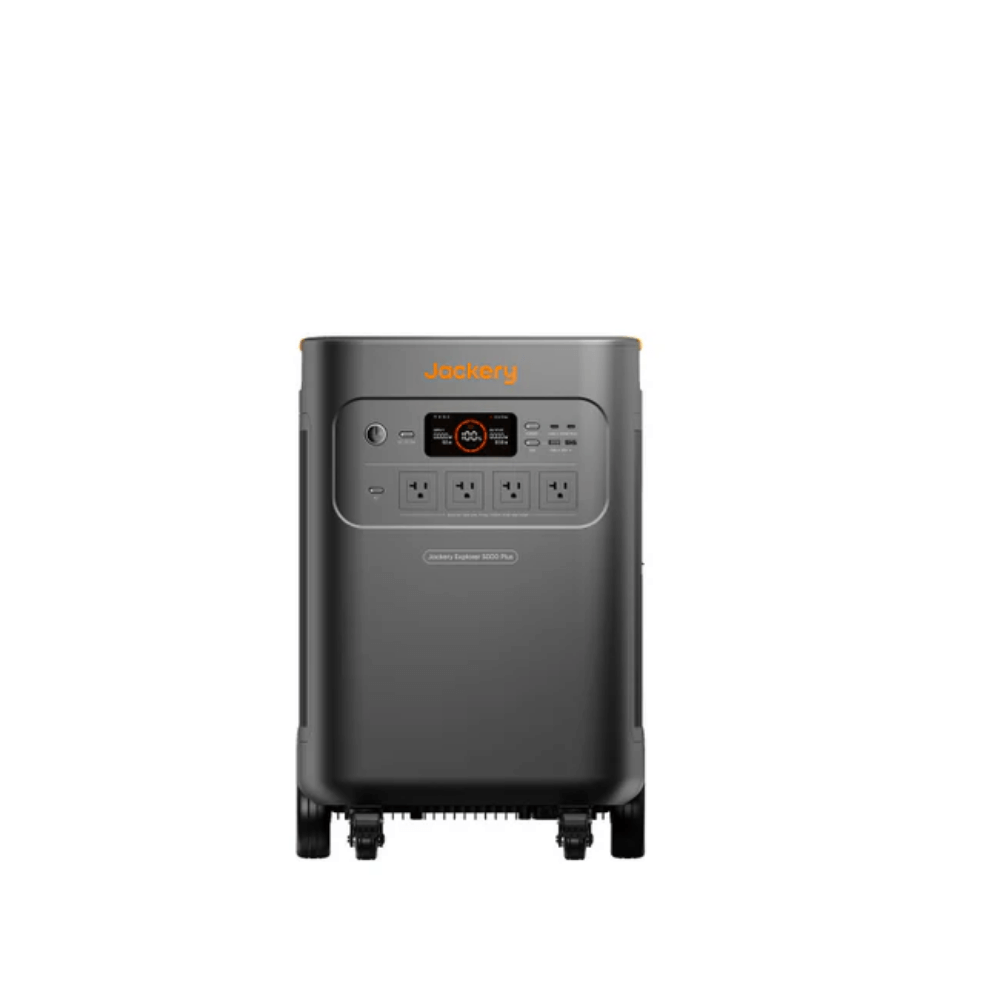

Jackery Explorer 5000 Plus Portable Power Station
| Category | Specification |
|---|---|
| Weight | About 134.5 lbs (61 kg) |
| Dimensions | 16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm |
| Charge Temp | 32 |
| Discharge Temp | 5 |
| Warranty | 5 Years |
| Battery Capacity | 45Ah / 112V DC (5040Wh) |
| Battery Chemistry | LiFePO4 |

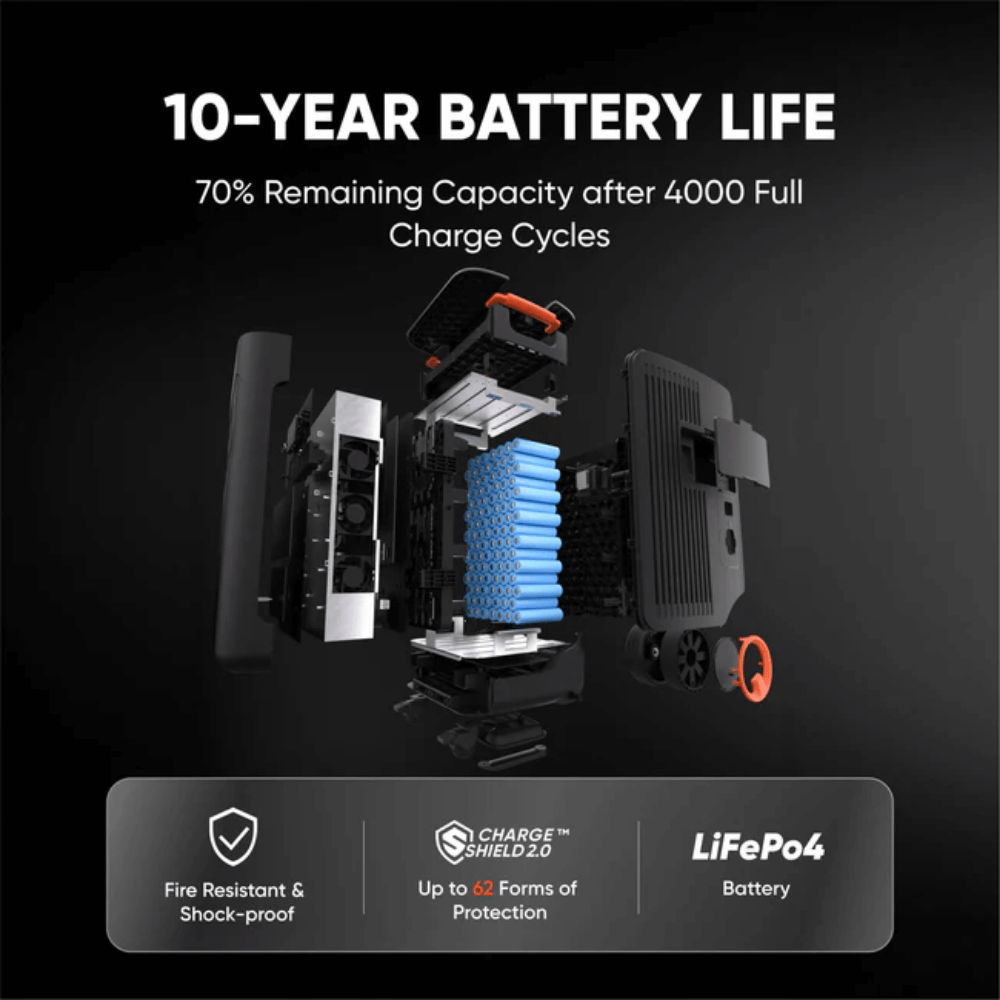

| Cycle Life | 4000 cycles to 70%+ capacity |

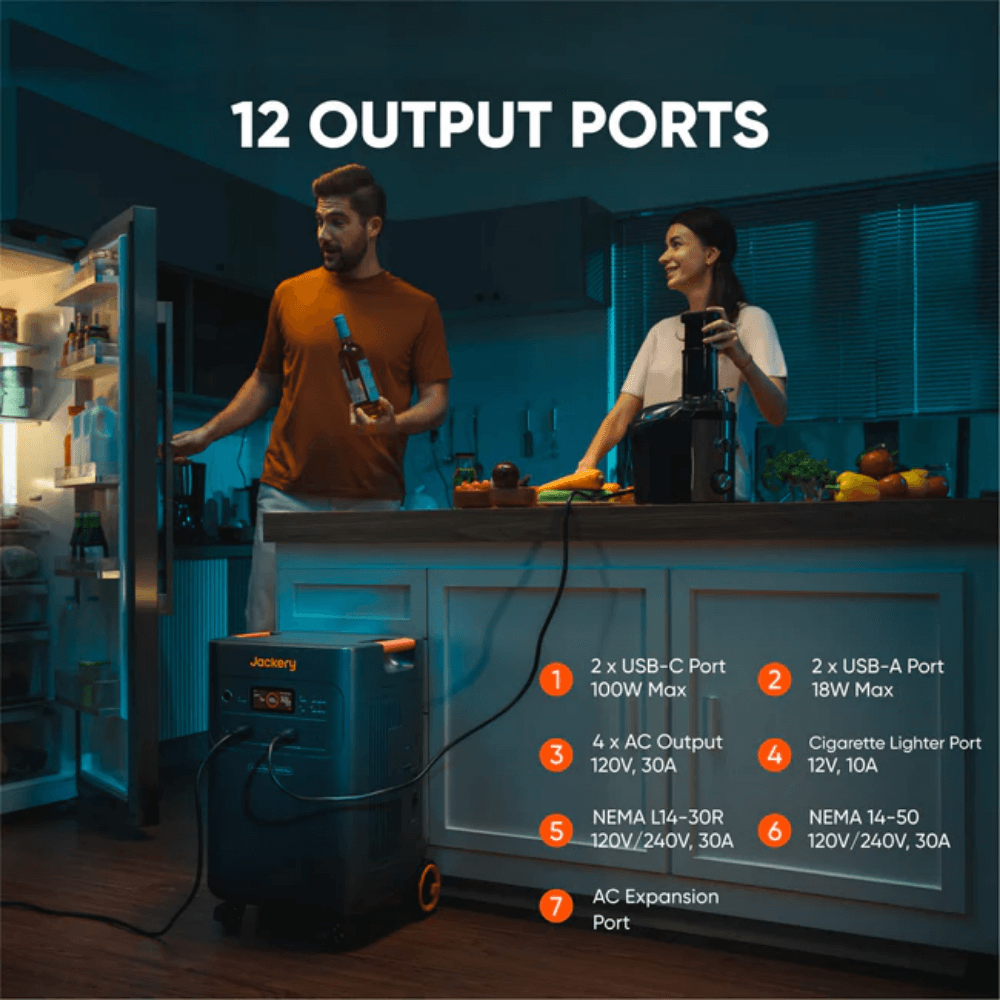

| Type | Specification |
|---|---|
| AC Output (x4) | 120V, 20A, 2400W each |
| AC Output (NEMA) | 120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output | 7200W Max, 14400W Surge |
| USB-C Output (x2) | 100W Max, 5V⎓3A to 20V⎓5A |
| USB-A Output (x2) | 18W Max, 5-12V⎓1.5-3A |
| Cigarette Lighter Port | 12V⎓10A |
| AC Expansion Port | 240V~60Hz, 30A, 7200W |
| DC Expansion Port | 80.5V-126V⎓41A Max |
| Type | Specification |
|---|---|
| Charge Mode AC Input | 120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output | 120V |
| AC Expansion Port (Input) | 240V~60Hz, 16.7A Max |
| DC Input | 80.5V-126V⎓98A Max (Expansion), High PV: 135V-450V⎓15A Max, Low PV: 2×DC 8mm Ports (21A/1200W Max) |
| AC Charge Time | 3.5 Hours |
| Solar Charge Time | 6.5–8.5 Hours |

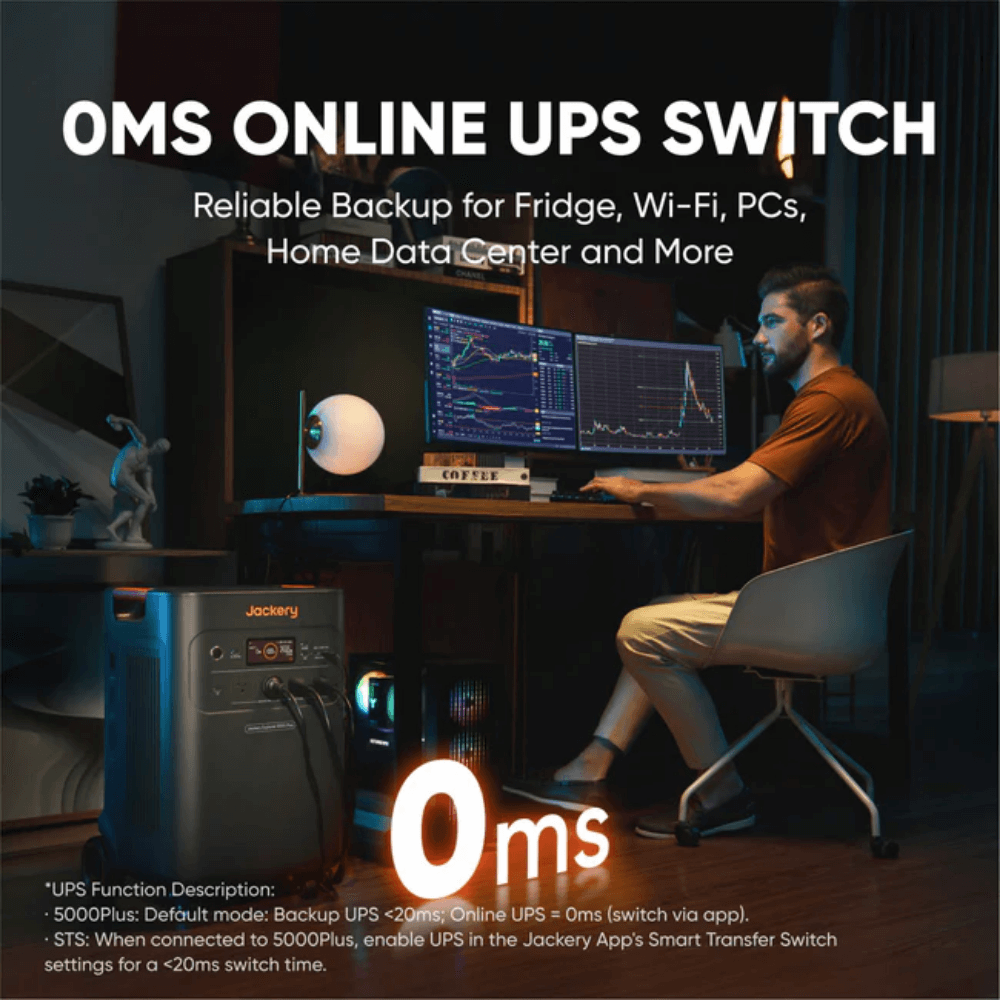

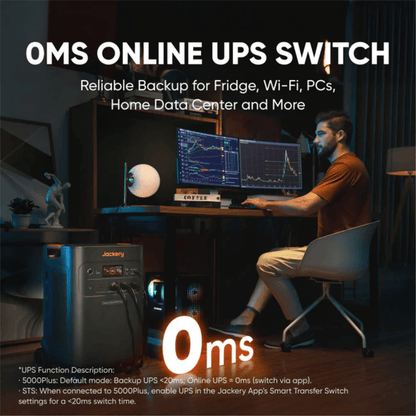

| UPS Response Time | Backup: <20ms, Online: 0ms |
| Power Factor | ≥0.98 |
Jackery SolarSaga 500X (x2)
| Category | Specification |
|---|---|
| Weight | 22.05 ± 2.20 lbs (10.5 ± 0.5 kg) |
| Protection Class | Class II |
| Waterproof | IP68 |
| Operating Temp | -40 |
| Warranty | 5 Years |
| Metric | Specification |
|---|---|
| Peak Power (Pmax) | 500W ±5% |
| Open Circuit Voltage | 48.5V ±5% |
| Short Circuit Current | 13.02A ±5% |
| Power Voltage (Vmp) | 41.7V ±5% |
| Power Current (Imp) | 12.0A ±5% |
| Metric | Specification |
|---|---|
| Peak Power (Pmax) | 545W ±5% |
| Open Circuit Voltage | 49.2V ±5% |
| Short Circuit Current | 13.86A ±5% |
| Power Voltage (Vmp) | 42.5V ±5% |
| Power Current (Imp) | 12.84A ±5% |
Jackery Smart Transfer Switch
| Category | Specification |
|---|---|
| Dimensions | 22 × 14.7 × 7.87 in (56 × 37.4 × 20 cm) |
| Weight | 25.57 lbs (11.6 kg) |
| Operating Temp | -4°F |
| UPS Response | ≤20ms |
| Communication | Wi-Fi and Bluetooth |
| Enclosure Type | NEMA Type 1 |
| Load Branches | 12 |
| AC Voltage (Nominal) | 120V/240V~ 60Hz |
|---|---|
| Feed-In Type | Split Phase |
| Max Input Current | 100A Grid / 60A Power Station |
| Max Output Current | 60A Home Load / 33.4A Power Station |
| Max Input Short-Circuit | 10KA |
| Overvoltage Category | IV |
| Main Circuit | 2 AWG |
| Branch Circuit | 14 AWG / 12 AWG / 10 AWG |
What’s in the Box
- 1 × Jackery Explorer 5000 Plus Portable Power Station (5184Wh capacity)
- 2 × Jackery SolarSaga 500X Solar Panels (500W each)
- 1 × Jackery Smart Transfer Switch for whole-home backup
- AC Wall Charger
- Solar Charging Cables
- User Manual
FAQs – Jackery Explorer 5000 Plus + SolarSaga 500X x 2 + Smart Transfer Switch
-
What is the total power capacity of this bundle?
The Explorer 5000 Plus provides 5184Wh of energy, with solar input from two 500W SolarSaga panels for rapid and efficient charging. -
Can I power my entire home with this system?
Yes, with the included Smart Transfer Switch, you can safely power essential home circuits, including refrigerators, HVAC units, lights, and other critical appliances. -
How long does it take to fully charge using the two SolarSaga 500X panels?
With 1000W total solar input, full recharge typically takes 5–6 hours under optimal sunlight conditions. -
Can I use the Explorer 5000 Plus while it’s charging?
Yes, pass-through charging allows you to operate devices while recharging via AC, solar, or car input. -
Are the SolarSaga 500X panels portable and easy to set up?
Yes, each panel is foldable, lightweight, and designed for fast setup—ideal for camping, RV trips, or off-grid living. -
What safety features does the Smart Transfer Switch provide?
The Smart Transfer Switch automatically detects power outages and seamlessly switches to the Explorer 5000 Plus, ensuring continuous, safe power without manual intervention. -
Is this system expandable?
Yes, you can add additional E5000Plus battery packs or SolarSaga panels to increase total capacity and extend runtime for longer outages or off-grid setups.
