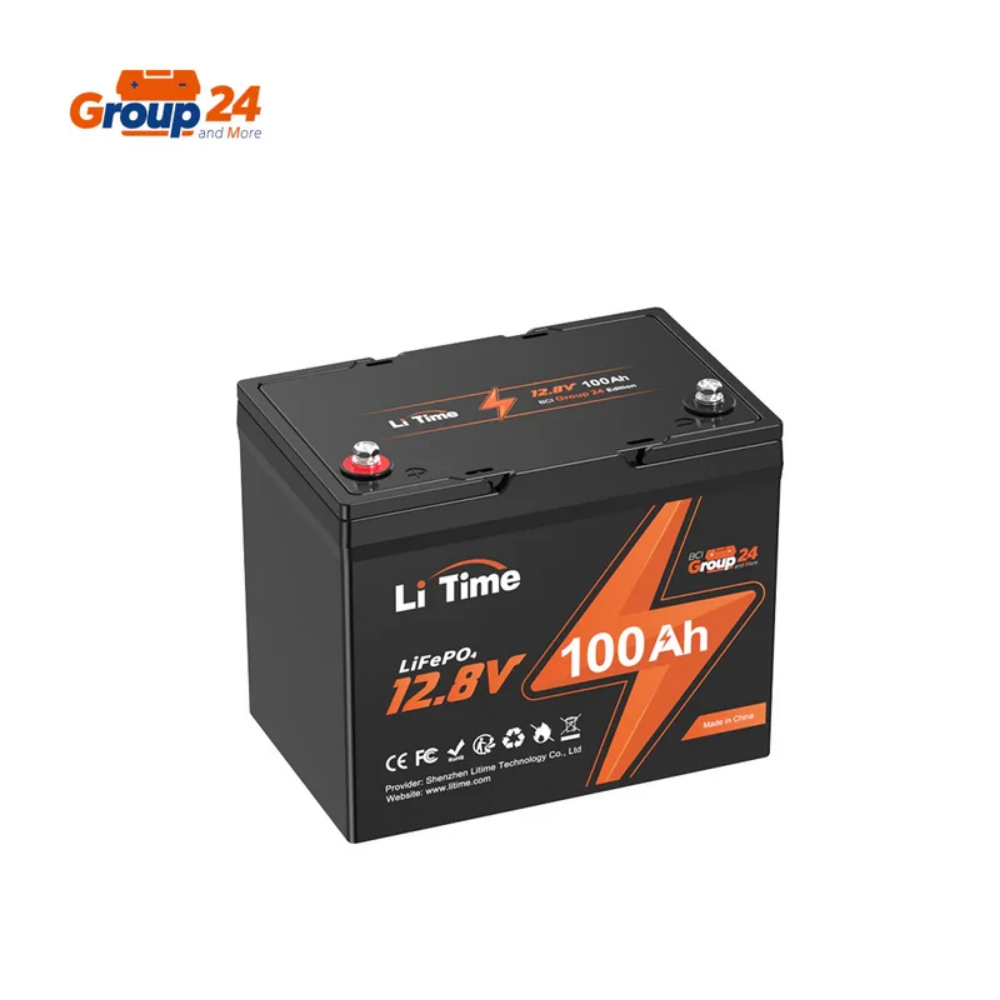

LiTime 12V 100Ah Group 24 Deep Cycle LiFePO4 Lithium Battery
LiTime 12V 100Ah Group 24 Deep Cycle LiFePO4 Lithium Battery
SKU: 12V100-100-GROUP24-4-A70
- Regular price
- Price: $325.00
- Regular price
- List Price: $0.00
- Sale price
- Price: $325.00
- Unit price
- per
Found a lower price?
We'll match any verified competitor price, excluding listings that violate manufacturer pricing policy — share the listing before you buy.
Notify me when this product is available:
Out of stock
Couldn't load pickup availability
Free Fast Shipping
On most orders — quick and easy delivery.
Easy 30-Day Returns
Hassle-free returns within 30 days.
Secure Checkout
SSL encrypted — your information is always protected.
Trusted by Many
Many happy customers and growing every day.
Authorized Dealer
100% genuine products with full manufacturer warranty.
Price Guarantee
Price Guarantee
At PowerGen Store, we are committed to offering you the best prices online. If you find a lower price at another online store within two months of your purchase, just let us know.
Click Here to review full Price Guarantee Policy
Manufactures Warranty
Manufactures Warranty
PowerGen Store is an Authorized Dealer for all of our Suppliers, so every product you purchase includes the Full Manufactures Warranty provided directly by the Manufacturer. See Manufactures Website for More Details
Return Policy
Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Click Here to review our full Returns Policy
Shipping Policy
Shipping Policy
At PowerGen Store, we are dedicated to ensuring our customers enjoy a smooth and efficient shipping experience. As a special benefit for our valued customers, we are pleased to offer FREE SHIPPING in the Contiguous 48 United States (See below for Alaska & Hawaii). To guarantee timely delivery of your orders, we have built a comprehensive network of couriers. Please see the detailed information below regarding our shipping Policy.
Click Here to read out full Shipping Policy
PRODUCT DESCRIPTION
Description
LiTime 12V 100Ah Group 24 Deep Cycle LiFePO4 Lithium Battery
Product Description
The LiTime 12V 100Ah Group 24 Deep Cycle LiFePO4 Lithium Battery provides 1,280Wh of energy and up to 1,280W of continuous output power in a compact Group 24 design. Suitable for RVs, camping, trolling motors, solar systems, home energy storage, and off-grid applications, it combines EV-grade cells with an integrated 100A battery management system.
- Provides 100Ah of capacity and 1,280Wh of stored energy
- Delivers up to 1,280W of continuous output power
- Uses EV Grade-A LiFePO4 battery cells
- Rated for more than 4,000 cycles at 100% depth of discharge
- Integrated 100A BMS provides overcharge, over-discharge, over-current, over-temperature, and short-circuit protection
- Supports up to a 4-series, 4-parallel configuration
- Expandable to 20.48kWh of total energy
- Approximately two-thirds lighter and one-quarter smaller than a 12V 100Ah lead-acid battery
- Offers twice the energy of a 12V 100Ah lead-acid battery
- IP65-rated enclosure helps protect against water and dust
- Designed for a lifespan of more than 10 years
- Backed by a five-year warranty
- Zero-maintenance design
- Optional Bluetooth, low-temperature cutoff protection, and self-heating features are available
Specifications
| Specification | Details |
|---|---|
| Battery chemistry | LiFePO4 |
| BCI group size | Group 24 |
| Nominal voltage | 12.8V |
| Nominal capacity | 100Ah |
| Nominal energy | 1,280Wh |
| Internal resistance | ≤40mΩ |
| Maximum continuous output power | 1,280W |
| BMS | 100A |
| Maximum series and parallel configuration | 4P4S |
| Maximum expanded system power | 20,480W |
| Maximum expanded system energy | 20,480Wh |
| Maximum continuous charging current | 100A (1C) |
| Recommended charging current | 20A (0.2C) |
| Recommended charging voltage | 14.4V ± 0.2V |
| Maximum continuous discharging current | 100A (1C) |
| Peak discharging current | 400A (4C) |
| Storage temperature | 14°F to 122°F (-10°C to 50°C) |
| Recommended storage temperature | 50°F to 95°F (10°C to 35°C) |
| Charging temperature | 32°F to 122°F (0°C to 50°C) |
| Discharging temperature | -4°F to 140°F (-20°C to 60°C) |
| Dimensions | 10.24 × 6.61 × 8.27 in. (260 × 168 × 210 mm) |
| Weight | Approximately 22.16 lbs. (10.05 kg) |
| Terminal type | M8 × 16 mm |
| Terminal torque | 106.2–123.9 lbs. |
| Case material | ABS |
| IP rating | IP65 |
| Protection features | Over-temperature, over-discharge, over-current, over-voltage, and short-circuit protection |
| Cycle life | 4,000+ cycles at 100% depth of discharge |
| Designed lifespan | 10+ years |
| Warranty | Five years |
FAQs
What applications is this LiTime battery designed for?
It is suitable for RVs, camping, trolling motors, solar systems, home energy storage, and off-grid applications.
How much energy does the battery store?
The battery has a nominal capacity of 100Ah and stores 1,280Wh of energy.
What protection features does the battery include?
Its 100A BMS provides over-temperature, over-discharge, over-current, over-voltage, and short-circuit protection.
Can multiple batteries be connected together?
Yes. The battery supports configurations up to four batteries in parallel and four in series, providing as much as 20.48kWh of expanded energy.
Is the battery waterproof?
The enclosure carries an IP65 rating.
