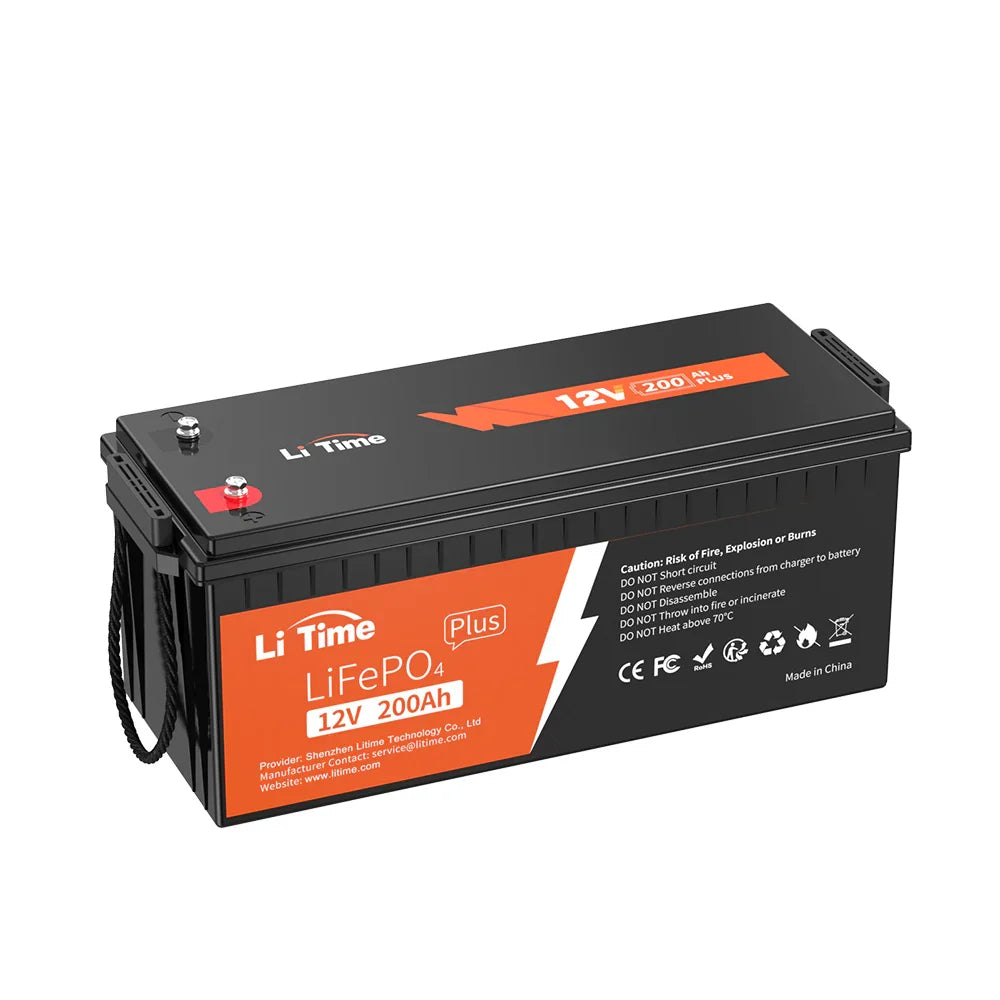

LiTime 12V 200Ah Plus LiFePO4 Lithium Battery with 200A BMS
Product Description
The LiTime 12V 200Ah Plus LiFePO4 Lithium Battery with 200A BMS stores 2,560Wh of energy and delivers up to 2,560W of continuous output power, managed by an integrated 200A battery management system. It is well suited to RVs, campers, home storage, off-grid and solar systems, marine, and 30–70 lb trolling motors.

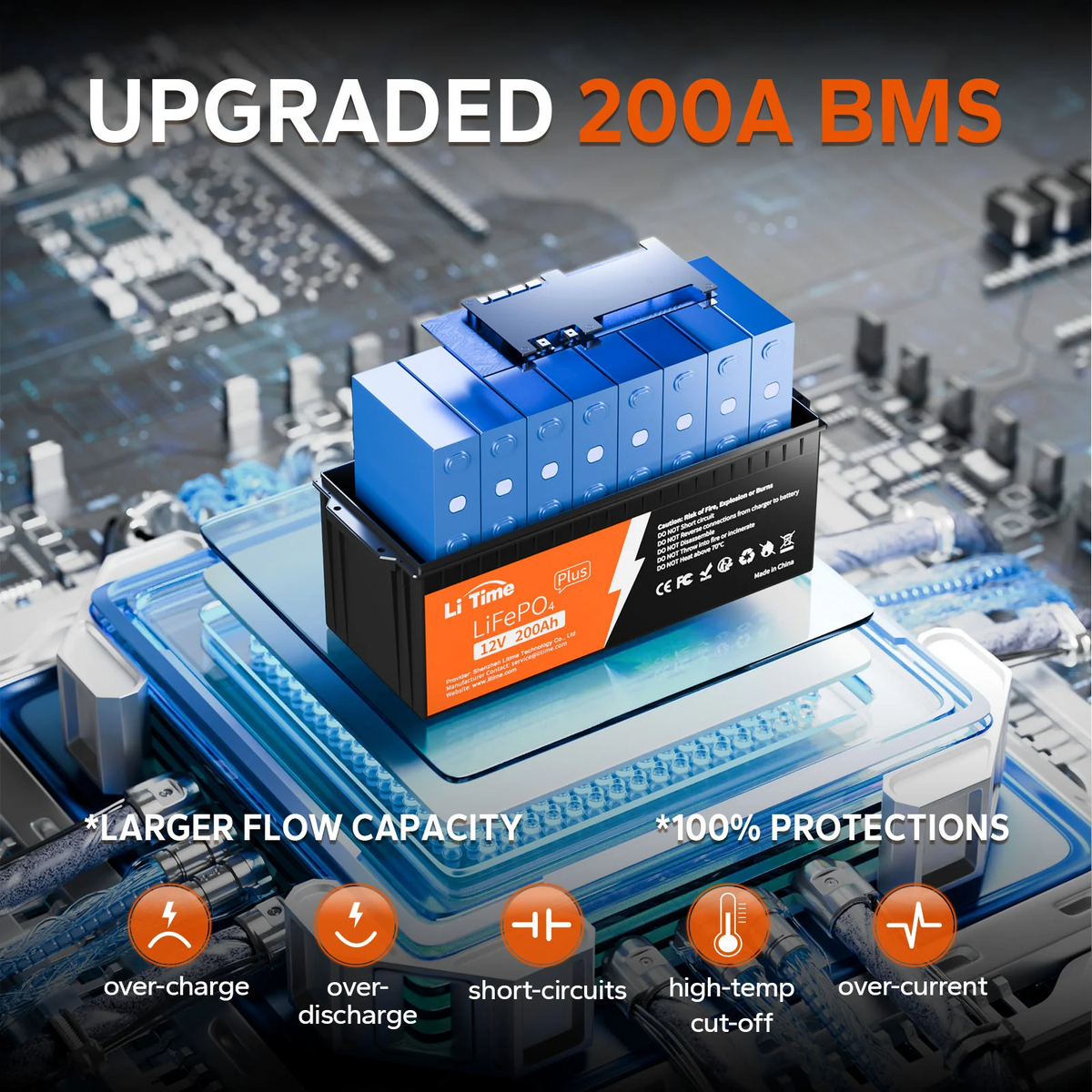

- 200A BMS for greater current capacity
- 200A continuous charge/discharge current
- 2,560Wh of energy and 2,560W continuous output power
- EV Grade-A cells rated for 4,000+ cycles at 100% DOD
- About one-third the weight of a 12V 200Ah lead-acid battery
- High-temperature cut-off protection
- Expandable to 40.96kWh (4P4S)
Specifications
| Specification | Details |
|---|---|
| Battery chemistry | LiFePO4 |
| Nominal voltage | 12.8V |
| Rated capacity | 200Ah |
| Energy | 2,560Wh |
| Internal resistance | ≤40mΩ |
| BMS | 200A |
| Maximum continuous output power | 2,560W |
| Maximum continuous charge current | 200A (1C) |
| Maximum continuous discharge current | 200A (1C) |
| Peak discharge current | 800A (4C) |
| Recommended charge current | 40A (0.2C) |
| Charge voltage | 14.4V ± 0.2V |
| Maximum expansion | 4P4S (40.96kWh) |
| Charge temperature | 32°F to 122°F (0°C to 50°C) |
| Discharge temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage temperature | 14°F to 122°F (-10°C to 50°C) |
| Dimensions | 20.94 × 8.15 × 8.5 in. (532 × 207 × 216 mm) |
| Weight | Approx. 45.59 lbs. |
| Terminals | M8 × 16 mm |
| Housing material | ABS |
| IP rating | IP65 |
| Certifications | FCC, CE, RoHS, UN38.3 |
FAQs
What applications is this LiTime battery designed for?
It is designed for RVs, campers, home storage, off-grid and solar systems, marine, and 30–70 lb trolling motors.
How much energy does the battery store?
The battery has a rated capacity of 200Ah and stores 2,560Wh of energy.
Can multiple batteries be connected together?
Yes. It supports expansion up to 4P4S (40.96kWh).
Is the battery waterproof?
The enclosure carries an IP65 rating for water and dust protection.
