PRODUCT DESCRIPTION
Description

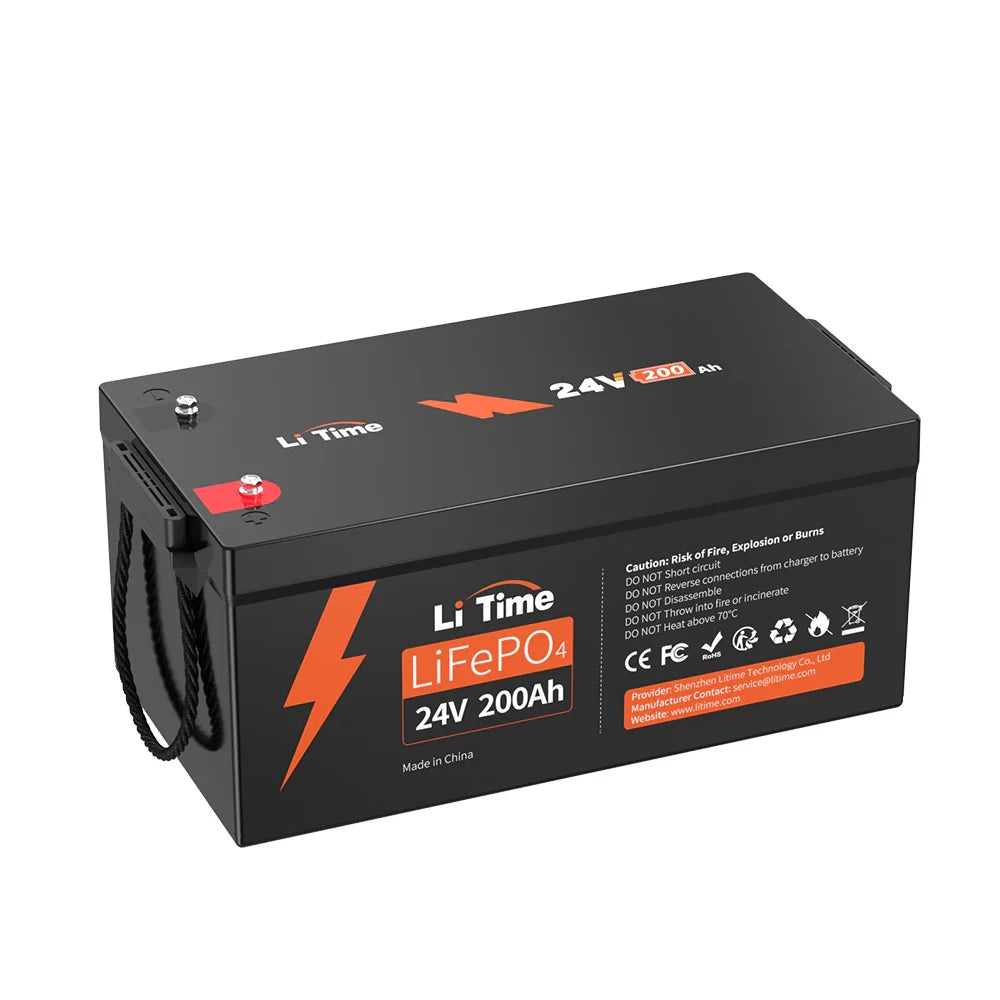

LiTime 24V 200Ah Group 8D LiFePO4 Lithium Battery
Product Description
The LiTime 24V 200Ah Group 8D LiFePO4 Lithium Battery stores 5,120Wh of energy and delivers up to 5,120W of continuous output power, managed by an integrated 200A battery management system. It is well suited to RVs, marine, off-grid solar, home backup, and commercial power systems.
- 5,120Wh of energy and 5,120W output power
- BCI Group 8D size
- One-third the weight of a 24V 200Ah lead-acid battery
- EV Grade-A cells rated for 4,000+ deep cycles at 100% DOD (10+ year lifespan)
- 200A BMS with all-round protection
- Expandable to 4P2S (40.96kWh)
- IP65 waterproof with a 3% self-discharge rate
- Charge with a LiFePO4 charger, solar panel, alternator, or generator
Specifications
| Specification | Details |
|---|---|
| Battery chemistry | LiFePO4 |
| BCI group size | Group 8D |
| Nominal voltage | 25.6V |
| Rated capacity | 200Ah |
| Energy | 5,120Wh |
| Internal resistance | ≤40mΩ |
| BMS | 200A |
| Maximum continuous output power | 5,120W |
| Maximum continuous charge current | 200A (1C) |
| Maximum continuous discharge current | 200A (1C) |
| Peak discharge current | 800A (4C) |
| Recommended charge current | 40A (0.2C) |
| Charge voltage | 28.8V ± 0.4V |
| Maximum expansion | 4P2S (40.96kWh) |
| Charge temperature | 32°F to 122°F (0°C to 50°C) |
| Discharge temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage temperature | 14°F to 122°F (-10°C to 50°C) |
| Cycle life | 4,000+ @ 100% DOD |
| Dimensions | 20.47 × 10.55 × 8.66 in. (520 × 268 × 220 mm) |
| Weight | Approx. 82.67 lbs. (37.5 kg) |
| Terminals | M8 × 16 mm |
| Housing material | ABS |
| IP rating | IP65 |
| Low-temperature protection | Yes |
| Certifications | FCC, CE, RoHS, UN38.3 |
FAQs
What applications is this LiTime battery designed for?
It is designed for RVs, marine, off-grid solar, home backup, and commercial power systems.
How much energy does the battery store?
The battery has a rated capacity of 200Ah and stores 5,120Wh of energy.
Can multiple batteries be connected together?
Yes. It supports expansion up to 4P2S (40.96kWh).
Does the battery protect itself in cold weather?
Yes. Low-temperature protection stops charging below 32°F (0°C) to protect the cells.
Is the battery waterproof?
The enclosure carries an IP65 rating for water and dust protection.
