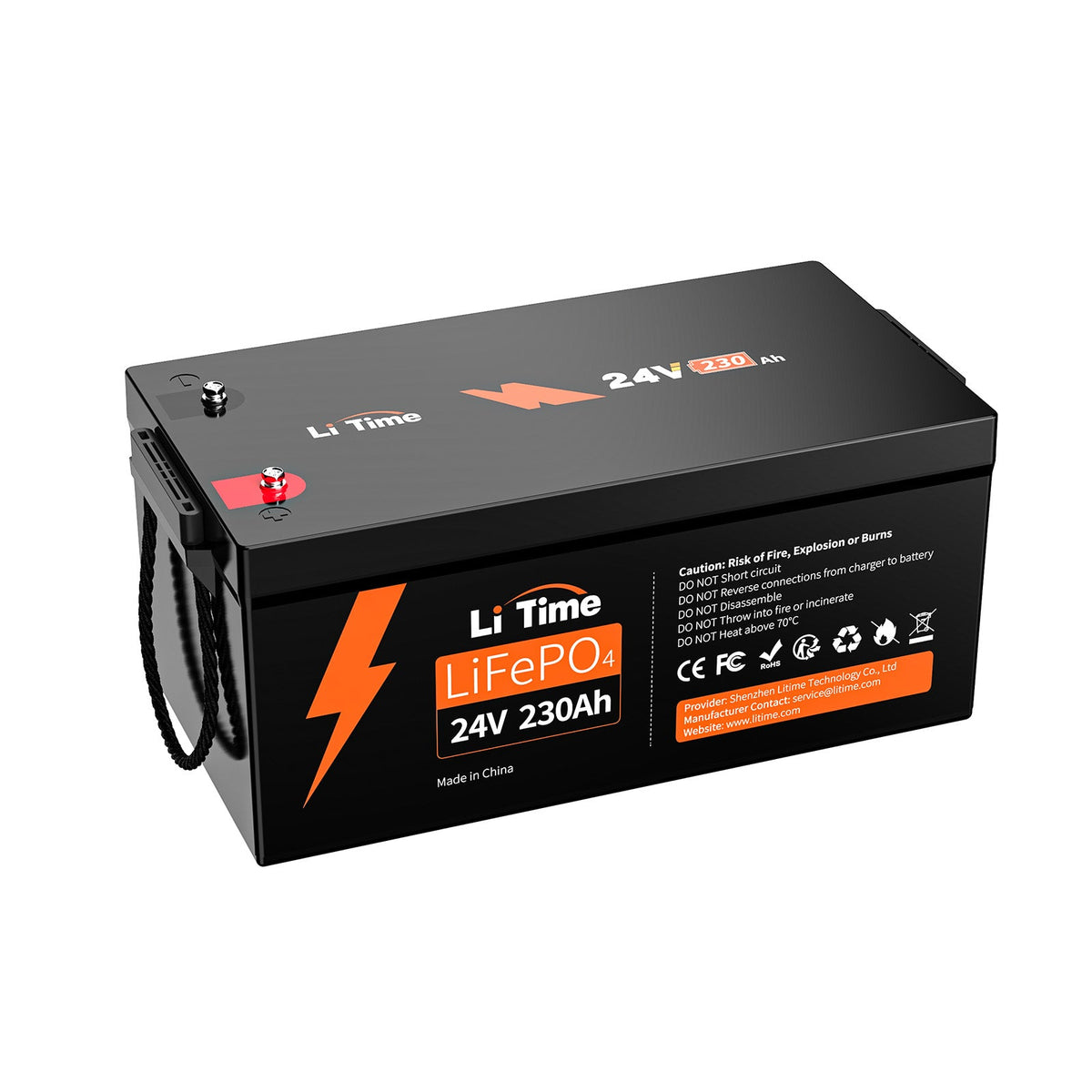

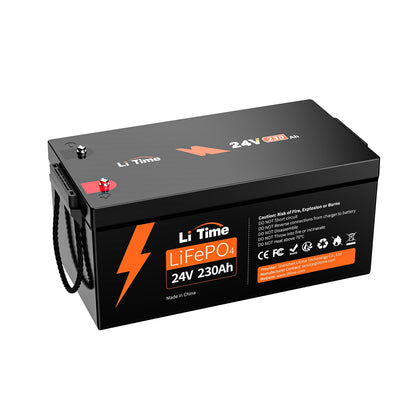

LiTime 24V 230Ah Group 8D LiFePO4 Deep Cycle Lithium Battery
Product Description

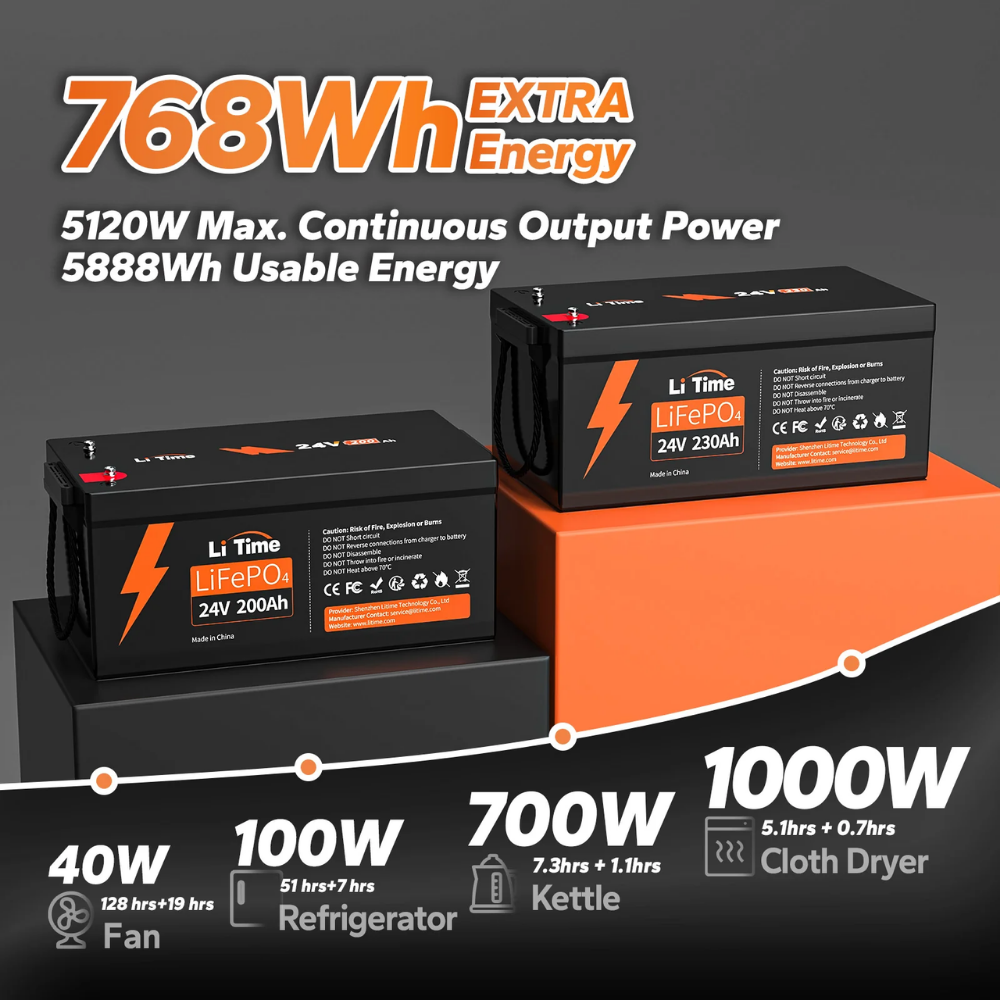

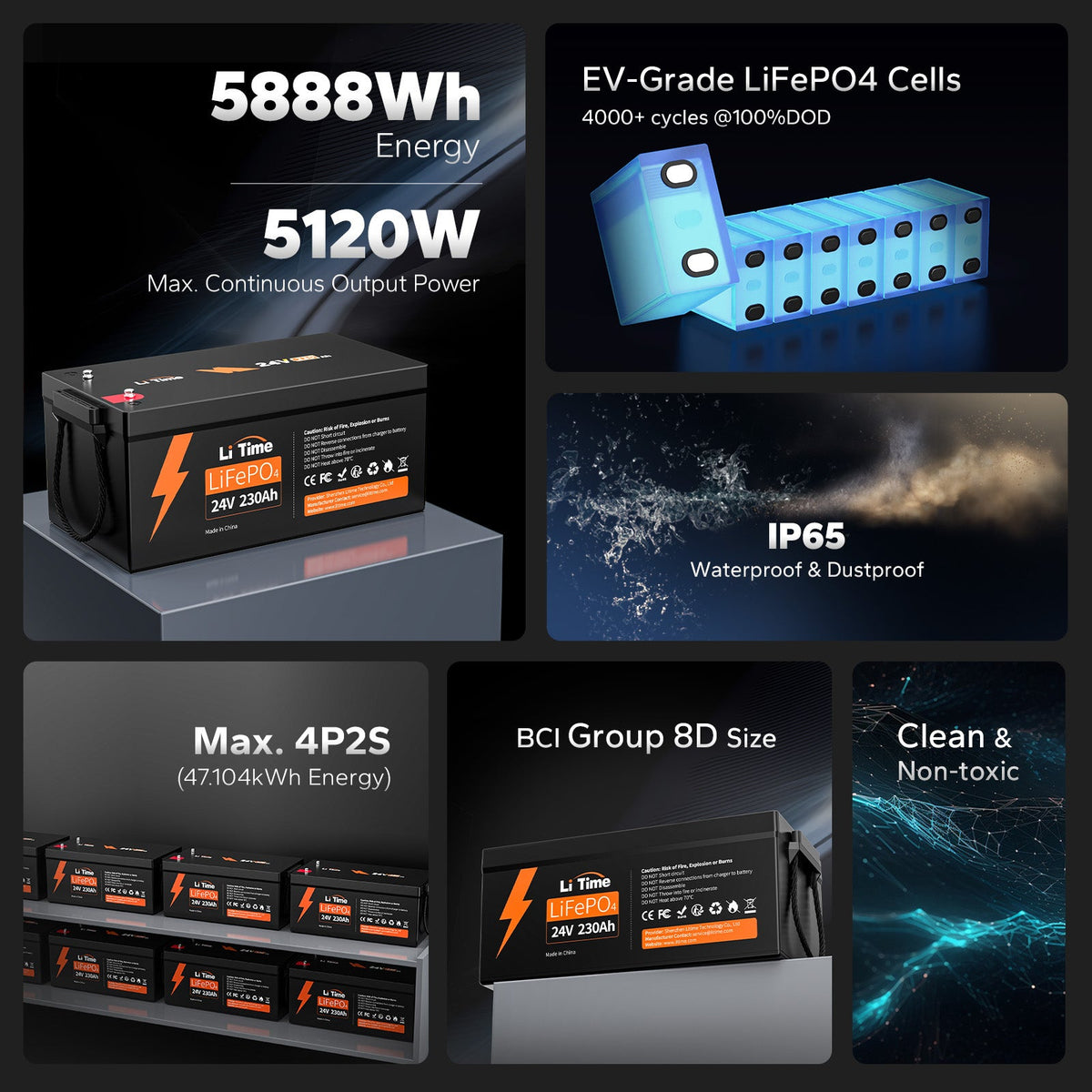

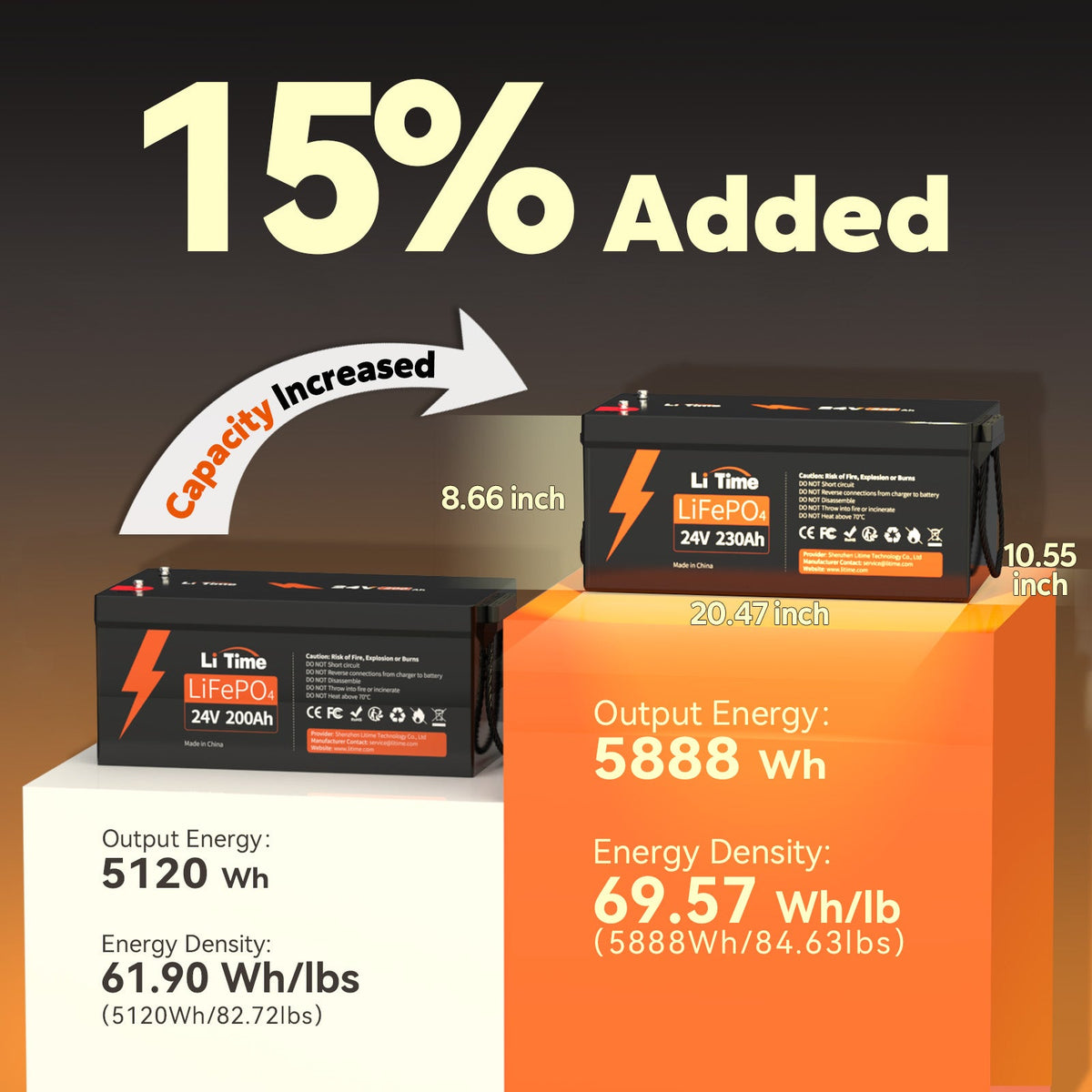

The LiTime 24V 230Ah Group 8D LiFePO4 Deep Cycle Lithium Battery stores 5,888Wh of energy and delivers up to 5,120W of continuous output power, managed by an integrated 200A battery management system. It is well suited to RVs, marine, off-grid solar, and home energy storage.
- 200A continuous discharge and 5,120W output power
- 4,000+ cycle life with 10+ years of typical service
- IP65 waterproof and dustproof for marine and outdoor use
- Supports up to 4 in parallel and 2 in series

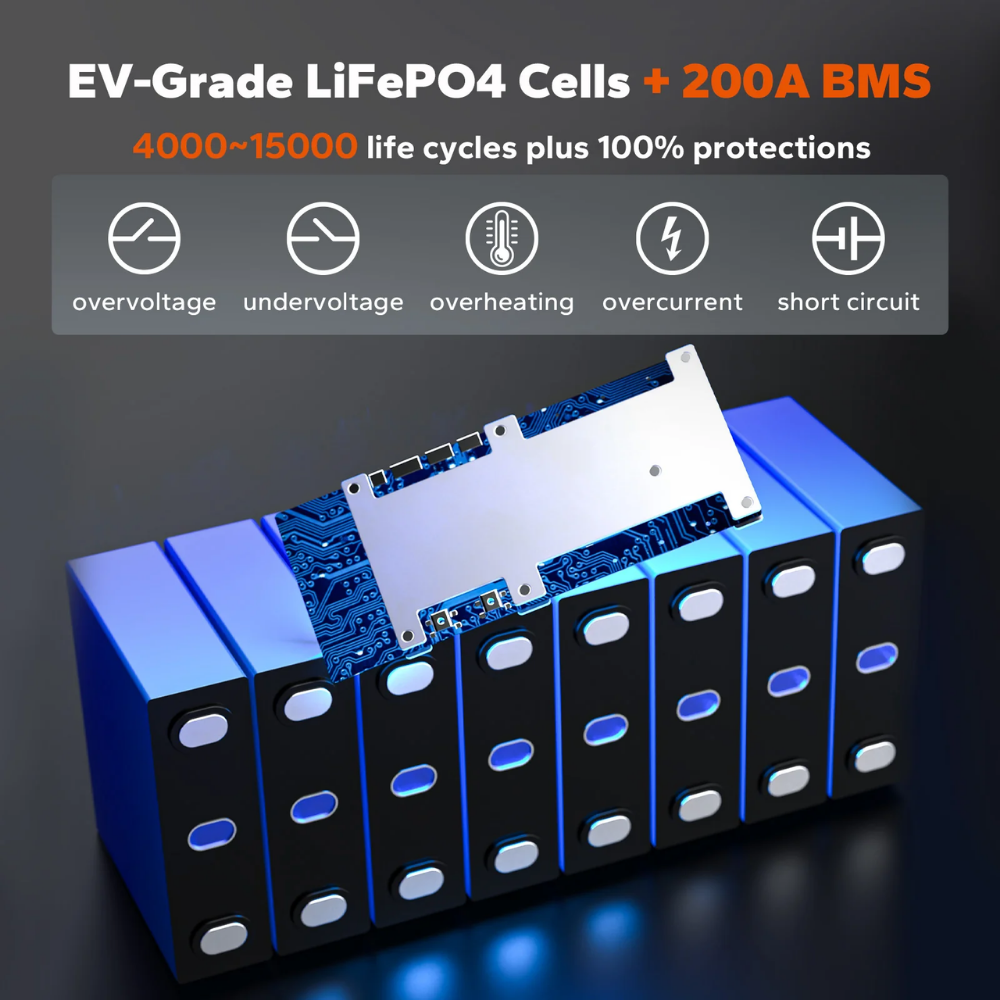

- BMS protects against overcharge, over-discharge, over-current, and short circuit
- Flame-retardant ABS housing
- Fast charging up to 200A
Specifications
| Specification | Details |
|---|---|
| Battery chemistry | LiFePO4 |
| BCI group size | Group 8D |
| Nominal voltage | 25.6V |
| Rated capacity | 230Ah |
| Energy | 5,888Wh |
| BMS | 200A |
| Maximum continuous output power | 5,120W |
| Maximum continuous charge current | 200A |
| Maximum continuous discharge current | 200A |
| Charge voltage | 28.8V ± 0.4V |

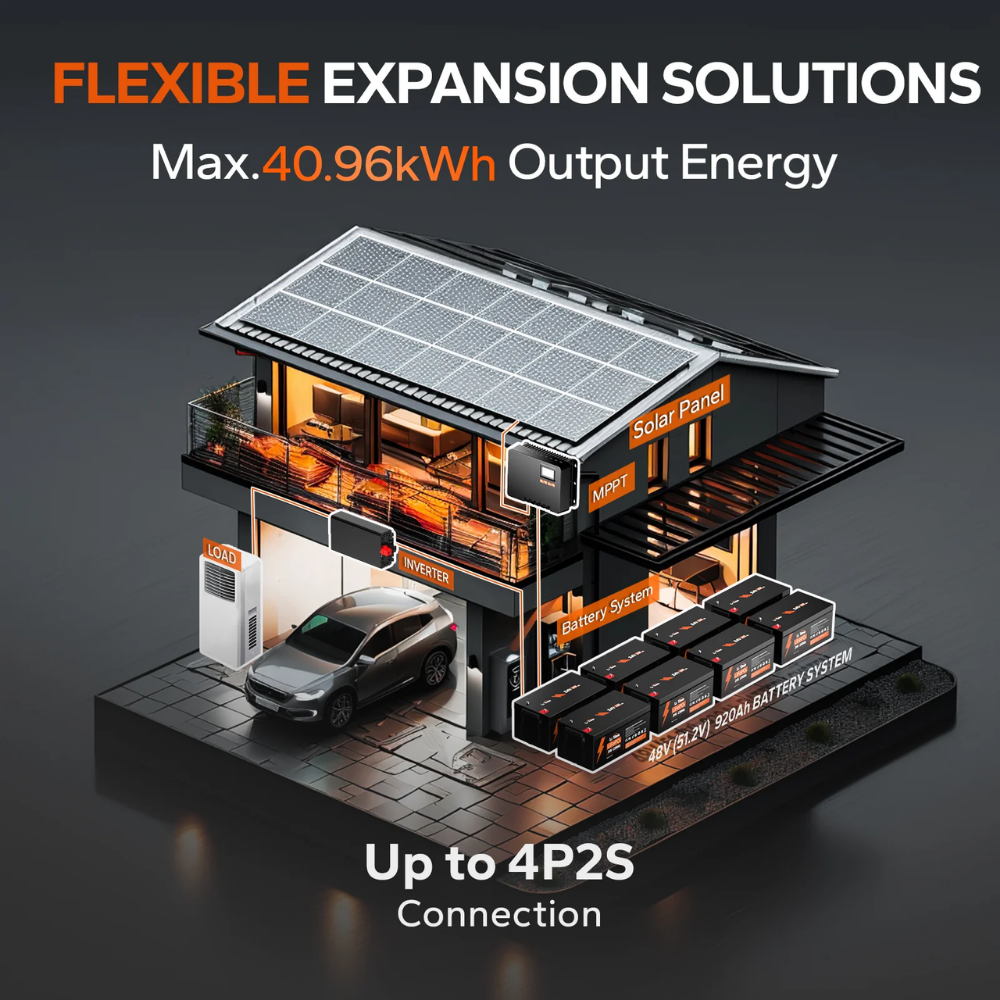

| Maximum expansion | 4P2S |
| Charge temperature | 32°F to 122°F (0°C to 50°C) |
| Discharge temperature | -4°F to 140°F (-20°C to 60°C) |
| Cycle life | 4,000 @ 100% DOD |
| Dimensions | 20.47 × 10.59 × 8.66 in. |
| Weight | Approx. 86.6 lbs. |
| Terminals | M8 bolts |
| Housing material | ABS |
| IP rating | IP65 |
| Bluetooth | No |
| Certifications | FCC, CE, RoHS, UN38.3 |
| Warranty | 5 years |
FAQs
What applications is this LiTime battery designed for?
It is designed for RVs, marine, off-grid solar, and home energy storage.
How much energy does the battery store?
The battery has a rated capacity of 230Ah and stores 5,888Wh of energy.
Can multiple batteries be connected together?
Yes. It supports expansion up to 4P2S.
Is the battery waterproof?
The enclosure carries an IP65 rating for water and dust protection.
