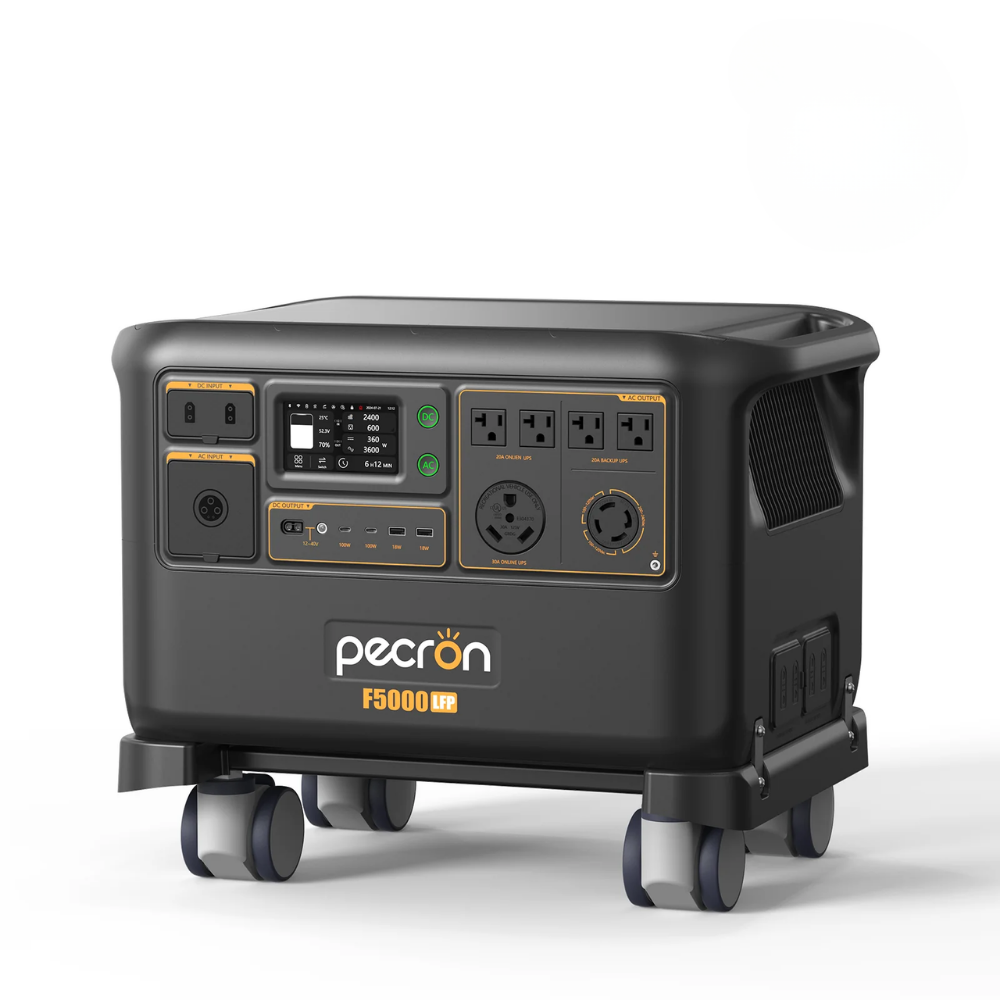

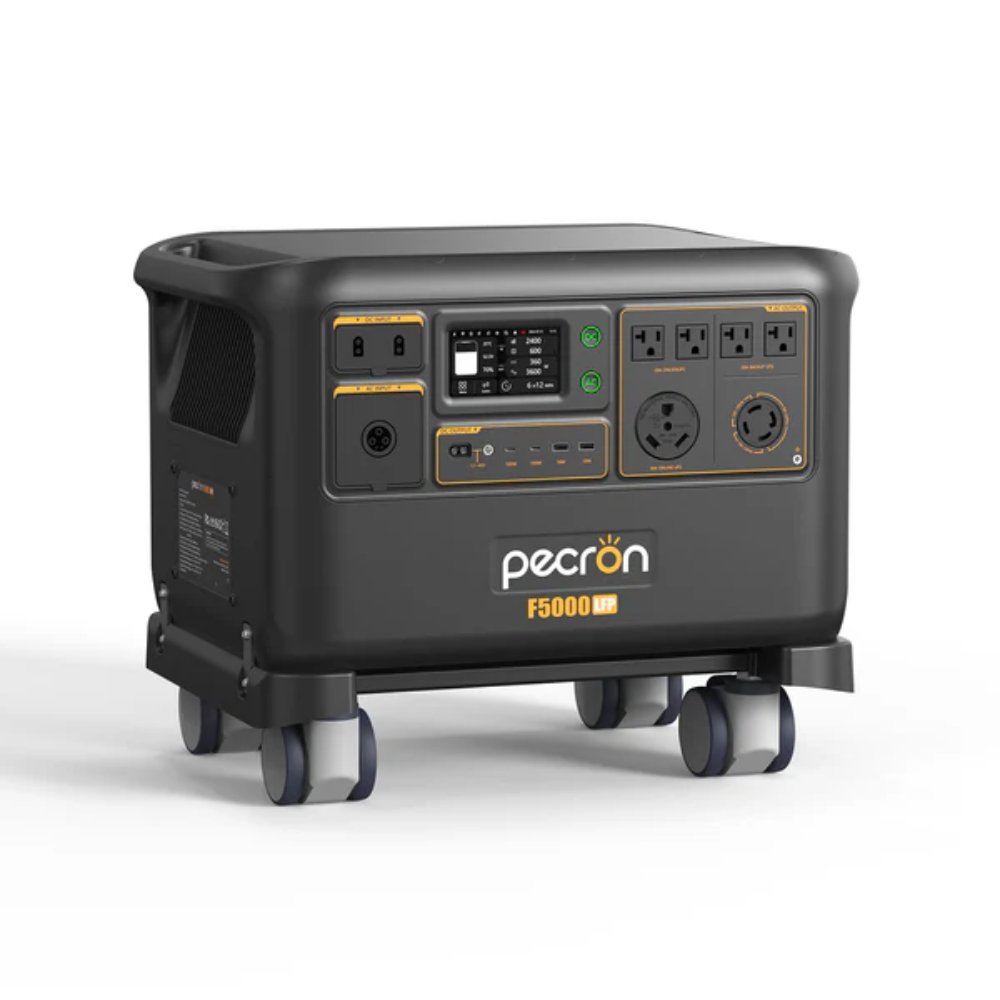

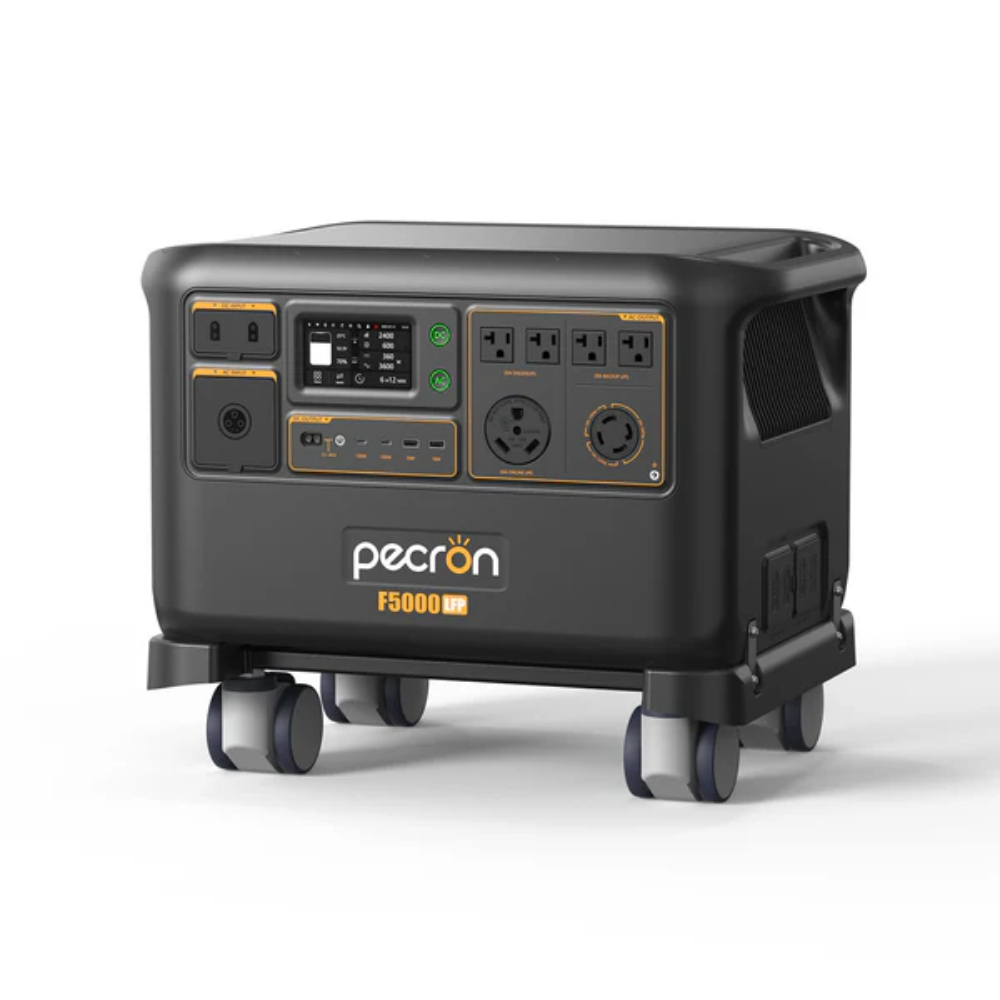

PECRON F5000LFP Portable Power Station 7200W 5120Wh 120V/240V

Why is the F5000LFP Power Up

Whether you need to keep your electronic devices functioning on a weekend camping trip or are looking for an emergency power supply for use at home, F5000LFP is capable of providing days of extra juice wherever and whenever you need it. 120V/240V Dual-Voltage Power; 120V charging supported during 240V output.

Product Description The PECRON F5000LFP is a flagship-class portable power station engineered for users who demand serious, dual-voltage energy capacity. Delivering 7200W of output at 120V or 240V — from a single unit — and backed by 5120Wh of LiFePO4 storage, it's built to power everything from everyday home backup and weekend camping to heavy-draw appliances and off-grid systems. With 6400W of maximum solar input, intelligent battery heating, online UPS protection, OTA upgrades, and an adjustable DC output voltage range, the F5000LFP is designed to grow and adapt with your power needs.

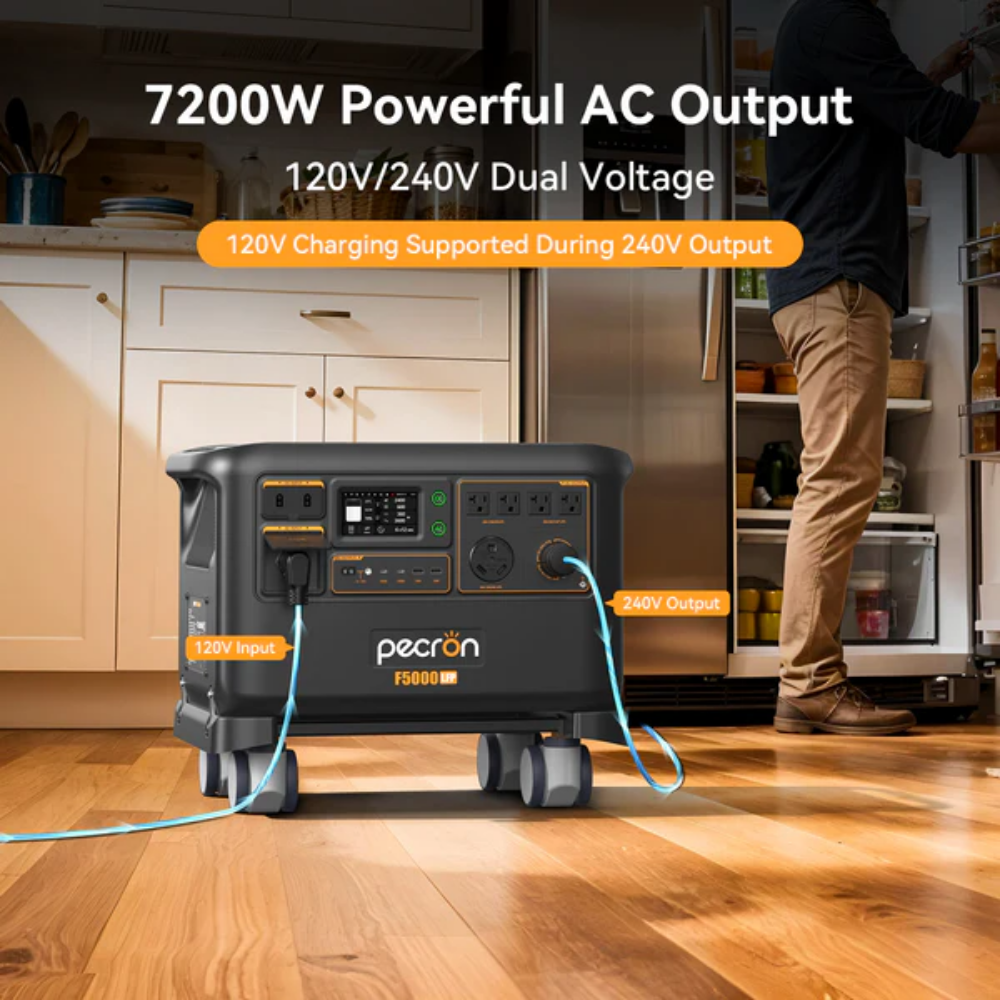

7200W maximum AC output (240V dual-phase) from a single unit — 120V and 240V dual-voltage capable; 120V charging supported during 240V output

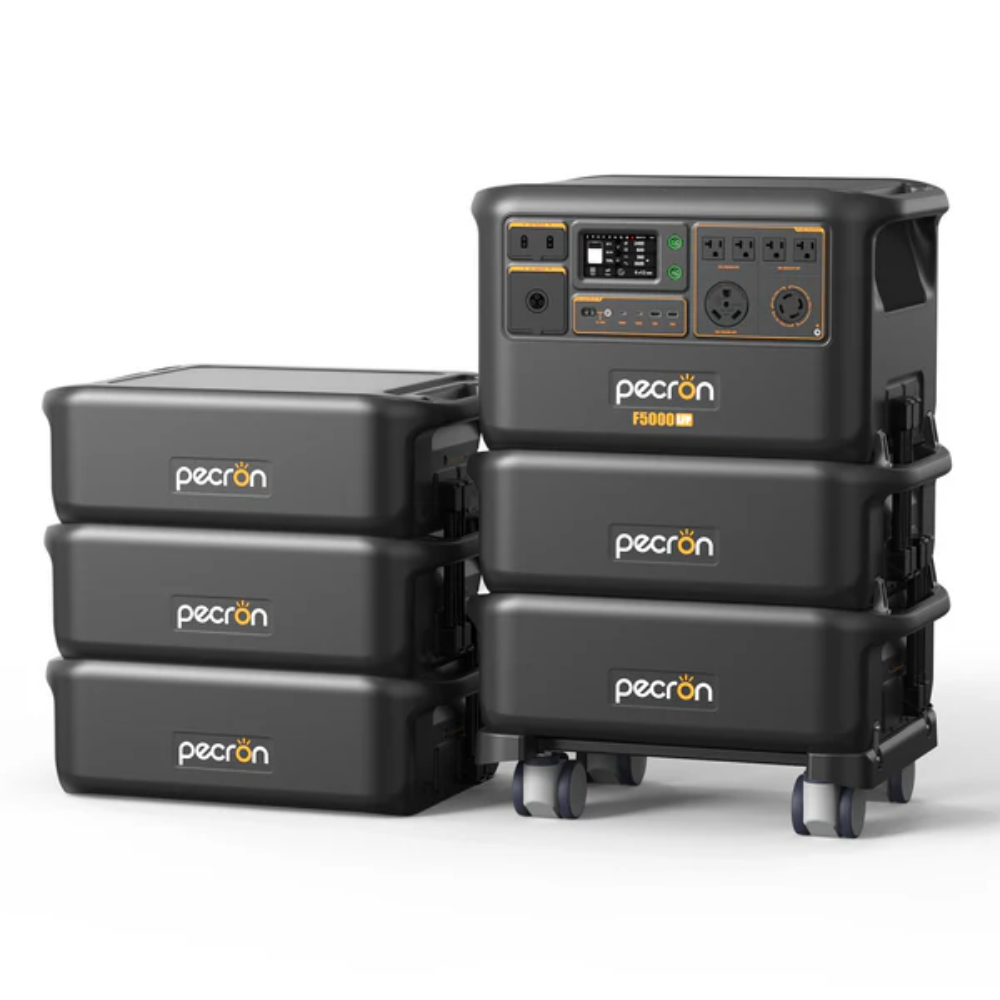

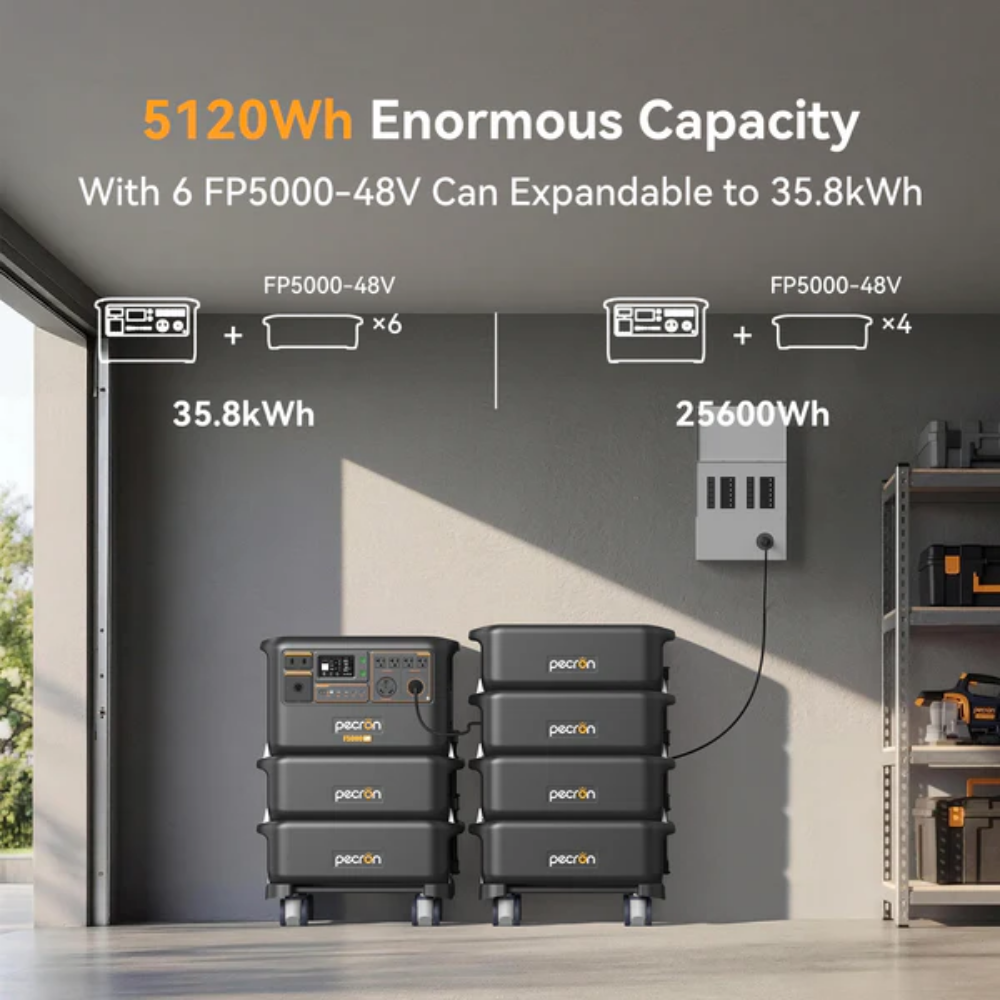

5120Wh LiFePO4 battery, expandable up to 35,840Wh with up to 6 × FP5000-48V expansion batteries

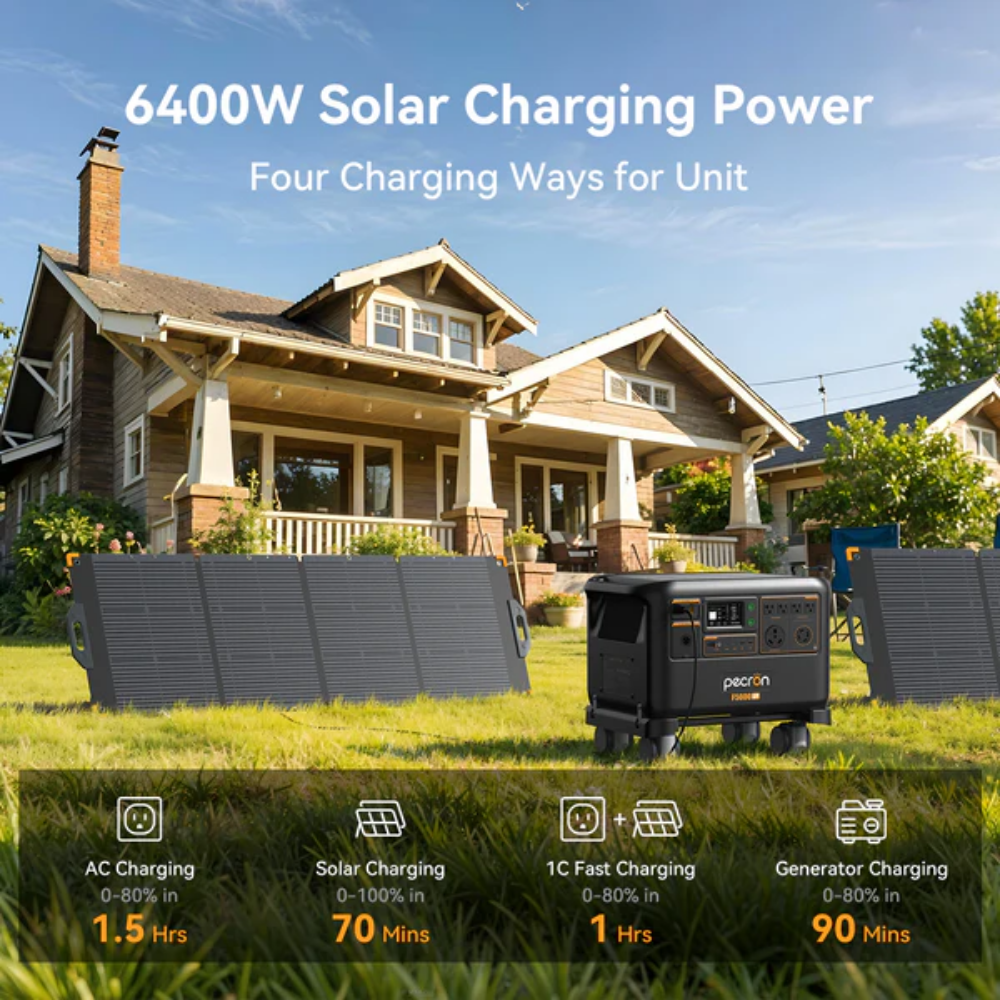

6400W maximum solar input via dual XT60 ports (2 × 3200W, 30V–180V / 25A max); single unit accepts up to 5800W solar input, fully charged in approximately 1.2 hours
3600W AC fast charging via 30A cable — full charge in approximately 1.8 hours

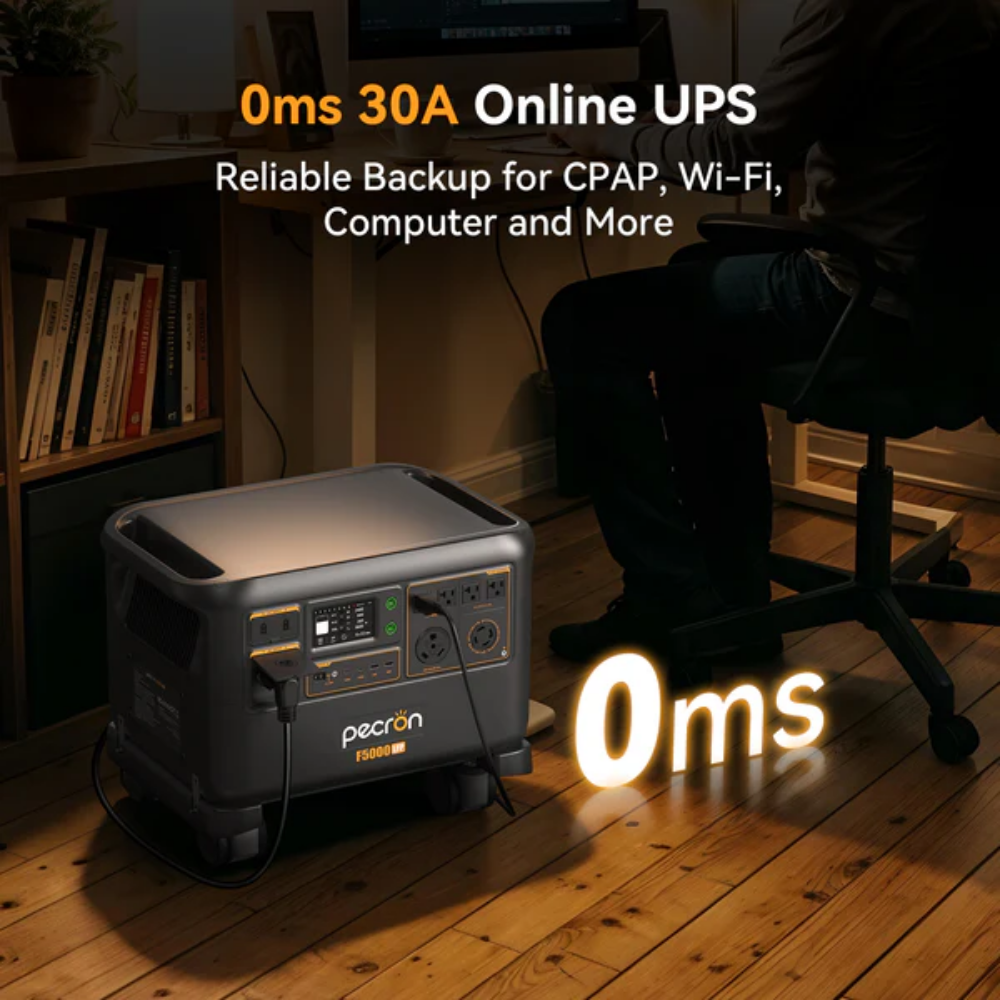

True dual UPS protection: 0ms online UPS and 8–20ms backup UPS switchover
Adjustable DC output voltage (12V–40V, 25A max, 800W max) for flexible DC-powered device compatibility
Built-in battery heating for intelligent battery temperature management in cold conditions

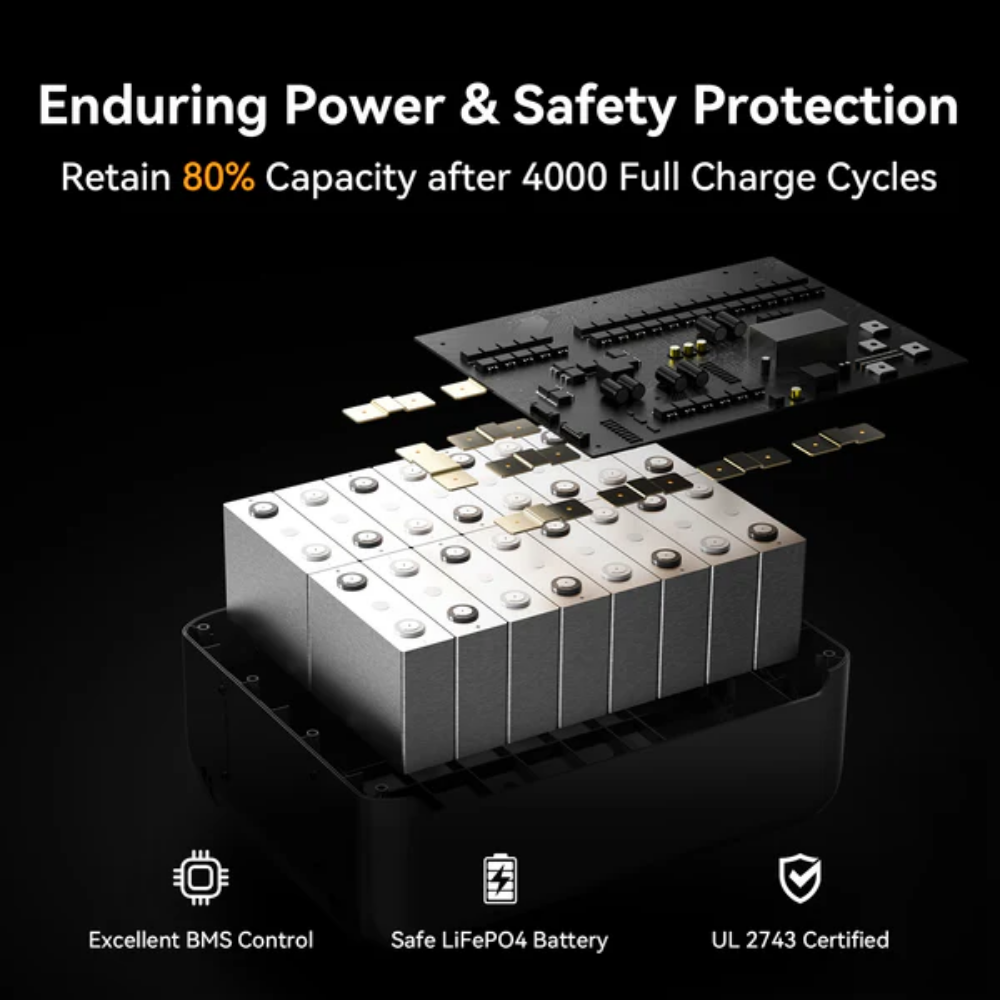

LiFePO4 battery rated for 4,000+ life cycles to 80% capacity
WiFi remote control and app control for monitoring and management from anywhere
OTA online upgrade feature, built-in automation features on the screen, operation log inquiry, solar charging and AC output statistics, and customizable charging rate

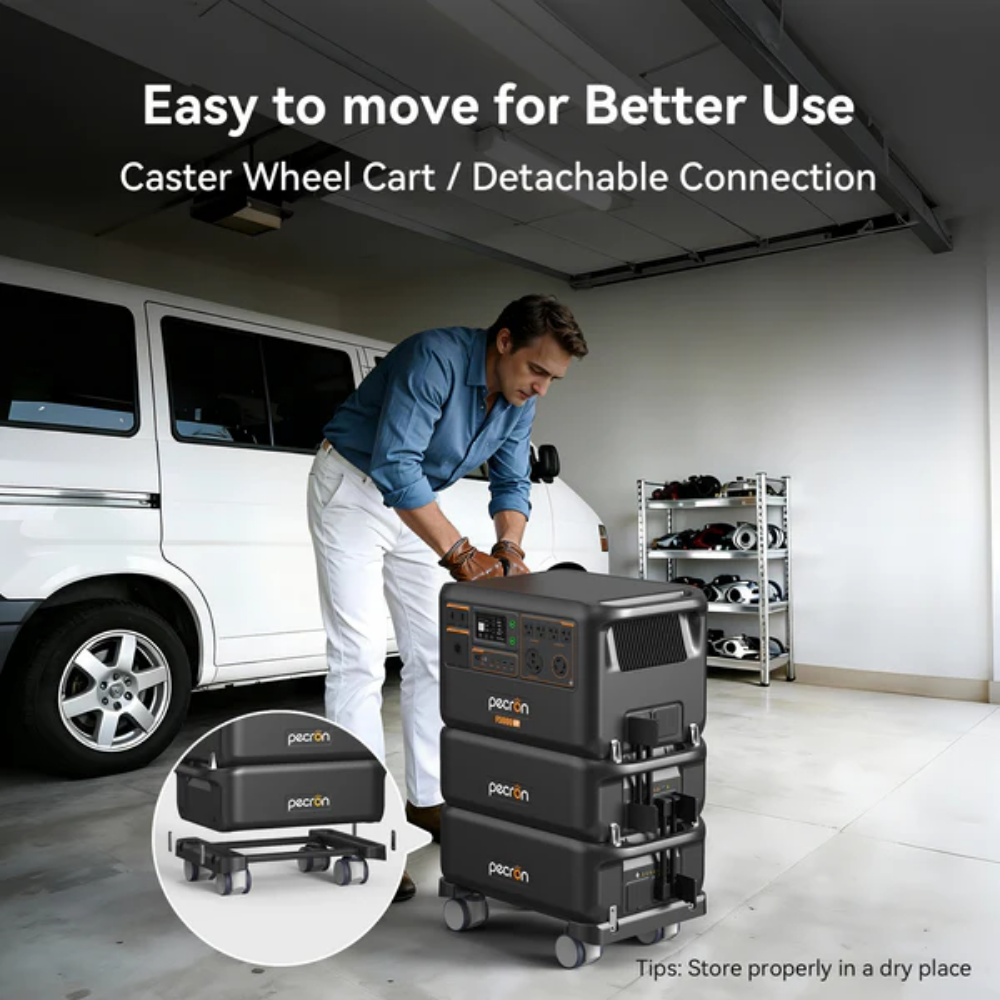

Universal wheel trolley included free during the sale; free 30A AC cable included during the sale
3+2 year warranty

Specifications

Category	Specification

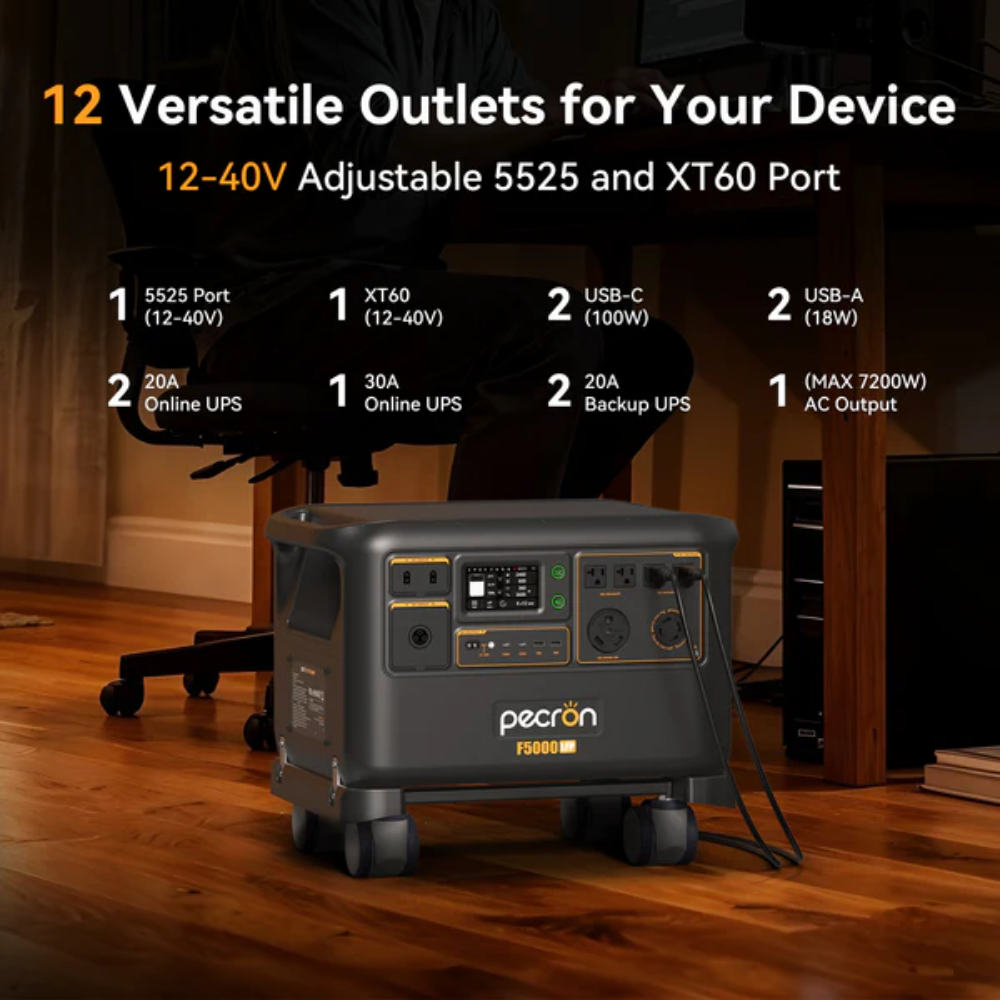

120V AC Output	NEMA 5-20P × 2: 3600W Max; TT30-R: 3600W Max; NEMA 5-20P × 2: 3600W Max; UPS — 0ms
240V AC Output	7200W Max (Dual Phase)
AC Voltage	100Vac–120Vac / 50/60Hz (120V mode); 200Vac–240Vac (240V mode)
Battery Capacity	5120Wh
Cell Chemistry	LiFePO4
Cycle Life	4,000+ cycles to 80% capacity
Expandable Capacity	Up to 35,840Wh (with 6 × FP5000-48V batteries)
DC XT60 Output / 5525	DC 12V–40V, 25A Max, 800W Max (adjustable voltage)
USB-C Output	5V, 9V, 12V, 20V / 100W Max × 2
USB-A Output	5V, 9V, 12V / 18W Max × 2
AC Input	3600W Max (30A cable); 1800W (15A cable)
Solar Input	XT60-M: 6400W Max / 2 × 3200W Max; Voc 30V–180V / 25A Max; Single unit: 5800W Max
UPS Switchover	0ms (online UPS); 8–20ms (backup UPS)
Charging Time	~1.8 hours (3600W / 30A AC cable); ~1.2 hours (5800W max solar input)
Weight	~123.9 lbs (56.2 kg)
Dimensions	L21.7 × W15 × H13.1 in
Charge Temperature	-4–113°F (-20–45°C) with Battery Heating Activation
Discharge Temperature	14–113°F (-10–45°C)
Storage Ambient Temperature	32–113°F (0–45°C); Optimal: 68–86°F (20–30°C)
Warranty	3+2 years
Compatibility Note	Not recommended for long-term use with EP3800-48V / EP3000-48V — may trigger overheating protection and disconnect from the main unit

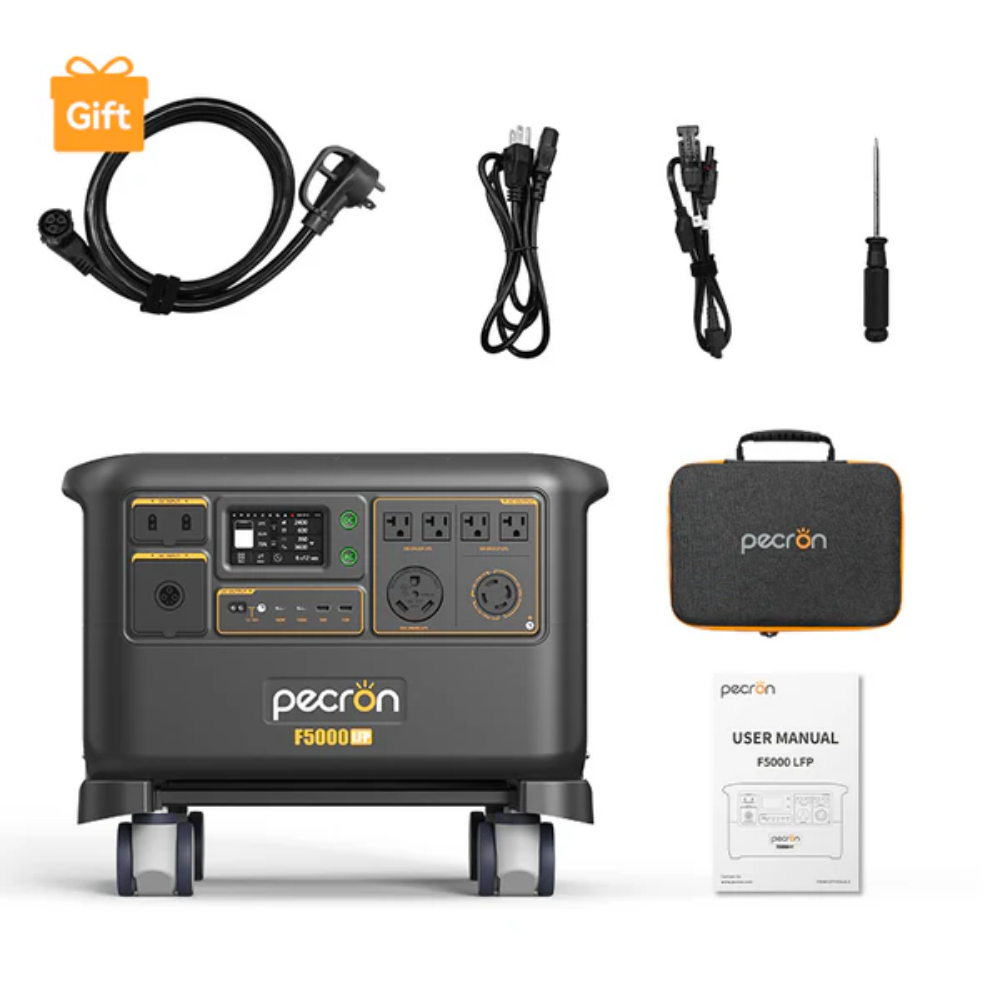

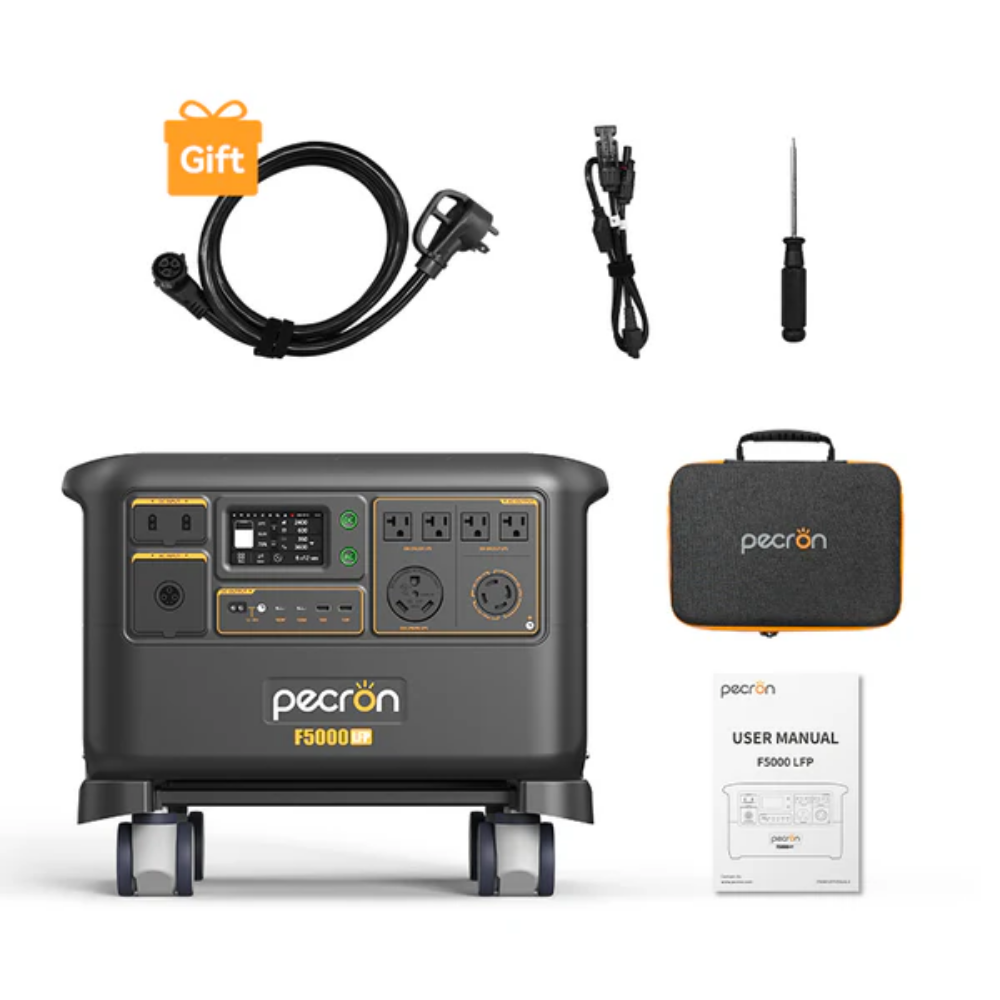

What's In The Box?

PECRON F5000LFP Portable Power Station × 1
Free Universal Wheel Trolley (included during sale)
Free 30A AC Cable (included during sale)

FAQs

Q: Does the F5000LFP support both 120V and 240V output from a single unit? A: Yes. The F5000LFP delivers both 120V and 240V dual-phase output from a single unit, with up to 7200W at 240V. Notably, 120V charging is supported even while 240V output is in use.

Q: How fast does the F5000LFP charge? A: With a 30A AC cable (3600W input), it charges fully in approximately 1.8 hours. With maximum solar input of 5800W (single unit), it charges in approximately 1.2 hours.

Q: How much can the F5000LFP's capacity be expanded? A: The F5000LFP supports up to 6 × FP5000-48V expansion batteries, bringing total storage capacity to up to 35,840Wh. Note: the EP3800-48V and EP3000-48V expansion batteries are not recommended for long-term use with the F5000LFP, as they may trigger overheating protection.

Q: What makes the F5000LFP's UPS functionality unique? A: The F5000LFP offers both 0ms online UPS and 8–20ms backup UPS switchover, making it suitable for protecting sensitive electronics and critical loads that cannot tolerate any power interruption.

Q: Does the F5000LFP have smart features and remote control? A: Yes. The F5000LFP includes WiFi remote control, app control, OTA online upgrade capability, built-in automation features accessible on-screen, operation log inquiry, solar charging and AC output statistics, and a customizable charging rate.

Variant Specs

All variants include the base F5000LFP portable power station (7200W / 5120Wh) with free universal wheel trolley and free 30A AC cable. Variants add solar panels or FP5000-48V expansion batteries as listed below.

Variant	Included Add-Ons	Sale Price
F5000LFP	Power station only + free trolley + free 30A cable

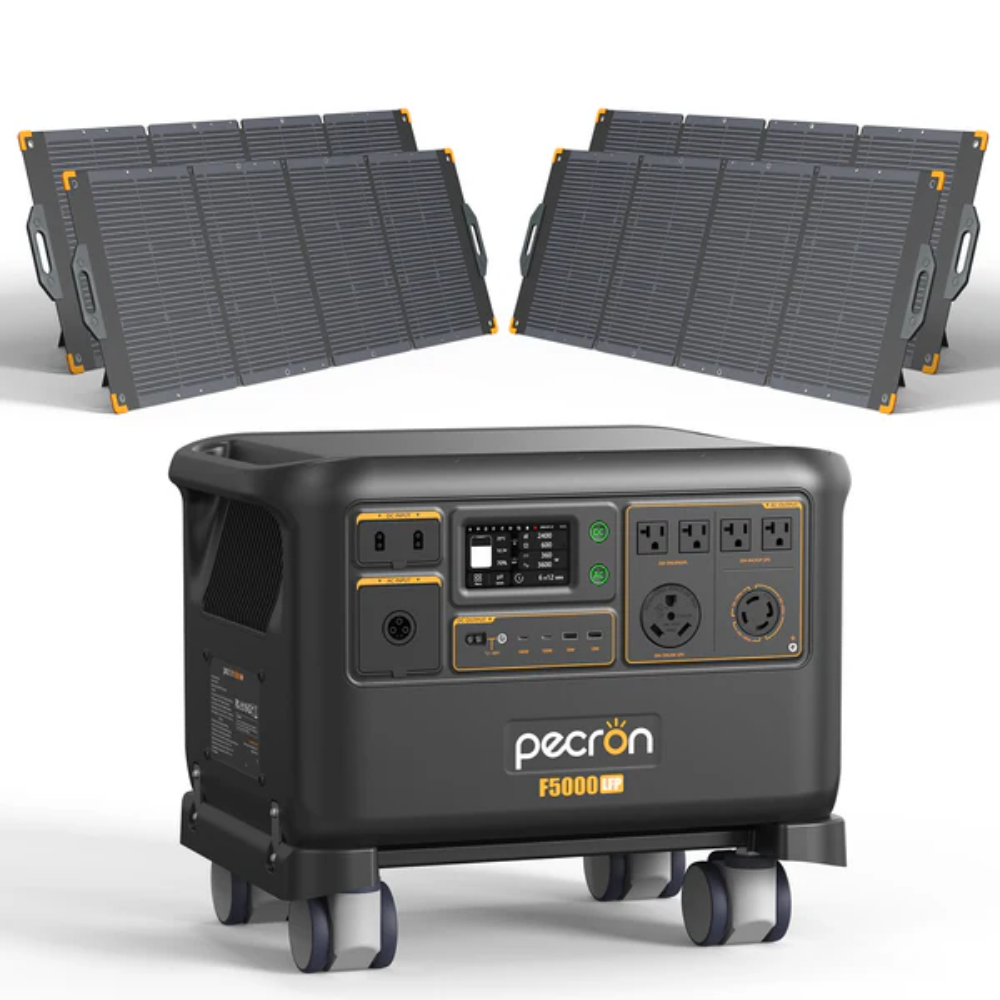

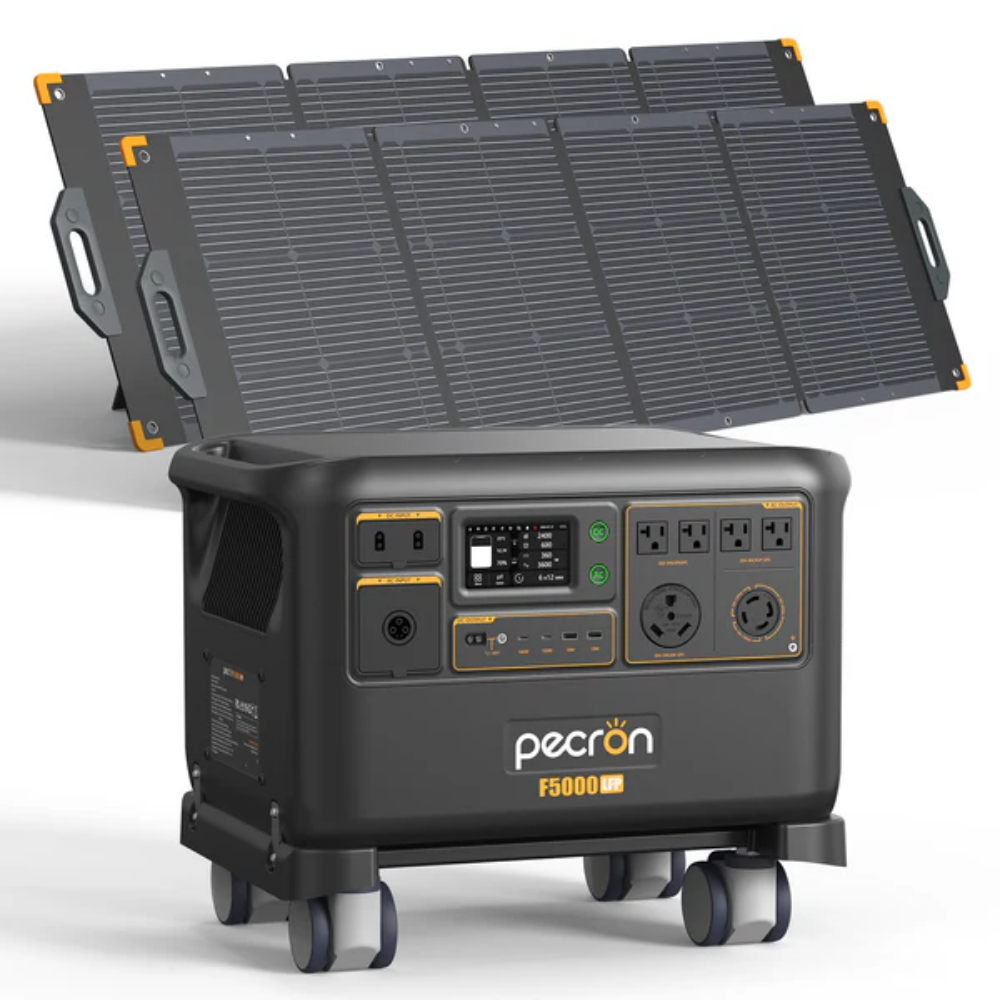

F5000LFP + 2×PV300	+ 2 × PECRON PV300 300W Solar Panels
F5000LFP + 4×PV300	+ 4 × PECRON PV300 300W Solar Panels

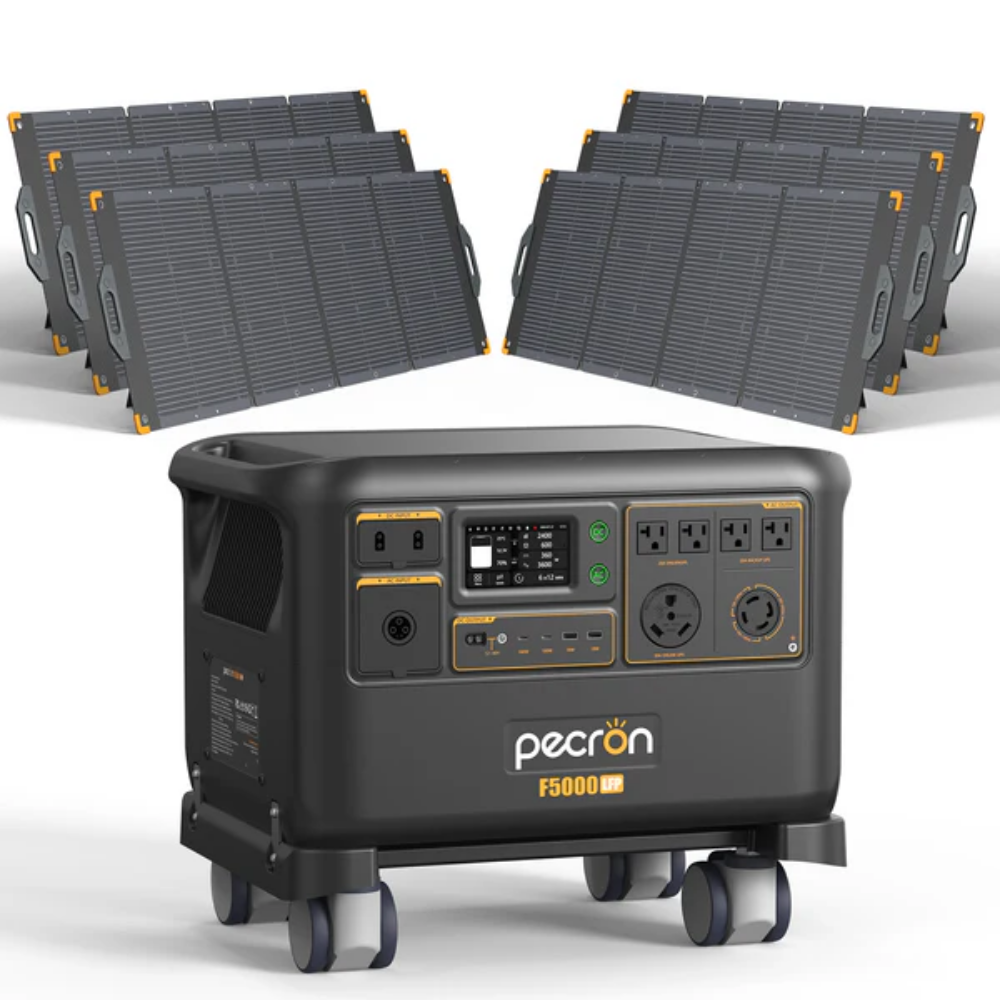

F5000LFP + 6×PV300	+ 6 × PECRON PV300 300W Solar Panels

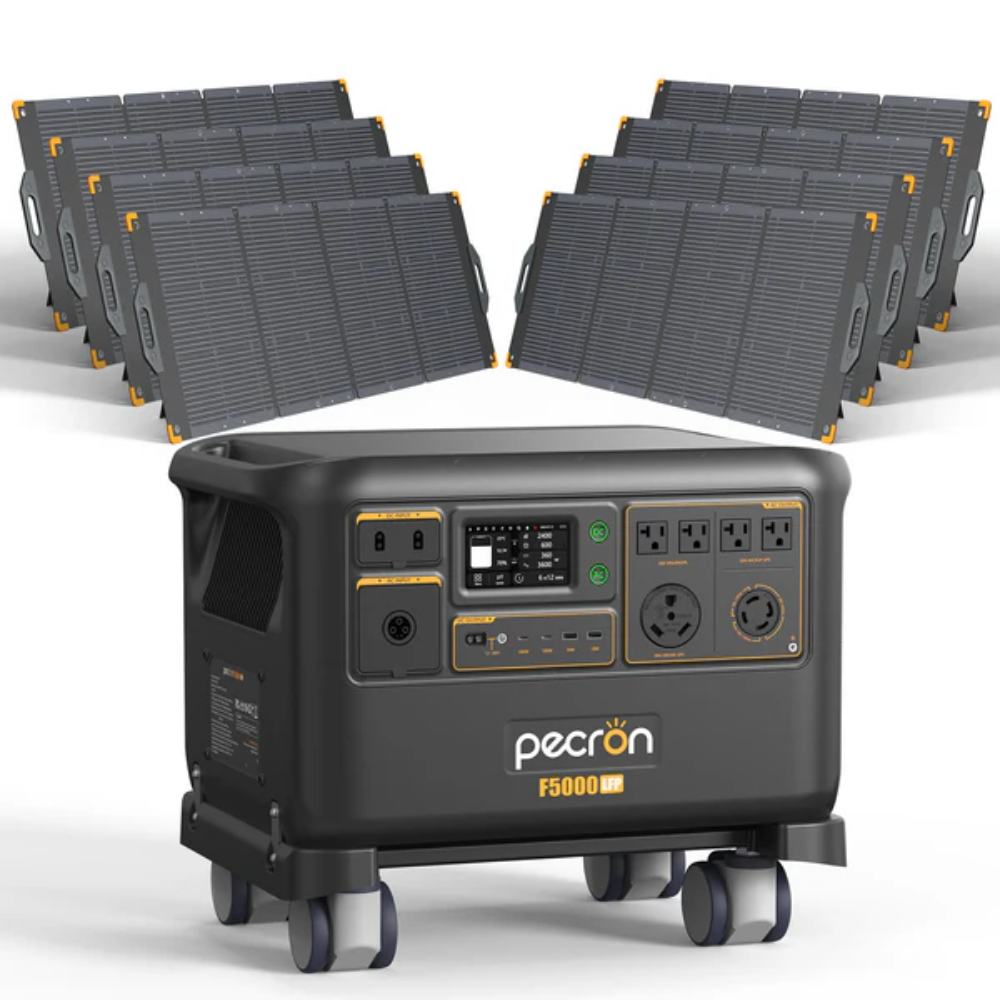

F5000LFP + 8×PV300	+ 8 × PECRON PV300 300W Solar Panels

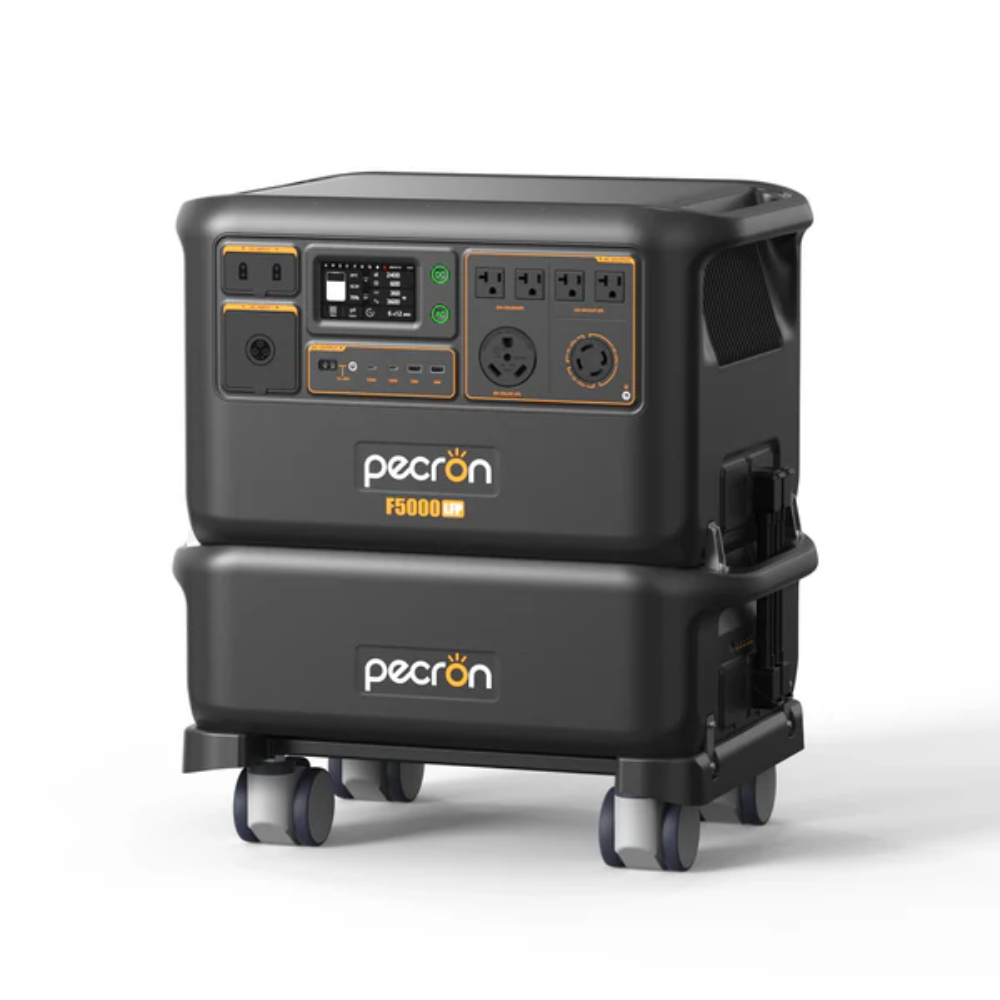

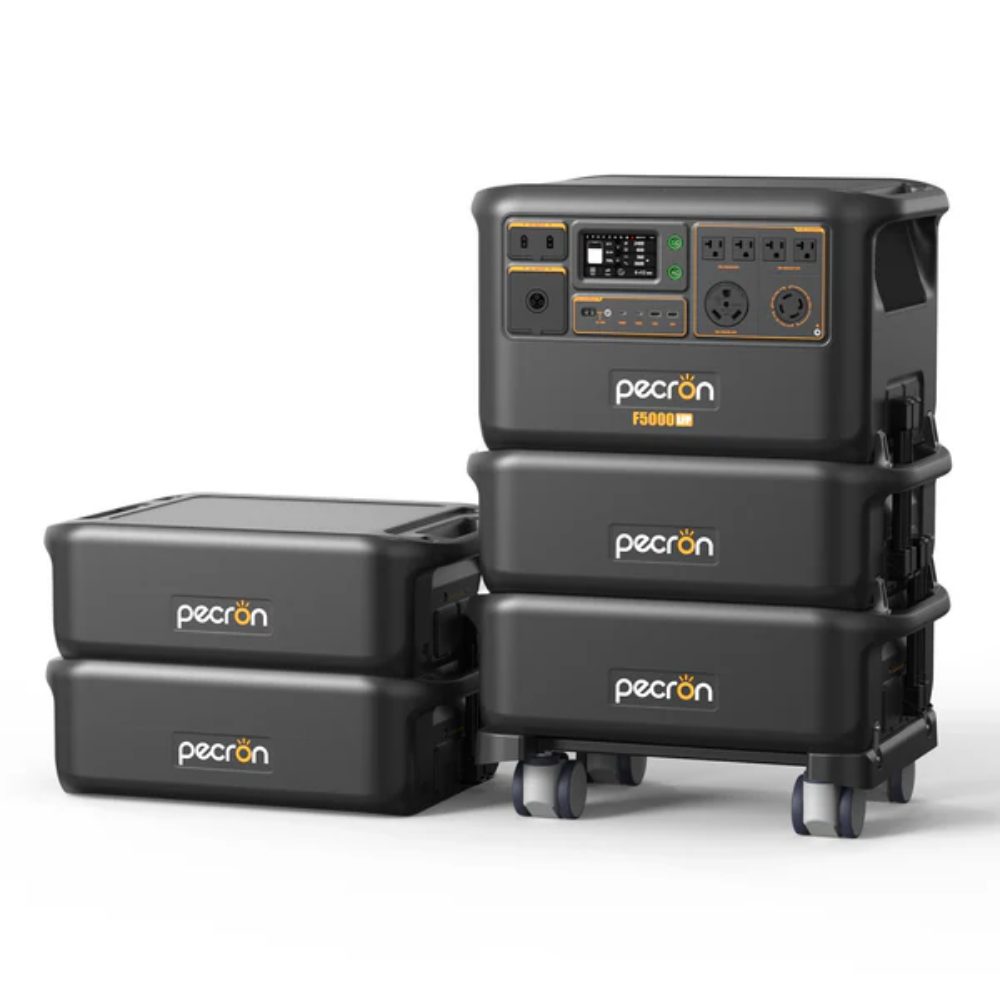

F5000LFP + FP5000-48V	+ 1 × FP5000-48V Expansion Battery — total up to 10,240Wh

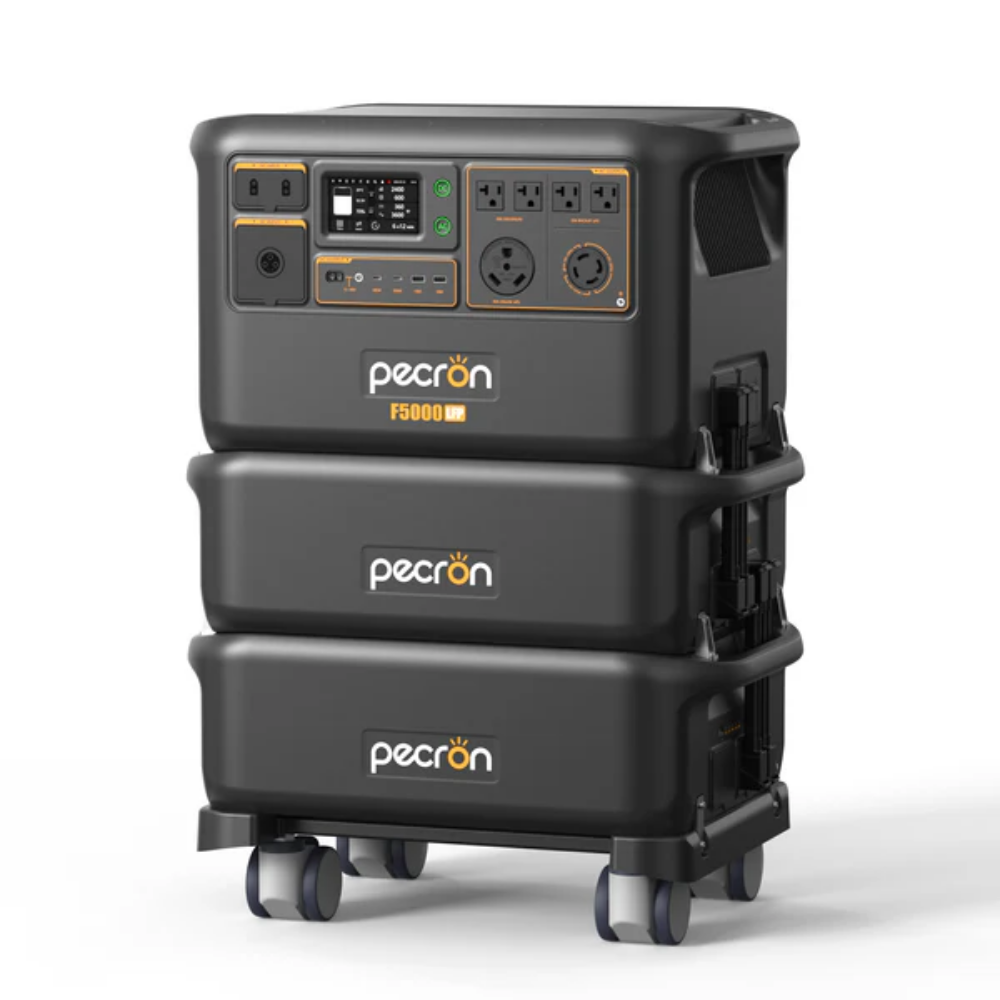

F5000LFP + 2×FP5000-48V	+ 2 × FP5000-48V — total up to 15,360Wh

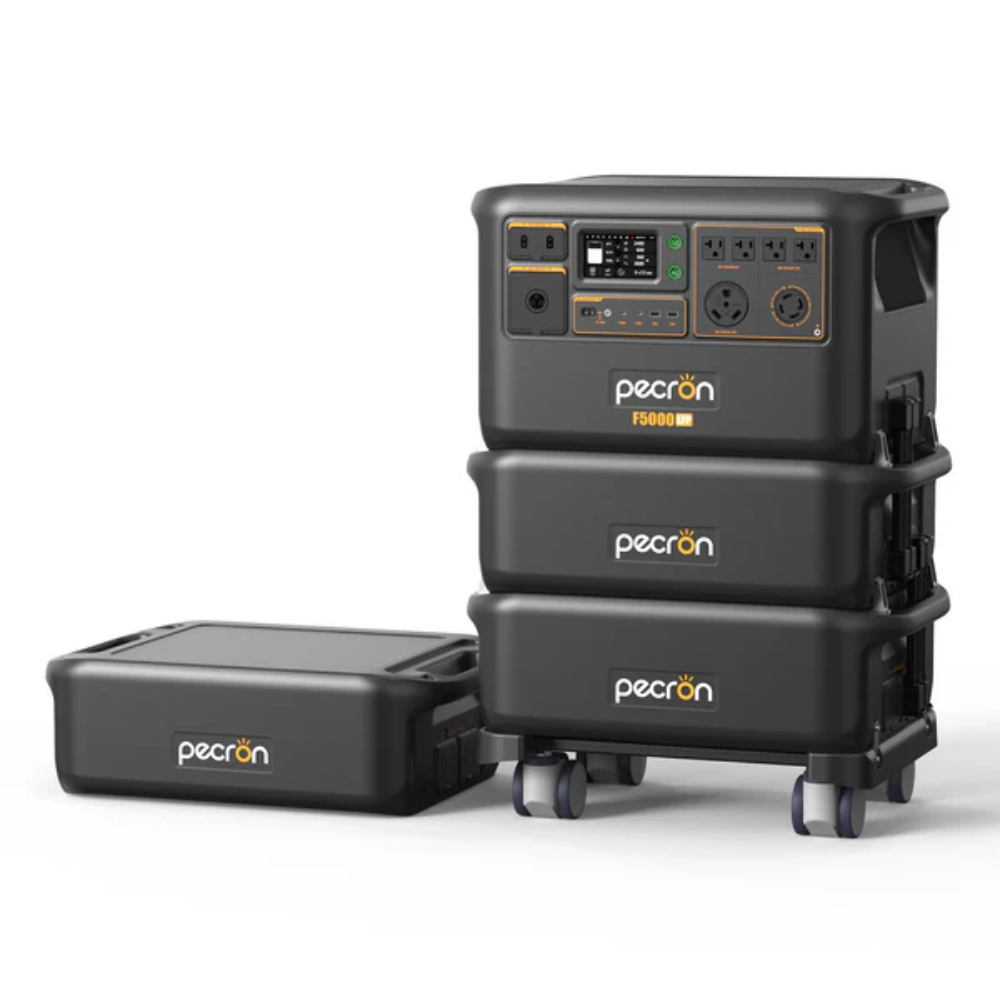

F5000LFP + 3×FP5000-48V	+ 3 × FP5000-48V — total up to 20,480Wh
F5000LFP + 4×FP5000-48V	+ 4 × FP5000-48V — total up to 25,600Wh
F5000LFP + 5×FP5000-48V	+ 5 × FP5000-48V — total up to 30,720Wh

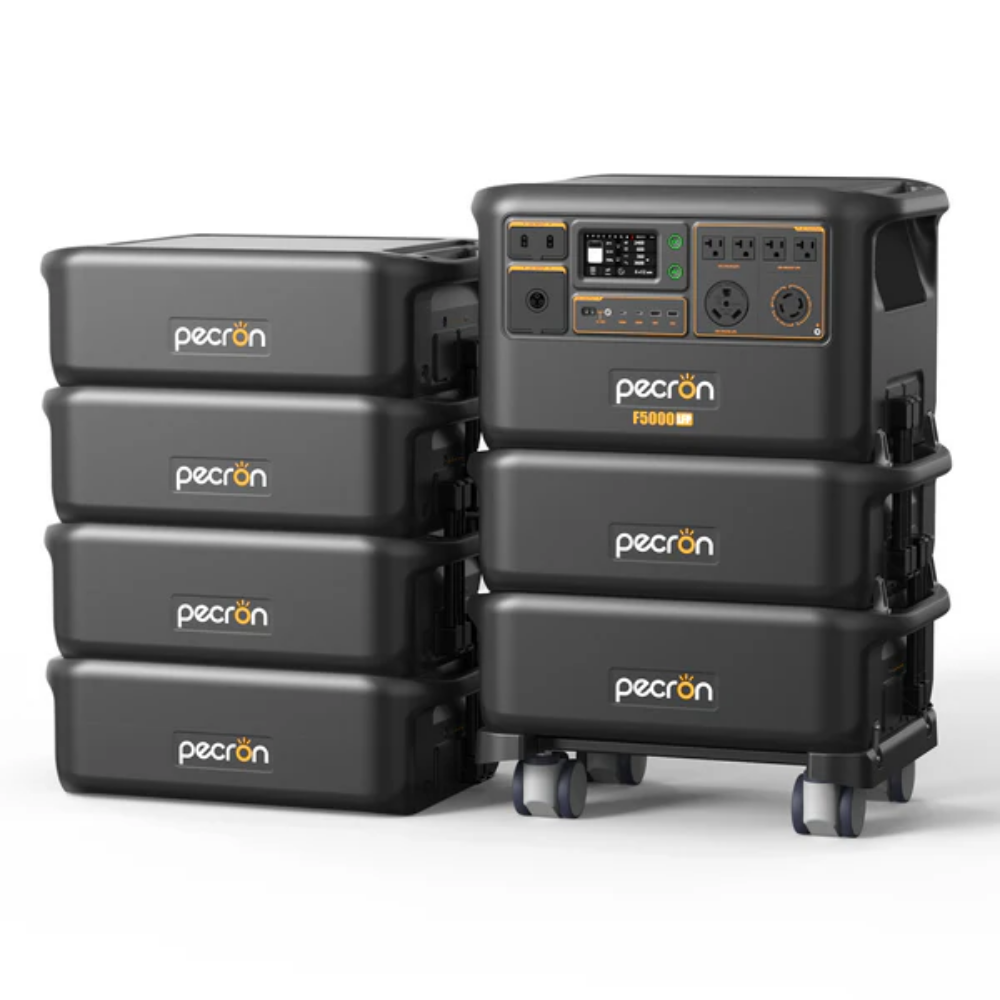

F5000LFP + 6×FP5000-48V	+ 6 × FP5000-48V — total up to 35,840Wh
