Renogy Premium Off-Grid Solar Kit 800W 12V/24V | Optional Smart Monitoring
Renogy Premium Off-Grid Solar Kit 800W 12V/24V | Optional Smart Monitoring
SKU: RKIT800DPM-RVR60-US
- Regular price
- Price: $1,299.99
- Regular price
- List Price: $1,299.99
- Sale price
- Price: $1,299.99
- Unit price
- per
In stock
Couldn't load pickup availability
- Free Shipping - Quick and Easy
- Easy 30 Day Returns
Manufactures Warranty
Manufactures Warranty
PowerGen Store is an Authorized Dealer for all of our Suppliers, so every product you purchase includes the Full Manufactures Warranty provided directly by the Manufacturer. See Manufactures Website for More Details
Price Guarantee
Price Guarantee
At PowerGen Store, we are committed to offering you the best prices online. If you find a lower price at another online store within two months of your purchase, just let us know.
Click Here to review full Price Guarantee Policy
Shipping Policy
Shipping Policy
At PowerGen Store, we are dedicated to ensuring our customers enjoy a smooth and efficient shipping experience. As a special benefit for our valued customers, we are pleased to offer FREE SHIPPING in the Contiguous 48 United States (See below for Alaska & Hawaii). To guarantee timely delivery of your orders, we have built a comprehensive network of couriers. Please see the detailed information below regarding our shipping Policy.
Click Here to read out full Shipping Policy
Return Policy
Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Click Here to review our full Returns Policy
PRODUCT DESCRIPTION
Description
800W 12V Starter Solar Panel Kit
Perfect for off-grid living, this comprehensive solar solution delivers reliable power generation with straightforward setup. Ideal for RV enthusiasts seeking cost-effective energy independence without sacrificing performance or quality.

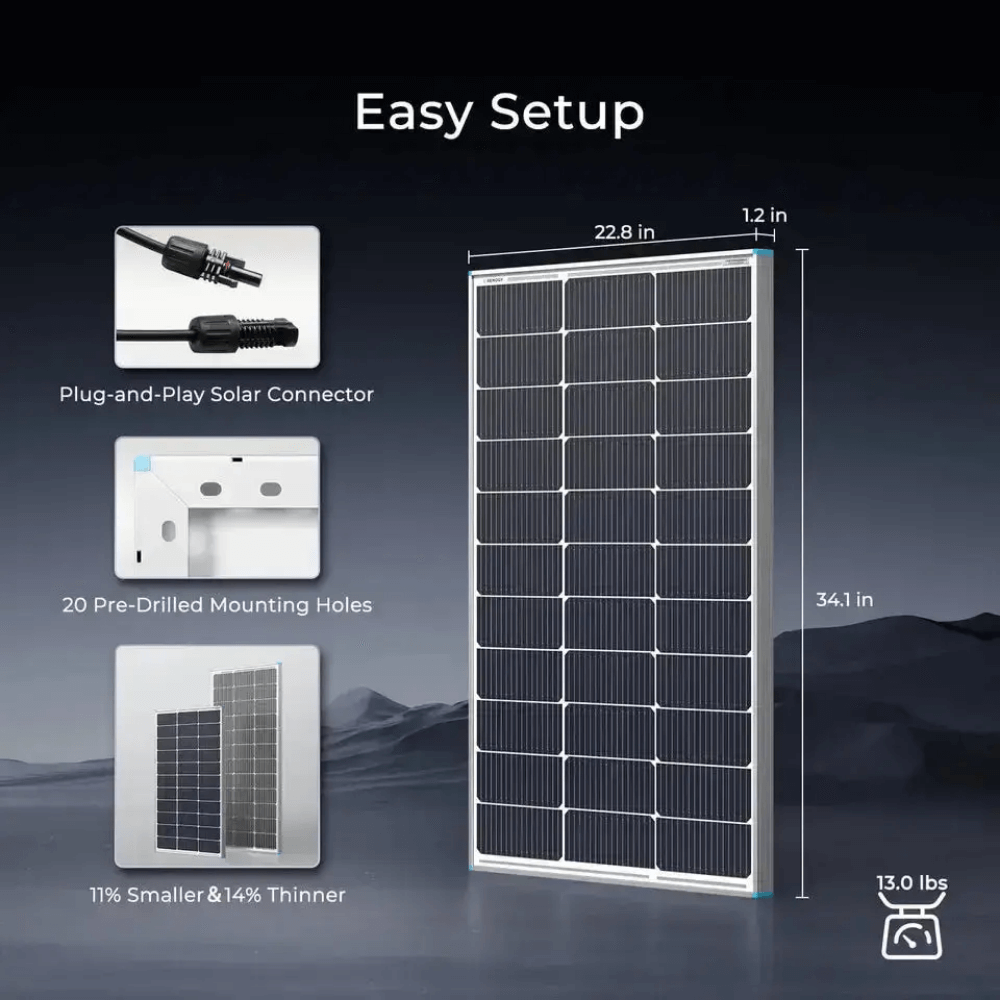

100W N-Type Solar Panel

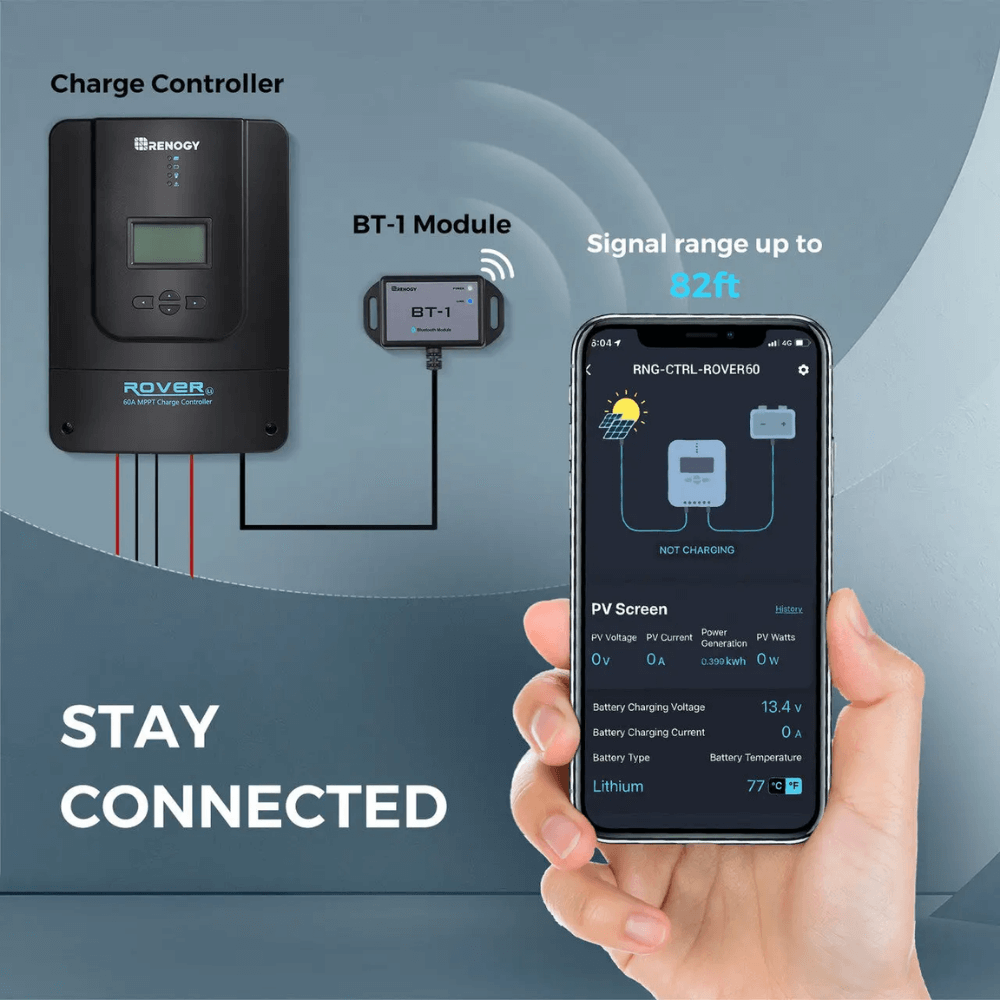

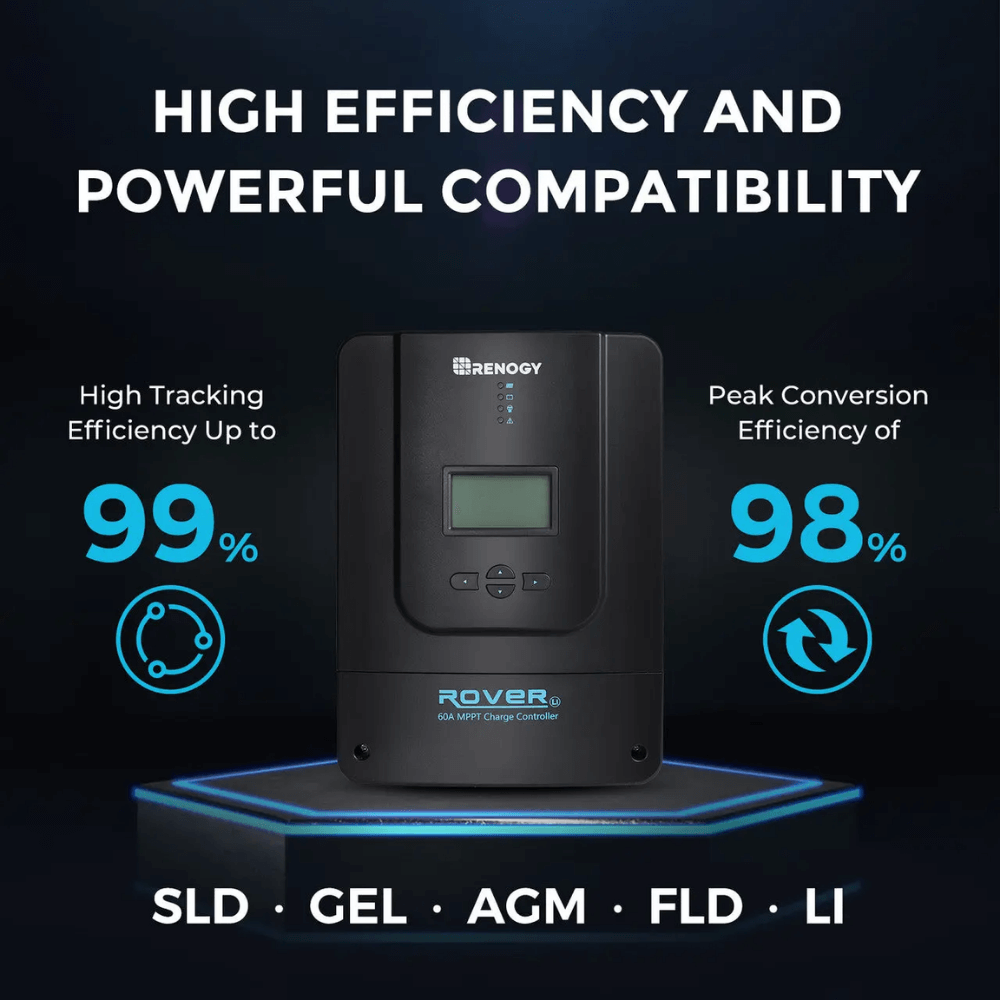

Rover Li 60A MPPT Solar Charge Controller

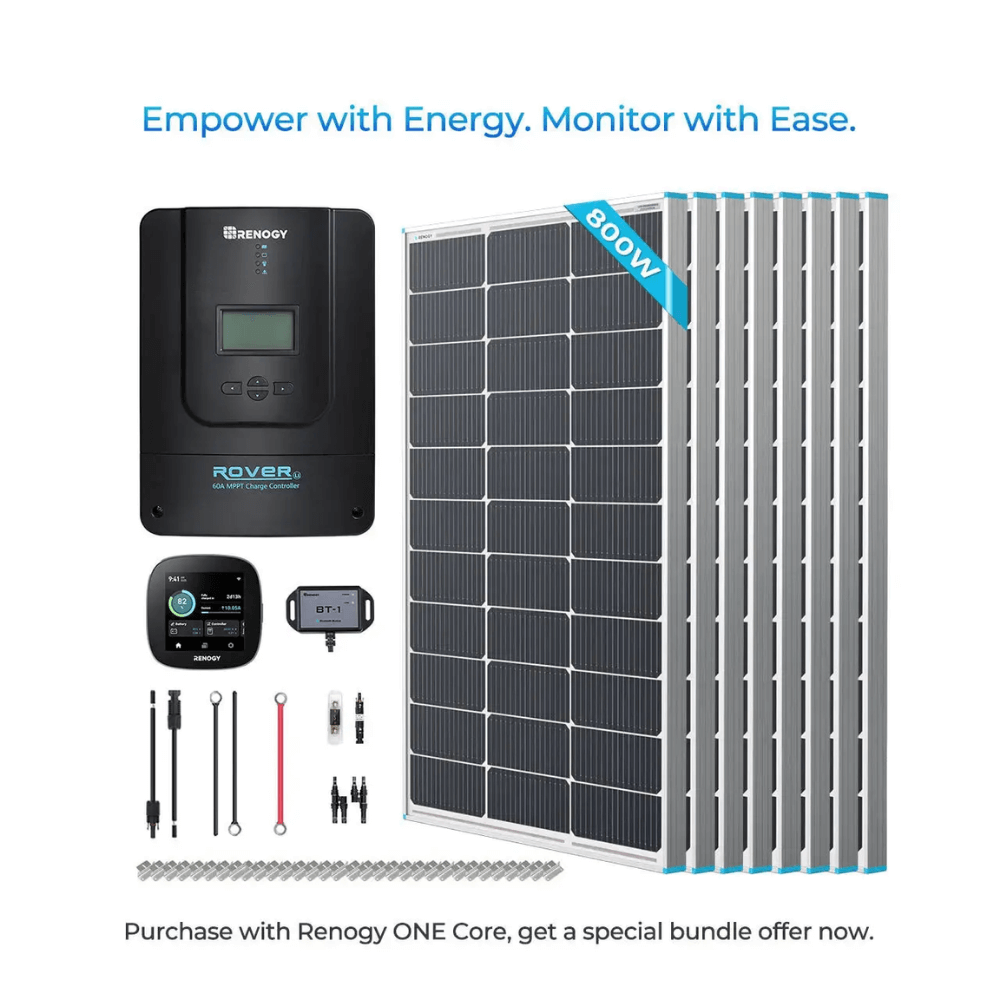

Renogy ONE Core
How They Work
A simplified diagram showing how the system connects and operates.
Specifications

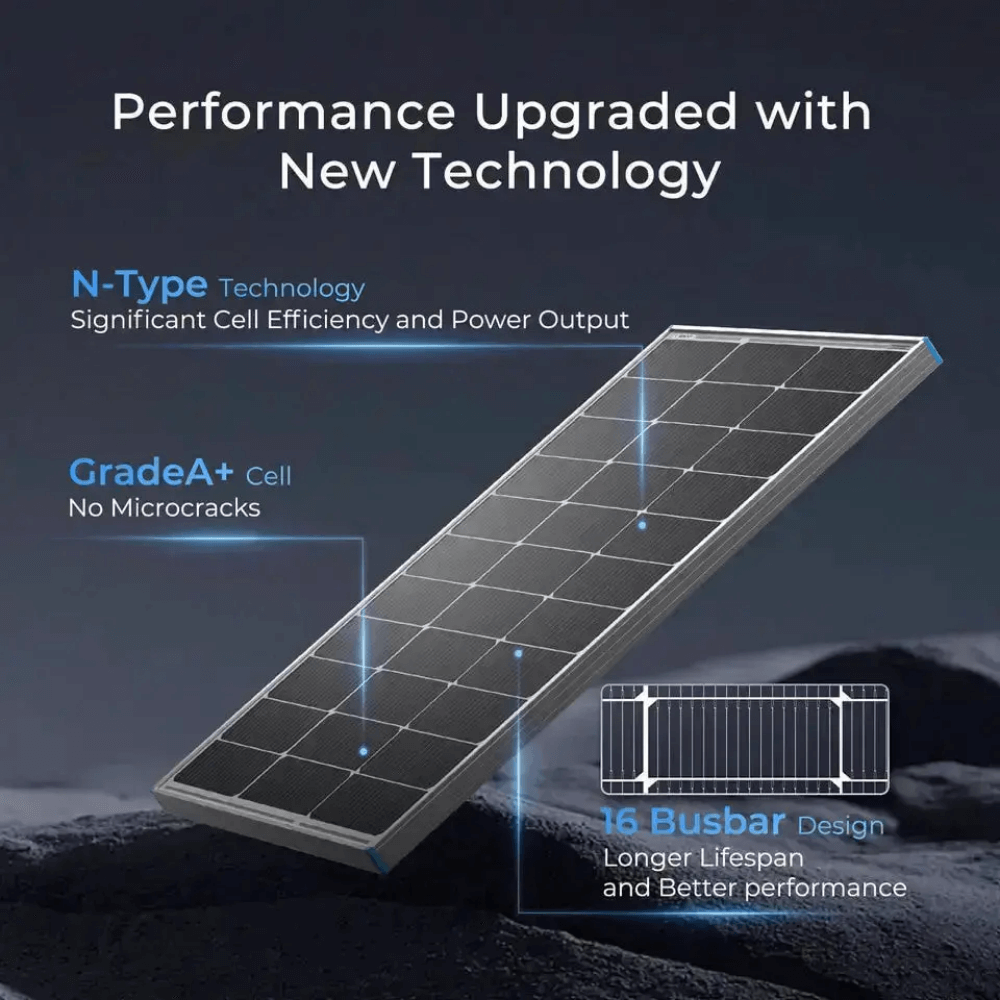

Renogy 16BB N-Type 100 Watt Solar Panel – Specifications
| Specification | Details |
|---|---|
| Max Power at STC | 100W |
| Open Circuit Voltage (Voc) | 22.79V |
| Short Circuit Current (Isc) | 5.31A |
| Optimum Operating Voltage (Vmp) | 19.97V |
| Optimum Operating Current (Imp) | 5.01A |
| Operating Temperature | -40°F to 185°F (-40°C to +85°C) |
| Dimensions | 34.1 × 22.8 × 1.2 in (865 × 578 × 30 mm) |
| Weight | 13.0 lbs (5.9 kg) |
ROVER 60A MPPT Solar Charge Controller – Specifications
| Specification | Details |
|---|---|
| Nominal Battery Voltage | 12V / 24V / 36V / 48V (Auto Recognition for non-lithium) |
| Rated Charge Current | 60A |
| Rated Load Current | 20A |
| Max PV Input Power | 800W (12V), 1600W (24V), 2400W (36V), 3200W (48V) |
| Max PV Input Voltage | 140VDC |
| Terminal Size | 25mm² (4 AWG) |
| Operating Temperature | -31°F to 113°F (-35°C to 45°C) |
| Temperature Compensation | -3mV/°C/2V (default) |
| Dimensions | 11.22 × 8.07 × 4.00 in (285 × 205 × 102 mm) |

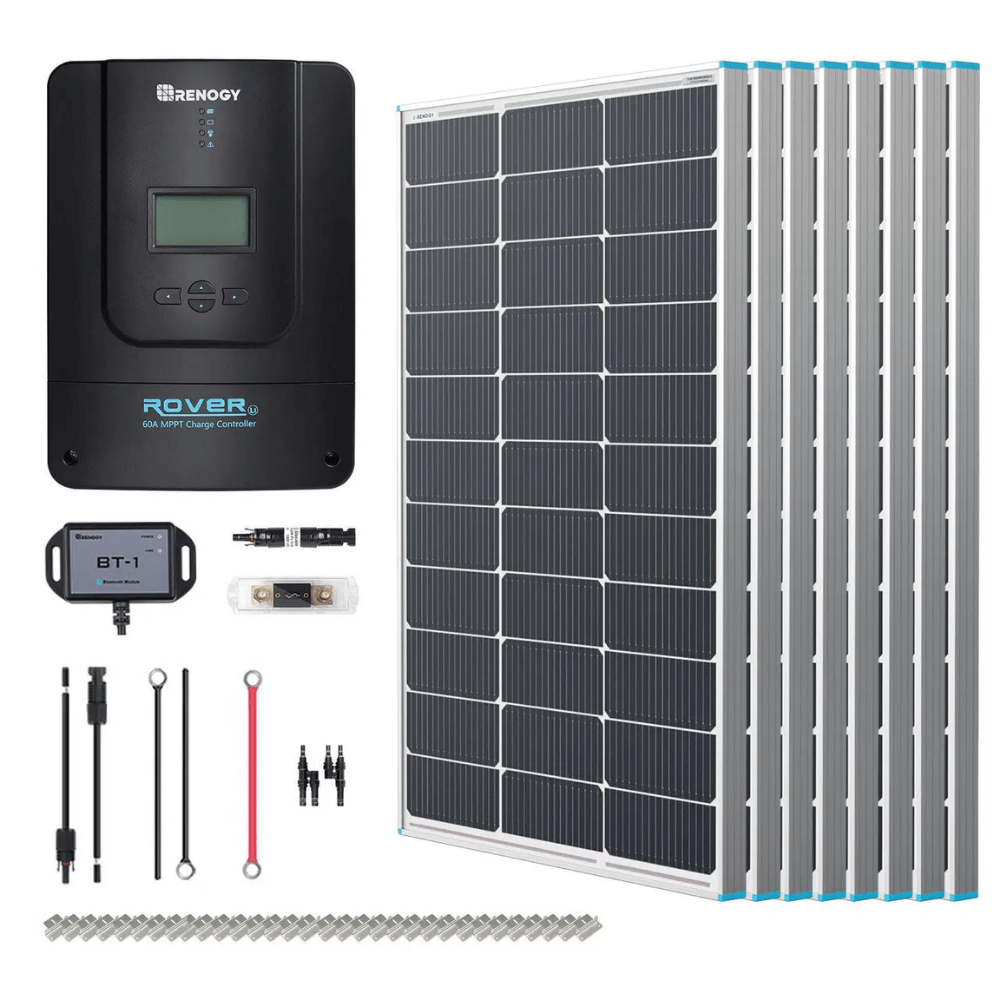

What's in the Box?
Renogy 16BB N-Type 100 Watt Solar Panel – Specifications
| Specification | Details |
|---|---|
| Max Power at STC | 100W |
| Open Circuit Voltage (Voc) | 22.79V |
| Short Circuit Current (Isc) | 5.31A |
| Optimum Operating Voltage (Vmp) | 19.97V |
| Optimum Operating Current (Imp) | 5.01A |
| Operating Temperature | -40°F to 185°F (-40°C to +85°C) |
| Dimensions | 34.1 × 22.8 × 1.2 in (865 × 578 × 30 mm) |
| Weight | 13.0 lbs (5.9 kg) |
ROVER 60A MPPT Solar Charge Controller – Specifications
| Specification | Details |
|---|---|
| Nominal Battery Voltage | 12V / 24V / 36V / 48V (Auto Recognition for non-lithium) |
| Rated Charge Current | 60A |
| Rated Load Current | 20A |
| Max PV Input Power | 800W (12V), 1600W (24V), 2400W (36V), 3200W (48V) |
| Max PV Input Voltage | 140VDC |
| Terminal Size | 25mm² (4 AWG) |
| Operating Temperature | -31°F to 113°F (-35°C to 45°C) |
| Temperature Compensation | -3mV/°C/2V (default) |
| Dimensions | 11.22 × 8.07 × 4.00 in (285 × 205 × 102 mm) |
