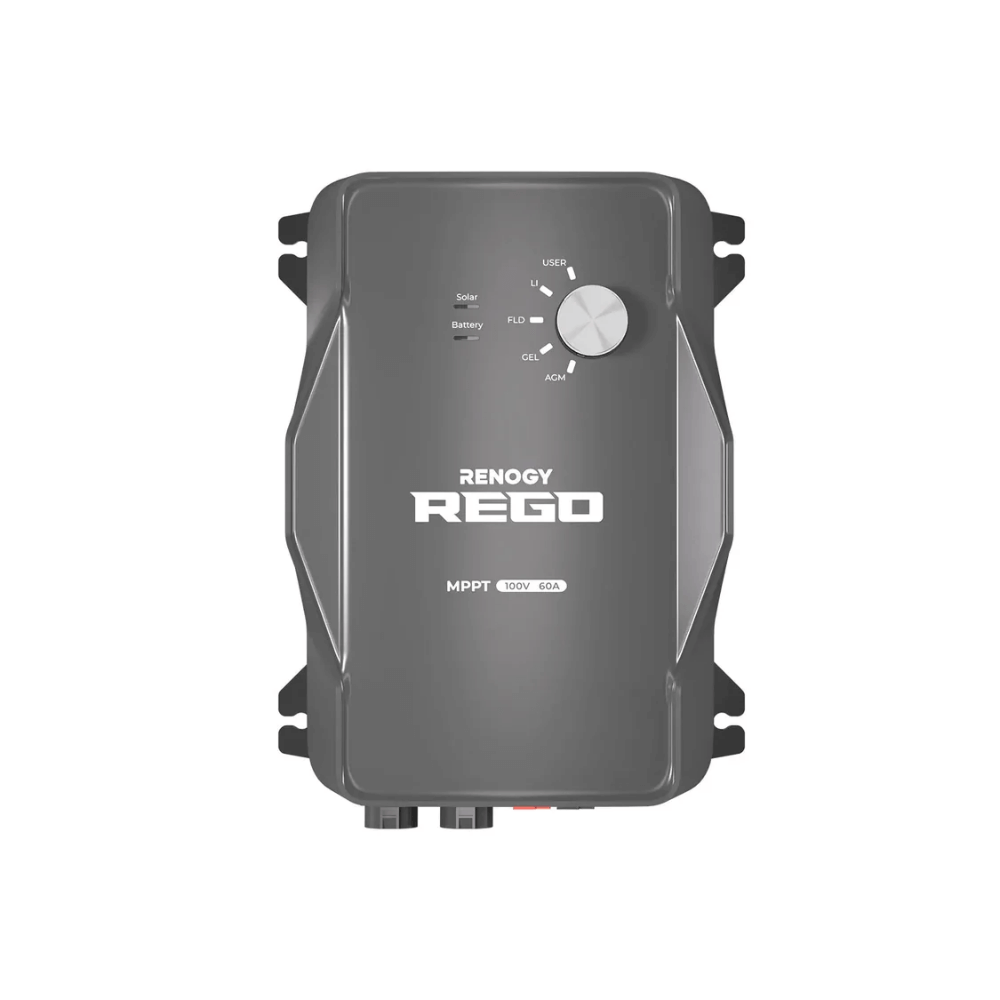

Renogy REGO 12V 60A MPPT Solar Charge Controller
Renogy REGO 12V 60A MPPT Solar Charge Controller
SKU: RCC60REGO-US
- Regular price
- Price: $516.99
- Regular price
- List Price: $516.99
- Sale price
- Price: $516.99
- Unit price
- per
Low stock
Couldn't load pickup availability
- Free Shipping - Quick and Easy
- Easy 30 Day Returns
Manufactures Warranty
Manufactures Warranty
PowerGen Store is an Authorized Dealer for all of our Suppliers, so every product you purchase includes the Full Manufactures Warranty provided directly by the Manufacturer. See Manufactures Website for More Details
Price Guarantee
Price Guarantee
At PowerGen Store, we are committed to offering you the best prices online. If you find a lower price at another online store within two months of your purchase, just let us know.
Click Here to review full Price Guarantee Policy
Shipping Policy
Shipping Policy
At PowerGen Store, we are dedicated to ensuring our customers enjoy a smooth and efficient shipping experience. As a special benefit for our valued customers, we are pleased to offer FREE SHIPPING in the Contiguous 48 United States (See below for Alaska & Hawaii). To guarantee timely delivery of your orders, we have built a comprehensive network of couriers. Please see the detailed information below regarding our shipping Policy.
Click Here to read out full Shipping Policy
Return Policy
Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Click Here to review our full Returns Policy
PRODUCT DESCRIPTION
Description

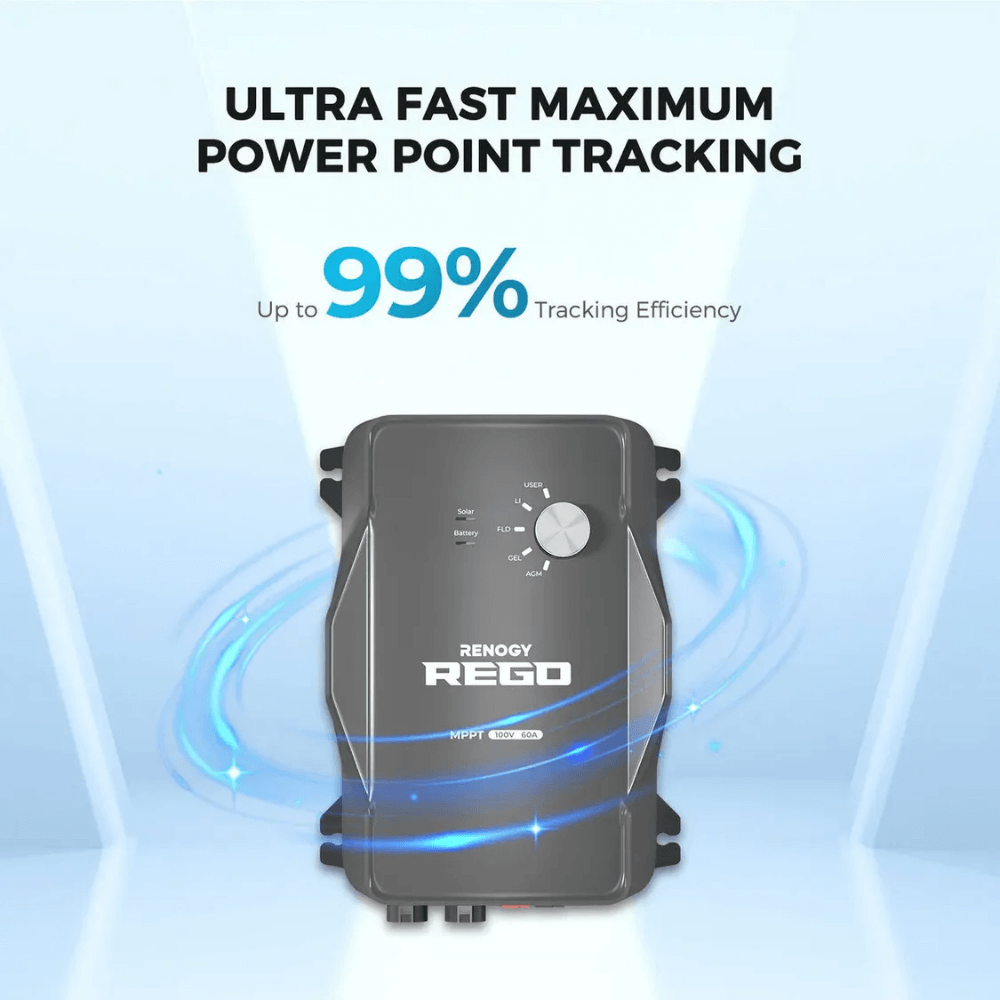

The Renogy REGO 12V 60A MPPT Solar Charge Controller delivers professional-grade performance with streamlined installation. Its ready-to-connect design minimizes setup complexity while the integrated Battery Protect Unit safeguards your batteries against damage and degradation. Featuring 99% tracking efficiency through advanced MPPT technology, this controller maximizes solar energy conversion and system output. Built with a compact footprint without compromising durability, it combines sophisticated engineering with a refined aesthetic. This controller stands apart through superior efficiency and dependable operation in its category.

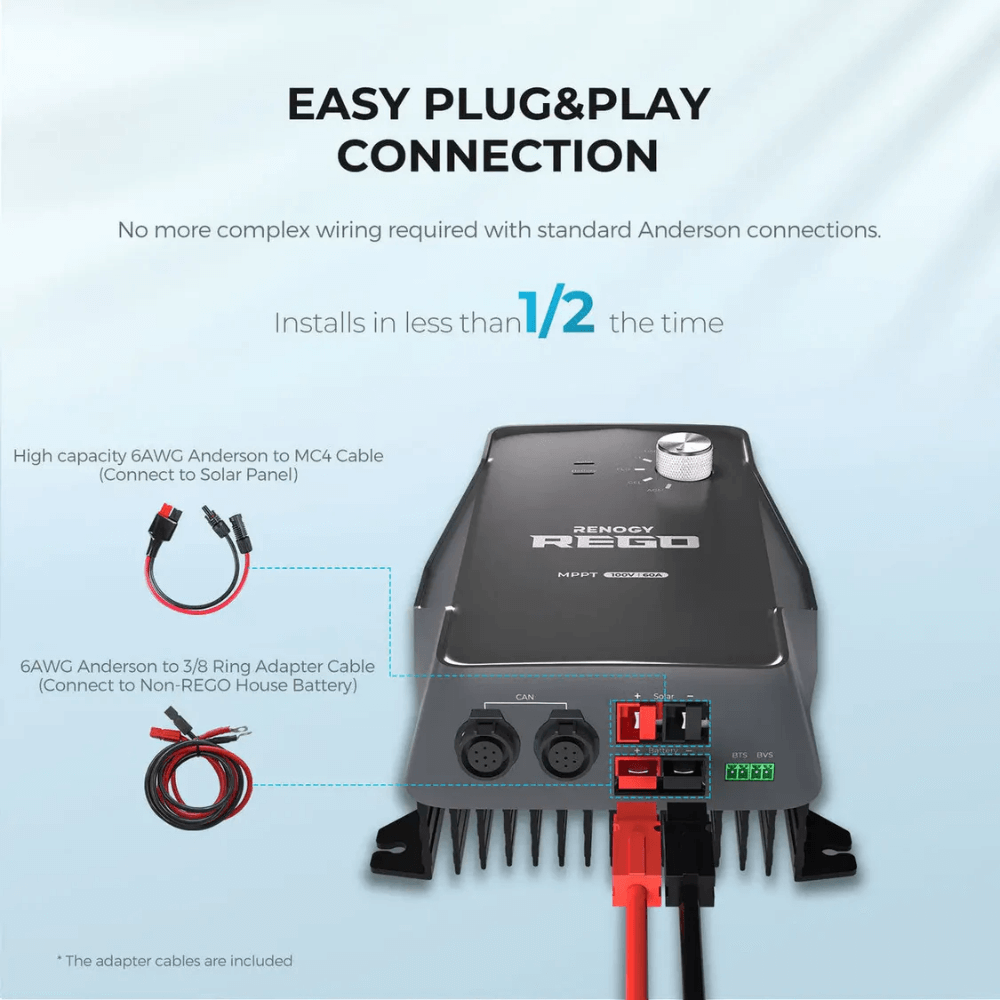

The Renogy REGO 12V 60A MPPT Solar Charge Controller streamlines your installation process with an integrated Anderson to MC4 adapter cable, cutting setup time by up to 60%. Its engineered compact form factor reduces spatial requirements while maintaining robust construction and advanced technological capabilities. This controller delivers professional-grade performance in a footprint that outperforms conventional models, making it an efficient choice for space-conscious solar installations.
Smart Manage the Batteries, Protect the Whole System

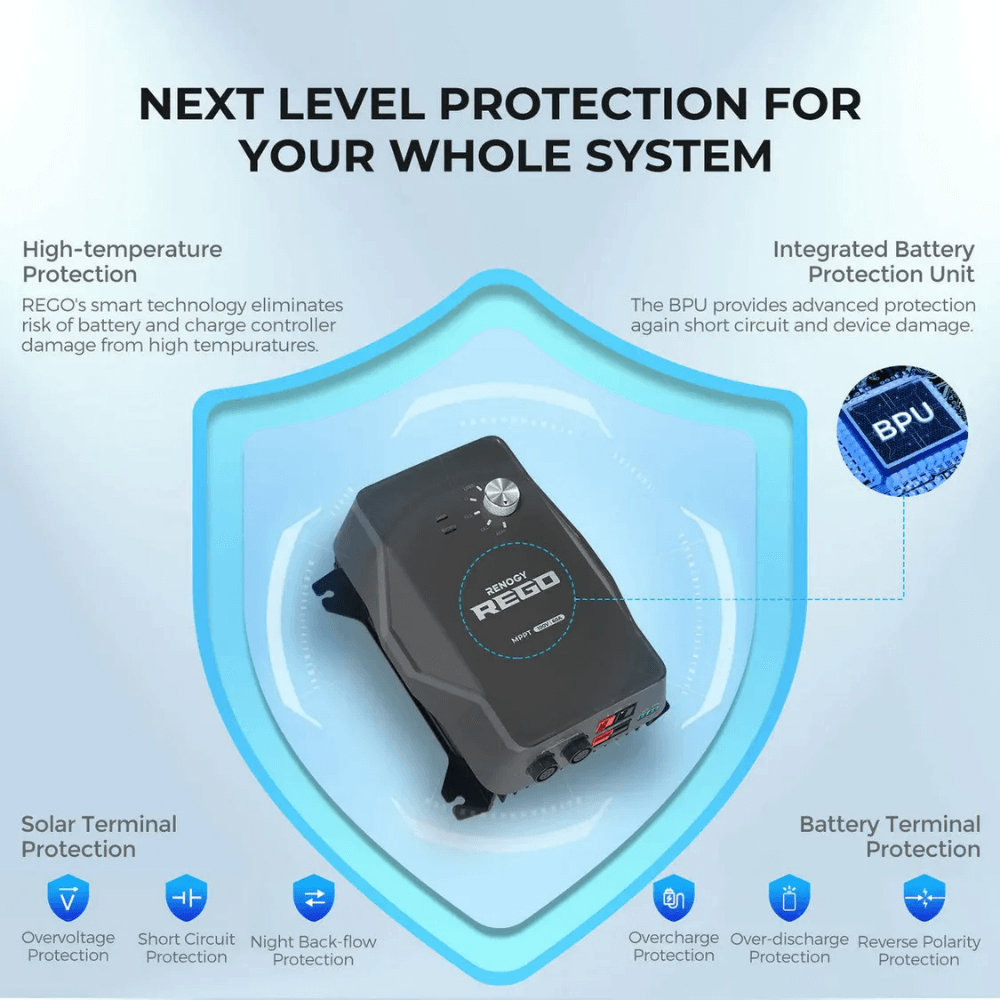

The Renogy REGO 12V 60A MPPT Solar Charge Controller employs intelligent multi-stage charging protocols—three to four stages for lead-acid batteries and two stages for lithium—to maximize charging efficiency and extend battery longevity. Dual-terminal protection safeguards both solar input and battery output circuits against electrical faults. Its advanced Battery Protect Unit intelligently manages non-essential loads by disconnecting them when battery voltage drops critically or insufficient power remains for engine starting, preserving system integrity and preventing deep discharge damage.
Please note: If you wish to connect the charge controller to a non-REGO house battery, an Anderson to Ring terminal cable (sold separately in the Renogy Store) will be required.

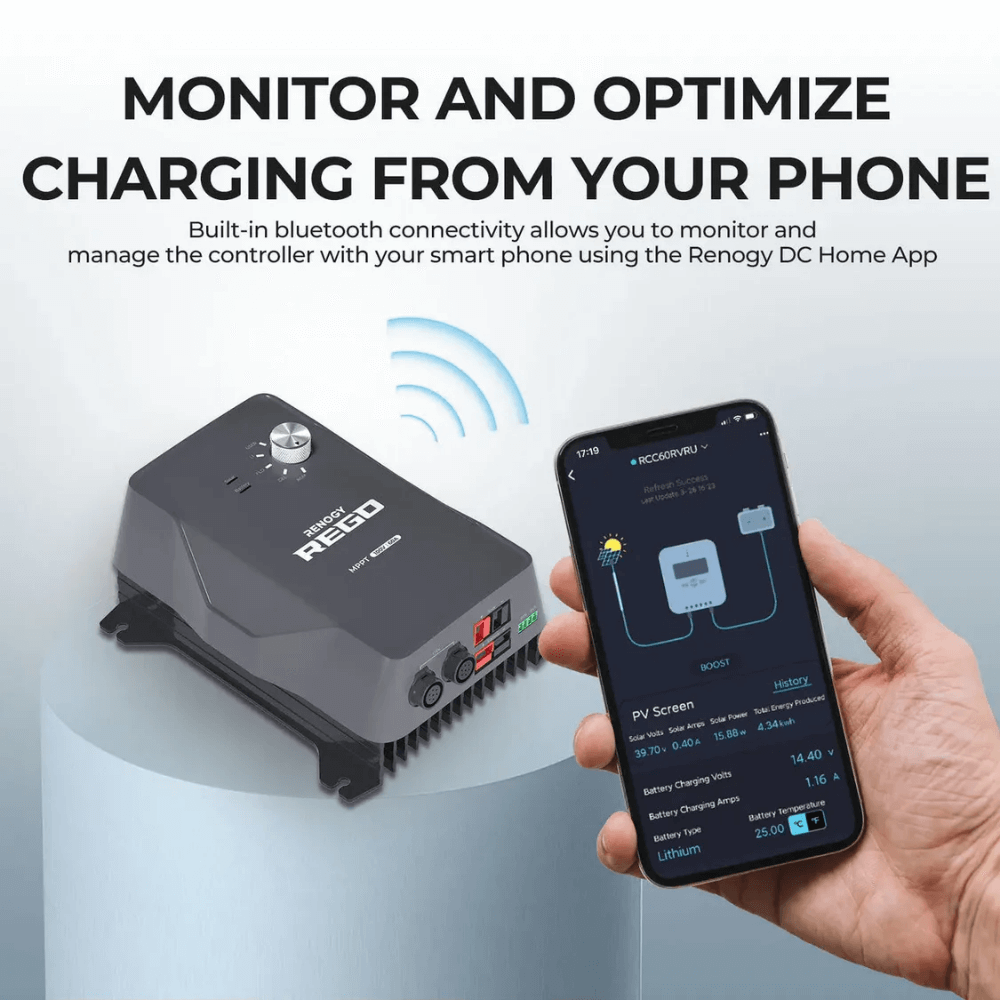

Built-in Bluetooth Puts Monitoring and Control in Your Hands
The built-in Bluetooth allows you to monitor the REGO charge controller on your smartphone with the Renogy DC Home App. With the app, you can customize multiple battery data such as the boost voltage, float voltage, and duration data.
Wide Operating Temperature Range, Accurate Temperature Compensation
The REGO charge controller operates within a wide temperature range from -4°F to 140°F. It includes a built-in temperature sensor that measures battery temperature in real time, using this data for precise temperature compensation (-3mV/°C/2V for non-lithium batteries; no compensation for lithium batteries), ensuring efficient and stable charging.
Integrated Thermal Management, Ensure Stable and Constant Charging
The design of the die-cast aluminum heat sink provides maximum surface area exposed to ambient air, efficiently transferring and dissipating heat produced by the REGO charge controller. This keeps the device at optimal temperatures and provides excellent heat dissipation for stable, continuous charging.
Tested to the Highest Standard, Eradicate Performance Issues
The REGO charge controller is multi-icertified to UL1741, CAN/CSA-C22.2 No. 107.1/CB+IEC 62109/EMC,EN61000-3-1/-3; EN301489-1/17; RF,EN300328; and FCC, 47 CFR 15B. Built to meet and exceed the most rigorous quality and performance standards, maximize your system energy and provide comprehensive protections.
Specifications
REGO 12V 60A MPPT Solar Charge Controller – Specifications
Electrical Parameters
| Specification | Details |
|---|---|
| Nominal System Voltage | 12V |
| Rated Charge Current | 60A |
| Maximum PV Input Power | 800W |
| MPPT Voltage Range | 15 – 100V DC (12V system) |
| Solar Input Voltage Range (Voc) | 100V |
| Maximum Input Current (Isc) | 50A |
| Power Limiting Protection | Up to 800W @ 12V |
| Battery Operating Voltage Range | 10V – 16V |
| Power Consumption | ≤0.5W |
| Ground Type | Common negative lug |

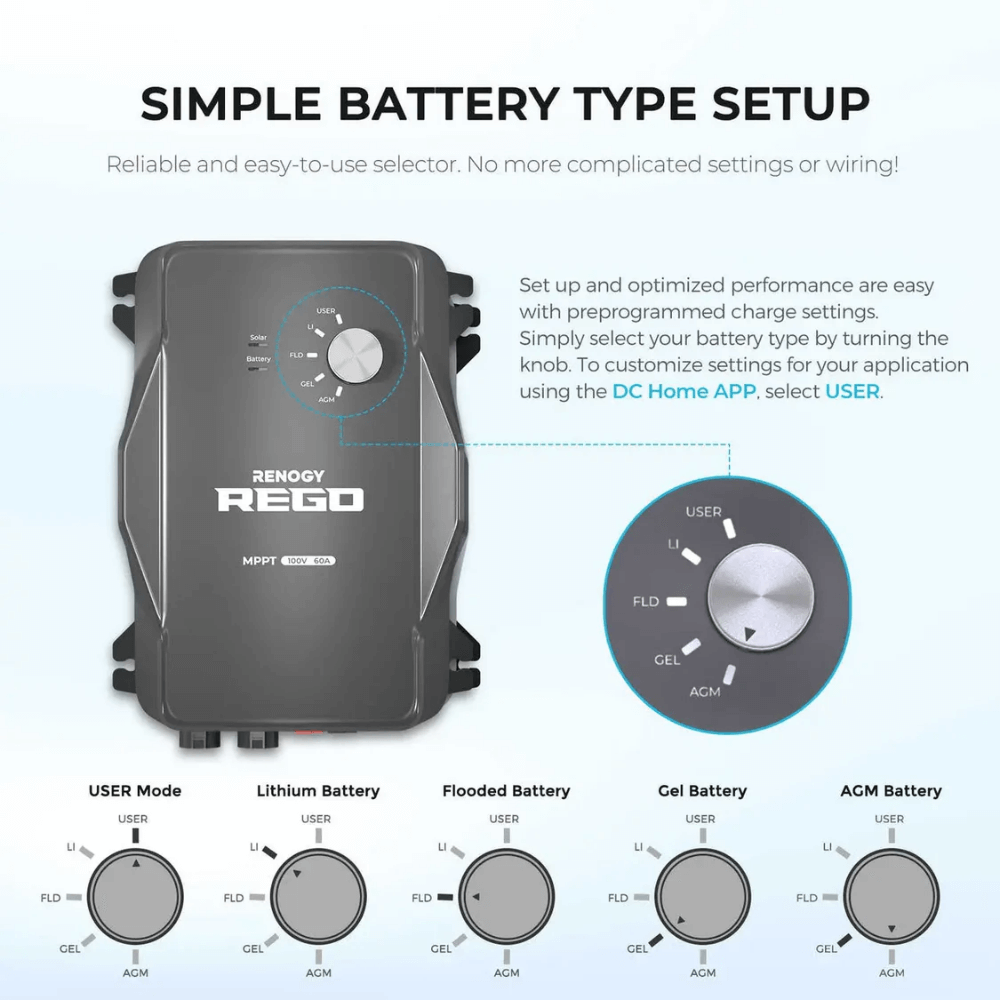

| Supported Battery Types | AGM/Sealed, GEL, Flooded, LFP, User |
| Electronic Protections | Overcharge, over-discharge, battery reverse polarity, PV reverse polarity, PV reverse flow, PV short-circuit, internal over-temperature, charging over-current |
Environmental Data
| Specification | Details |
|---|---|
| Operating Temperature Range | -20°C to 60°C |
| Storage Temperature Range | -25°C to 65°C |
| Operating / Storage Humidity | 0% – 90% RH |
| Temperature Compensation (Non-Lithium) | -3 mV / °C / 2V |
| Temperature Compensation (Lithium) | 0 mV / °C / 2V (no compensation) |
Mechanical Specifications
| Specification | Details |
|---|---|

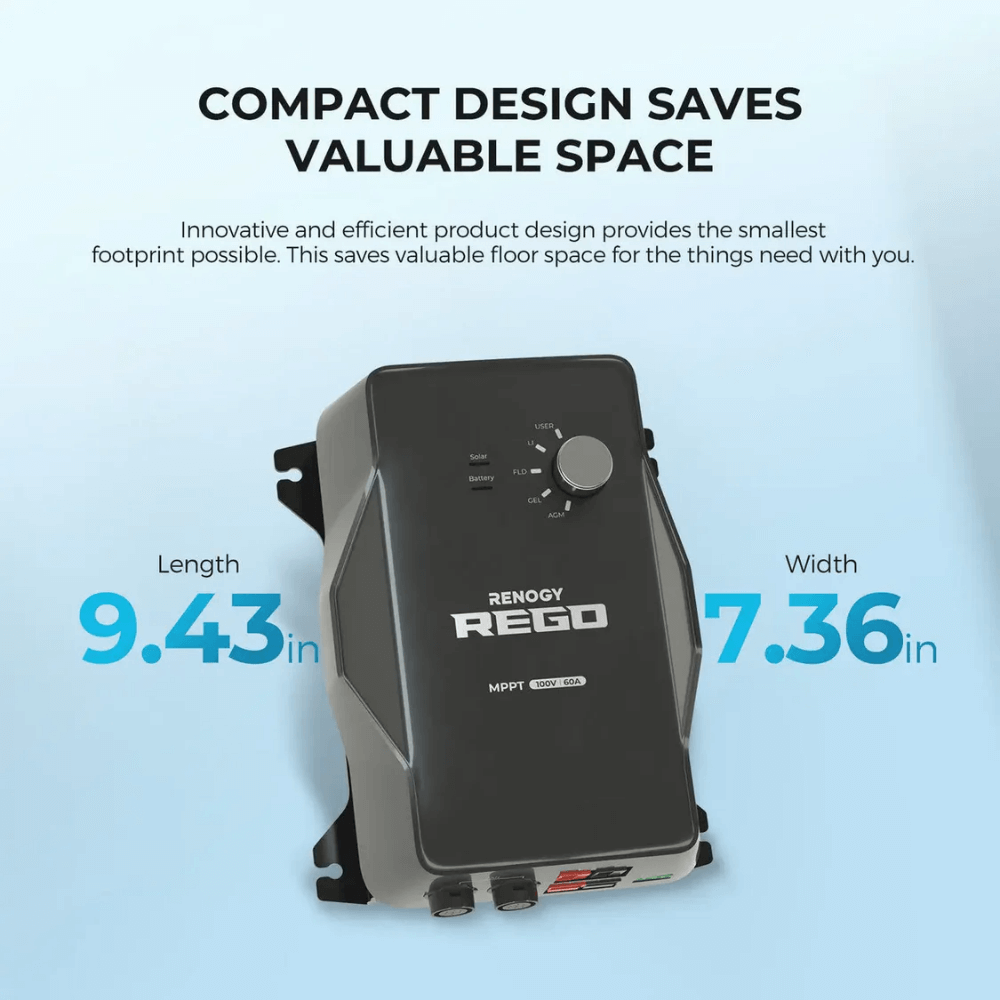

| Dimensions (L × W × H) | 9.43 × 7.36 × 4.28 in / 239.4 × 187 × 108.8 mm |
| Weight | 5.07 lbs / 2.30 kg |
| Terminal Size | Anderson PP75 |
Optional Accessories
| Accessory | Details |
|---|---|
| Bluetooth Module | BT-2 (RS485 / CAN bus signal) |
Certifications & Warranty
| Category | Details |
|---|---|
| Certifications | CE, RoHS, FCC Class B Part 15 |
| Warranty | 5-year material and workmanship warranty |

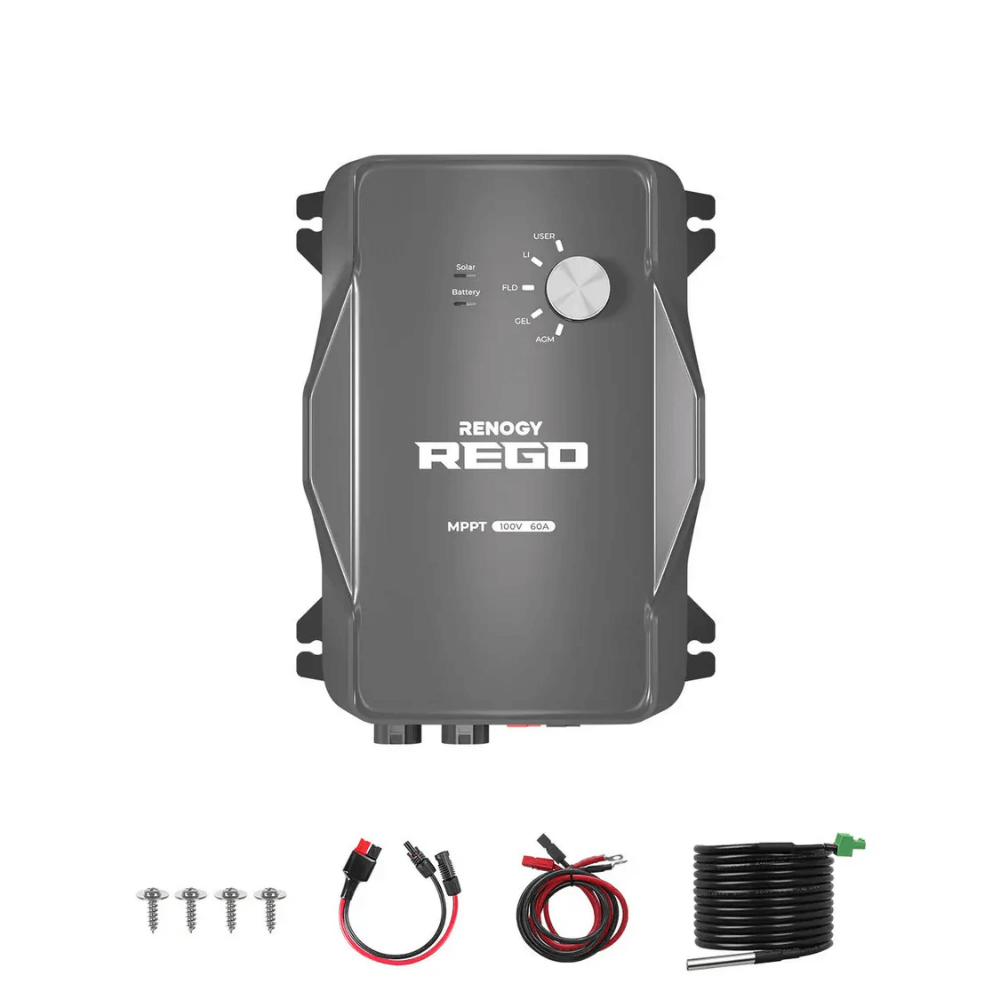

What’s in the Box?

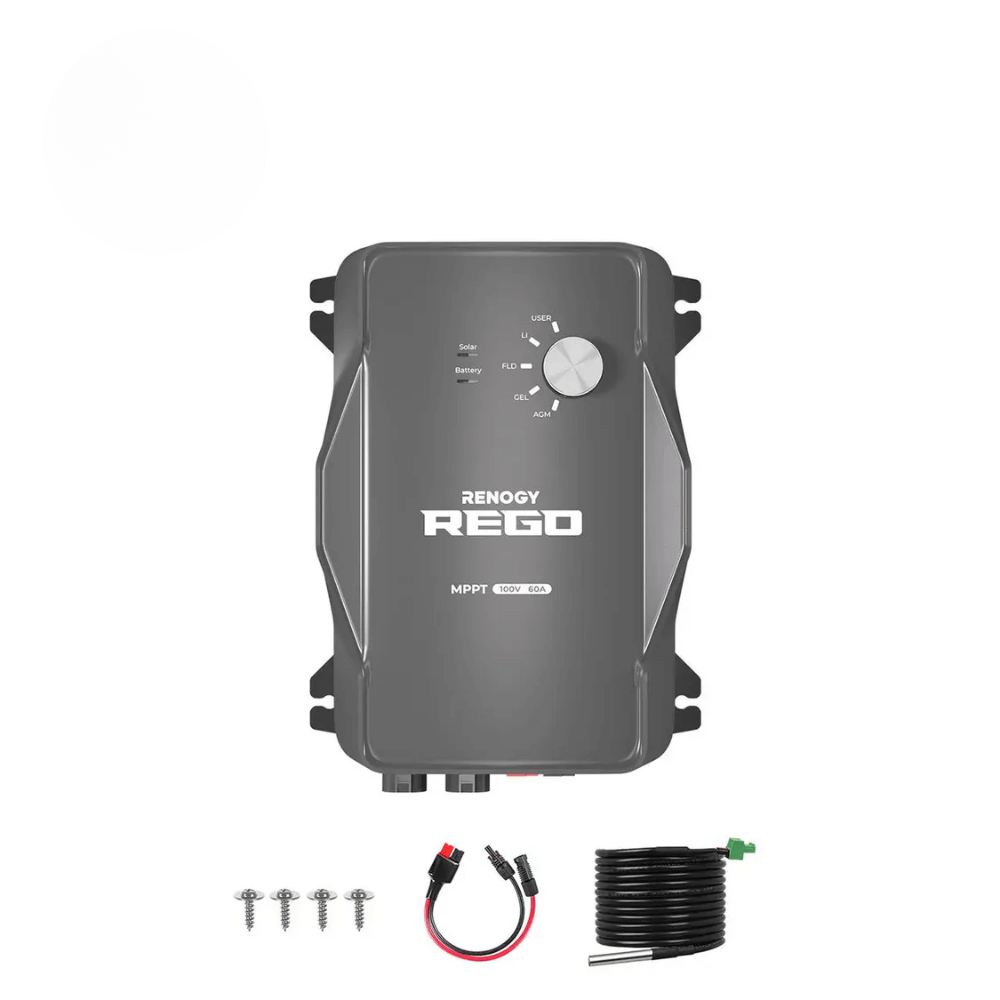

Option 1 – Charger Only
REGO 12V 60A MPPT Charge Controller × 1
Renogy Temperature Sensor × 1
Solar Adapter Cable × 1
Mounting Screws × 4
BT-1 Bluetooth Module × 1
Option 2 – Charger + 5FT 6AWG Cable
REGO 12V 60A MPPT Charge Controller × 1
Renogy Temperature Sensor × 1
Solar Adapter Cable × 1
Mounting Screws × 4
BT-1 Bluetooth Module × 1
5FT 6AWG Anderson Adapter Cable × 1
Option 3 – Charger + 10FT 6AWG Cable
REGO 12V 60A MPPT Charge Controller × 1
Renogy Temperature Sensor × 1
Solar Adapter Cable × 1
Mounting Screws × 4
BT-1 Bluetooth Module × 1
10FT 6AWG Anderson Adapter Cable × 1
