Renogy Solar Panel to Charge Controller Adaptor Kit – Reliable Wiring for Off-Grid Solar Systems
The Renogy Solar Panel to Charge Controller Adaptor Kit is purpose-built to create a secure, low-loss connection between your Renogy solar panels and charge controller. Each kit includes a matched pair of cables with solar connectors on one end and exposed wire leads on the other, allowing direct, efficient termination at the controller. Designed for off-grid solar installations from 100W to 400W, this weatherproof adaptor kit performs reliably in extreme heat, cold, and outdoor environments. With multiple length and wire gauge options, the Renogy Solar Panel to Charge Controller Adaptor Kit ensures proper system sizing and clean installations for RV, cabin, rooftop, or ground-mounted solar systems.
Features

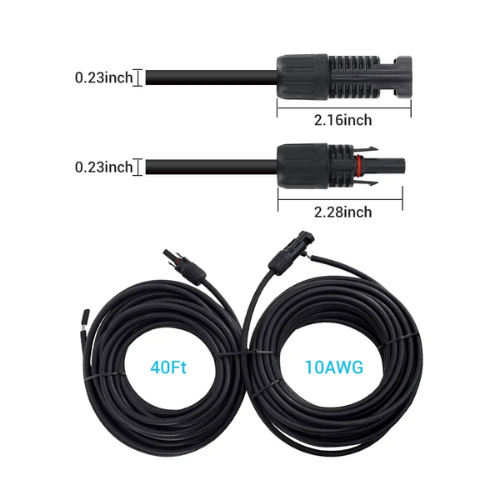

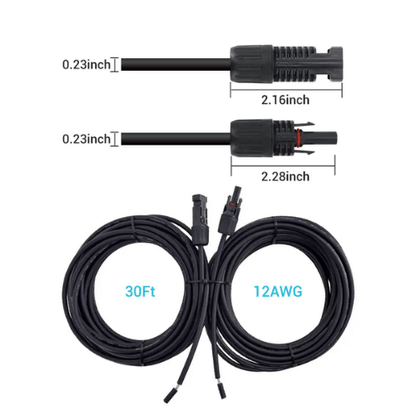

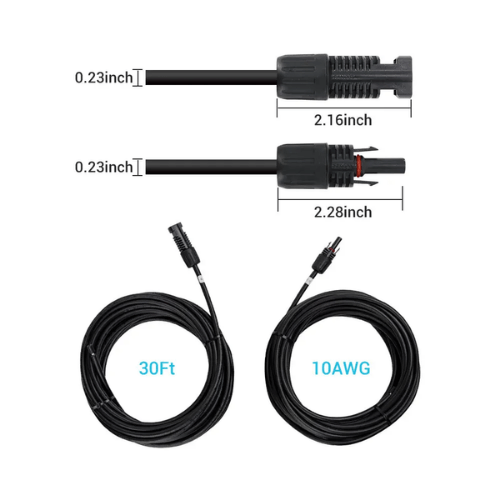

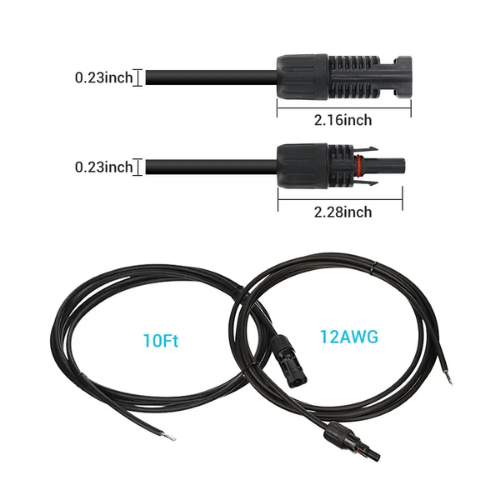

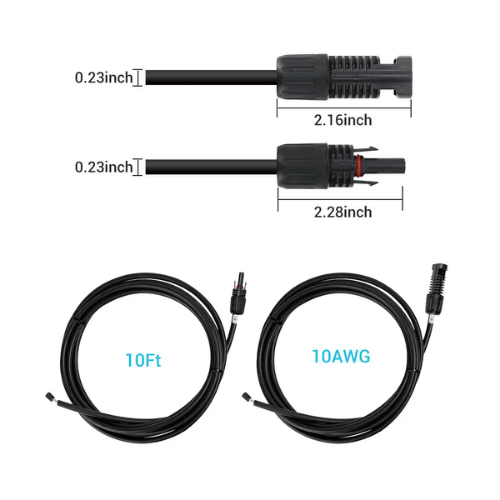

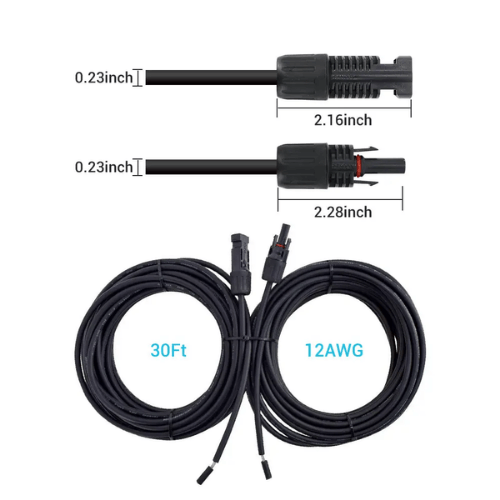

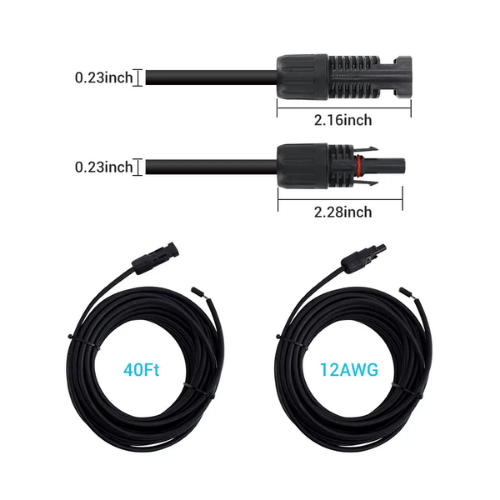

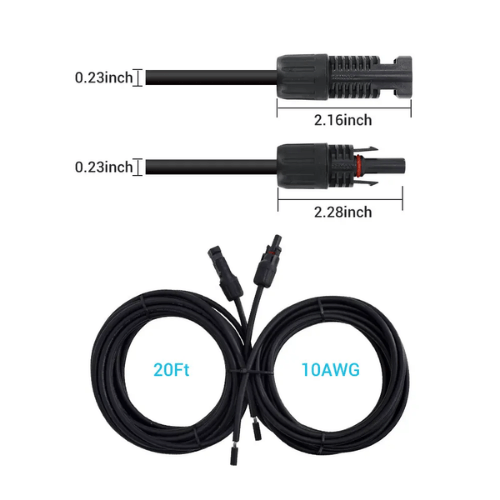

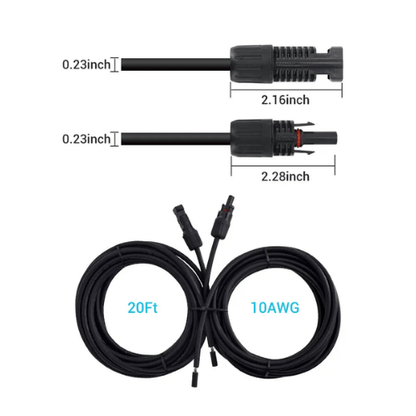

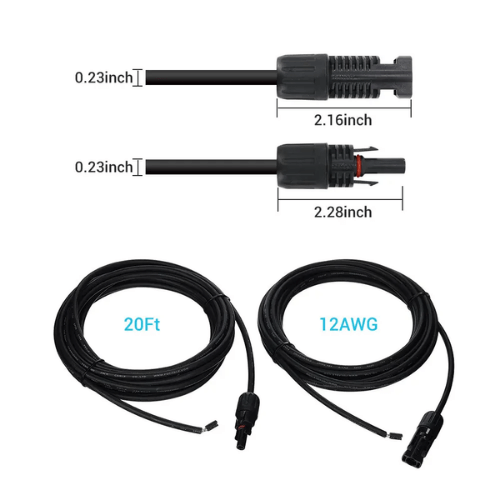

The adaptor kit uses factory-installed male and female solar connectors to ensure a tight, secure, and vibration-resistant connection at the panel. The opposite ends feature exposed, tinned copper wire for direct input into most solar charge controllers. The black, sunlight-resistant cable insulation is fully weatherproof, IP65 rated, and engineered for long-term outdoor use. Available in 9-inch, 10-foot, 20-foot, 30-foot, and 40-foot lengths with 10AWG or 12AWG conductors, the kit supports a wide range of system layouts and power requirements.
Benefits
Using the Renogy Solar Panel to Charge Controller Adaptor Kit reduces power loss, improves charging efficiency, and simplifies installation by eliminating custom wiring or splicing. Multiple wire gauge and length options allow you to minimize voltage drop while maintaining safe current handling for your system size. The durable insulation and tinned copper conductor provide long service life, corrosion resistance, and dependable performance in harsh outdoor conditions. This adaptor kit is an essential component for clean, professional-grade off-grid solar power installations.
Specifications
| Specification | 10AWG Versions | 12AWG Versions |
|---|---|---|
| Available Lengths | 9in, 10ft, 20ft, 30ft, 40ft | 9in, 10ft, 20ft, 30ft, 40ft |
| Wire Gauge | 10 AWG | 12 AWG |
| Rated Voltage | 600V / 1000V | 600V / 1000V |
| Operating Temperature | -40°F to +185°F | -40°F to +185°F |
| Conductor Material | Tinned copper wire | Tinned copper wire |
| Number of Wires in Conductor | 84 | 56 |
| Normal Cross-Sectional Area | 6.0 mm² | 4.0 mm² |
| Diameter of Wires in Conductor | 3.02 ± 0.08 mm | 3.02 ± 0.08 mm |
| Minimum Insulation Wall Thickness | 0.85 mm | 0.78 mm |
| Minimum Sheath Wall Thickness | 1.08 mm | 0.97 mm |
| Connector Type | Solar connector to exposed wire | Solar connector to exposed wire |
| Protection Rating | IP65 | IP65 |
| Cable Color | Black, UV resistant | Black, UV resistant |
What’s in the Box

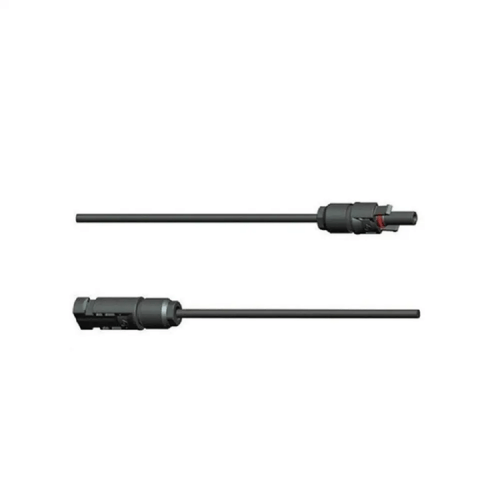

Each Renogy Solar Panel to Charge Controller Adaptor Kit includes one matched pair of adaptor cables with pre-installed solar connectors on one end and exposed tinned copper wire leads on the other, in the selected length and wire gauge.
Frequently Asked Questions
- What is the Renogy Solar Panel to Charge Controller Adaptor Kit used for?
This adaptor kit connects Renogy solar panels directly to a solar charge controller, allowing clean termination without cutting factory panel connectors. - Which wire gauge should I choose, 10AWG or 12AWG?
10AWG is recommended for longer cable runs or higher current systems to reduce voltage drop, while 12AWG is suitable for shorter distances and lower current solar setups. - Is this adaptor kit weatherproof for outdoor installations?
Yes. The cable insulation is UV resistant and IP65 rated, making it suitable for outdoor rooftop, RV, marine, and ground-mounted solar installations. - Are the fuses or connectors replaceable?
The solar connectors are factory-installed and designed for long-term use. The exposed wire ends are intended for direct termination at the charge controller. - Is this compatible with non-Renogy charge controllers?
Yes. As long as the charge controller accepts bare wire input terminals and the system voltage and current are within specifications, the adaptor kit is compatible.
