SunGoldPower - 7,600W Hybrid Inverter 48V Split Phase
SunGoldPower - 7,600W Hybrid Inverter 48V Split Phase
SKU: SGN7.6K1HB-48
- Regular price
- Price: $2,450.00
- Regular price
- List Price:
- Sale price
- Price: $2,450.00
- Unit price
- per
Couldn't load pickup availability
Low stock: 5 left
- Free Shipping - Quick and Easy
- Easy 30 Day Returns
Manufactures Warranty
Manufactures Warranty
PowerGen Store is an Authorized Dealer for all of our Suppliers, so every product you purchase includes the Full Manufactures Warranty provided directly by the Manufacturer. See Manufactures Website for More Details
Price Guarantee
Price Guarantee
At PowerGen Store, we are committed to offering you the best prices online. If you find a lower price at another online store within two months of your purchase, just let us know.
Click Here to review full Price Guarantee Policy
Shipping Policy
Shipping Policy
At PowerGen Store, we are dedicated to ensuring our customers enjoy a smooth and efficient shipping experience. As a special benefit for our valued customers, we are pleased to offer FREE SHIPPING in the Contiguous 48 United States (See below for Alaska & Hawaii). To guarantee timely delivery of your orders, we have built a comprehensive network of couriers. Please see the detailed information below regarding our shipping Policy.
Click Here to read out full Shipping Policy
Return Policy
Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Click Here to review our full Returns Policy
PRODUCT DESCRIPTION
Description

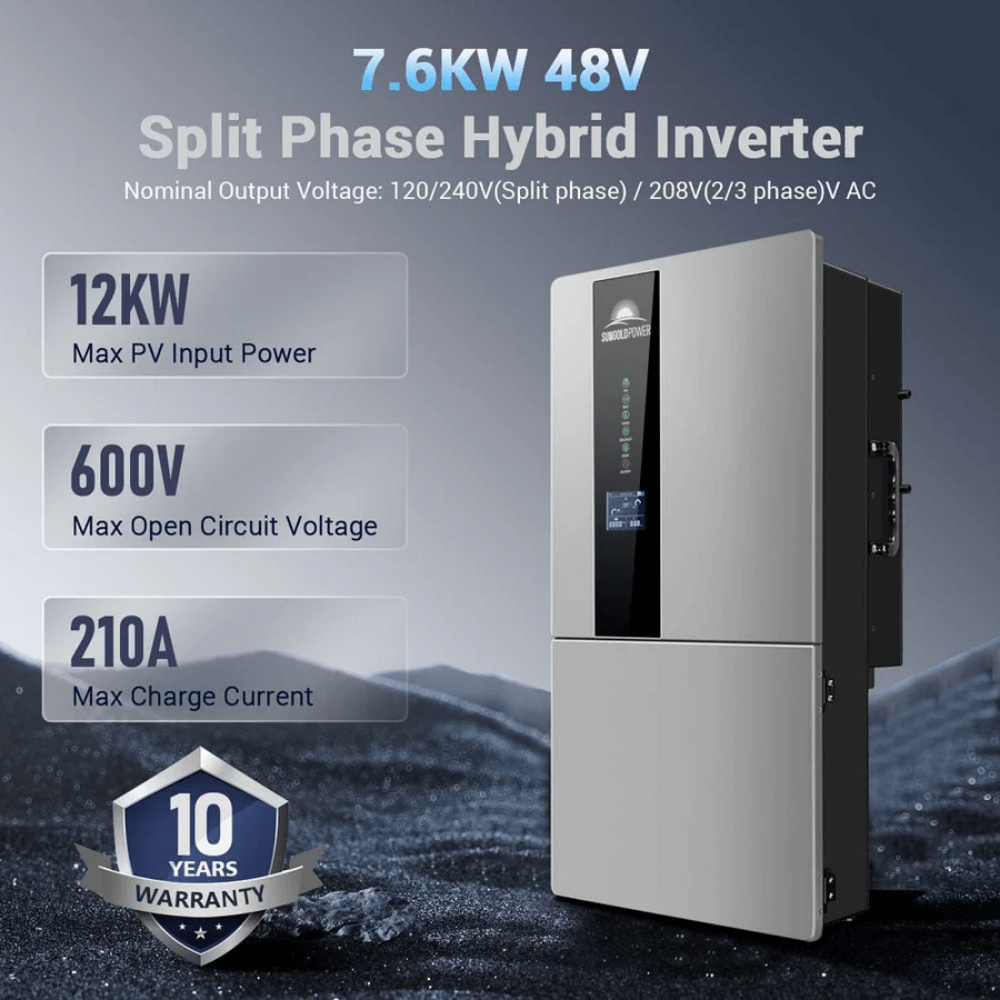

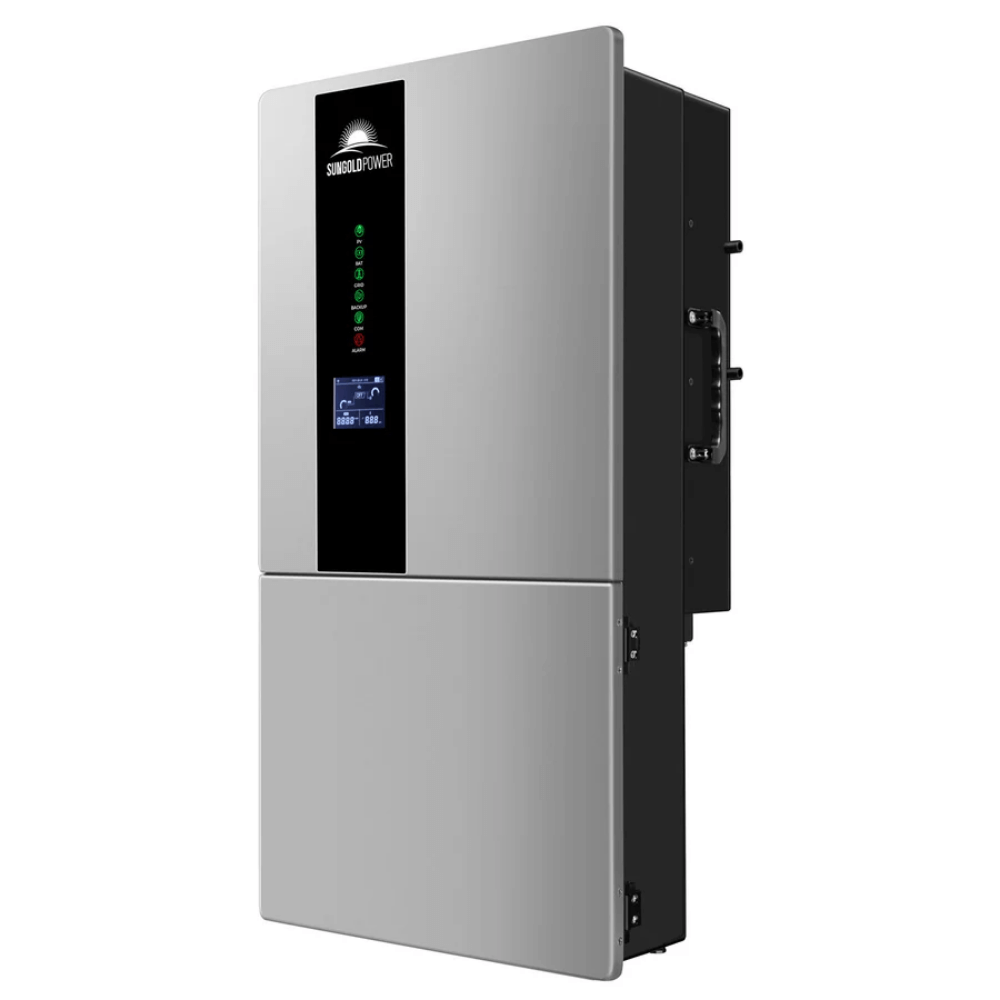

Power Your Home Efficiently with the SunGoldPower - 7,600W Hybrid Inverter 48V Split Phase
The SunGoldPower - 7,600W Hybrid Inverter 48V Split Phase delivers robust and reliable energy management for residential and commercial solar systems. Designed for seamless integration with 48V battery banks, this inverter supports split-phase 120V/240V output, offering flexible power solutions for various applications. Its hybrid capabilities ensure smooth transitions between grid, solar, and battery power for optimal efficiency and backup reliability.
Features and Benefits:
Provides continuous 7,600W power output to handle demanding home or business loads
Supports 48V DC battery input for efficient energy storage and longer battery life
Split-phase 120V/240V AC output accommodates a wide range of appliances and equipment
Hybrid design enables smooth switching between solar, battery, and grid power sources
Intelligent charging and power management optimize energy use and extend battery health
Built-in protections safeguard against overload, short circuit, and over-voltage situations
With the SunGoldPower - 7,600W Hybrid Inverter 48V Split Phase, you gain a dependable energy solution that enhances solar power utilization and provides backup power when you need it most.
Specifications
General Specifications
| Specification | Details |
|---|---|
| Model | SunGoldPower - 7,600W Hybrid Inverter 48V Split Phase |
| Continuous Output Power | 7,600W (7.6KW) |
| Surge Power | Typically 2–3x rated power (model dependent) |
| Output Voltage | 120V / 240V Split Phase AC |
| Output Waveform | Pure Sine Wave |
| Output Frequency | 50Hz / 60Hz (Selectable or Auto Detect) |
| Transfer Time | <10ms Typical |

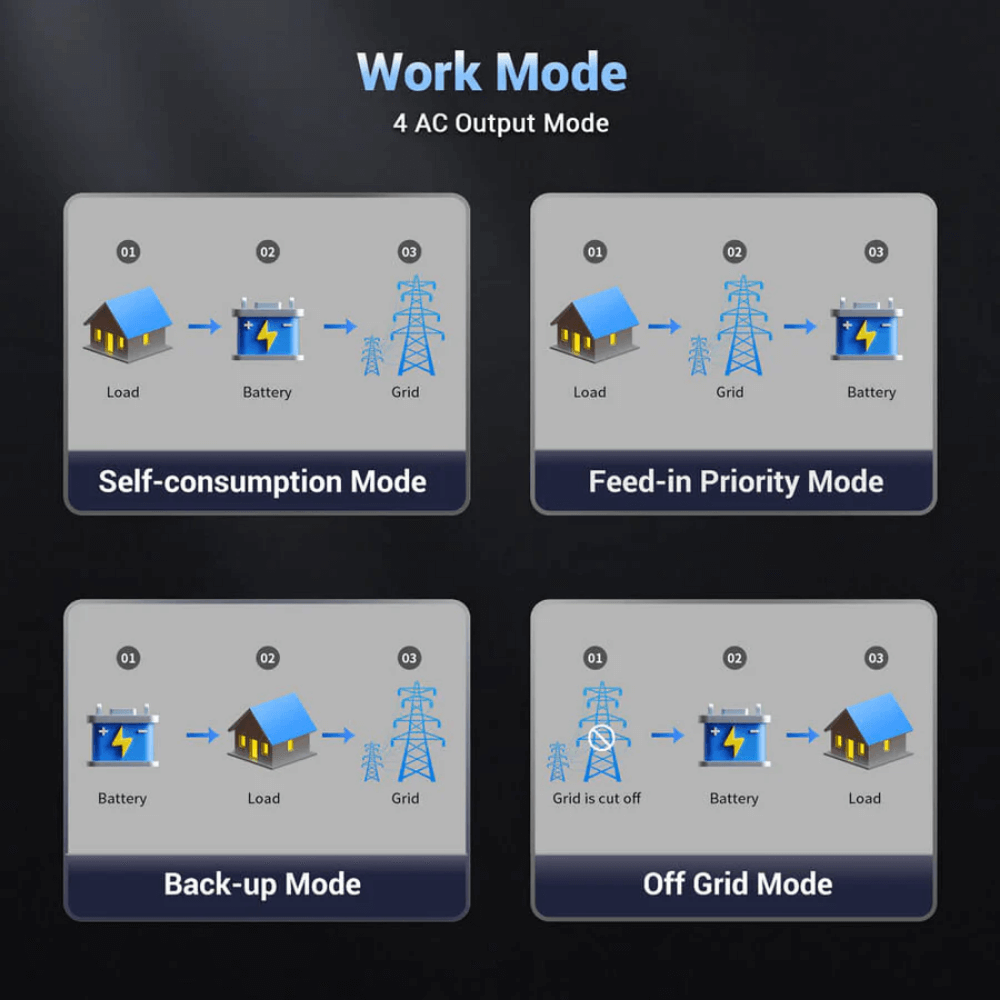

| Application Mode | On-Grid, Off-Grid, Hybrid |
DC Input / Battery
| Specification | Details |
|---|---|
| Nominal Battery Voltage | 48V DC |
| Battery Compatibility | Lithium (LiFePO4), AGM, Gel, Lead Acid |
| Low Voltage Alarm | ~42V DC |
| Low Voltage Cut-off | ~40V DC |
| High Voltage Shutdown | ~64V DC |
| Voltage Recovery Point | ~52V DC |
| Idle Consumption | ~60W |
| Power Saver Mode | ~30W |
MPPT Solar Charging
| Specification | Details |
|---|---|
| MPPT Controller Type | Built-in MPPT |
| Max PV Input Power | Model dependent (approx. up to 7,600W) |
| MPPT Voltage Range | 120V – 450V DC |
| Max PV Open Circuit Voltage | ~500V DC |
| MPPT Charging Current | Dependent on system setup |
AC Charging
| Specification | Details |
|---|---|
| AC Input Voltage Range | 90V–140V AC or 184V–253V AC (Switchable) |
| AC Charging Current | Adjustable, model dependent |
| Charging Stages | 3 or 4-stage Smart Charging |
| Power Factor Correction | Yes |
Protection & Safety
| Protection Feature | Included |
|---|---|
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over-Voltage Protection | Yes |
| Over-Temperature Protection | Yes |
Mechanical & Environmental
| Specification | Details |
|---|---|
| Dimensions | Approx. 26 x 14 x 8 inches |
| Net Weight | Approx. 85 – 95 lbs |
| Operating Temperature | -15°C to 55°C (5°F to 131°F) |
| Cooling | Intelligent Fan Cooling |
| Mounting Type | Wall Mount or Floor Mount |
| Noise Level | ≤60 dB |
