SunGoldPower - High Voltage 11.4KW Hybrid Split Phase Inverter with APS Transmitter
SunGoldPower - High Voltage 11.4KW Hybrid Split Phase Inverter with APS Transmitter
SKU: SG11.4KHB-HV
- Regular price
- Price: $1,990.00
- Regular price
- List Price:
- Sale price
- Price: $1,990.00
- Unit price
- per
Couldn't load pickup availability
Low stock: 5 left
- Free Shipping - Quick and Easy
- Easy 30 Day Returns
Manufactures Warranty
Manufactures Warranty
PowerGen Store is an Authorized Dealer for all of our Suppliers, so every product you purchase includes the Full Manufactures Warranty provided directly by the Manufacturer. See Manufactures Website for More Details
Price Guarantee
Price Guarantee
At PowerGen Store, we are committed to offering you the best prices online. If you find a lower price at another online store within two months of your purchase, just let us know.
Click Here to review full Price Guarantee Policy
Shipping Policy
Shipping Policy
At PowerGen Store, we are dedicated to ensuring our customers enjoy a smooth and efficient shipping experience. As a special benefit for our valued customers, we are pleased to offer FREE SHIPPING in the Contiguous 48 United States (See below for Alaska & Hawaii). To guarantee timely delivery of your orders, we have built a comprehensive network of couriers. Please see the detailed information below regarding our shipping Policy.
Click Here to read out full Shipping Policy
Return Policy
Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Click Here to review our full Returns Policy
PRODUCT DESCRIPTION
Description

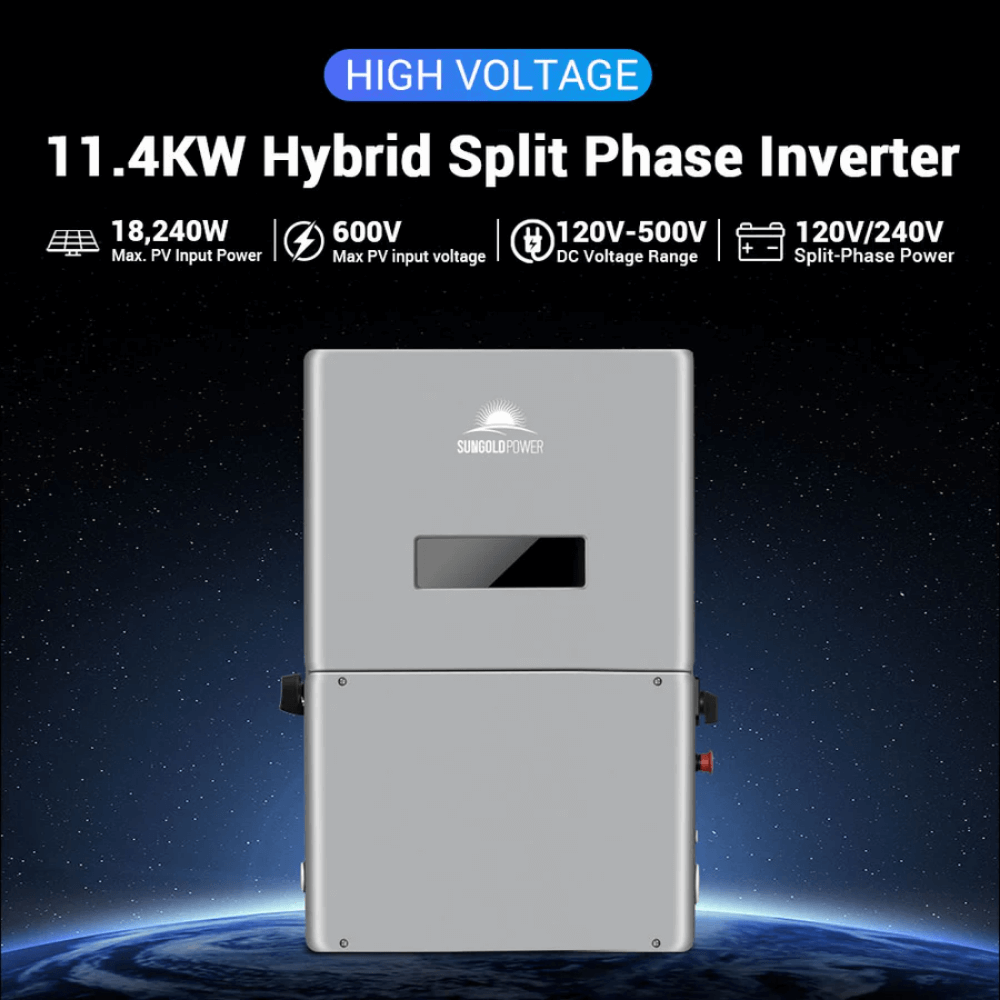

Reliable High-Output Solar Power with the SunGoldPower - High Voltage 11.4KW Hybrid Split Phase Inverter with APS Transmitter
Engineered for performance and flexibility, the SunGoldPower - High Voltage 11.4KW Hybrid Split Phase Inverter with APS Transmitter delivers 11.4KW of continuous power output and supports up to 18KW of PV input. Designed for homes and businesses using high-voltage lithium-ion batteries (120V–500V), it optimizes solar self-consumption while providing seamless backup during grid outages or solar shortfalls. Perfect for both on-grid and off-grid applications, this inverter supports AC and DC coupling for unmatched energy versatility.
Features and Benefits:
11.4KW continuous output with 120V/240V split phase to run residential or commercial loads
Supports up to 18KW PV input for high-yield solar production
Compatible with high-voltage lithium-ion batteries (120V–500V) for extended backup power
Hybrid design works in both grid-tied and off-grid configurations
AC-coupled and DC-coupled compatibility gives maximum system design flexibility
Built-in APS Transmitter enhances monitoring and control across your solar system
Automatically switches to backup mode when grid power fails or PV input is insufficient
The SunGoldPower - High Voltage 11.4KW Hybrid Split Phase Inverter with APS Transmitter is the smart choice for scalable solar systems, offering reliable power, battery compatibility, and full control for energy independence.
Specifications
General Specifications
| Specification | Details |
|---|---|
| Model | SunGoldPower - High Voltage 11.4KW Hybrid Split Phase Inverter with APS Transmitter |
| Rated Output Power | 11.4KW (11,400W) |
| Output Voltage | 120V / 240V Split Phase AC |
| Output Waveform | Pure Sine Wave |
| Output Frequency | 50Hz / 60Hz (Auto Detect or Selectable) |
| Application Mode | On-Grid, Off-Grid, Hybrid |
| Coupling Type | AC-Coupled and DC-Coupled |
| Transfer Time | <10ms (Typical) |
| Built-in APS Transmitter | Yes |
PV (Solar) Input
| Specification | Details |
|---|---|
| Max PV Input Power | 18,000W |
| MPPT Controller Type | Built-in MPPT |
| MPPT Voltage Range | 200V – 850V DC |
| Max PV Open Circuit Voltage | ~1000V DC |
| MPPT Charging Current | Dependent on configuration |
Battery
| Specification | Details |
|---|---|
| Battery Type | High Voltage Lithium-ion (120V–500V) |
| Battery Voltage Range | 120V – 500V DC |
| Battery Modes | Self-Consumption, Backup, Time-of-Use |
| Battery Management | Smart BMS Integration Supported |
AC Input / Grid
| Specification | Details |
|---|---|
| Grid Input Voltage | 240V Split Phase AC |
| Grid Frequency | 50Hz / 60Hz |
| Grid Priority Modes | Configurable (AC First / Solar First / Battery First) |
Protection & Safety
| Protection Feature | Included |
|---|---|
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over-Voltage Protection | Yes |
| Over-Temperature Protection | Yes |
| Islanding Protection | Yes |
Mechanical & Environmental
| Specification | Details |
|---|---|
| Dimensions | Approx. 26 x 17 x 8 inches |
| Net Weight | Approx. 100 – 110 lbs |
| Operating Temperature | -15°C to 55°C (5°F to 131°F) |

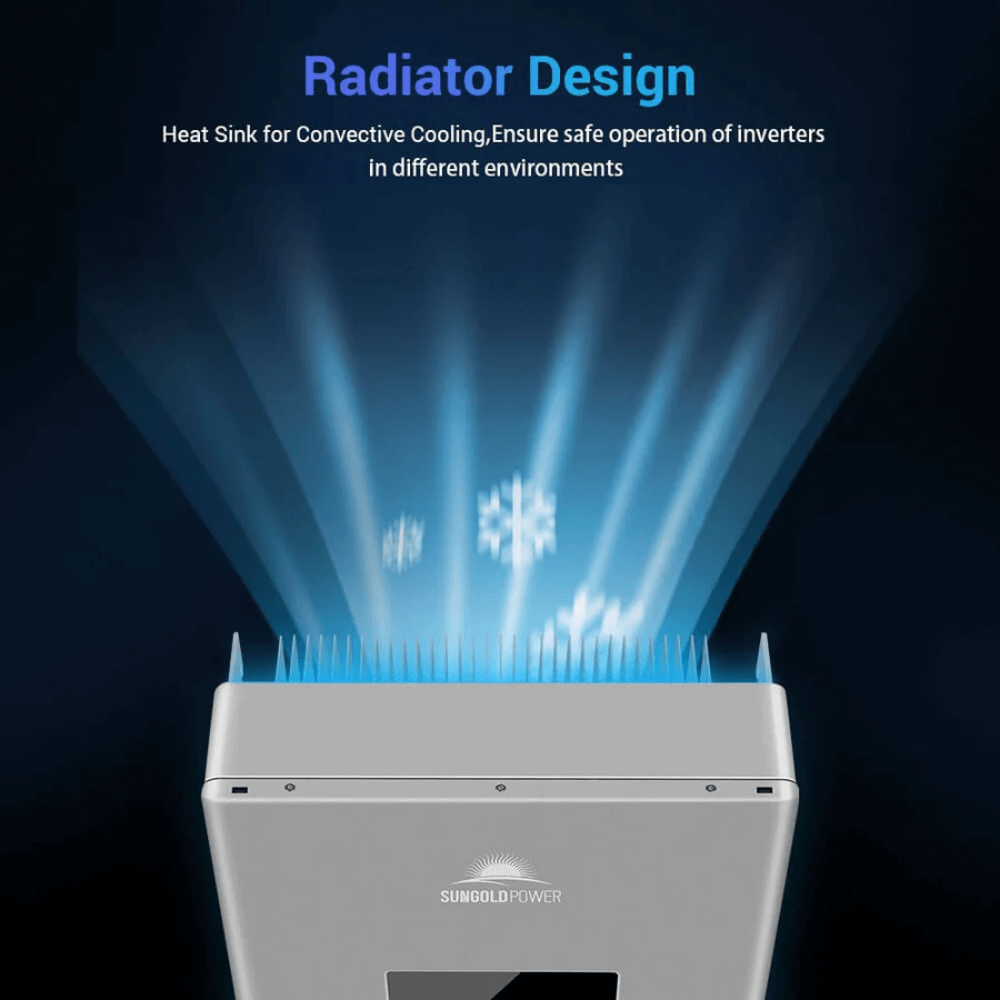

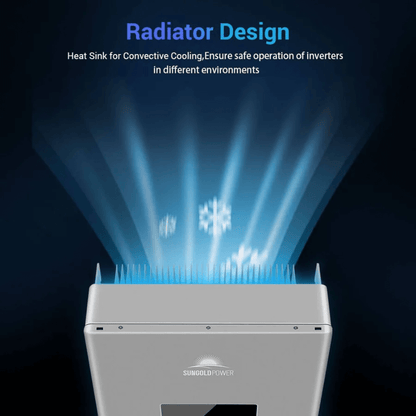

| Cooling | Smart Fan Cooling |
| Mounting Type | Wall Mount or Floor Mount |
| Noise Level | ≤60 dB |
