BigBattery ETHOS 48V – 5.1kWh Home Battery Backup LFP Kits
BigBattery ETHOS 48V – 5.1kWh Home Battery Backup LFP Kits
SKU: K0949
- Regular price
- Price: $2,990.00
- Regular price
- List Price: $4,490.00
- Sale price
- Price: $2,990.00
- Unit price
- per
Found a lower price?
We'll match any verified competitor price — just share the listing with us before you buy.
Low stock
Couldn't load pickup availability
- Free Shipping on Orders >$5K
- Easy 30 Day Returns
Why Buy From PowerGen Store
Why Buy From PowerGen Store
Authorized Dealer
100% genuine products with manufacturer warranty.
Free Fast Shipping
On most orders across the U.S.
Expert Support
Real people ready to help you choose. Based in USA
Secure Checkout
Safe encrypted payments you can trust.
Easy Returns
Simple returns on eligible orders.
Trusted Nationwide
Customers rely on PowerGen for dependable solutions.
Price Guarantee
Price Guarantee
At PowerGen Store, we are committed to offering you the best prices online. If you find a lower price at another online store within two months of your purchase, just let us know.
Click Here to review full Price Guarantee Policy
Manufactures Warranty
Manufactures Warranty
PowerGen Store is an Authorized Dealer for all of our Suppliers, so every product you purchase includes the Full Manufactures Warranty provided directly by the Manufacturer. See Manufactures Website for More Details
Return Policy
Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Click Here to review our full Returns Policy
Shipping Policy
Shipping Policy
At PowerGen Store, we are dedicated to ensuring our customers enjoy a smooth and efficient shipping experience. As a special benefit for our valued customers, we are pleased to offer FREE SHIPPING in the Contiguous 48 United States (See below for Alaska & Hawaii). To guarantee timely delivery of your orders, we have built a comprehensive network of couriers. Please see the detailed information below regarding our shipping Policy.
Click Here to read out full Shipping Policy
PRODUCT DESCRIPTION
Description
Configurable up to 80+ kWh.
The BigBattery ETHOS is a modular 48V lithium battery system engineered for reliable, long-lasting energy storage in UL-certified configurations. Each battery integrates seamlessly with the ETHOS controller for safe operation, intelligent management, and scalable capacity as your needs grow. Backed by a 12-Year Warranty, ETHOS delivers a high-performance, maintenance-free platform for dependable energy independence.
Specifications
| Battery Specification | Details |
|---|---|
| GTIN-12 (UPC) | 850061252005 |
| System Voltage | 48V |
| Nominal Voltage | 51.2V |
| Chemistry | LiFePO4 |
| kWh Capacity | 10.24 kWh (2x), 15.36 kWh (3x), 20.48 kWh (4x), 30.72 kWh (6x), 40.96 kWh (8x), 46.08 kWh (9x) |
| Ah Capacity | 200Ah |
| Charging Voltage Range | 55.6 – 57V |
| Max Charge Voltage | 57V |
| Operating Voltage Range | 48 – 57V |
| Suggested Low Voltage Cutoff | 48 – 50.8V |
| BMS Cutoff Range | 42 – 47V |
| Cell Configuration | 16S |
| Max Continuous Discharge Current | 200A |
| Max Continuous Power | 10,240W |
| Max Discharge Peak Current | 300A (Max 5 seconds) |
| Max Charge Current | 200A |
| Charge Temperature Range | 32°F – 113°F (0°C – 45°C) |
| Discharge Temperature Range | -4°F – 140°F (-20°C – 60°C) |
| Optimal Discharge Temperature Range | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range (SoC >50%) | -4°F – 113°F (-20°C – 45°C) (Max 6 months) |

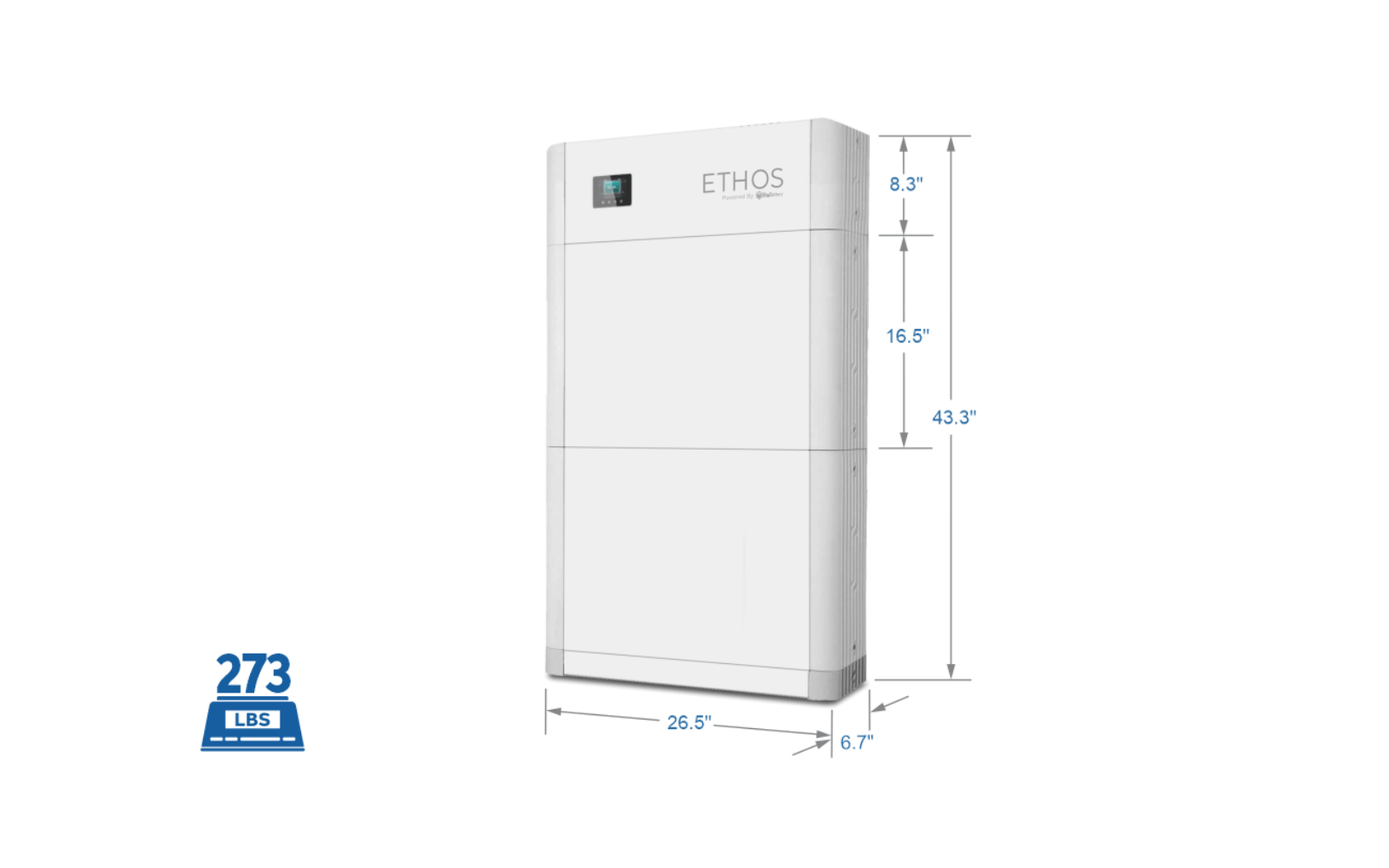

| Weight | 273 lb (123.8 kg) |
| Depth | 6.7 in (170 mm) |
| Width | 26.5 in (674 mm) |
| Height | 43.3 in (1100 mm) |
| Max Connections | Up to (16) parallel connections per control box |
| Protection Rating | IP65 / NEMA 4X |
| Communications | CANBus / RS485 |
| Certifications | UL9540, UL9540A, UL1973, UN38.3 |

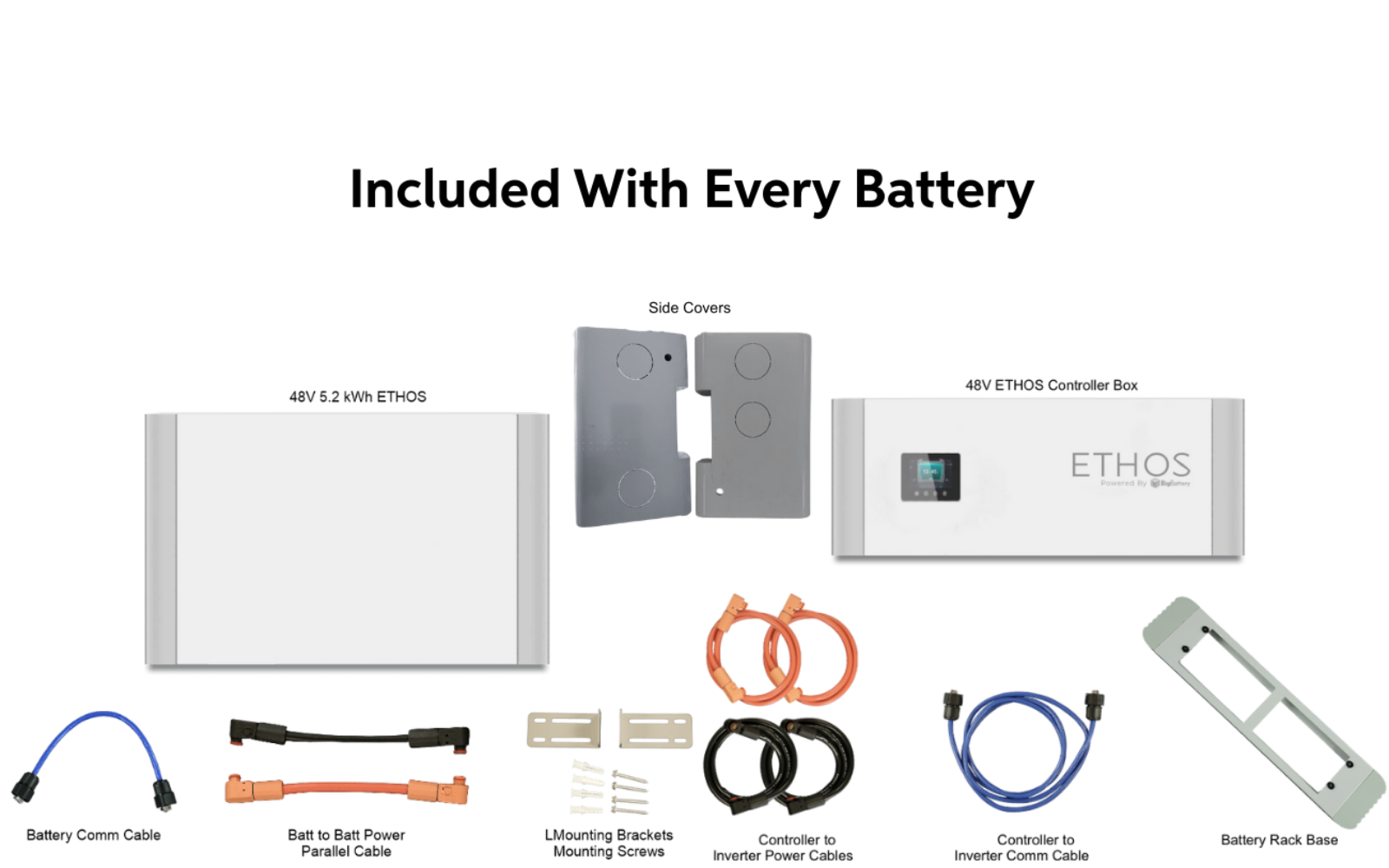

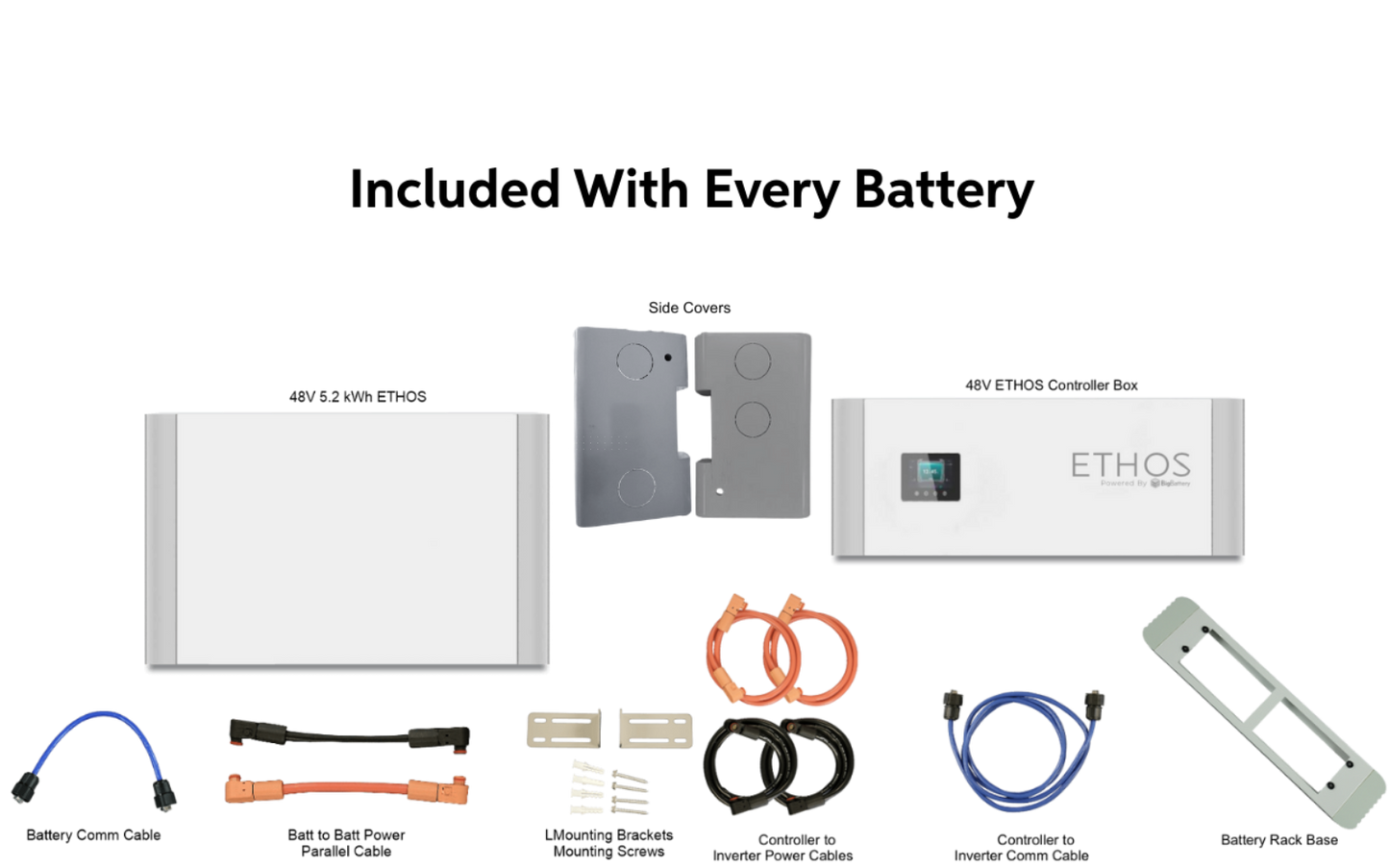

What's in the Box?
Each shipment comes with 'X' number of Modules (2,3,4,6) & accessories

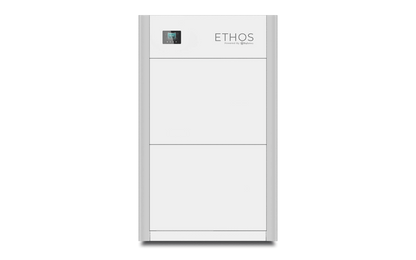

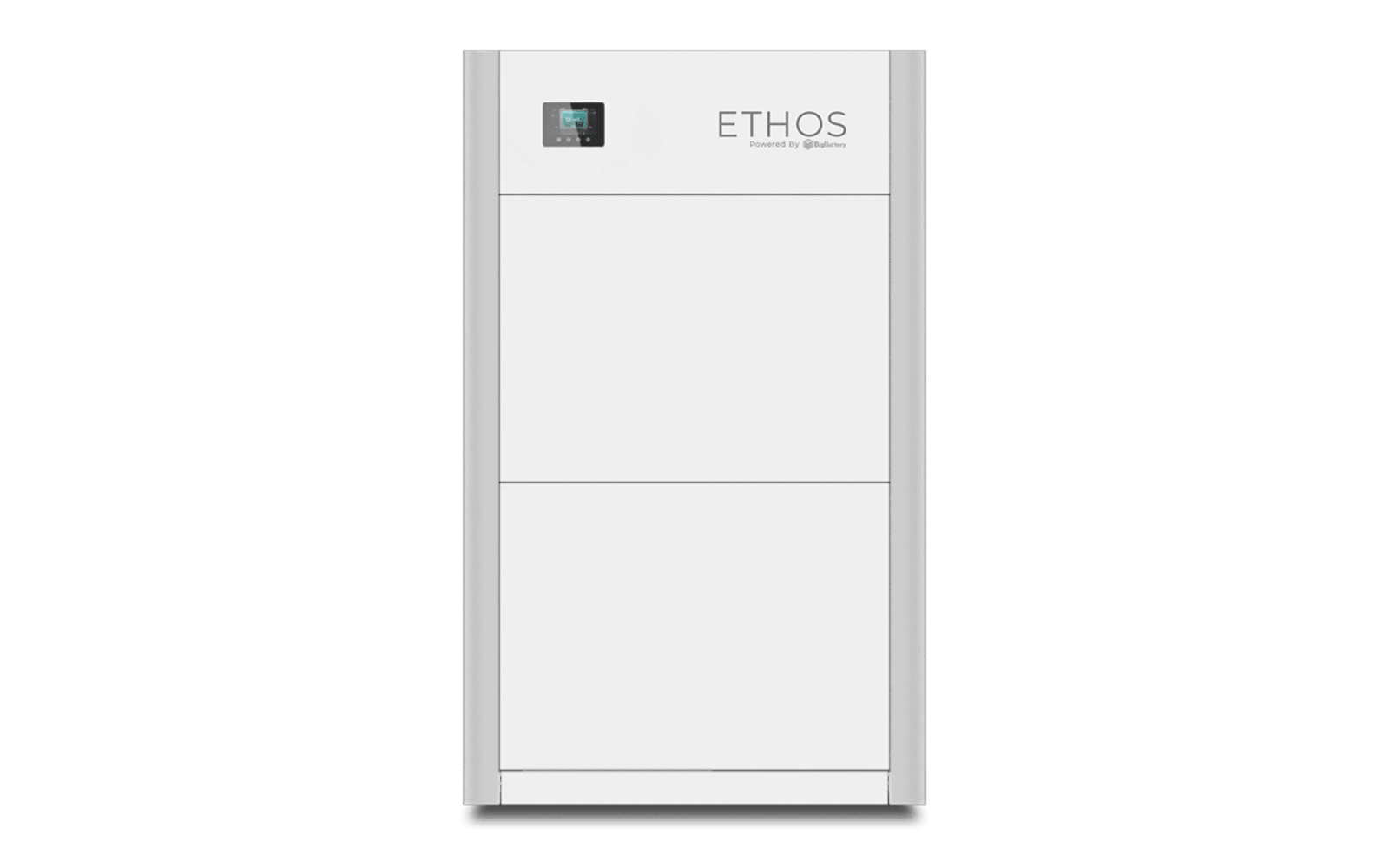

ETHOS 10.2KWH (2 Module) INCLUDED IN KIT: (2) FETHS-48051-G1 - 5.12kWh ETHOS Battery Module & Included Accessories INCLUDED IN EACH BATTERY BOX: (1) ETHOS Battery Module Red & Black Parallel Cable 0.7 FT (220mm) (1) ETHOS Battery Module Comm Cable 0.7 FT (220mm) (2) L Wall Mounting Brackets + Fasteners - ETHOS Control Box & Included Accessories (1) CBL088 - ETHOS Battery Final Module to Control Box Power Cable Pair (2 Stack) 31.5" (800mm)

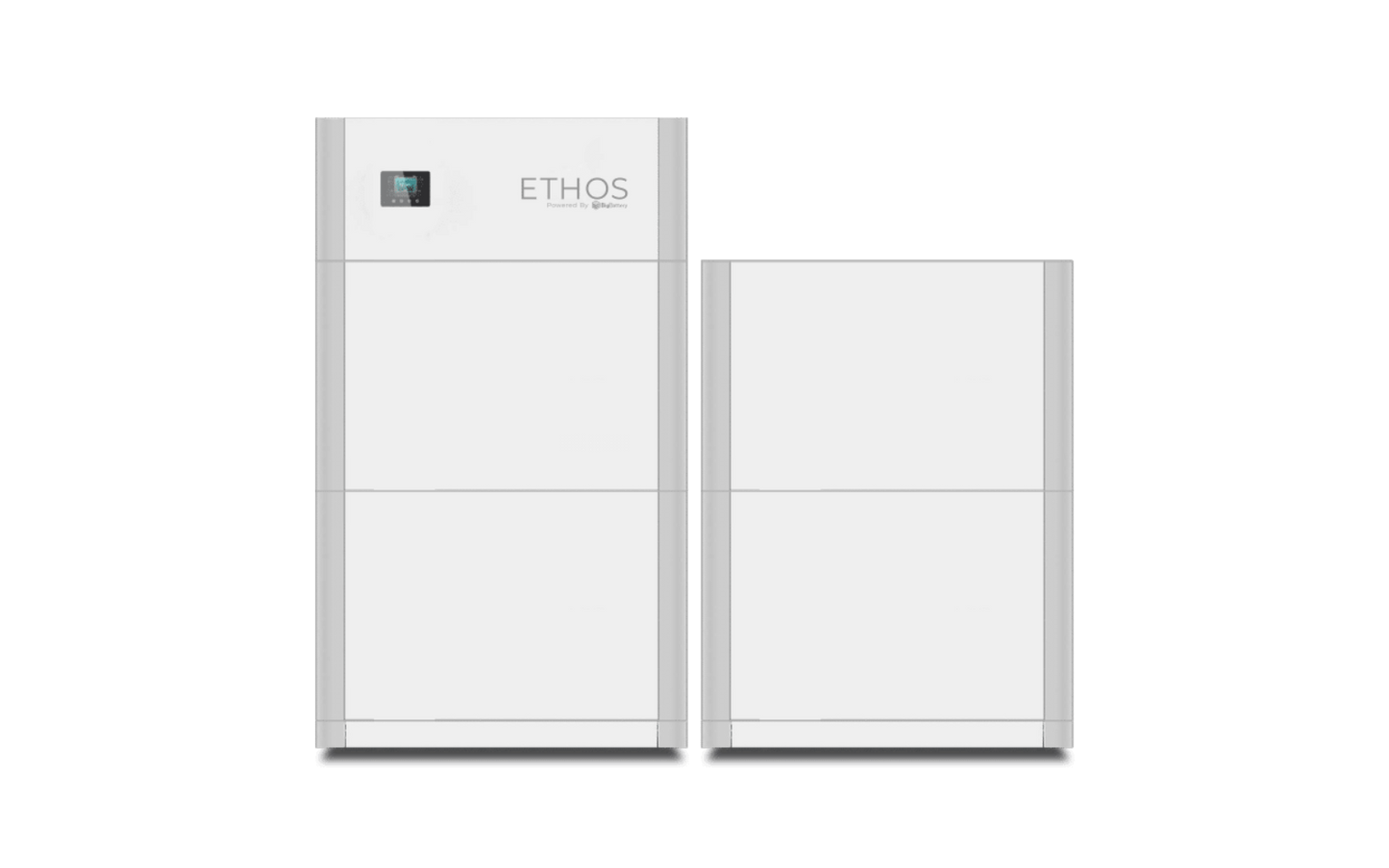

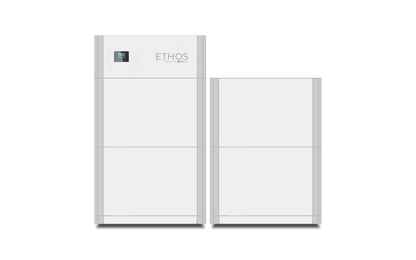

ETHOS 15.4KWH (3 Module) INCLUDED IN KIT: (3) FETHS-48051-G1 - 5.12kWh ETHOS Battery Module INCLUDED IN EACH BATTERY BOX: (1) ETHOS Battery Module Red & Black Parallel Cable 0.7 FT (220mm) (1) ETHOS Battery Module Comm Cable 0.7 FT (220mm) (2) L Wall Mounting Brackets + Fasteners (1) CNT060 - ETHOS Control Box & Included Accessories INCLUDED IN CONTROL BOX BOX: (1) ETHOS Stack Base (2) ETHOS Control Box to Inverter Power Cable Pair 4.9 FT (1500mm) (1) ETHOS Control Box to Inverter Comm Cable 4.9 FT (1500mm) (1) CBL091 - ETHOS Battery Final Module to Control Box Power Cable Pair (3 Stack) 4 ft (1220mm)

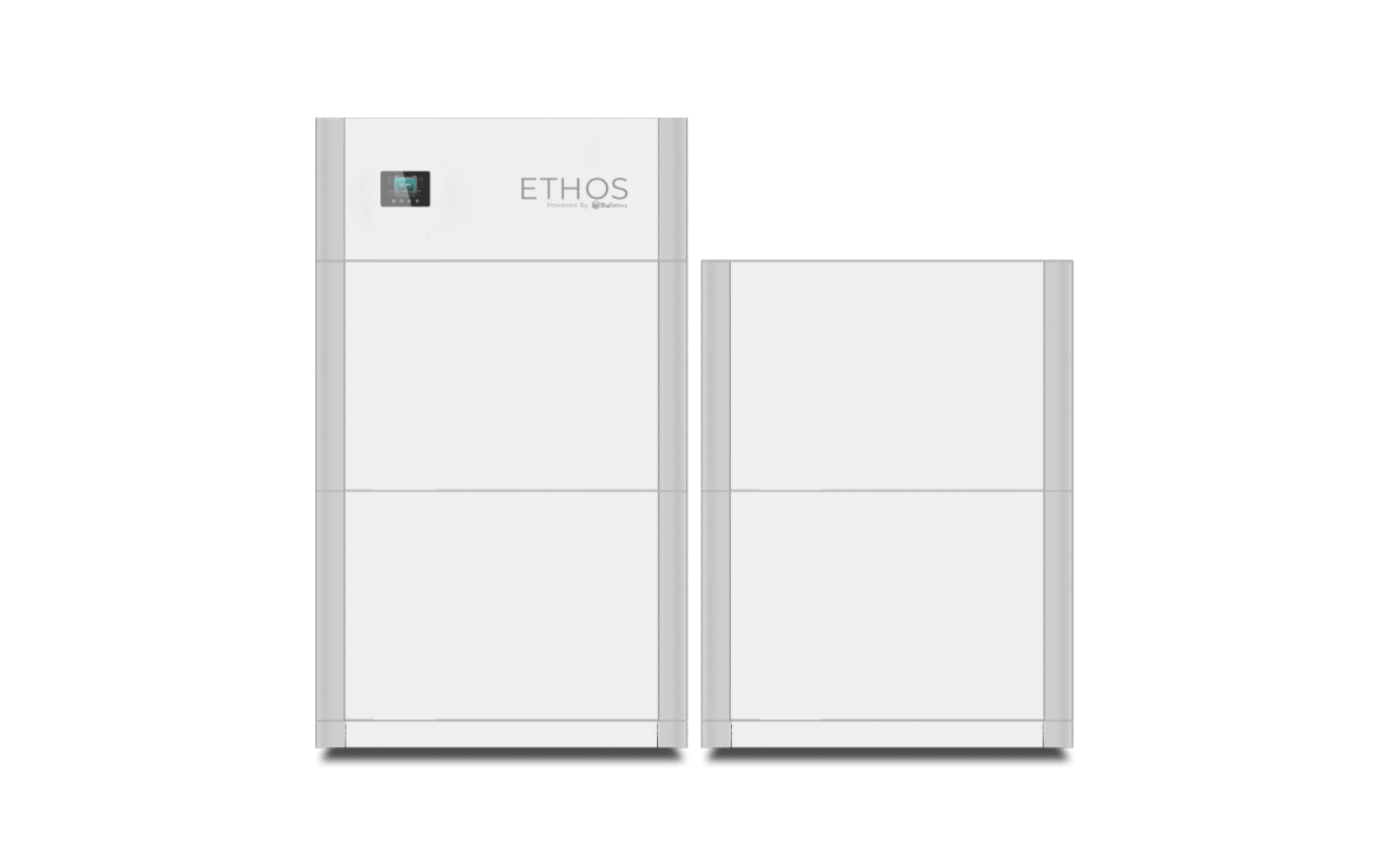

ETHOS 20.2KWH (4 Module) INCLUDED IN KIT: (4) FETHS-48051-G1 - 5.12kWh ETHOS Battery Module (1) CNT060 - ETHOS Control Box (1) CNT081 - ETHOS Base (Base Only) (2) CBL089 - ETHOS Stack-to-Stack Power Cable Pair 4.9 ft (1500mm) (1) CBL090 - ETHOS Stack-to-Stack Comm Cable 4.9 ft (1500mm)

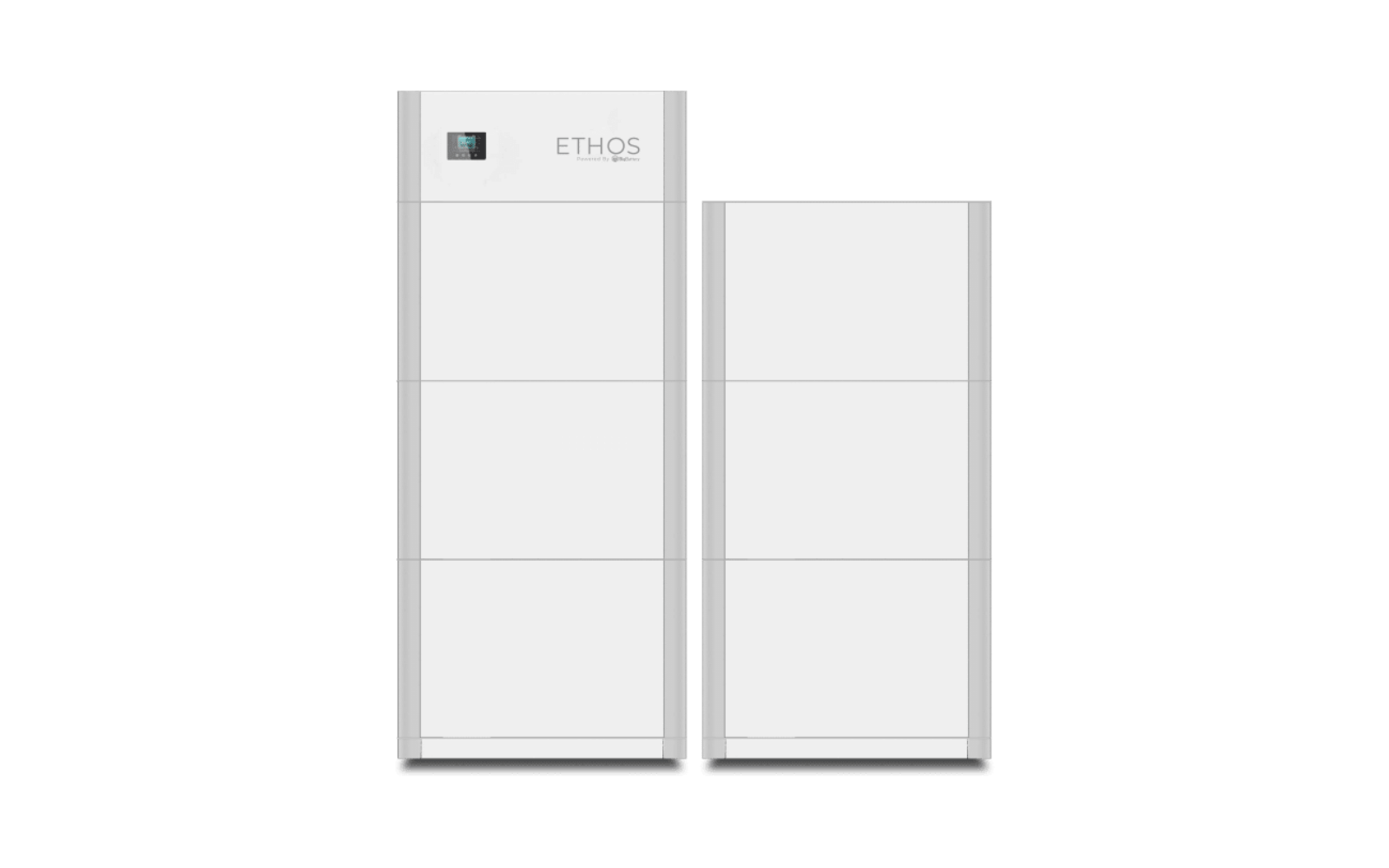

ETHOS 30.7KWH (6 Module) INCLUDED IN KIT: (6) FETHS-48051-G1 - 5.12kWh ETHOS Battery Module (1) CNT060 - ETHOS Control Box (1) CNT081 - ETHOS Base (Base Only) (2) CBL089 - ETHOS Stack-to-Stack Power Cable Pair 4.9 ft (1500mm) (1) CBL090 - ETHOS Stack-to-Stack Comm Cable 4.9 ft (1500mm)
