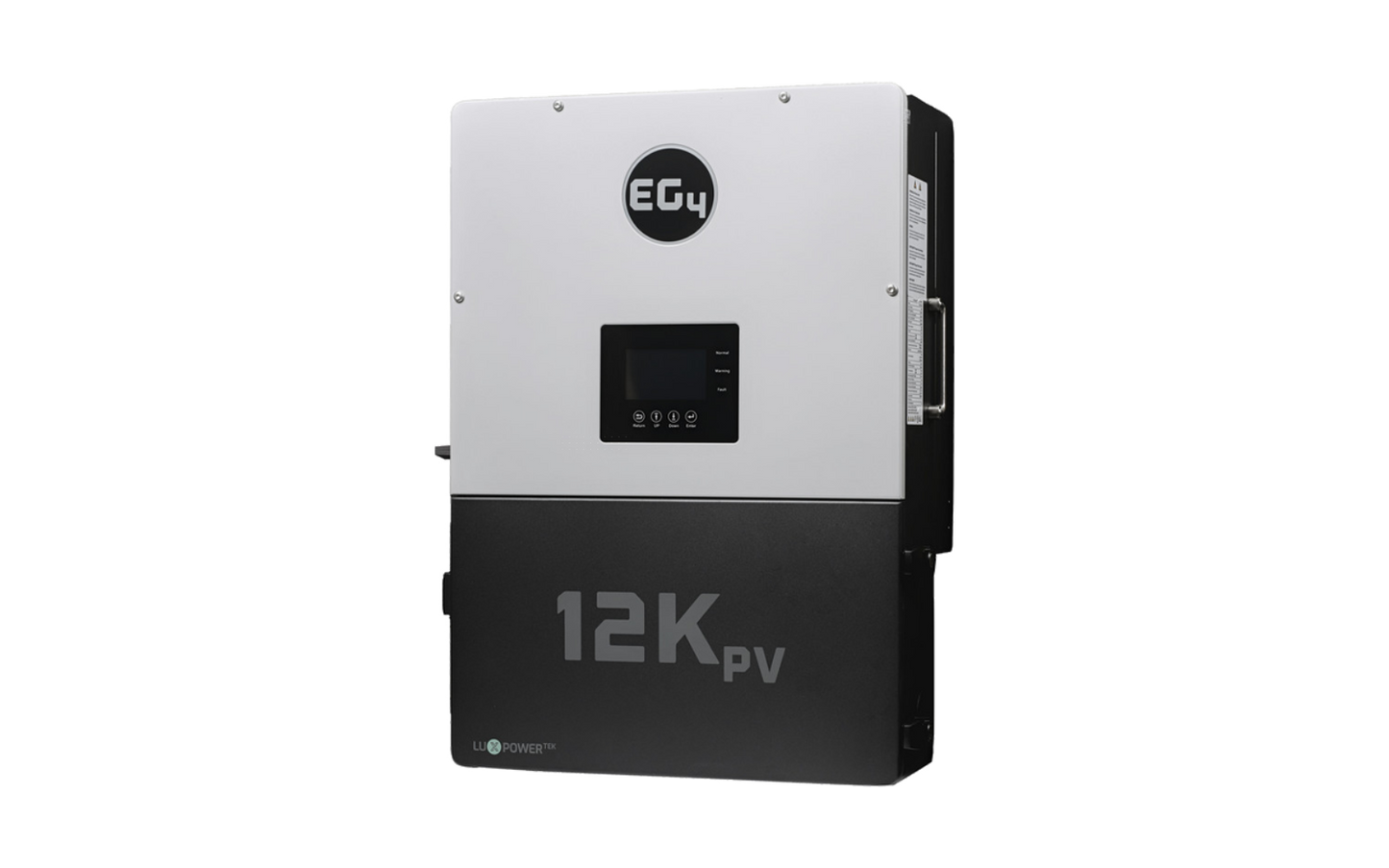

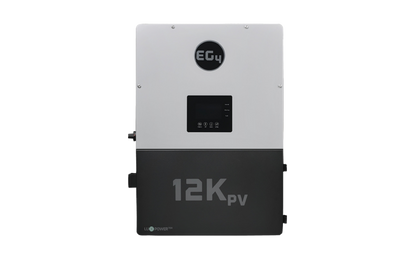

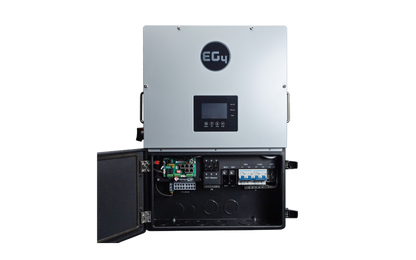

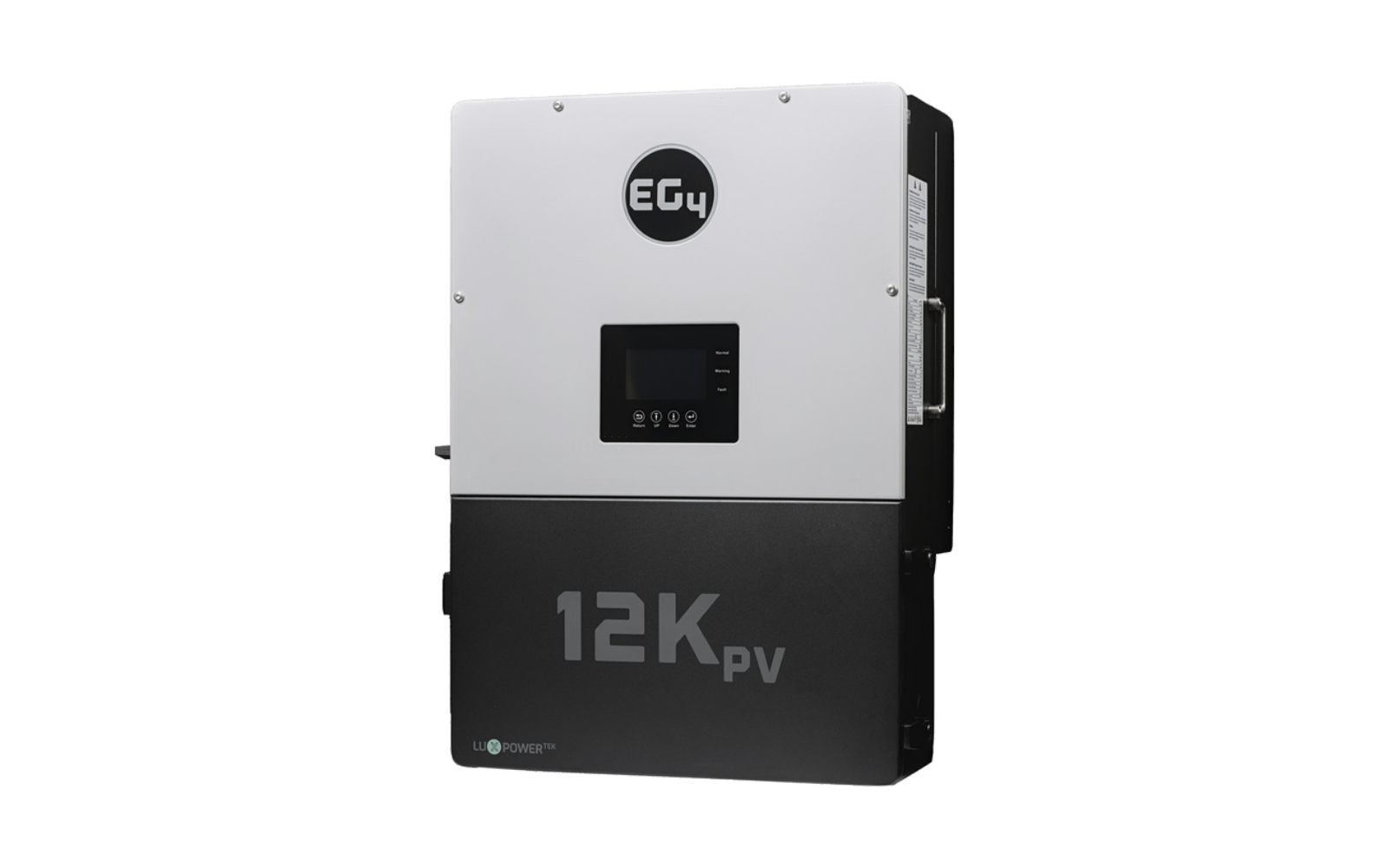

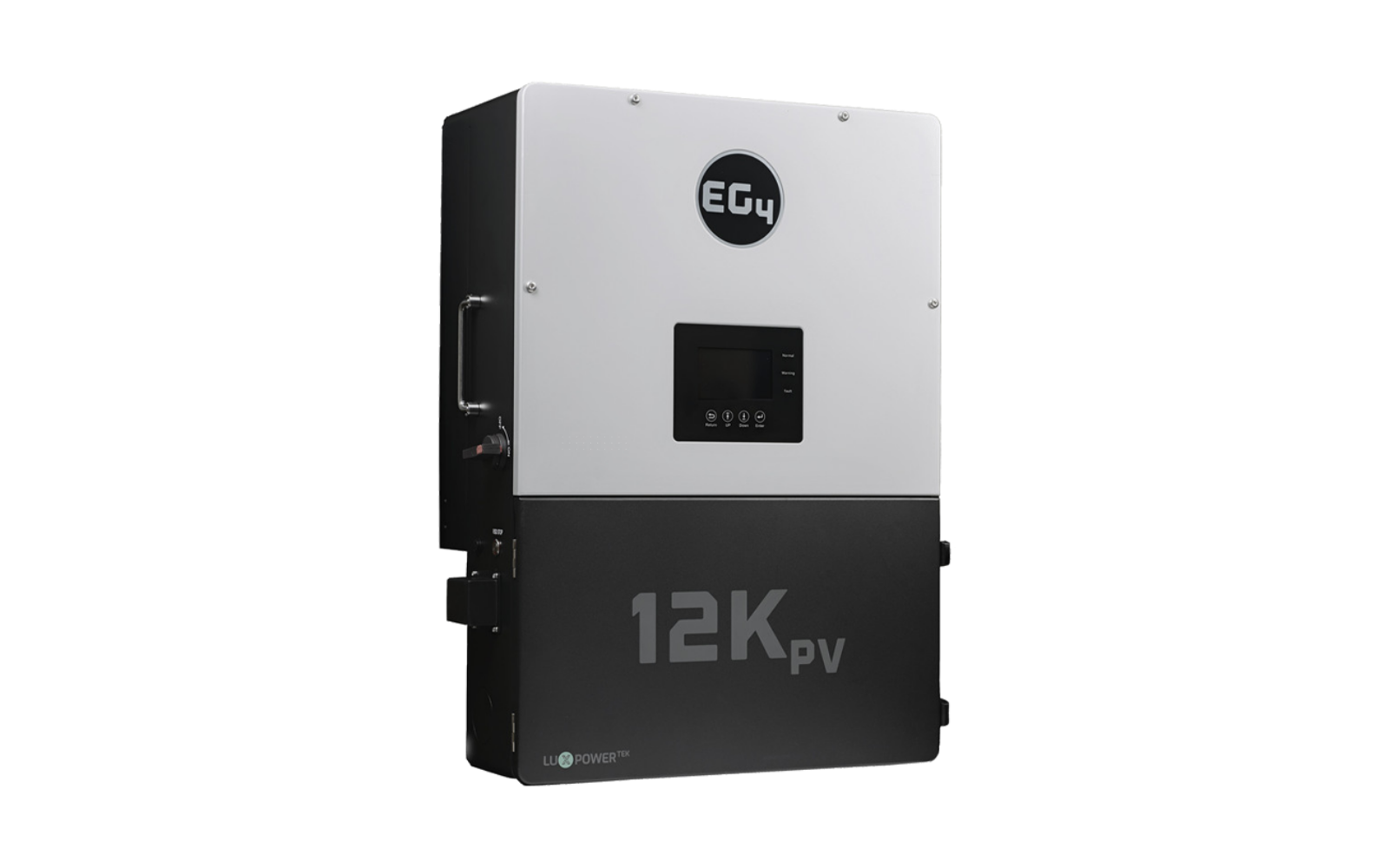

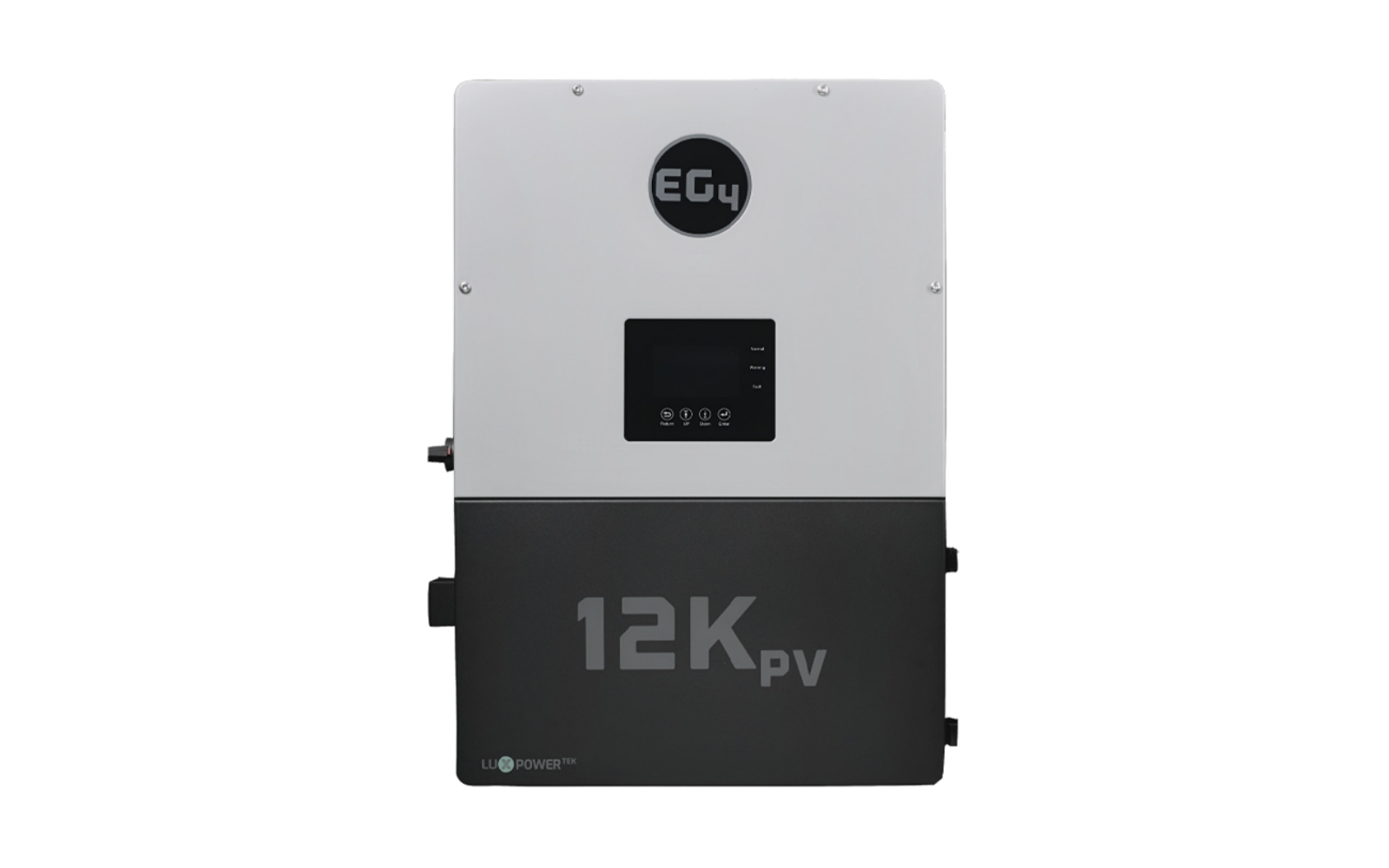

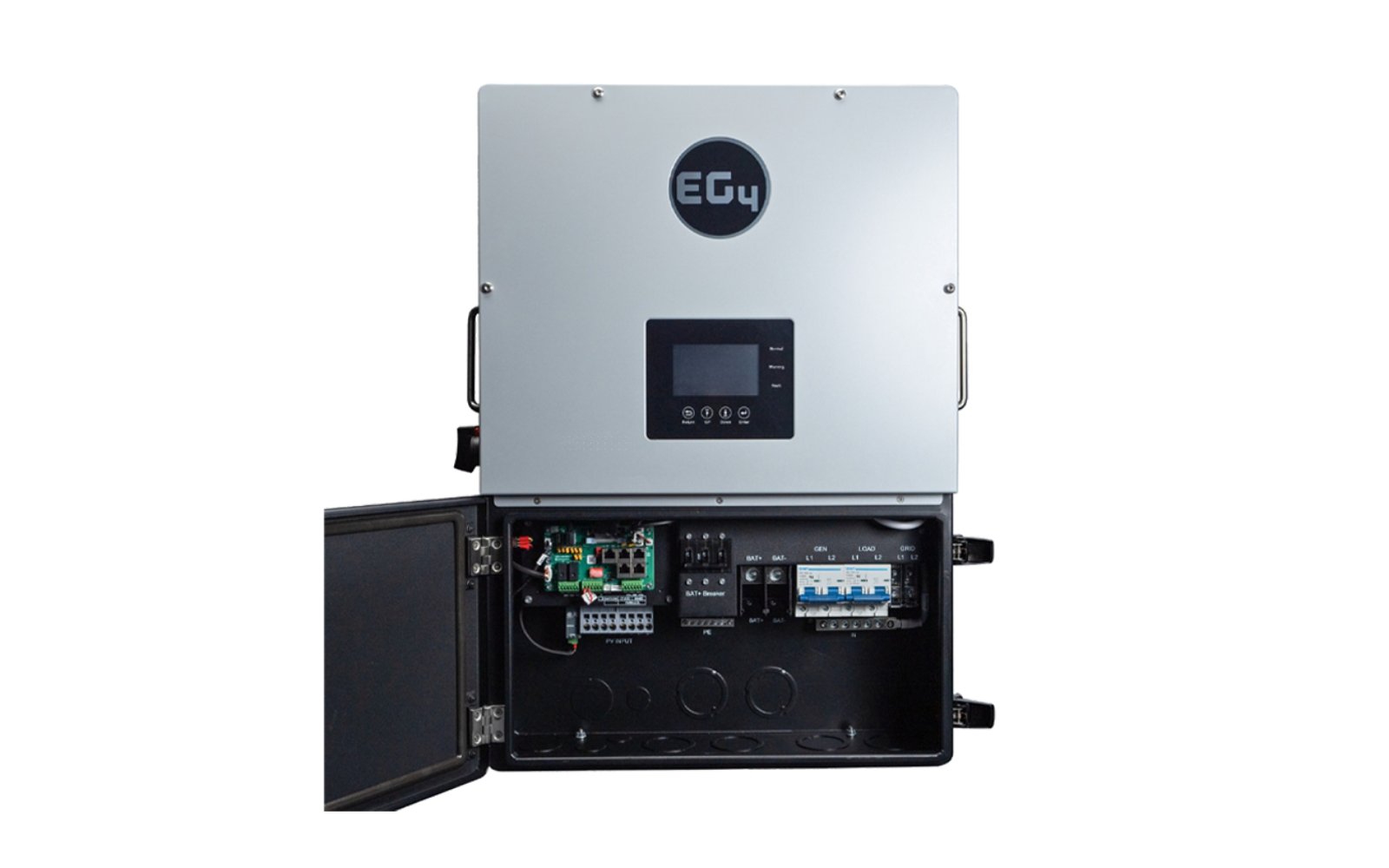

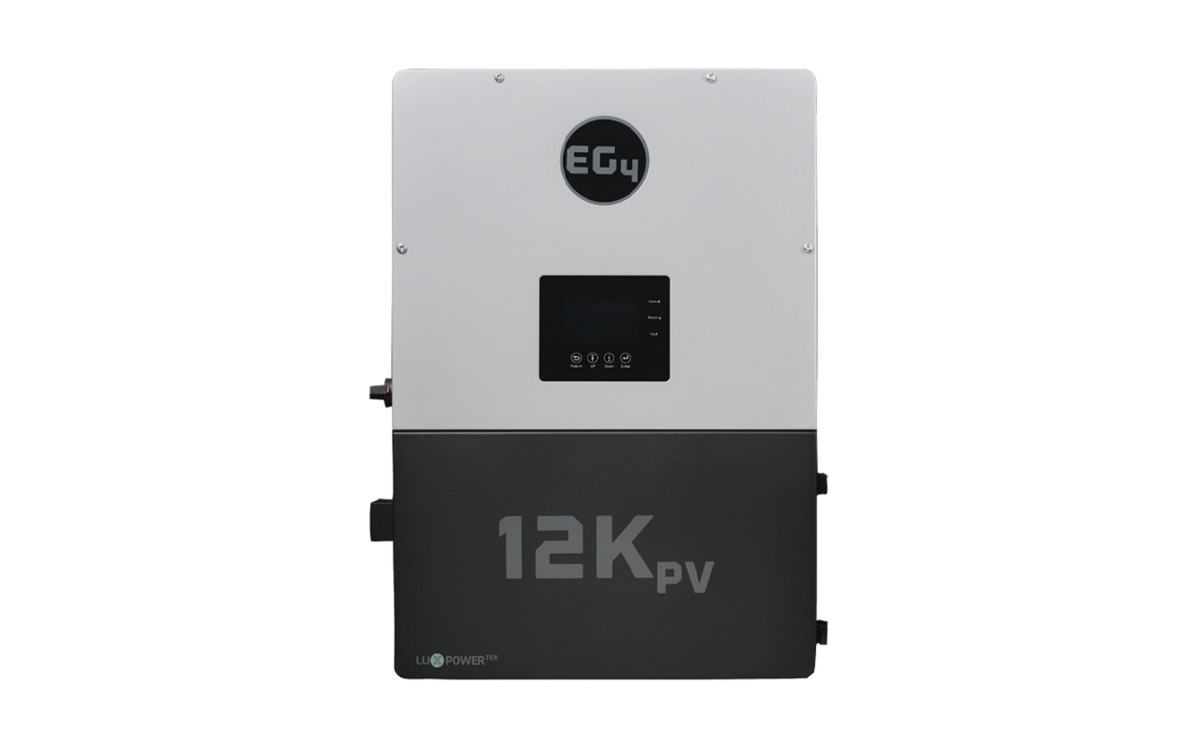

EG4 12kPV All-in-One Hybrid Solar Inverter | 12kW PV / 8kW AC | Split-Phase | 3-MPPT | Scalable | Remote Wi-Fi Monitoring
EG4 12kPV All-in-One Hybrid Solar Inverter | 12kW PV / 8kW AC | Split-Phase | 3-MPPT | Scalable | Remote Wi-Fi Monitoring
SKU: INV028
- Regular price
- Price: $3,499.00
- Regular price
- List Price: $4,116.47
- Sale price
- Price: $3,499.00
- Unit price
- per
Found a lower price?
We'll match any verified competitor price — just share the listing with us before you buy.
Low stock
Couldn't load pickup availability
- Free Shipping on Orders >$5K
- Easy 30 Day Returns
Why Buy From PowerGen Store
Why Buy From PowerGen Store
Authorized Dealer
100% genuine products with manufacturer warranty.
Free Fast Shipping
On most orders across the U.S.
Expert Support
Real people ready to help you choose. Based in USA
Secure Checkout
Safe encrypted payments you can trust.
Easy Returns
Simple returns on eligible orders.
Trusted Nationwide
Customers rely on PowerGen for dependable solutions.
Price Guarantee
Price Guarantee
At PowerGen Store, we are committed to offering you the best prices online. If you find a lower price at another online store within two months of your purchase, just let us know.
Click Here to review full Price Guarantee Policy
Manufactures Warranty
Manufactures Warranty
PowerGen Store is an Authorized Dealer for all of our Suppliers, so every product you purchase includes the Full Manufactures Warranty provided directly by the Manufacturer. See Manufactures Website for More Details
Return Policy
Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Click Here to review our full Returns Policy
Shipping Policy
Shipping Policy
At PowerGen Store, we are dedicated to ensuring our customers enjoy a smooth and efficient shipping experience. As a special benefit for our valued customers, we are pleased to offer FREE SHIPPING in the Contiguous 48 United States (See below for Alaska & Hawaii). To guarantee timely delivery of your orders, we have built a comprehensive network of couriers. Please see the detailed information below regarding our shipping Policy.
Click Here to read out full Shipping Policy
PRODUCT DESCRIPTION
Description
The EG4 8K Hybrid Inverter delivers 8,000W of power with support for up to 12,000W of PV input, making it ideal for both grid-tied and off-grid home energy systems. Featuring dual MPPT inputs, built-in circuit breakers, a 20ms UPS transfer switch, and a transformer-free design, it offers lightweight, energy-efficient performance without sacrificing surge capacity or line balancing. With smart load control, AC coupling, and peak shaving, this inverter reduces energy costs while protecting your home from grid instability and blackouts. An intuitive LCD touchscreen and remote monitoring provide easy control, while plug-and-play installation ensures a seamless setup. Upgrade your solar or off-grid system with the powerful, all-in-one EG4 8K Hybrid Inverter.
Specifications
Inverter Specifications
| Category | Specification |
|---|---|
| Nominal AC Voltage | 120/240VAC; 120/208VAC (L1/L2/N required) |
| Frequency | 50/60Hz |
| Max AC Input Power | 8000W |
| Minimum Generator Size | >5000W |
| Max Generator / Grid Passthrough Current | 80A / 80A |
| Max Output Current | 33.3A @ 240VAC; 38.5A @ 208VAC |
| Output Voltage | 120/240VAC; 120/208VAC |
| Nominal Power Output | 8000W |
| Output Frequency | 50/60Hz |
| Power Factor | 0.99 @ Full Load |
| Reactive Power Adjust Range | ±0.8 |
| Max Continuous Line Wattage | 4000W |
| Peak Power | 0.5s: 16kW / 1s: 12kW / 1min: 10kW / 12min: 8.8kW |
| Operating Frequency | 50/60Hz |
| THD (Voltage) @ Full Load | <3% |
| Transfer Time | Single: 20ms (Default), 10ms (Selectable); Parallel: 20ms |
| Number of MPPTs | 2 |
| Inputs per MPPT | 2 |
| Max Usable Input Current | 25A / 25A; 25A per MPPT (41.6A total) |
| Max Short Circuit Input Current | 31A / 31A |
| DC Input Voltage Range | 100–600 VDC |
| Unit Startup Voltage | 100 VDC |
| MPPT Operating Voltage Range | 120–500 VDC |
| Nominal MPPT Voltage | 360 VDC |
| MPPT High Voltage Protection | 550 VDC |
| Maximum Utilized Solar Power | 12,000W |
| Recommended Maximum Solar Input | 15,000W |
| Maximum Efficiency (PV → Grid) | 97.5% |
| Maximum Efficiency (Battery → Grid) | 94% |
| CEC Weighted Efficiency | 96.4% |
| Maximum Efficiency (PV → Battery) | 99.9% |
| Idle Consumption (Standby) | <55W |
| Compatible Battery Types | Lead-Acid / Lithium |
| Max Charge / Discharge Current | 167A @ 48VDC |
| Nominal Battery Voltage | 48 VDC |
| Battery Voltage Range | 40–60VDC (Lithium); 40–60VDC (Lead-Acid) |
| Recommended Battery Capacity | >200Ah per inverter |
| Max Units in Parallel | 10 |
| Product Dimensions (H×W×D) | 29.5 × 20.5 × 11.2 in (750 × 520 × 285 mm) |
| Unit Weight | 110 lbs (50 kg) |
| Design Topology | High Frequency – Transformerless |
| Relative Humidity | 0–100% |
| Operating Altitude | <2000 m (<6561 ft) |
| Operating Temperature Range | -13°F to 140°F (-25°C to 60°C) |
| Storage Temperature Range | -13°F to 140°F (-25°C to 60°C) |
| Noise Emission | <50 dB @ 3 ft |
| Locked Rotor Amps (LRA) | 195A |
| Communication Interface | RS485 / Wi-Fi / CAN |
| Warranty | 10-Year Standard Warranty |
| Enclosure Rating | NEMA 4X |
| Protections | PV Arc Fault Protection, PV Ground Fault Protection, PV Reverse Polarity Protection, Pole Sensitive Leakage Current Monitoring Unit, Surge Protection Device, Integrated PV Disconnect |
