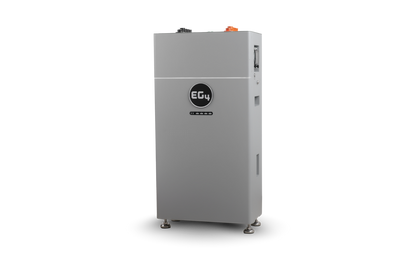

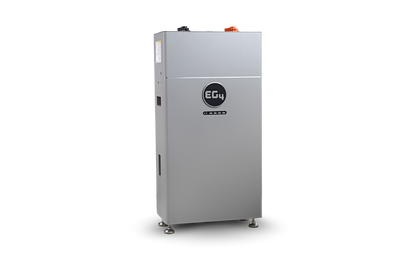

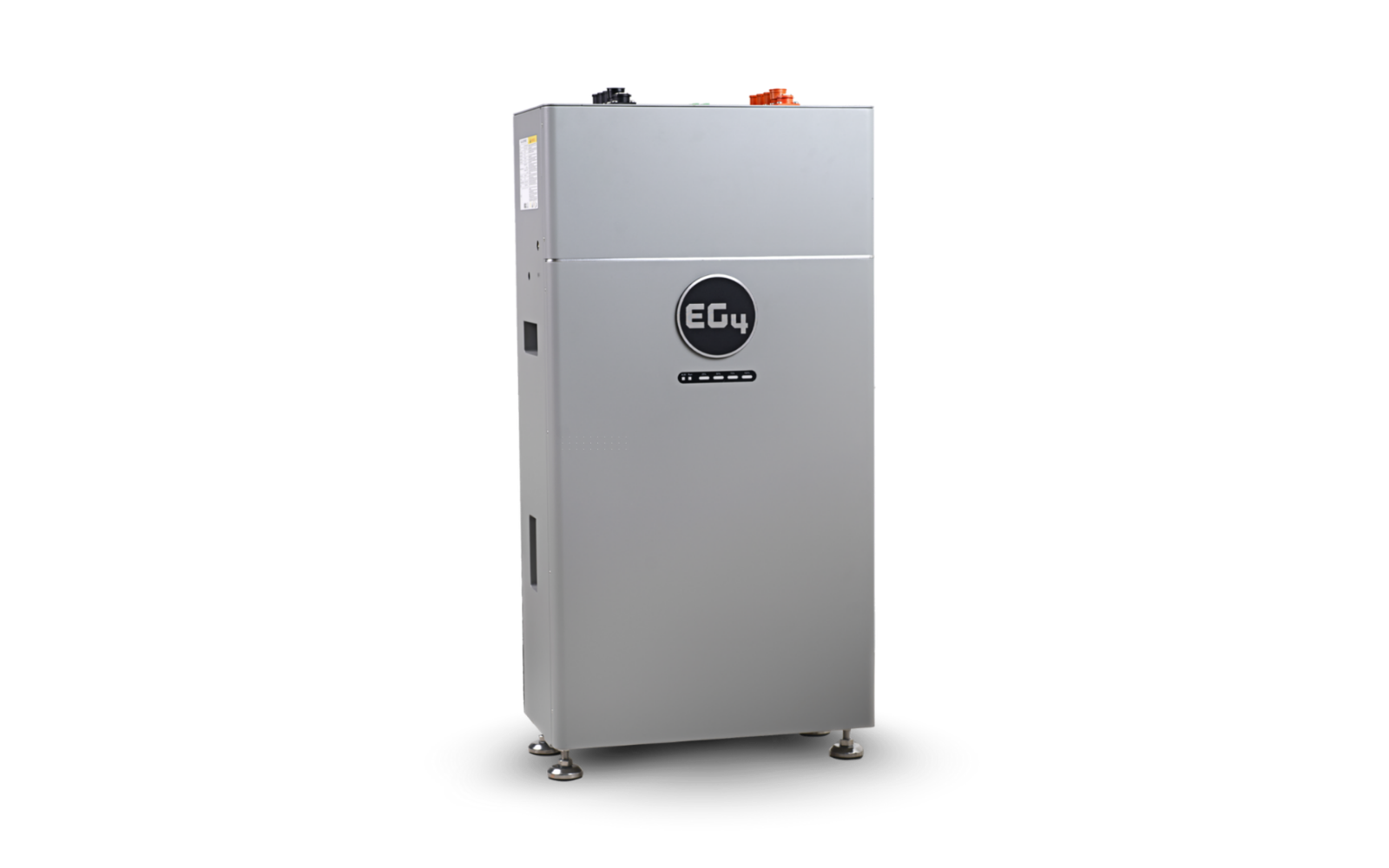

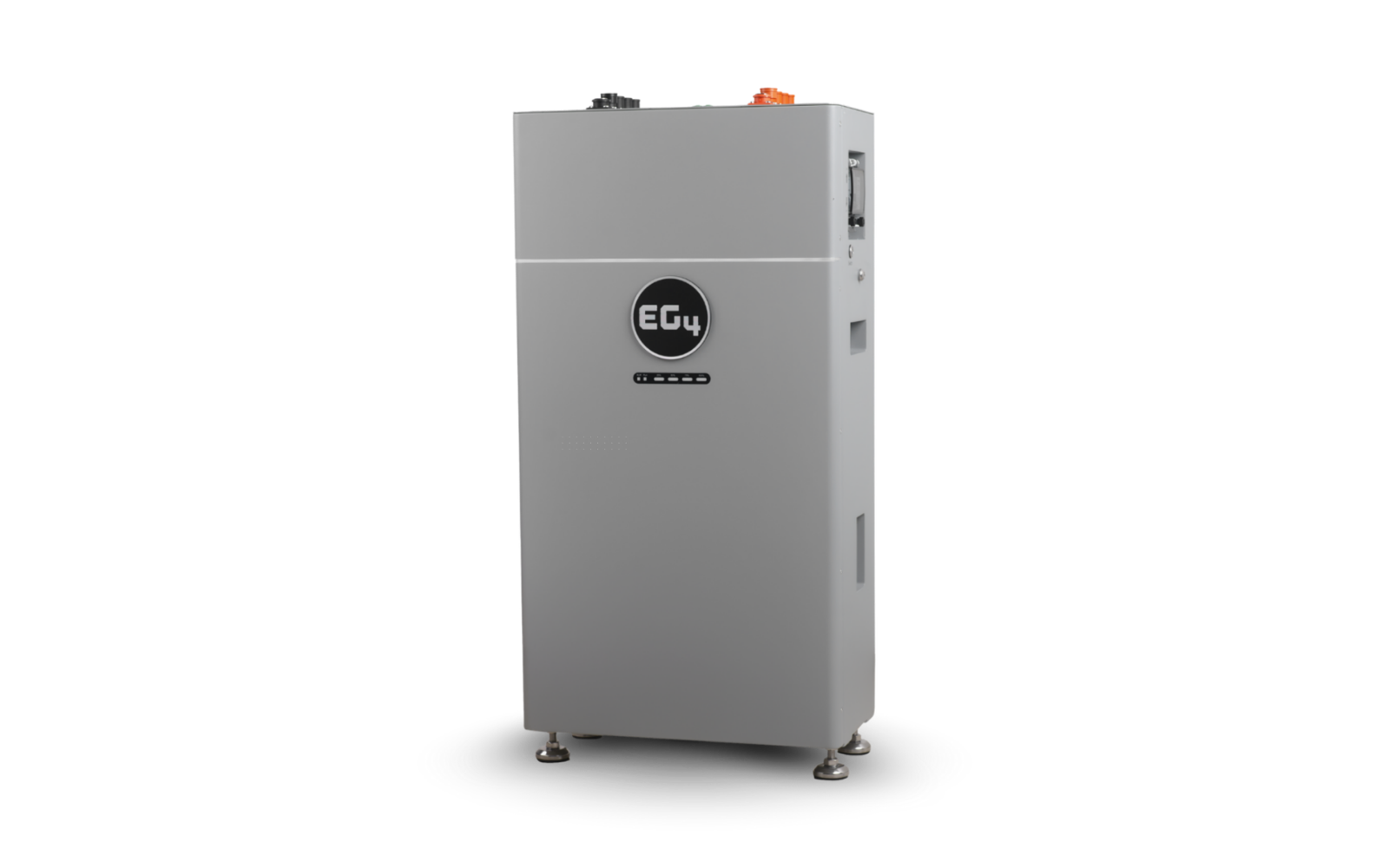

EG4 WallMount Indoor Battery 48V 314Ah 16kWh UL9540A Self-Heating
EG4 WallMount Indoor Battery 48V 314Ah 16kWh UL9540A Self-Heating
SKU: FEWMT-48161-G1
- Regular price
- Price: $3,700.00
- Regular price
- List Price: $4,352.95
- Sale price
- Price: $3,700.00
- Unit price
- per
Found a lower price?
We'll match any verified competitor price — just share the listing with us before you buy.
Low stock
Couldn't load pickup availability
- Free Shipping on Orders >$5K
- Easy 30 Day Returns
Why Buy From PowerGen Store
Why Buy From PowerGen Store
Authorized Dealer
100% genuine products with manufacturer warranty.
Free Fast Shipping
On most orders across the U.S.
Expert Support
Real people ready to help you choose. Based in USA
Secure Checkout
Safe encrypted payments you can trust.
Easy Returns
Simple returns on eligible orders.
Trusted Nationwide
Customers rely on PowerGen for dependable solutions.
Price Guarantee
Price Guarantee
At PowerGen Store, we are committed to offering you the best prices online. If you find a lower price at another online store within two months of your purchase, just let us know.
Click Here to review full Price Guarantee Policy
Manufactures Warranty
Manufactures Warranty
PowerGen Store is an Authorized Dealer for all of our Suppliers, so every product you purchase includes the Full Manufactures Warranty provided directly by the Manufacturer. See Manufactures Website for More Details
Return Policy
Return Policy
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
Click Here to review our full Returns Policy
Shipping Policy
Shipping Policy
At PowerGen Store, we are dedicated to ensuring our customers enjoy a smooth and efficient shipping experience. As a special benefit for our valued customers, we are pleased to offer FREE SHIPPING in the Contiguous 48 United States (See below for Alaska & Hawaii). To guarantee timely delivery of your orders, we have built a comprehensive network of couriers. Please see the detailed information below regarding our shipping Policy.
Click Here to read out full Shipping Policy
PRODUCT DESCRIPTION
Description
Smart power. Simple reliability. Whether you want lower energy costs or more control during outages, the EG4 WallMount 314Ah Indoor Battery delivers dependable whole-home backup in a compact design. With 16.1 kWh of storage capacity and 200A continuous output, it provides consistent performance for your home or small business — all while fitting seamlessly into your indoor setup.
Key Features:
- Cross-Compatible with Other EG4 Models: Seamlessly integrates with existing
EG4 battery systems for flexible scaling and expanded storage capacity. (Note: UL9540 Certified only with Flexboss 18 & Flexboss 21) - Hybrid Wall or Floor Mount Design: Flexible installation options with a durable,
space-saving enclosure (IP20 rated). - High-Capacity Storage: 16kWh nominal energy and 314Ah capacity for
reliable, high-output performance. - Auto-ID Technology: Automatically recognizes and syncs new batteries during
installation, simplifying system setup and configuration.
Specifications
| Specification | Details |
|---|---|
| Product Type | Low Voltage LFP Battery |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Model Number | WM-48-314-IN-XX (XX is a number between 00–99) |
| Nominal Energy Capacity | 16 kWh |
| Usable Energy (DOD%) | 12.86 kWh (80% recommended) |
| Voltage Range | 47.5 – 57.6 VDC |
| Nominal Voltage | 51.2 VDC |
| Capacity | 314 Ah |
| Charging Voltage Range | 56 – 57 VDC |
| Discharging Cut-off Voltage | 47.5 VDC |
| Max Continuous Charge Current | 157 A |
| Max Continuous Discharge Current | 200 A |
| Continuous Charge / Discharge Power | 8 / 10.2 kW |
| Recommended Charging / Discharging Rate | 0.5C |
| Peak Power | 12.8 kW (3 sec) |
| Round-trip Efficiency | 95% |
| Max Parallel Units | 16 |
| Protection Features | Over/Under Voltage, Over-Current, Short Circuit, High/Low Temperature |
| Battery Management System (BMS) | Integrated with Active Balancing |
| Communication Protocols | RS485, CAN |
| Battery Breaker | 250 A |
| Storage Temperature Range** | -4 – 131°F (-20 – 55°C) |
| Humidity Range | 5% – 95% RH (non-condensing) |
| Altitude | 9843 ft (<3000 m) |
| Cooling Method | Natural Convection |
| Dimensions (H × W × D) | 34.1 × 18.1 × 9.6 in (865 × 460 × 245 mm) |
| Operating Temperature Range | Charge: 32 – 122°F (0 – 50°C); Discharge: -4 – 131°F (-20 – 55°C) |
| Weight | 293.2 lbs (133 kg) |
| Enclosure Rating | IP20 |
| Mounting Options | Wall or Floor Mount |
| Display / Indicators | LED Status |

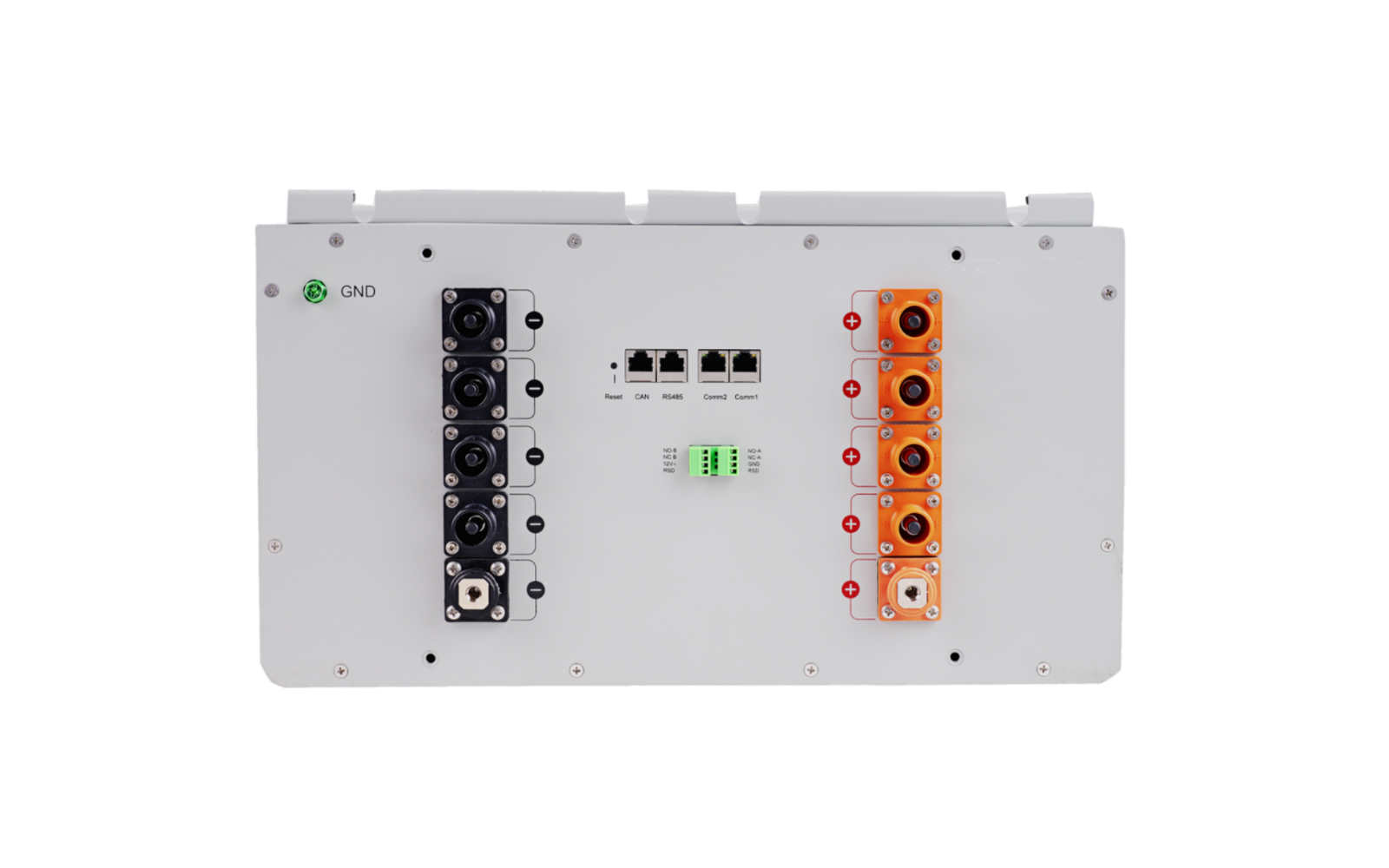

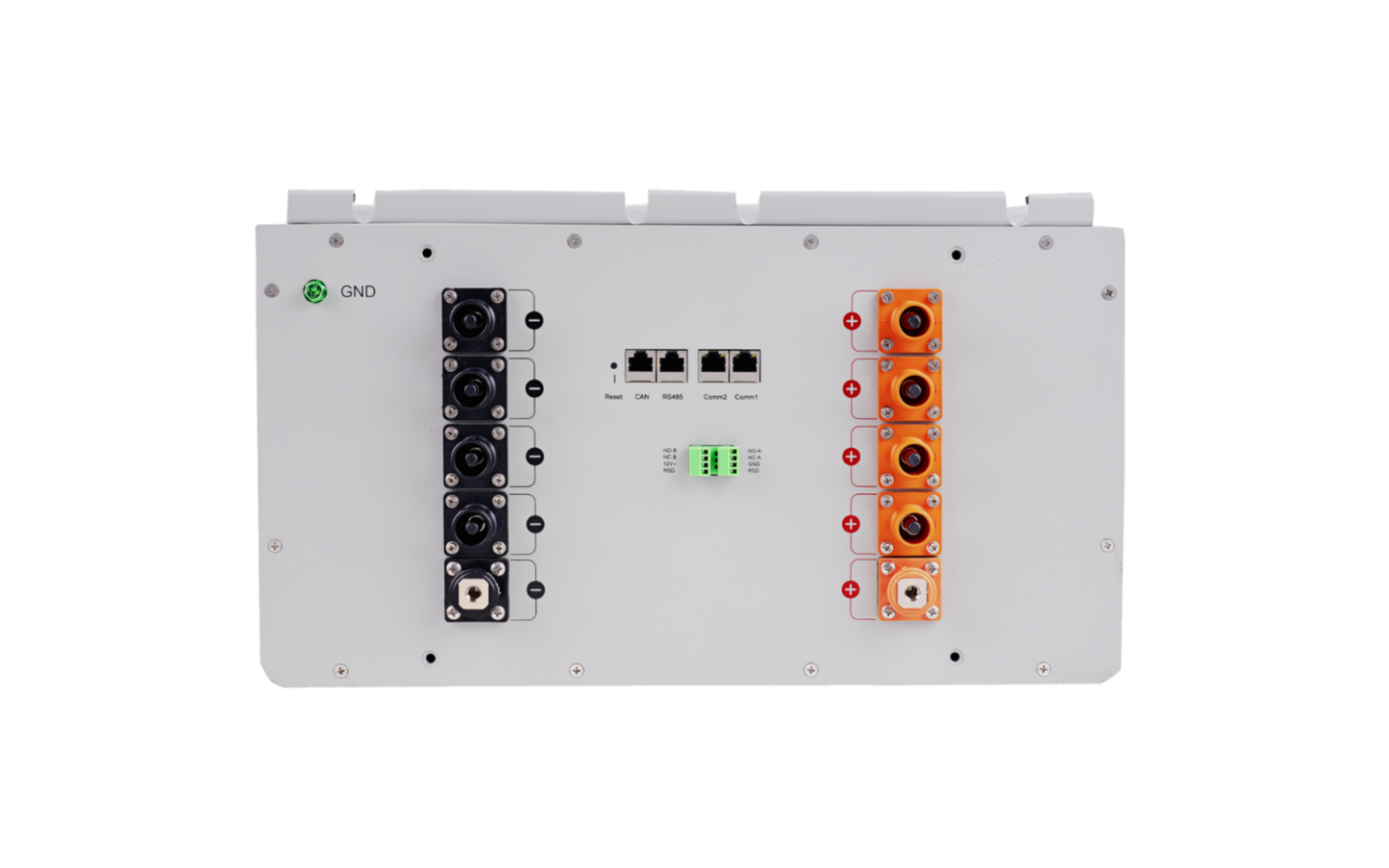

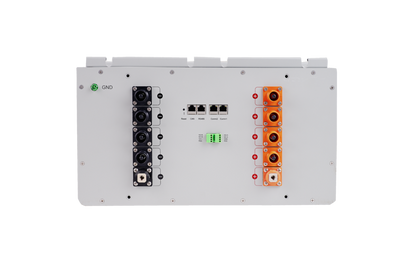

| Connector Type | Degson Quick Connector / Screw Terminal |
| UL 1973 | Yes |
| UL 9540 | DC ESS, AC ESS with EG4 18kPV, 12kPV, FlexBOSS 21, FlexBOSS 18 |
| UL 9540A | Battery-to-Battery spacing of 6 in |
| UN 38.3 | Yes |
| FCC Part 15 (EMC) | Yes |
| Protection Class | Class B |
| Cycle Life (70% EOL Capacity) | 10,000 cycles @ 0.5C, 25°C, 80% DOD |
| Design Life* | 10 years |
| Warranty | 10 years or 10,000 cycles |
| Application Type | Residential / Commercial / Off-grid / Backup |
| Lifetime Energy Throughput (Calculated) | 115.7 MWh |
| Recommended DOD Setting Note* | Set no lower than 20% to maintain recommended 80% depth of discharge |
| Storage Temperature Note** | For storage longer than 3 months: 59 – 86°F (15 – 30°C) |
| Note | Specifications subject to change without notice |
