LiTime 12V 230Ah 2944Wh Plus Deep Cycle LiFePO4 Battery for RV, Off-Grid

Product Description

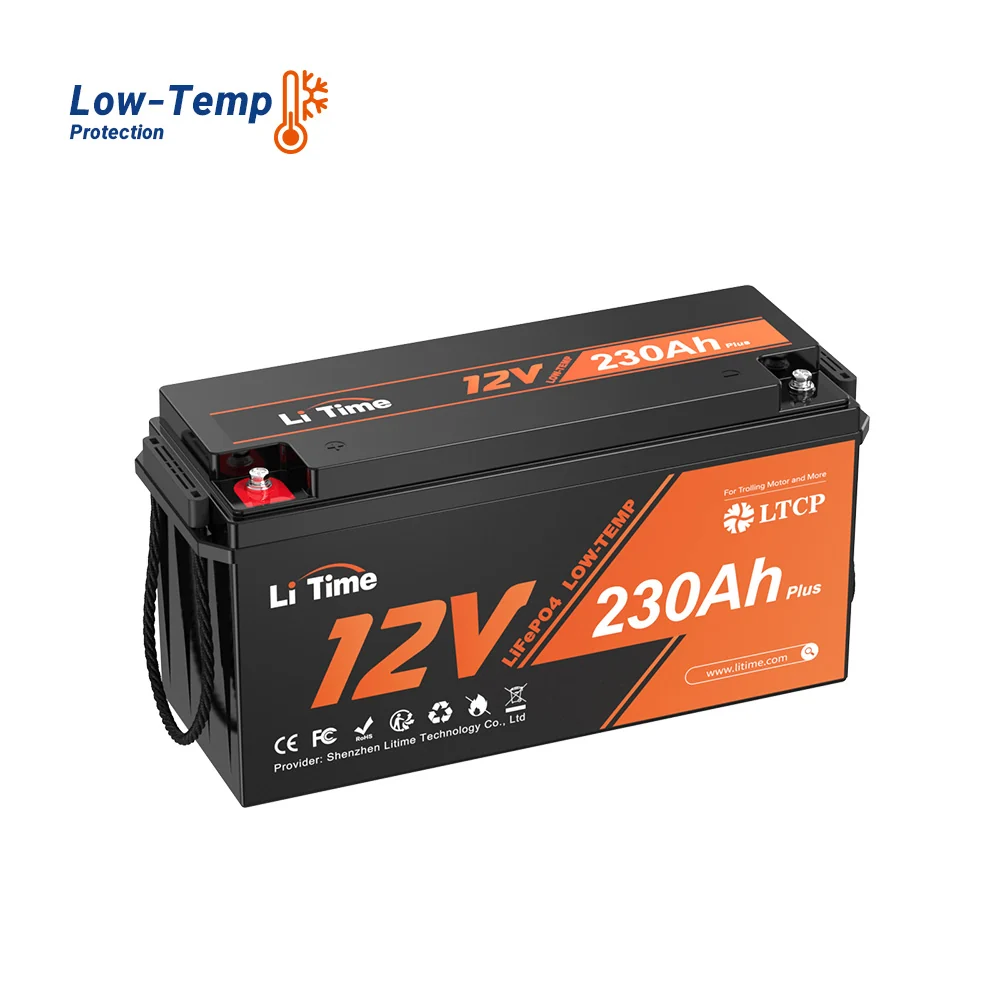

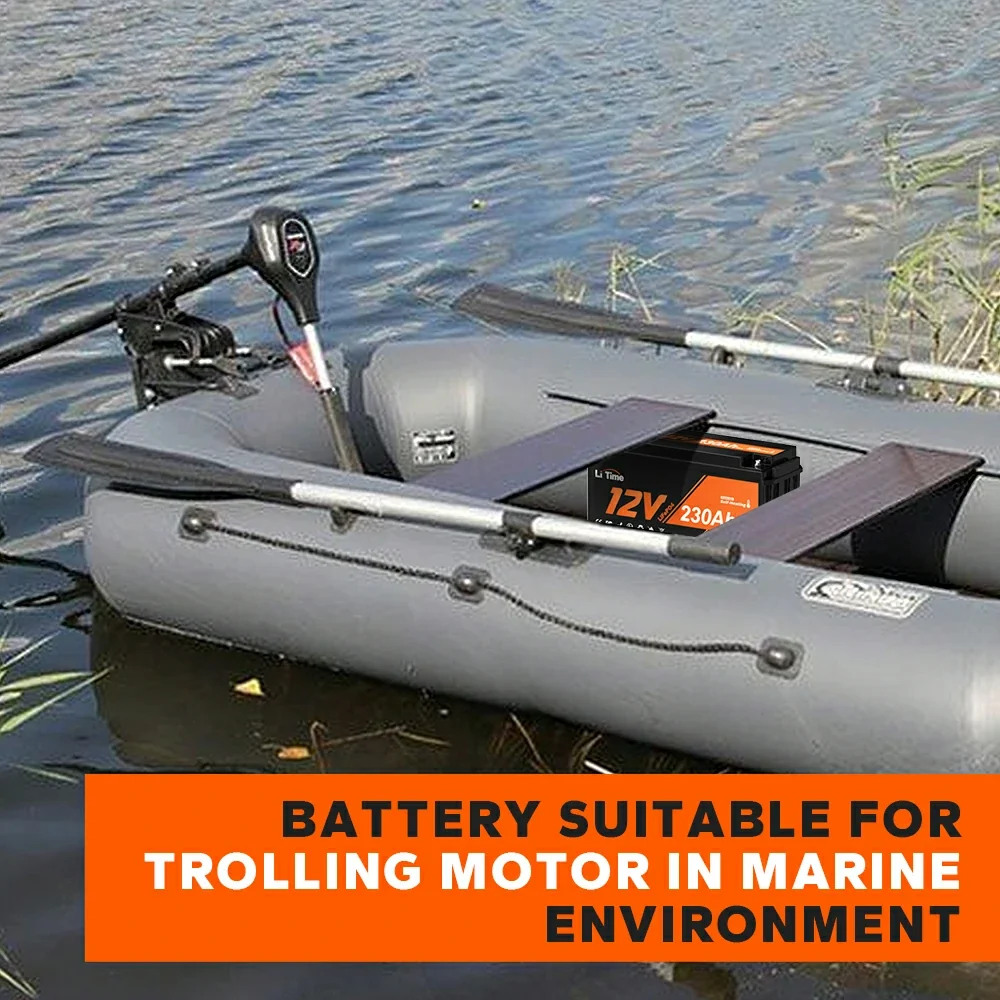

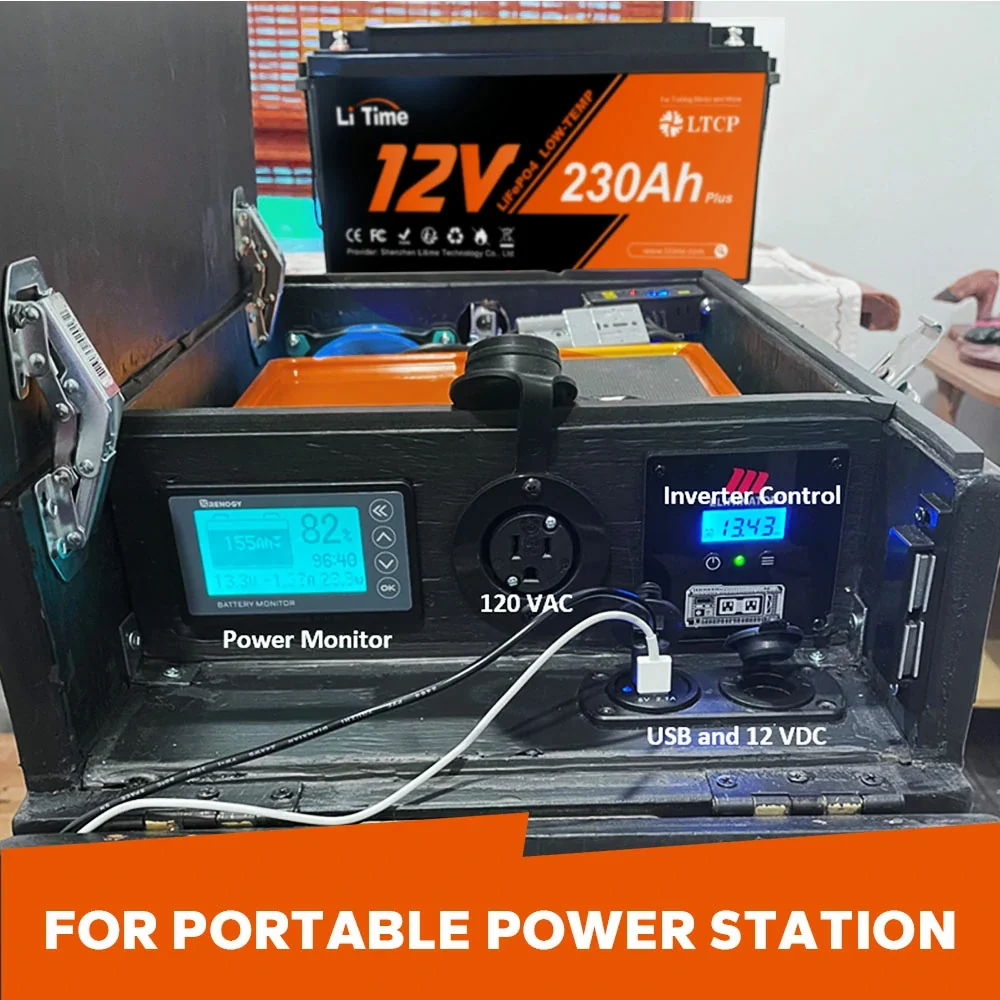

The LiTime 12V 230Ah Plus is a deep-cycle LiFePO4 battery for RVs, marine use, UPS systems and off-grid backup power. It delivers 2,944Wh of energy and includes low-temperature protection for charging and discharging in cold conditions.

  • Provides 230Ah capacity and 2,560W maximum continuous output power
  • Supports charging through an AC-DC battery charger, solar panel, alternator or generator
  • Automatically stops charging below 32°F (0°C) and discharging below -4°F (-20°C); charging resumes at or above 41°F (5°C)
  • Rated for 4,000 cycles at 100% DOD, 6,000 cycles at 80% DOD and 15,000 cycles at 60% DOD
  • Supports up to 4P4S expansion
  • The product page says not to use this battery as a starter battery
  • The page advises against orienting the battery with its top or front side facing downward

Specifications

Specification Details
Battery chemistry LiFePO4
Nominal voltage 12.8V
Rated capacity 230Ah
Energy 2,944Wh
Maximum continuous output power 2,560W
BMS 200A
Maximum continuous charge current 200A
Maximum continuous discharge current 200A
Maximum discharge current 600A for 5 seconds; 1,000A for 1 second
Cycle life 4,000 cycles at 100% DOD; 6,000 cycles at 80% DOD; 15,000 cycles at 60% DOD
Maximum expansion 4P4S
Internal resistance ≤40mΩ
Charging method CC/CV
Charge voltage 14.4V ± 0.2V
Recommended charge current 46A
Charge temperature 32°F to 122°F (0°C to 50°C)
Discharge temperature -4°F to 140°F (-20°C to 60°C)
Storage temperature 14°F to 122°F (-10°C to 50°C)
Low-temperature charging cutoff Below 32°F (0°C)
Low-temperature discharge cutoff Below -4°F (-20°C)
Automatic charging recovery At or above 41°F (5°C)
Terminals M8 bolts
Dimensions 19 × 6.7 × 9.5 in.
Approximate weight 45.22 lb
Housing material ABS
Protection class IP65
Certifications FCC, CE, RoHS, UN38.3; IEC 62619 standard
ABYC standard Meets ABYC E-13 standard
Warranty 5 years

FAQs

Can this battery be used as a starter battery?
No. LiTime says this battery is designed for energy storage and should not be used to start devices.

Can I charge this battery with solar panels?
Yes. The product page lists solar panels as one of four charging methods, along with an AC-DC battery charger, alternator and generator.

Does the battery include low-temperature protection?
Yes. Charging stops below 32°F (0°C), discharging stops below -4°F (-20°C), and charging resumes at or above 41°F (5°C).

Can multiple batteries be connected together?
The page lists a maximum configuration of 4P4S, with up to a 51.2V, 920Ah system.

What charging current does LiTime recommend?
The listed recommended charge current is 46A.
