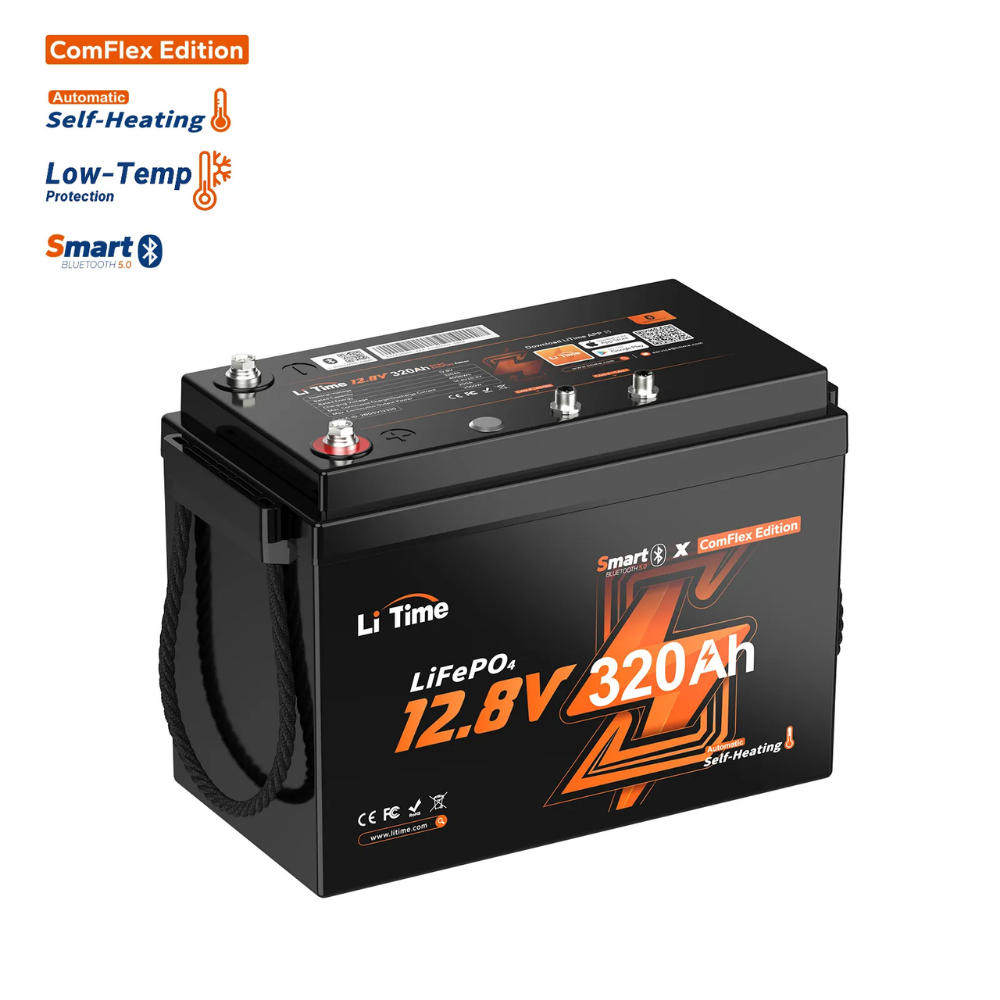

New LiTime 12V 320Ah CAN & RS485 ComFlex Smart LiFePO4 Battery | Victron, RV-C & NMEA 2000 Integration
Product Description
The LiTime 12V 320Ah ComFlex Smart battery provides 4,096Wh of LiFePO4 energy for RV, marine and off-grid systems. CAN and RS485 communication support integration with compatible Victron, RV-C and NMEA 2000 systems, while Bluetooth monitoring and dual-mode self-heating add control and cold-weather support.
- Delivers 320Ah capacity and 2,560W maximum continuous output power

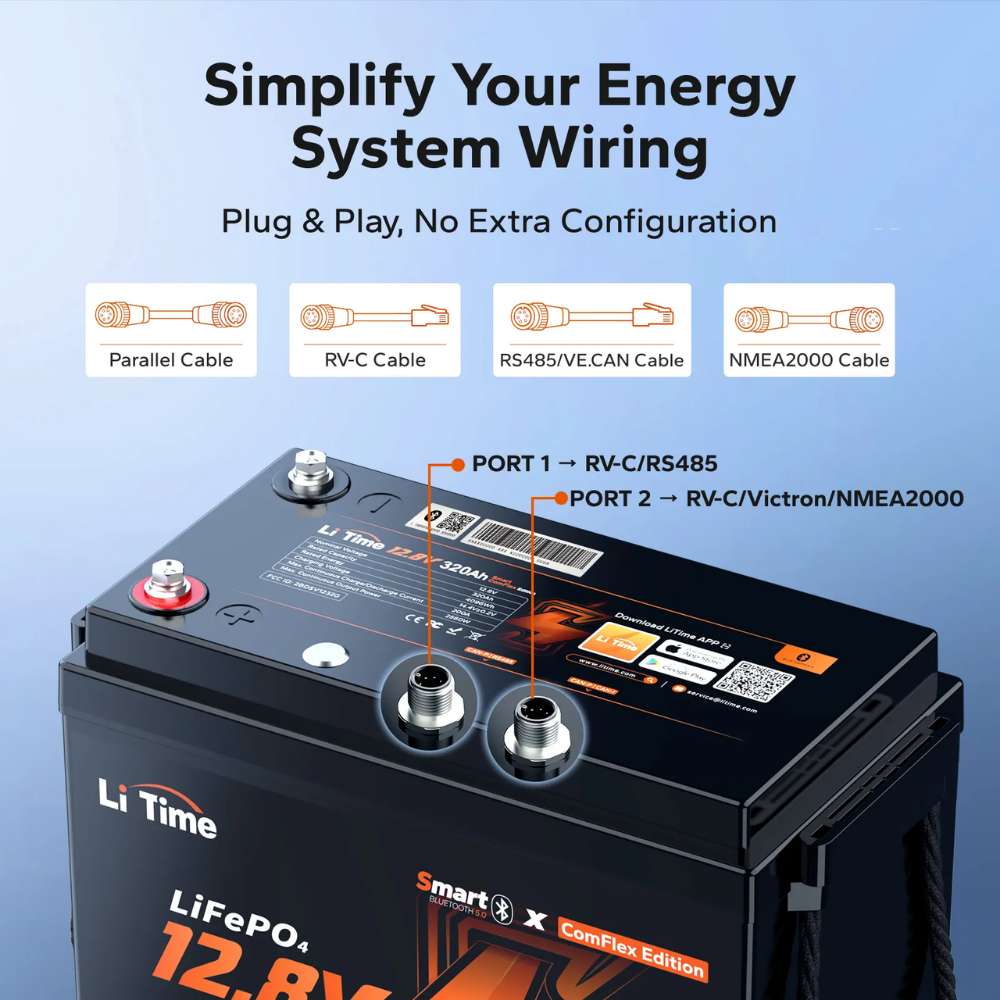

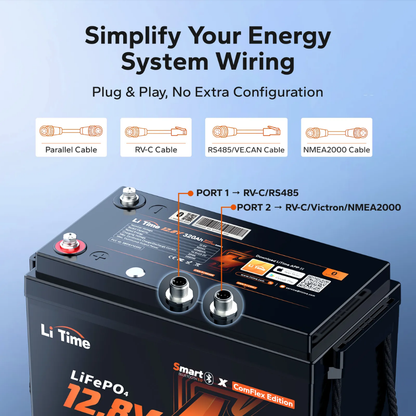

- Connects with compatible RV-C, Victron, NMEA 2000 and LiTime RS485 display systems
- Bluetooth 5.0 app control includes 30-day history, up to 300 event records, password protection and customizable minimum SOC limits
- Dual-mode self-heating and low-temperature protection support cold-weather operation
- Supports up to 4P4S without communication or 16P1S with communication
- Can be charged by a LiFePO4 charger, solar, alternator or generator
- Not intended for use as a starting battery
Specifications
| Specification | Details |
|---|---|
| Battery chemistry | LiFePO4 |
| Nominal voltage | 12.8V |
| Rated capacity | 320Ah |
| Energy | 4,096Wh |
| BMS | 200A |
| Maximum continuous output power | 2,560W |
| Maximum continuous charge current | 200A |
| Maximum continuous discharge current | 200A |
| Maximum discharge current | 1,000A for 1 second |
| Cycle life | 4,000 cycles at 100% DOD; 6,000 cycles at 80% DOD; 15,000 cycles at 60% DOD |
| Maximum expansion | 4P4S without communication; 16P1S with communication |
| Internal resistance | ≤40mΩ |
| Certifications | FCC, CE, RoHS, UN38.3 |
| Bluetooth | Yes |
| Self-heating | Yes; dual-mode |
| Charging method | CC/CV |
| Charge voltage | 14.4V ± 0.2V |
| Recommended charge current | 64A |
| Charge temperature | -4°F to 122°F (-20°C to 50°C) |
| Discharge temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage temperature | 14°F to 122°F (-10°C to 50°C) |
| Automatic charge cutoff | 32°F (0°C) |
| Automatic charging recovery | 41°F (5°C) |
| Automatic discharge cutoff | -4°F (-20°C) |
| Self-heating temperature range | -4°F to 41°F (-20°C to 5°C) |
| Approximate heating time | 60–80 minutes from 14°F (-10°C); 90–110 minutes from -4°F (-20°C) |
| Terminals | M8 × 16mm |
| Dimensions | 14.49 × 7.44 × 10.04 in. |
| Approximate weight | 59.97 lb |
| Housing material | ABS |
| Protection class | IP65 |
| Warranty | 5 years |

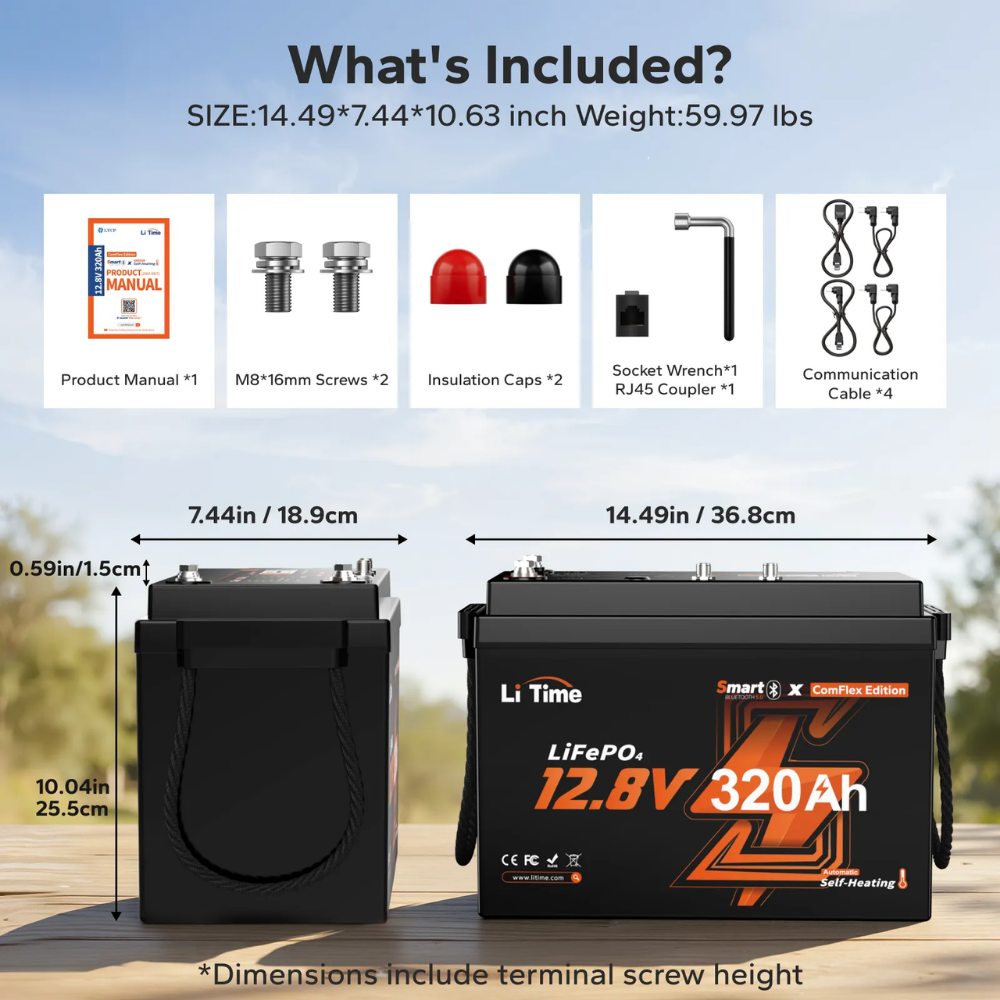

What's In The Box?
For the 1 Pack option:
- 12V320Ah ComFlex Battery ×1
- M8 Screws ×2
- Insulation Caps ×2
- Socket Wrench ×1
- RJ45 Coupler ×1
- Communication Cable ×4
FAQs
Which communication systems can this battery integrate with?
The page lists compatible RV-C, Victron, NMEA 2000 and LiTime RS485 display systems.
How many batteries can be connected together?
The listed configurations are up to 4P4S without communication and up to 16P1S with communication.
Can this battery be used as a starting battery?
No. LiTime says it is designed for energy storage and is not intended to start devices.
What charging methods does LiTime list?
The battery can be charged with a LiFePO4 charger, solar, an alternator or a generator.
What cold-weather features does it have?
It includes dual-mode self-heating and low-temperature protection. The page lists automatic charge cutoff at 32°F (0°C), charging recovery at 41°F (5°C), and discharge cutoff at -4°F (-20°C).
