PRODUCT DESCRIPTION
Description

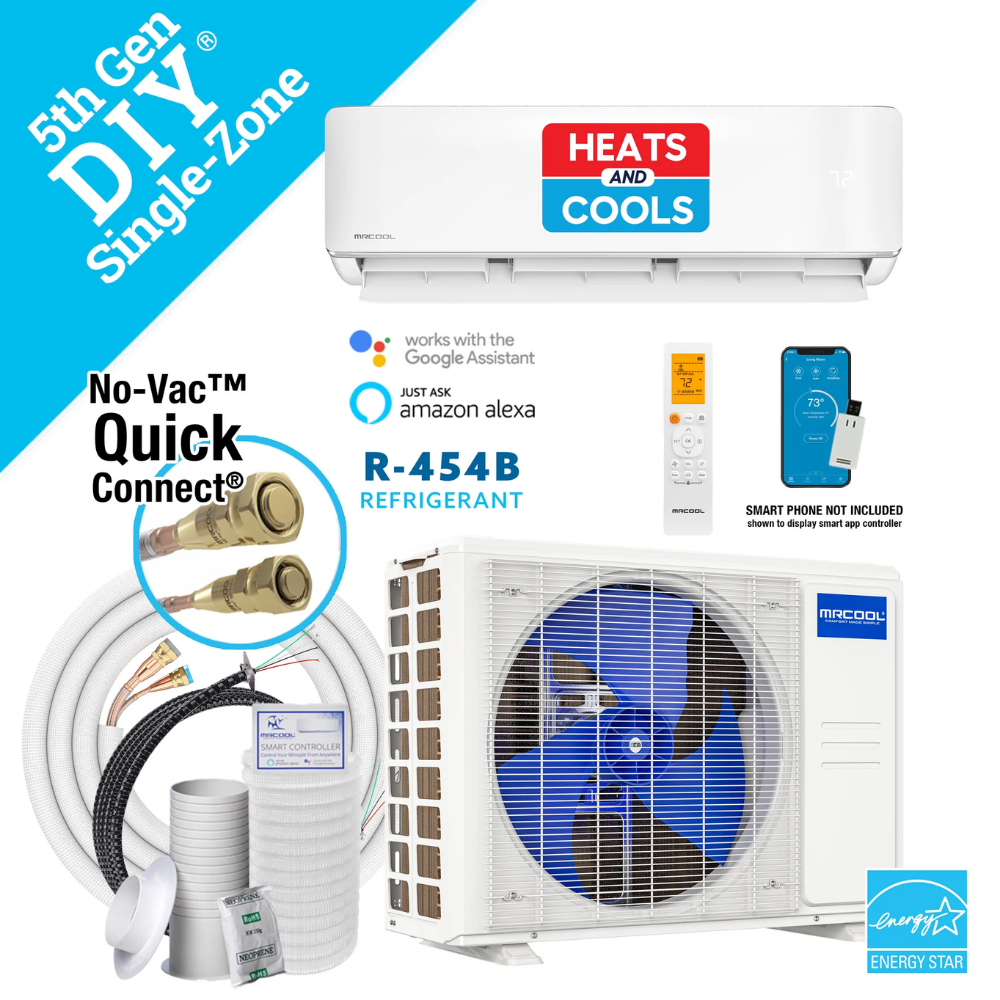

MRCOOL DIY 5th Gen ENERGY STAR® 9,000 BTU Single Zone Mini Split Complete System with 25 ft. Line Set 115V
Product Description
The MRCOOL DIY® 5th Generation ENERGY STAR® 9,000 BTU Single Zone Mini Split Complete System delivers year-round comfort with an installation process designed for homeowners. Featuring a factory pre-charged 25 ft. Quick Connect® line set, this ductless heat pump system eliminates the need for specialized HVAC tools, making installation faster and more accessible.
Ideal for rooms between 200 and 350 square feet, the system combines high-efficiency heating and cooling with smart home integration, quiet operation, and energy-saving inverter technology. Built-in WiFi and voice assistant compatibility allow you to control your comfort from virtually anywhere.
Key Features
- 9,000 BTU single-zone heating and cooling system
- Designed for spaces from 200–350 sq. ft.
- True DIY installation with pre-charged 25 ft. Quick Connect® line set
- ENERGY STAR® certified for improved energy efficiency
- High-efficiency 23.6 SEER2 performance
- Uses R-454B refrigerant
- Built-in WiFi with SmartHVAC app compatibility
- Compatible with Amazon Alexa and Google Assistant
- Includes DIYPRO® cable for simplified installation
- DC inverter rotary compressor
- Quiet operation with indoor sound levels as low as 18 dB(A)
- Gold Fin® condenser coating for enhanced corrosion resistance
- Features Quiet Mode, Fan Only, Auto Cool, Sleep Mode, Auto Restart, and Follow Me® technology
- UL Listed, ETL Listed, AHRI Certified, and ENERGY STAR® Certified
Specifications
| Specification | Value |
|---|---|
| Model | DIY-09-HP-WM-115D25-O |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 10,000 BTU |
| Zone Capacity | 1 |
| Recommended Coverage | 200–350 sq. ft. |
| Voltage | 115V |
| Phase | 1 |
| Frequency | 60 Hz |
| SEER2 | 23.6 |
| EER2 | 14 |
| HSPF2-4 | 11.5 |
| HSPF2-5 | 8.6 |
| Refrigerant | R-454B |
| Refrigerant Charge | 30.34 oz |
| Line Set Length | 25 ft. |
| Maximum Line Set Length | 82 ft. |
| Liquid Line Size | 1/4 in. |
| Suction Line Size | 3/8 in. |
| Compressor Type | Rotary |
| Inverter | DC |
| Outdoor Cooling Operating Range | -13°F to 122°F |
| Outdoor Heating Operating Range | -13°F to 75°F |
| Outdoor Noise Level | 54 dB(A) |
| Indoor Noise Levels | 43.0 / 39.5 / 33.5 / 24.0 / 18.0 dB(A) |
| Maximum Fuse Breaker | 20A |
| Minimum Circuit Ampacity | 18A |
| Condenser Dimensions | 30.12" W × 11.93" D × 21.85" H |
| Condenser Weight | 65.48 lbs. |

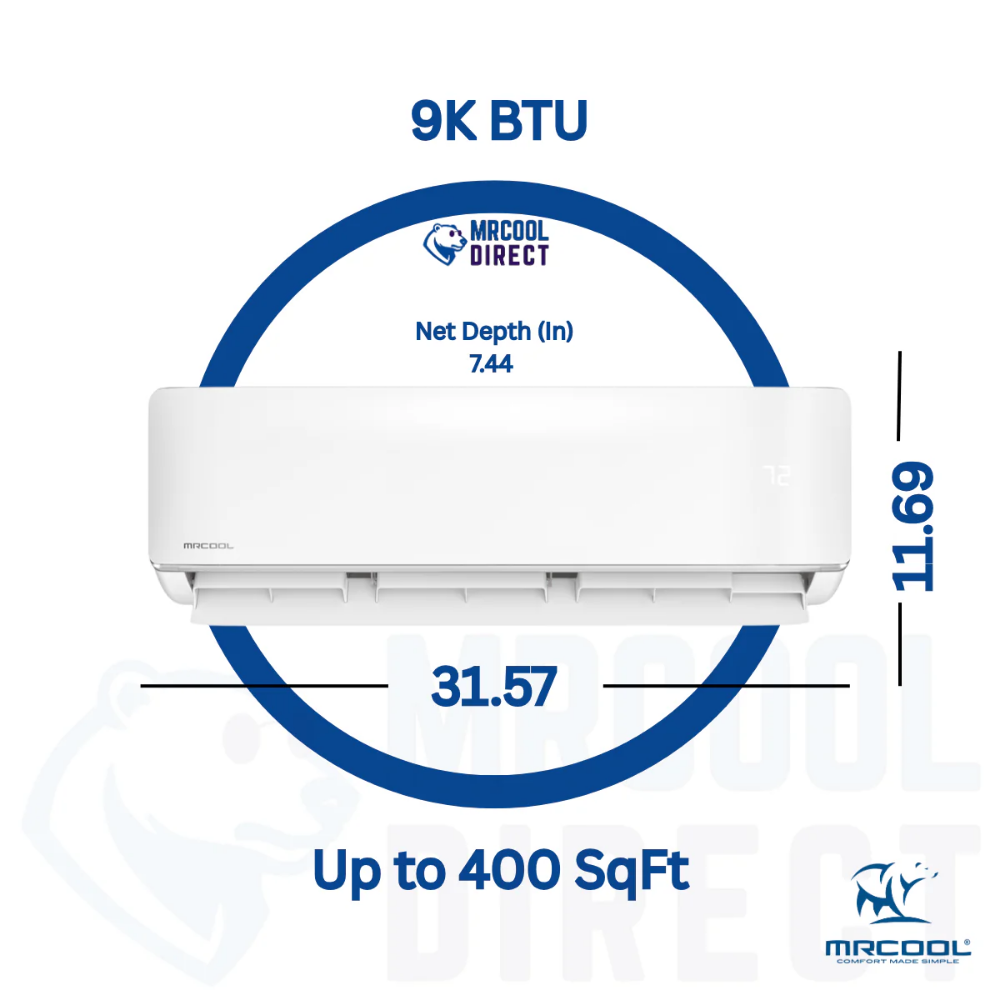

| Air Handler Dimensions | 31.57" W × 7.44" D × 11.69" H |
| Air Handler Weight | 24.91 lbs. |
| WiFi Compatible | Yes |
| App Compatible | Yes |
| iOS Compatible | Yes |
| Android Compatible | Yes |
| Remote Included | Yes |
| Certifications | UL Listed, ETL Listed, AHRI Certified, ENERGY STAR® Certified |
| Warranty | 7-Year Compressor Warranty, 5-Year Parts Warranty |

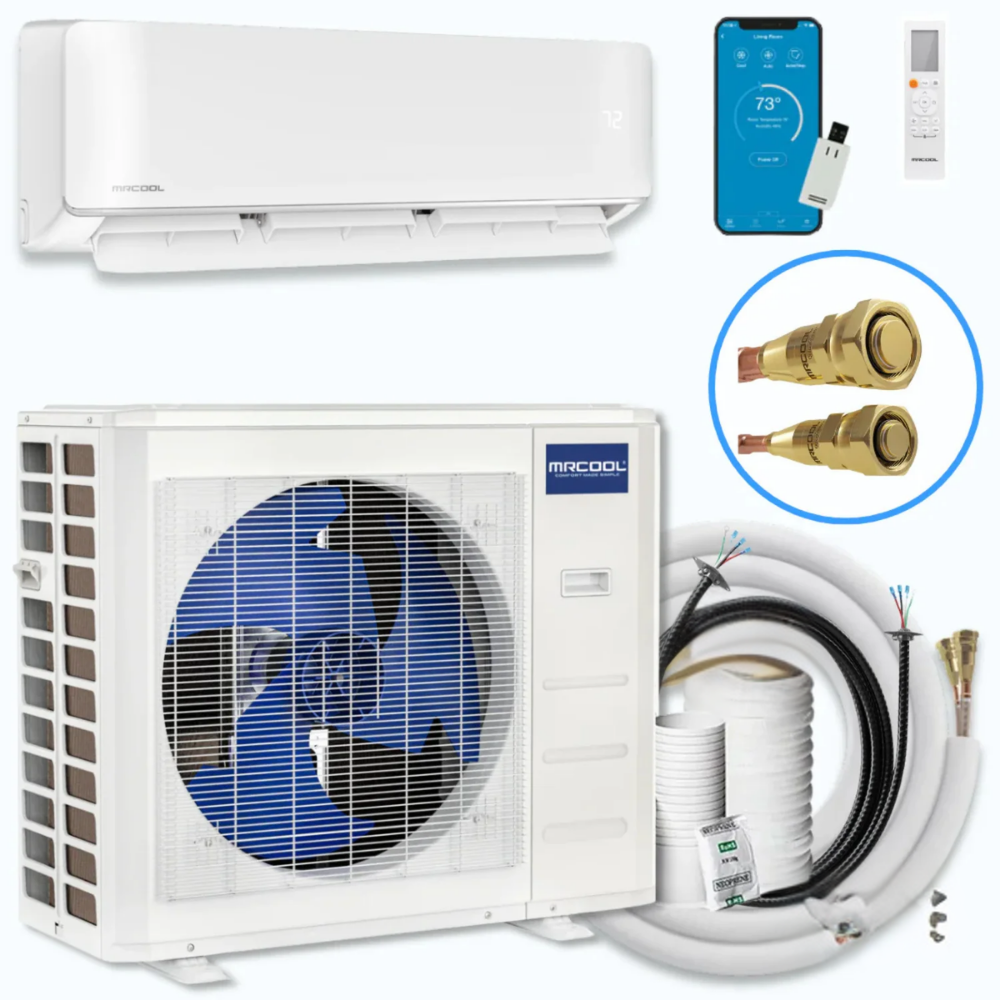

What's In The Box?

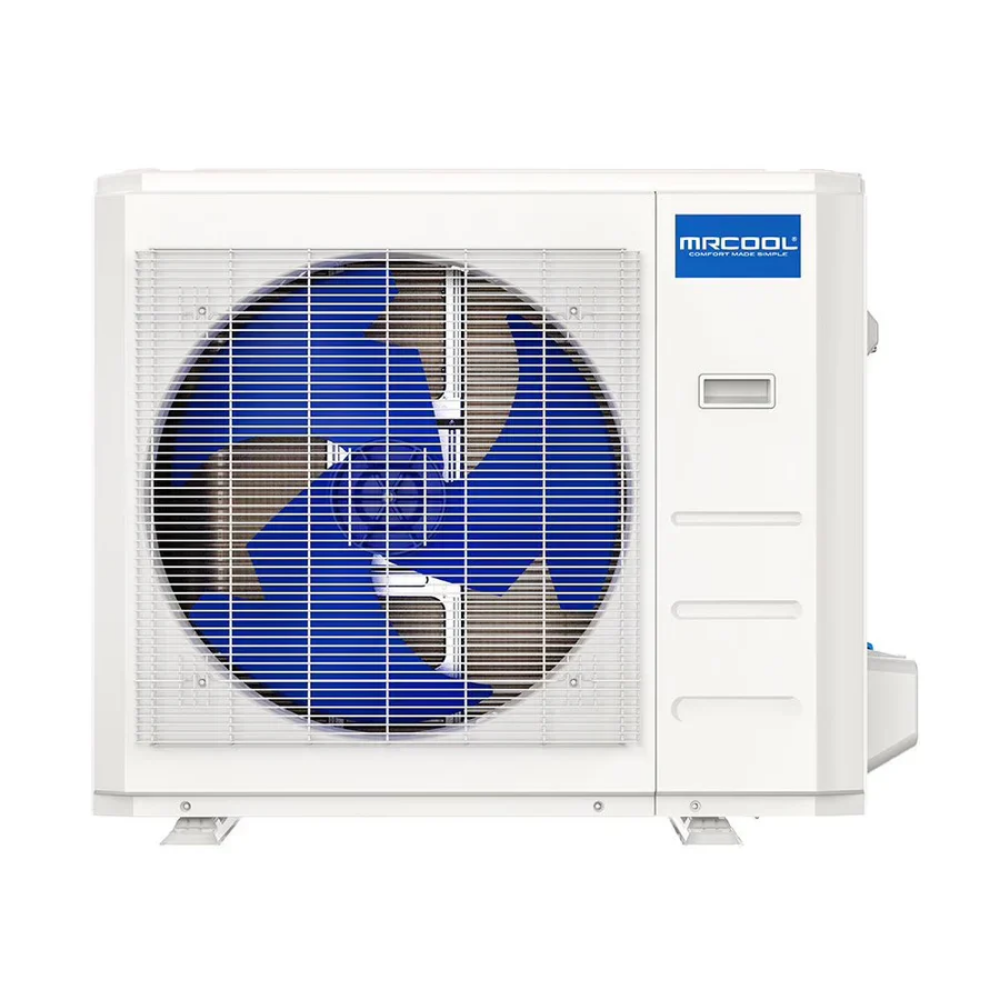

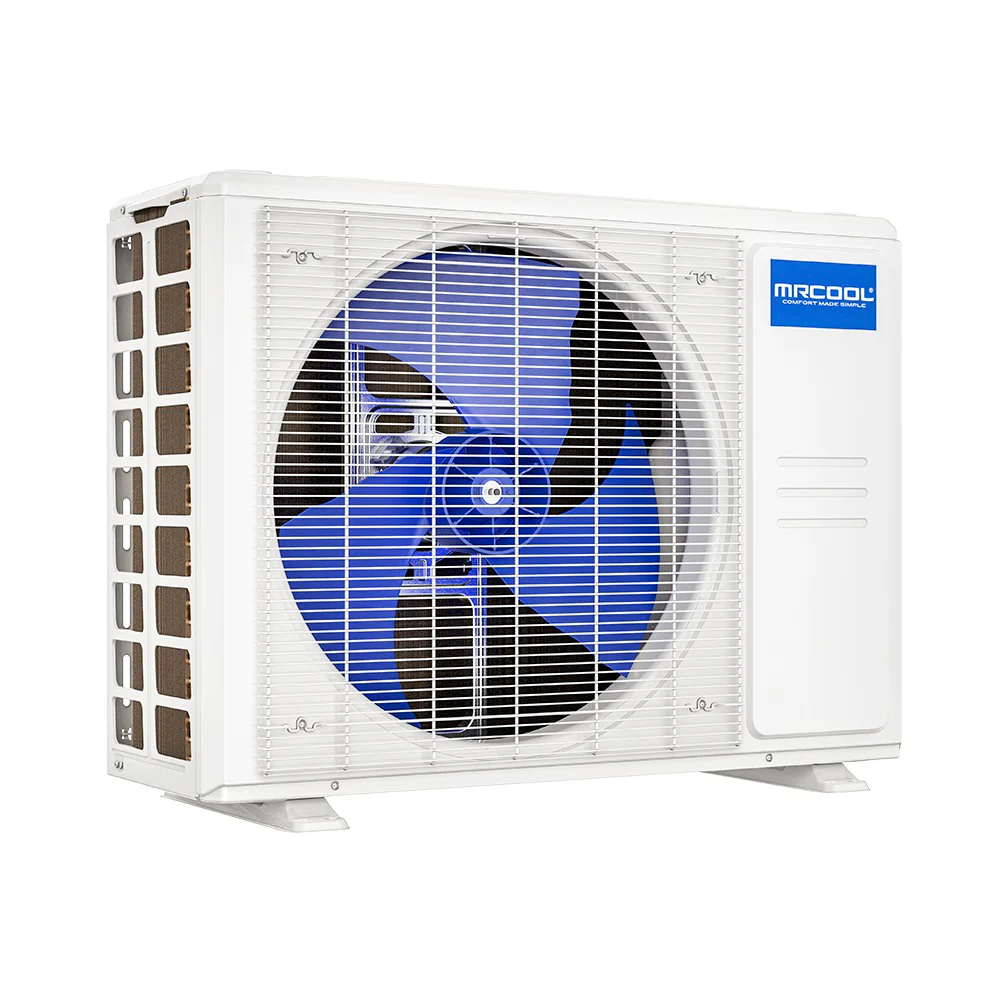

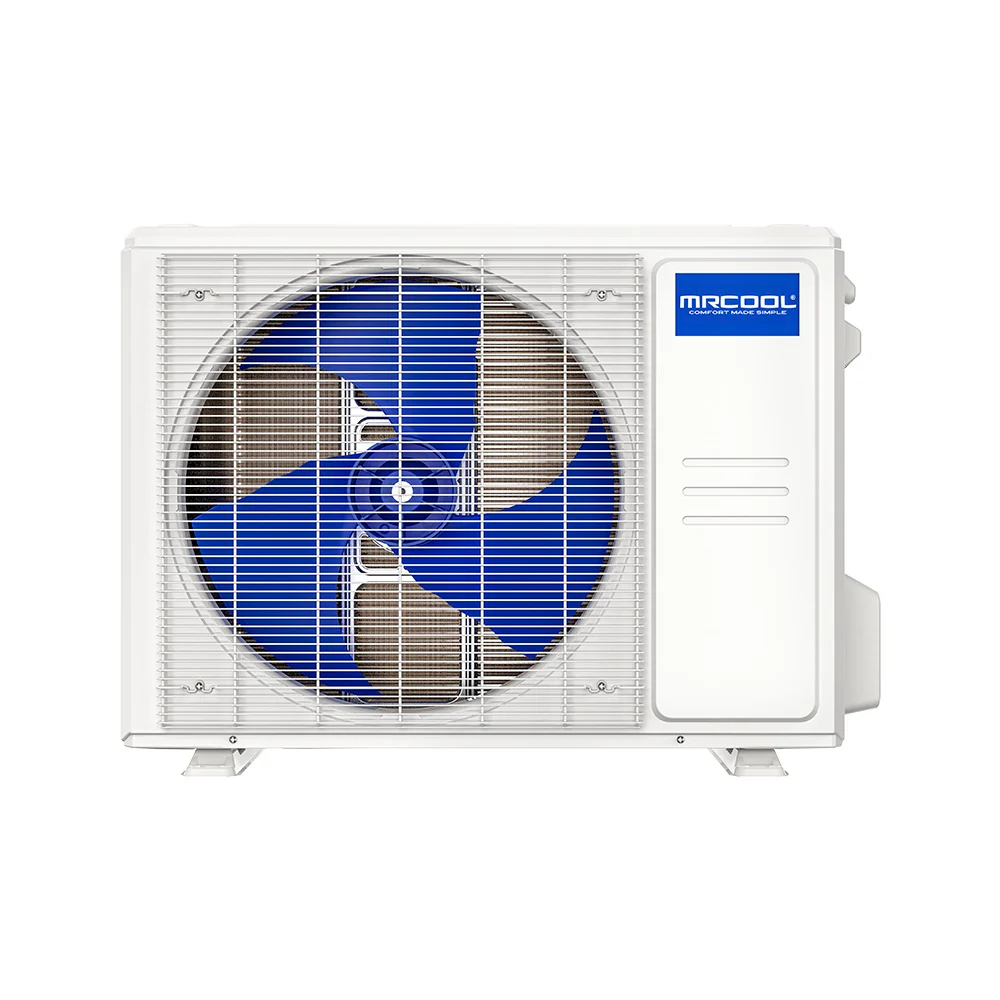

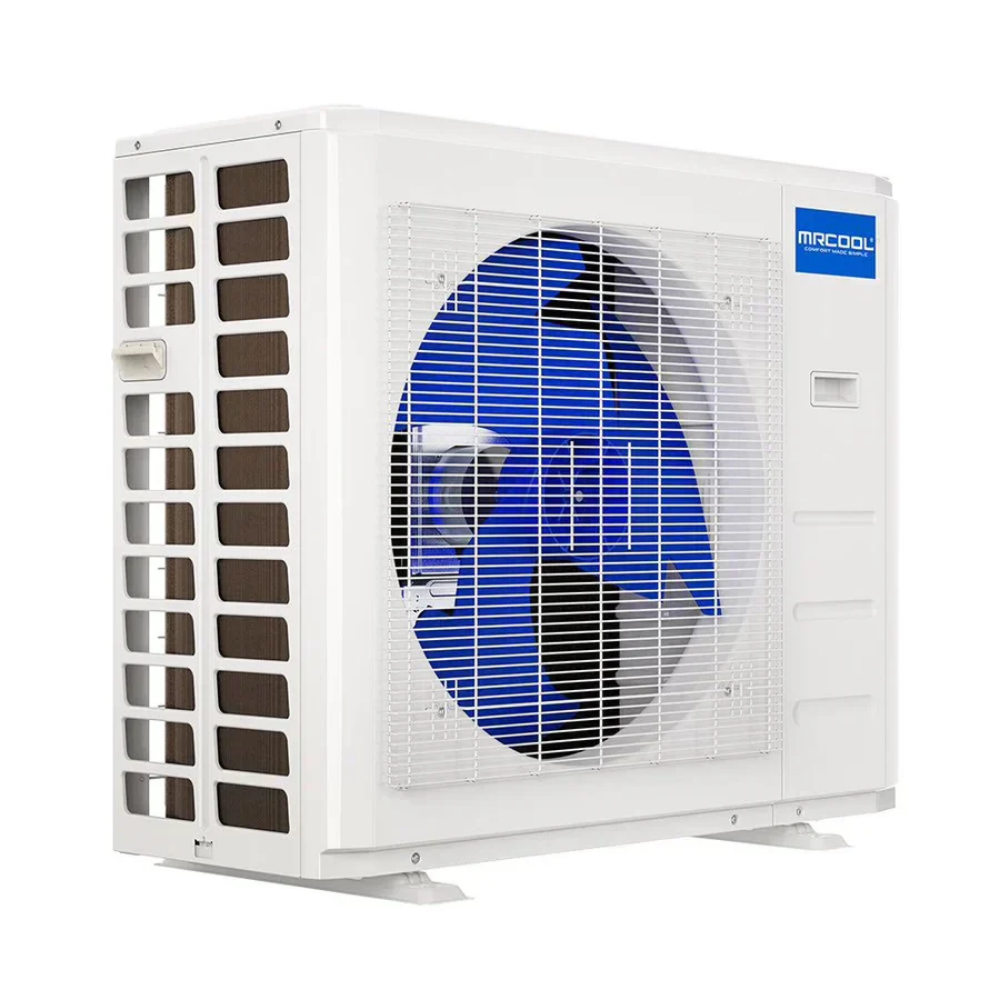

- Outdoor condenser

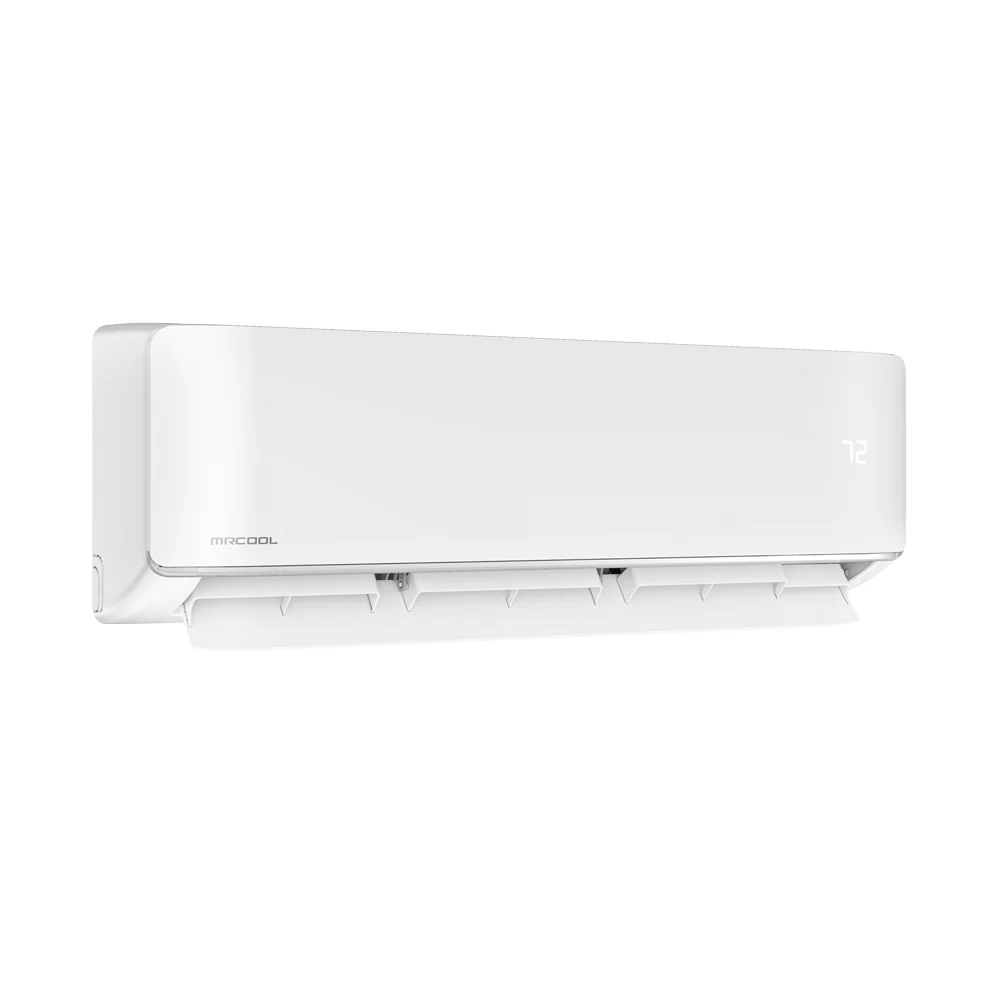

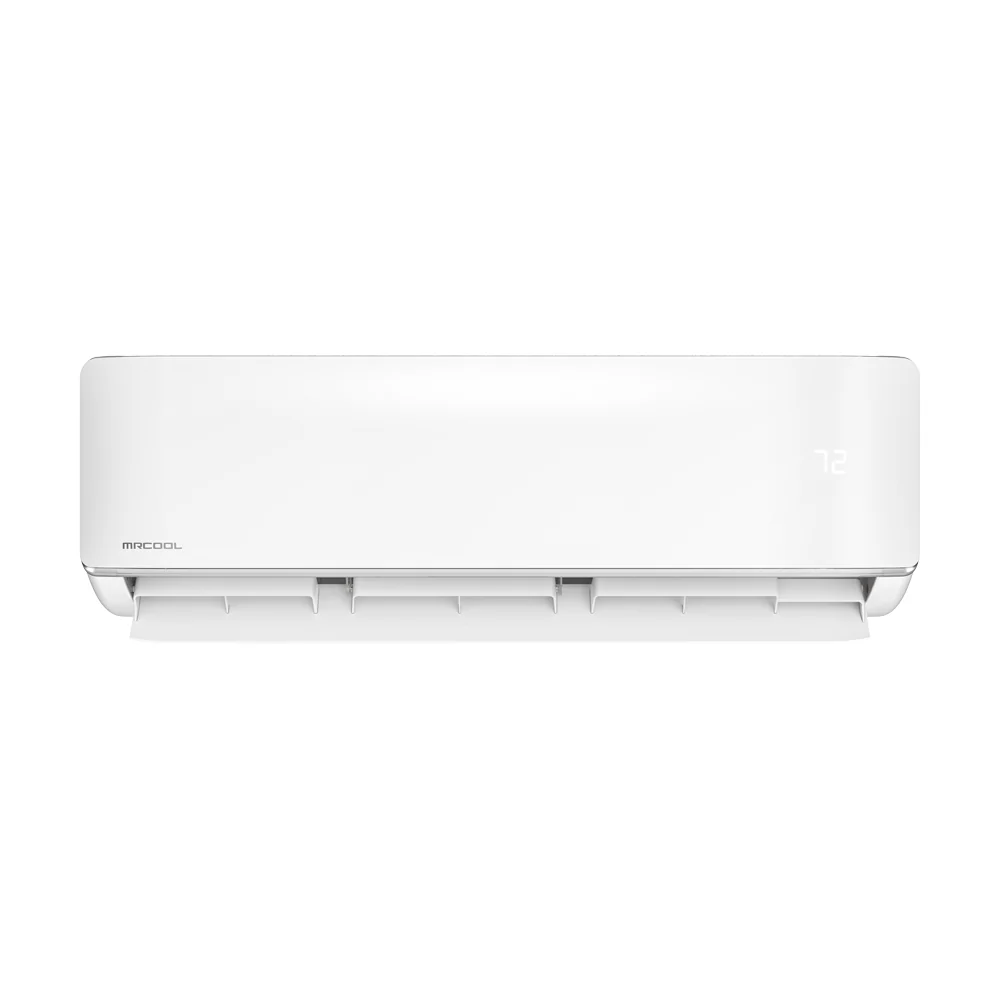

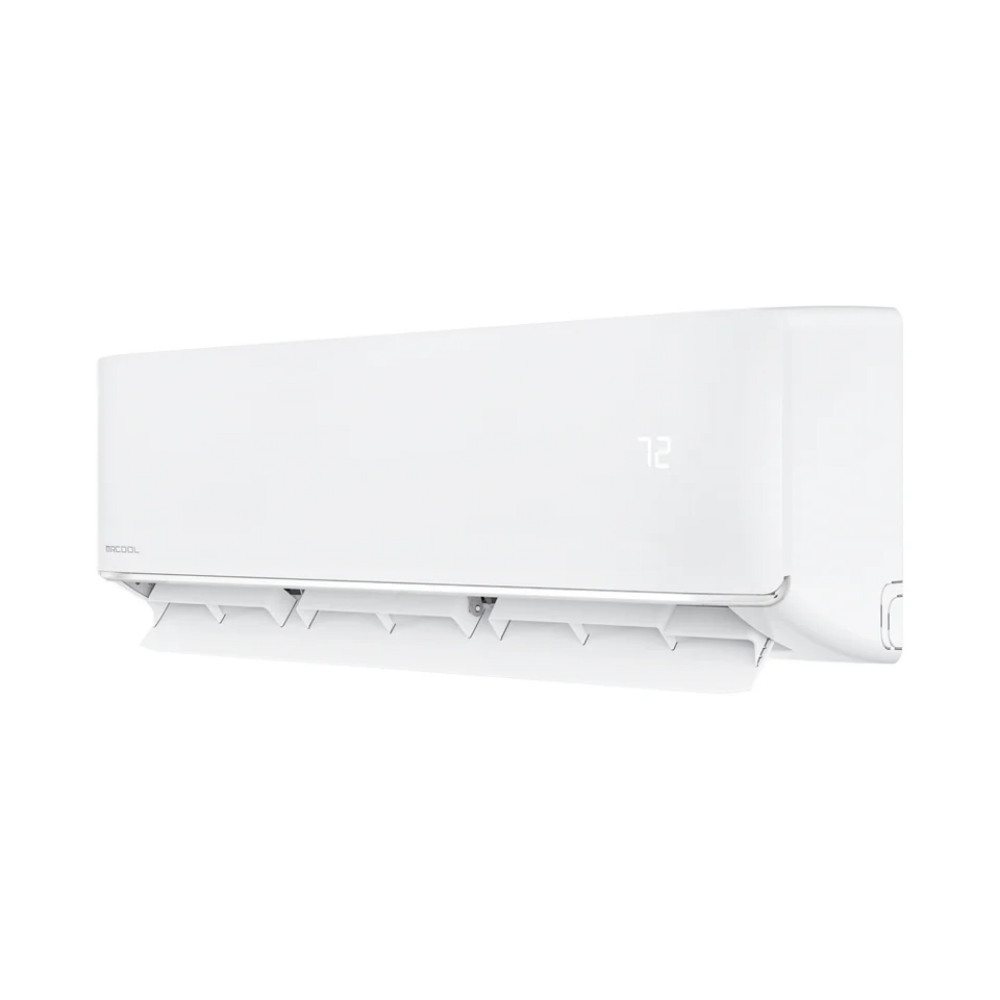

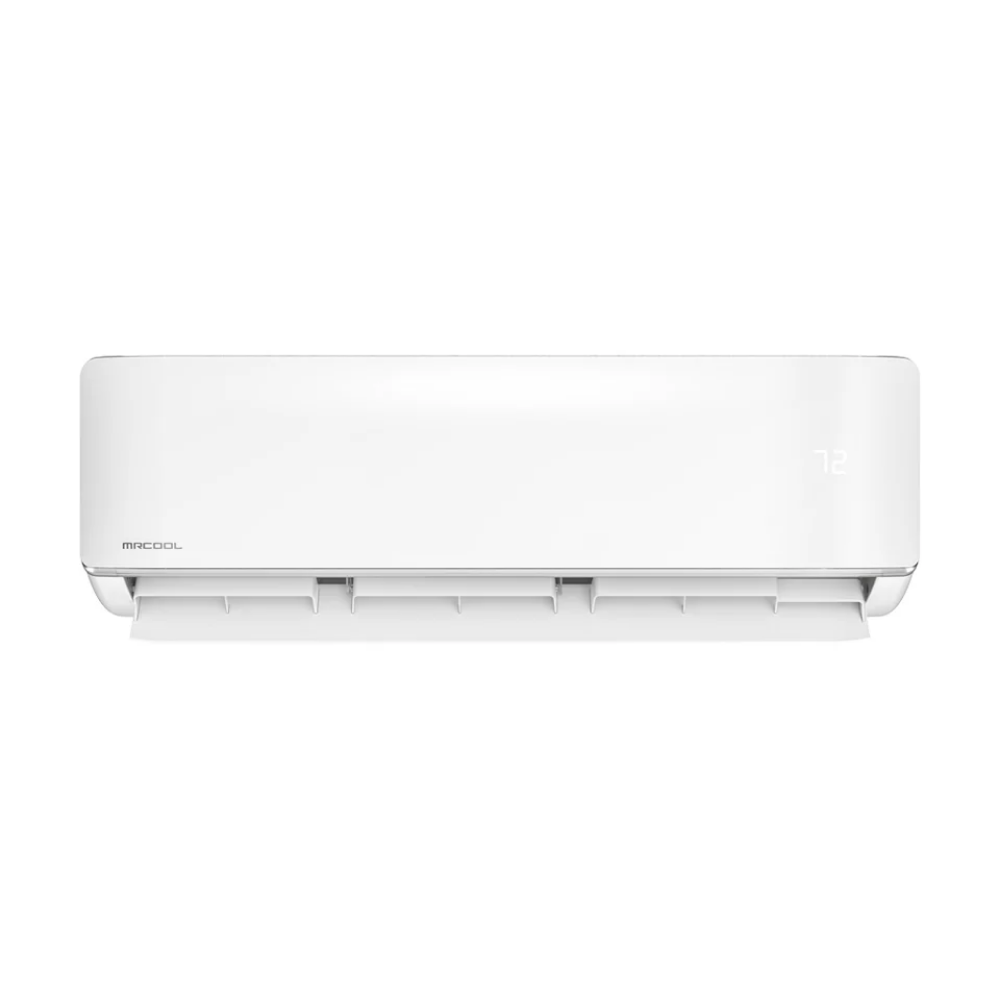

- Indoor wall-mounted air handler

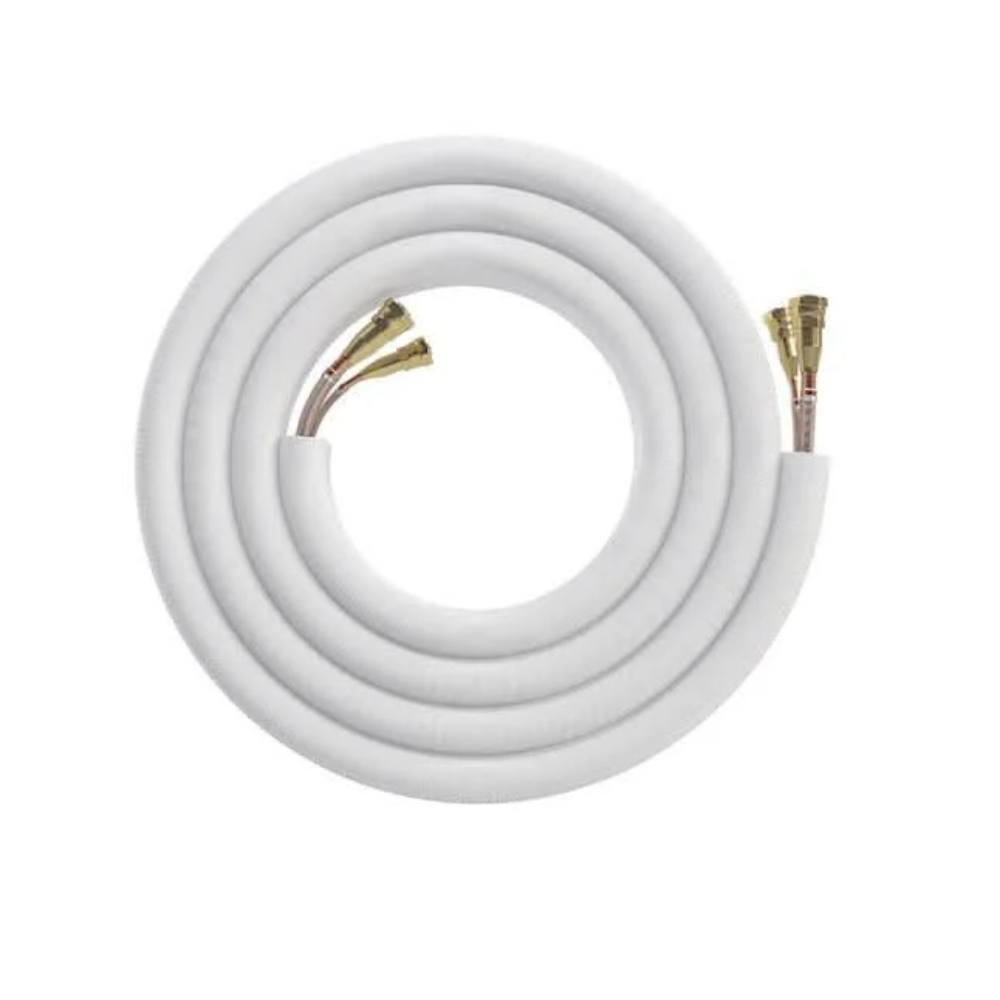

- 25 ft. pre-charged Quick Connect® line set

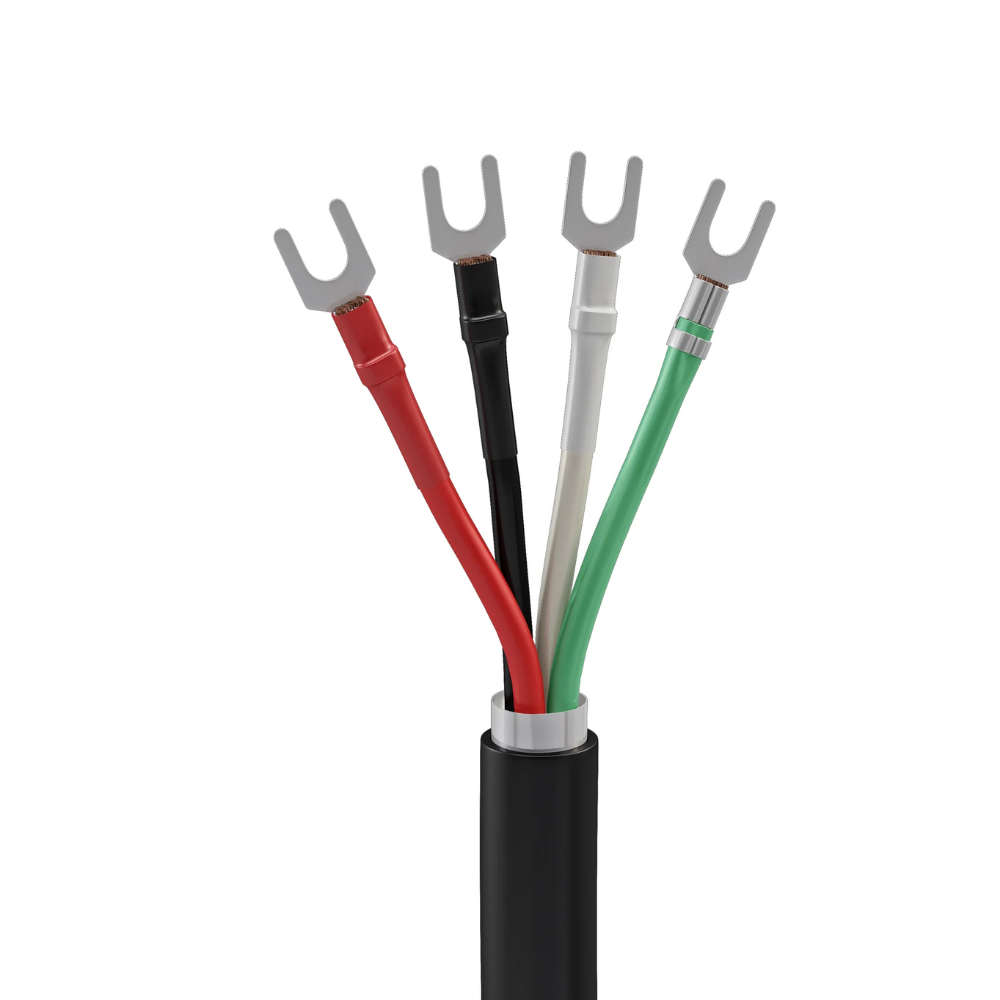

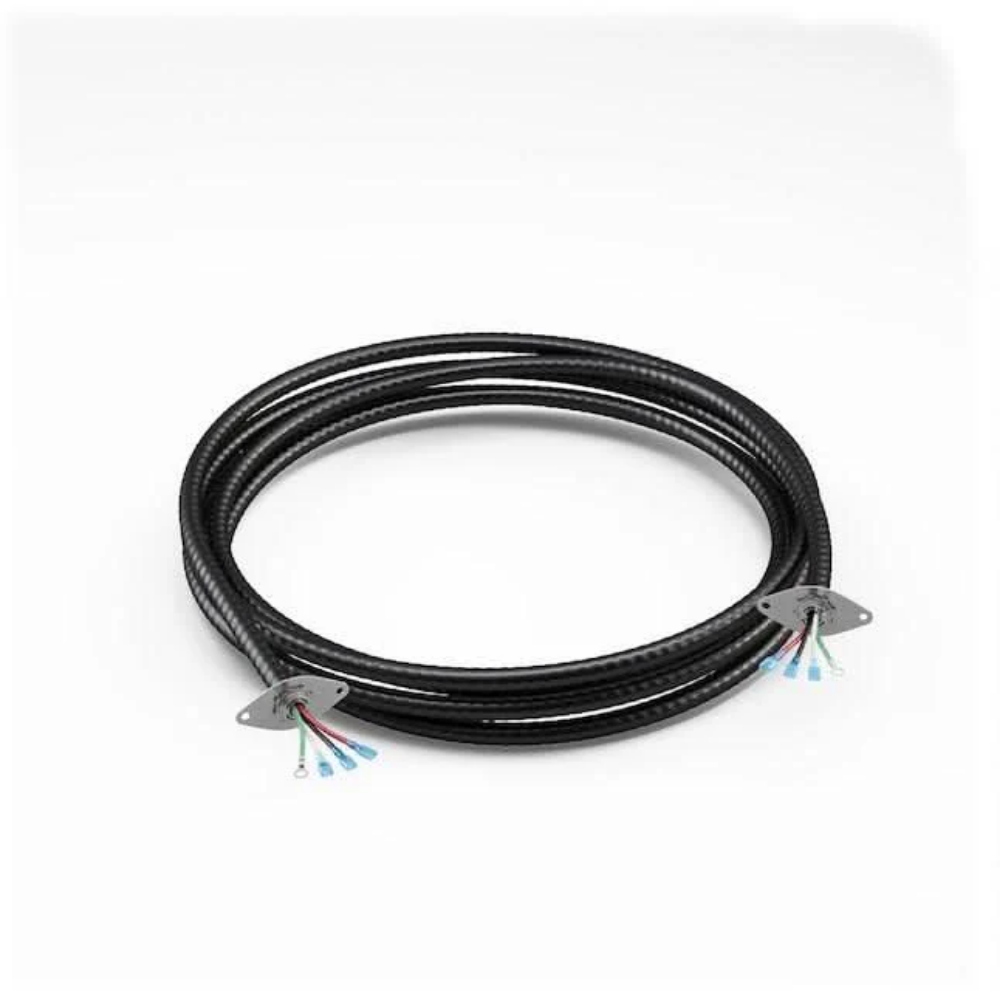

- DIYPRO® cable

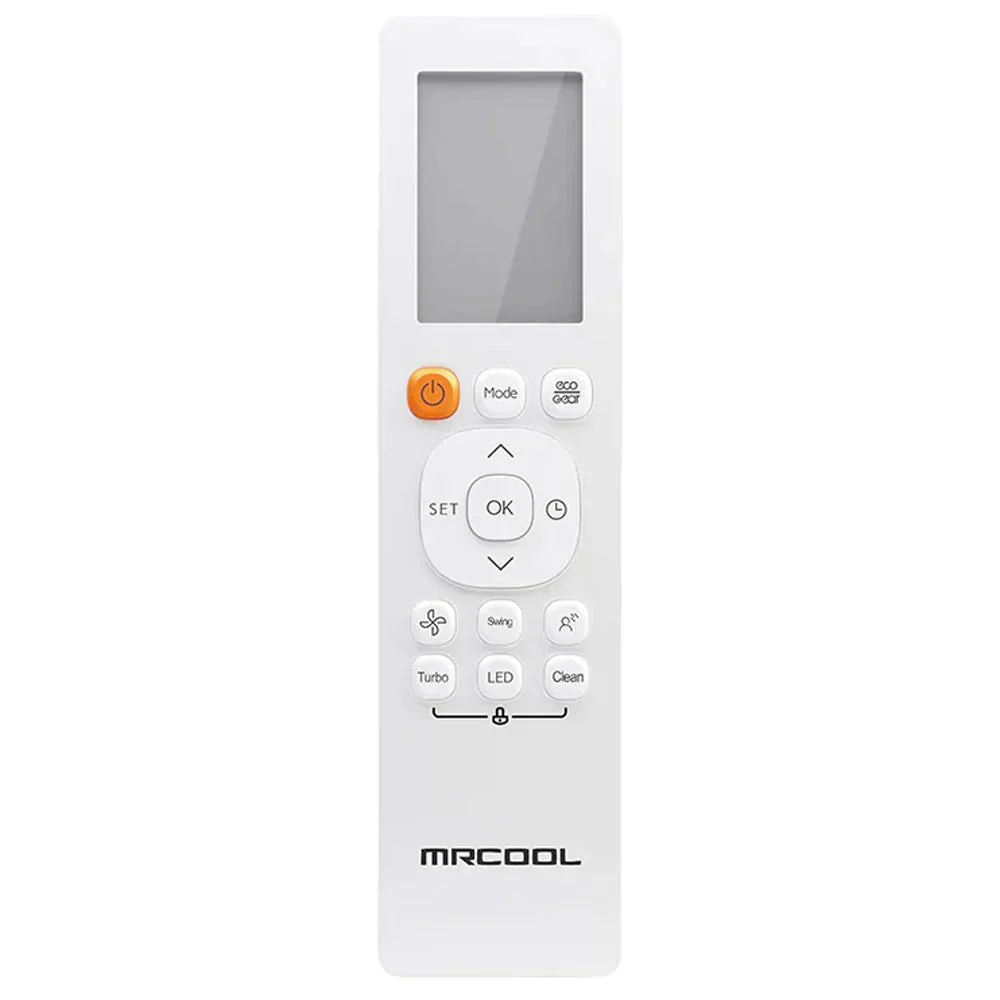

- Wireless remote control

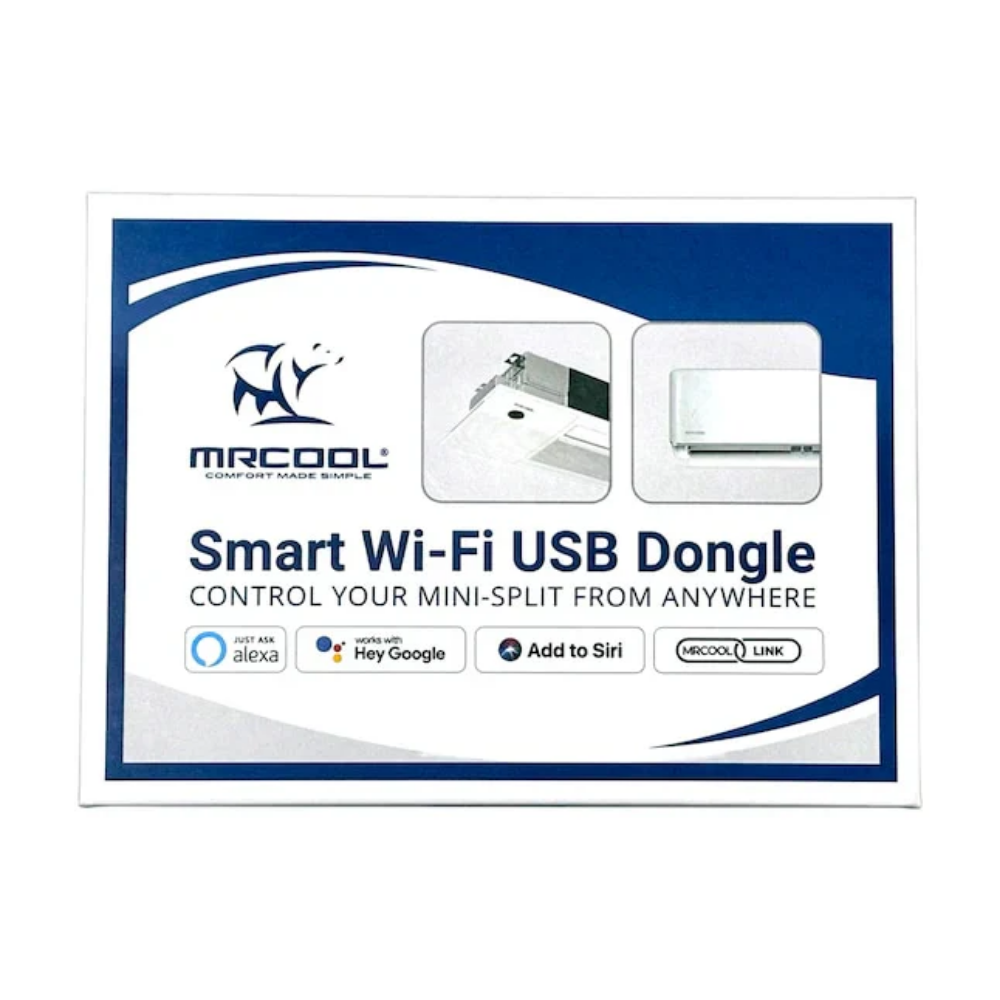

- WiFi USB controller
FAQs
Does this system require professional installation?
No. It is designed for DIY installation and includes a factory pre-charged 25 ft. Quick Connect® line set and DIYPRO® cable.
What size room can this system heat and cool?
The system is designed for rooms between 200 and 350 square feet.
Can I control the unit remotely?
Yes. Built-in WiFi allows control through the SmartHVAC app and the system is compatible with Amazon Alexa and Google Assistant.
Is a remote control included?
Yes. A wireless remote control is included with the system.
What warranty is included?
The system includes a 7-year compressor warranty and a 5-year parts warranty.
Variant Specs
| Variant | Voltage | Line Set | Coverage Area |
|---|---|---|---|
| 9,000 BTU Single Zone | 115V | 25 ft. | 200–350 sq. ft. |
