Description

MRCOOL DIY® 5th Gen ENERGY STAR® 9,000 BTU Single Zone Mini Split Complete System with 25 ft. Line Set 115V

Product Description

Enjoy efficient year-round comfort with the MRCOOL DIY® 5th Generation ENERGY STAR® 9,000 BTU Single Zone Mini Split Complete System. Designed for true do-it-yourself installation, this ductless heat pump system features a factory pre-charged 25 ft. Quick Connect® line set that eliminates the need for specialized HVAC tools or professional installation. Ideal for spaces between 200 and 350 square feet, it delivers reliable heating and cooling while helping reduce energy consumption.

With built-in WiFi connectivity, voice assistant compatibility, and advanced inverter technology, this system provides convenient climate control from virtually anywhere.

Key Features

  • 9,000 BTU single-zone heating and cooling system
  • Designed for rooms from 200–350 sq. ft.
  • True DIY installation with pre-charged 25 ft. Quick Connect® line set
  • ENERGY STAR® certified for energy-efficient performance
  • High-efficiency 23.6 SEER2 cooling performance
  • Uses environmentally friendlier R-454B refrigerant
  • Built-in WiFi with SmartHVAC app compatibility
  • Compatible with Amazon Alexa and Google Assistant
  • Includes DIYPRO® cable for simplified installation
  • DC inverter compressor for efficient operation
  • Quiet operation with indoor sound levels as low as 18 dB(A)
  • Gold Fin® corrosion-resistant outdoor condenser coating
  • Follow Me® technology for personalized comfort
  • Fan Only, Auto Cool, Quiet Mode, Sleep Mode, and Auto Restart functions
  • ETL Listed, UL Listed, AHRI Certified, and ENERGY STAR® Certified

Specifications

Specification Value
Model DIY-09-HP-WM-115D25-O
Cooling Capacity 9,000 BTU
Heating Capacity 10,000 BTU
Zones 1
Coverage Area 200–350 sq. ft.
Voltage 115V
Phase Single Phase
Frequency 60 Hz
SEER2 23.6
EER2 14
HSPF2-4 11.5
HSPF2-5 8.6
Refrigerant R-454B
Refrigerant Charge 30.34 oz
Line Set Length 25 ft.
Maximum Line Set Length 82 ft.
Liquid Line Size 1/4 in.
Suction Line Size 3/8 in.
Compressor Type Rotary
Inverter DC
Outdoor Operating Temperature (Cooling) -13°F to 122°F
Outdoor Operating Temperature (Heating) -13°F to 75°F
Outdoor Noise Level 54 dB(A)
Indoor Noise Level 43.0 / 39.5 / 33.5 / 24.0 / 18.0 dB(A)
Maximum Fuse Breaker 20A
Minimum Circuit Ampacity 18A
Condenser Dimensions 30.12 in. W × 11.93 in. D × 21.85 in. H
Condenser Weight 65.48 lbs.

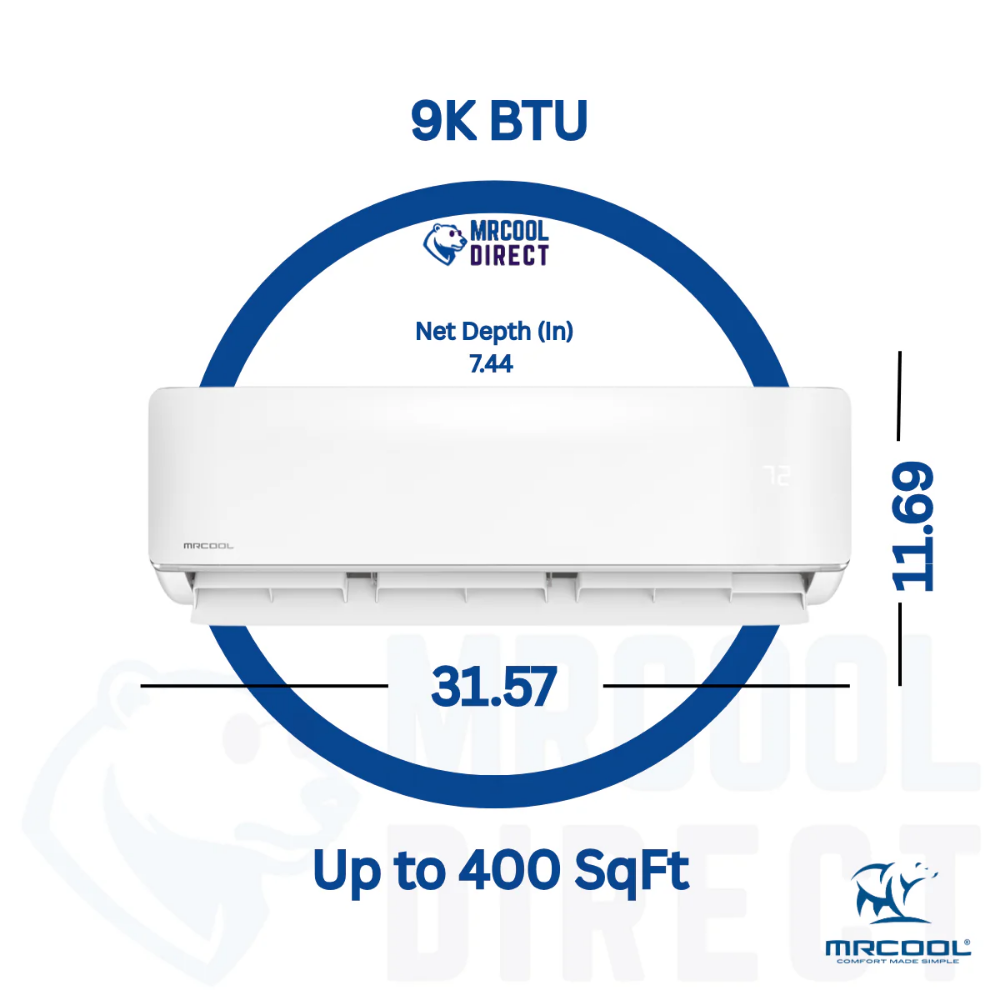

Air Handler Dimensions 31.57 in. W × 7.44 in. D × 11.69 in. H
Air Handler Weight 24.91 lbs.
WiFi Compatible Yes
App Compatible Yes
iOS Compatible Yes
Android Compatible Yes
Remote Included Yes
Certifications UL Listed, ETL Listed, AHRI Certified, ENERGY STAR® Certified
Warranty 7-Year Compressor Warranty, 5-Year Parts Warranty

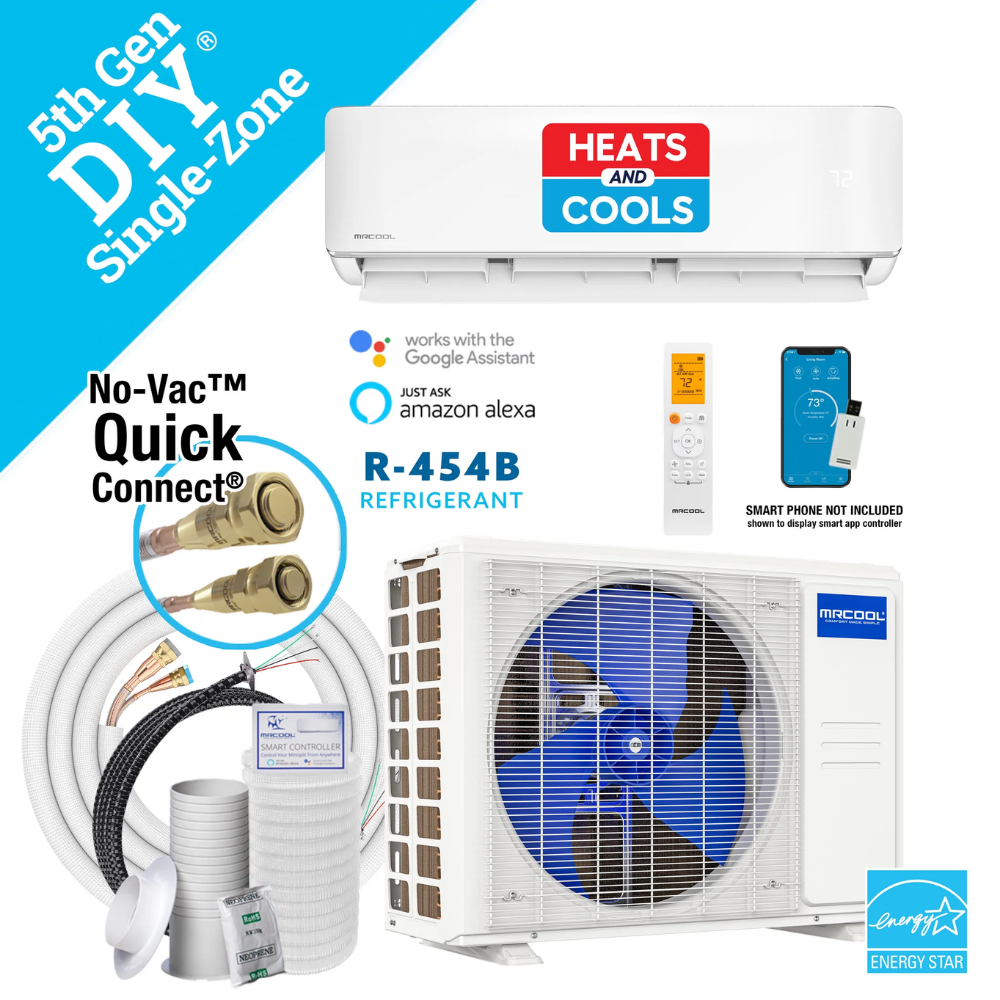

What's In The Box?

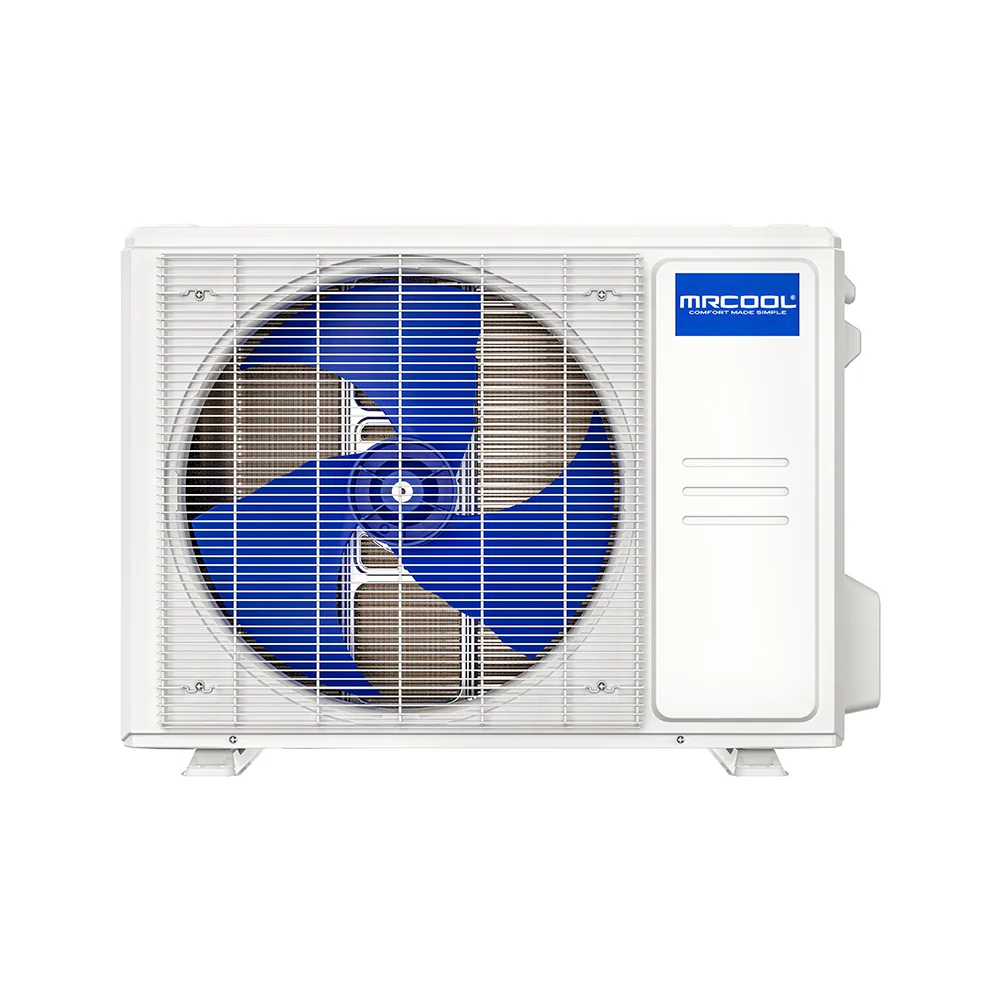

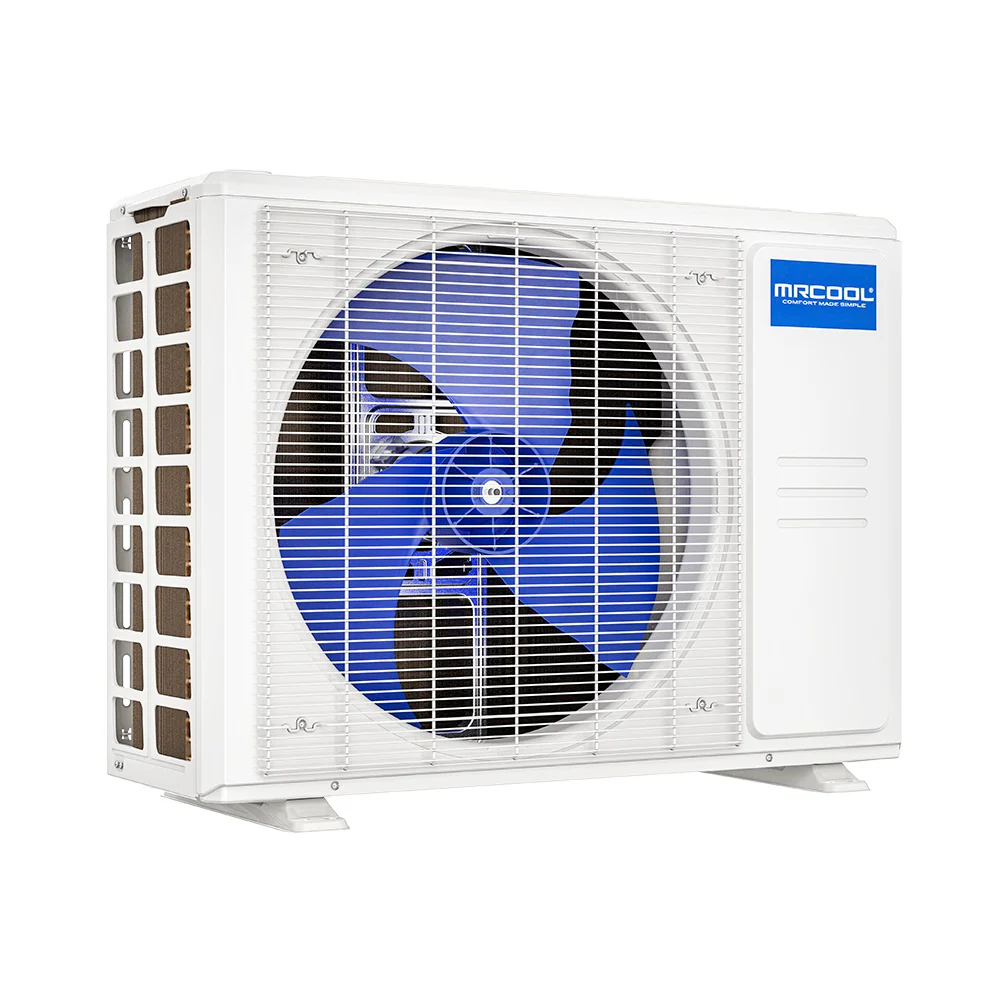

  • Outdoor condenser (DIY-09-HP-C-115D25-O)

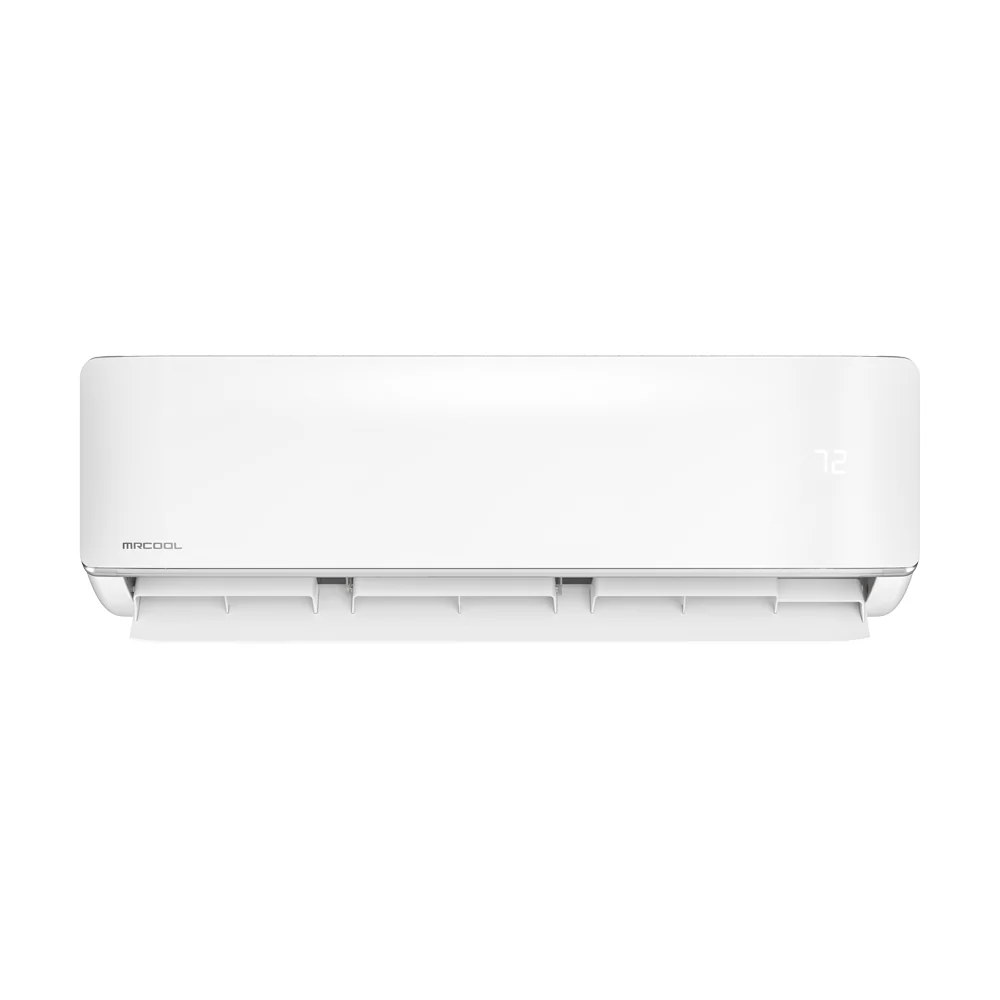

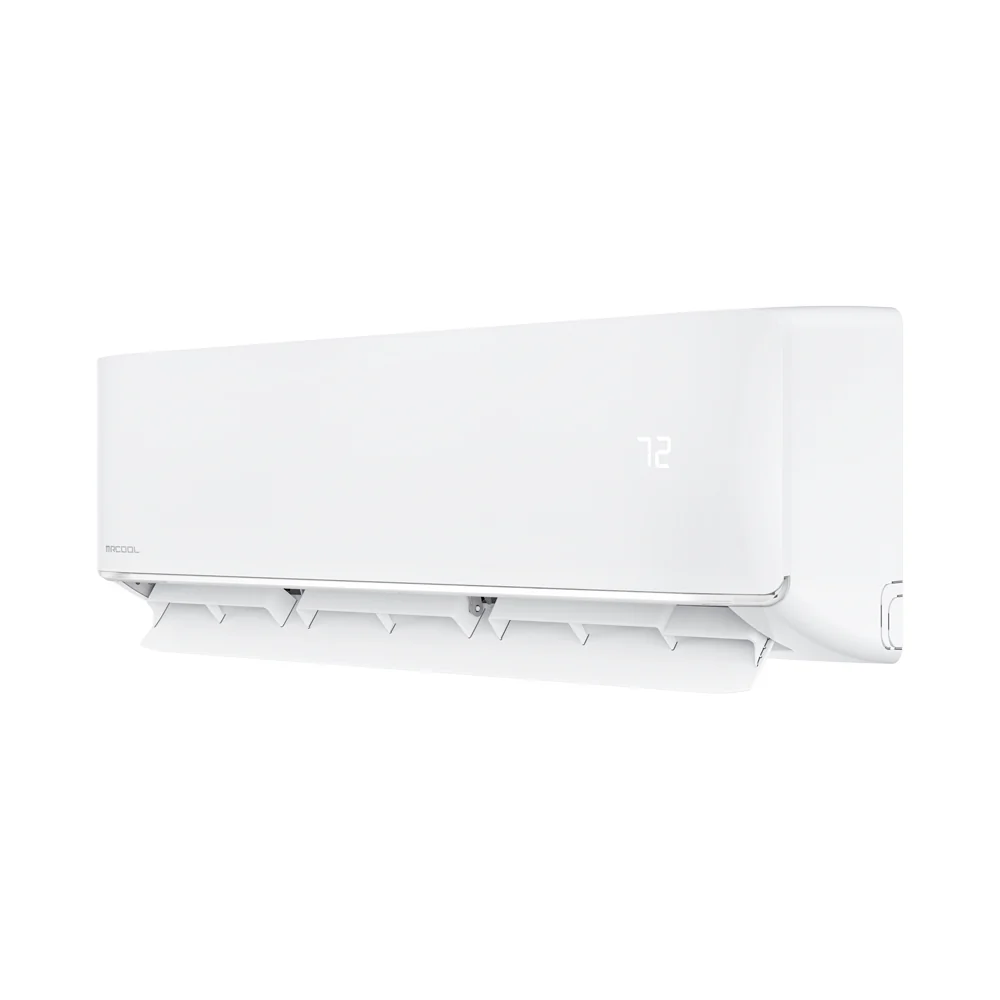

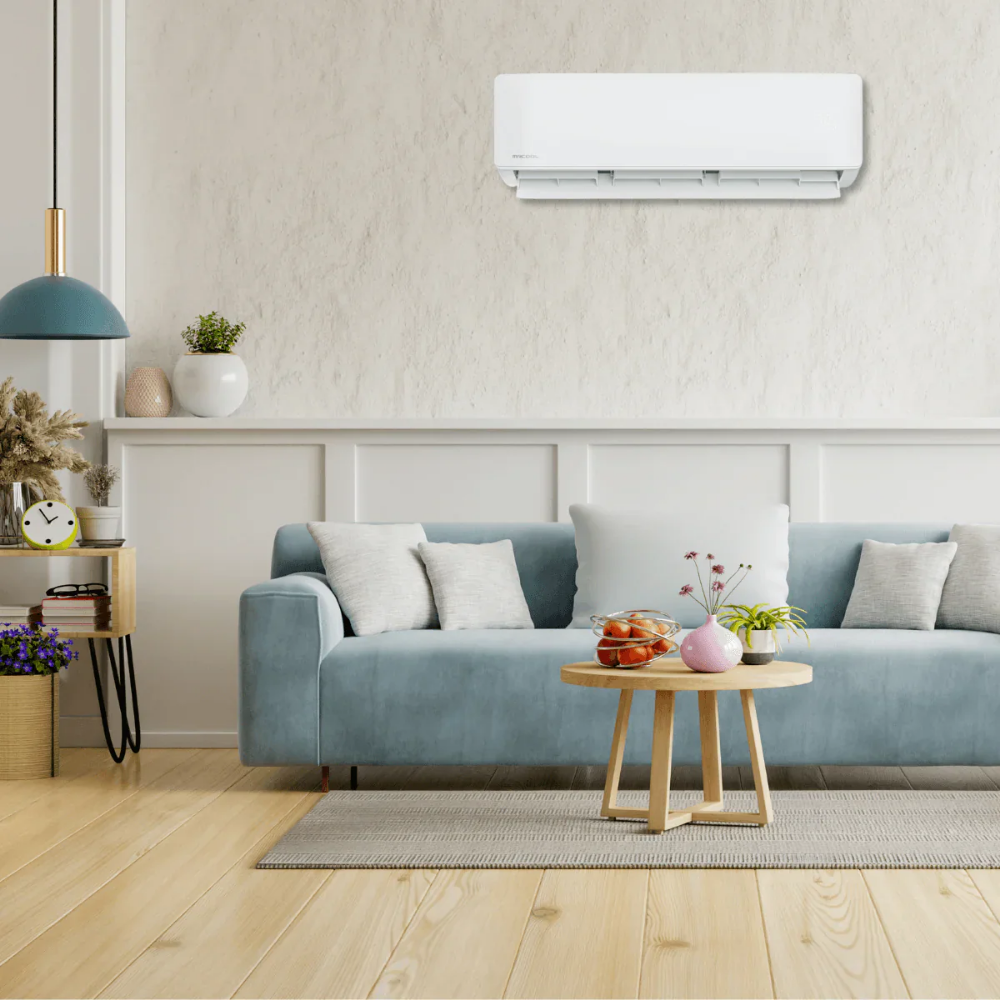

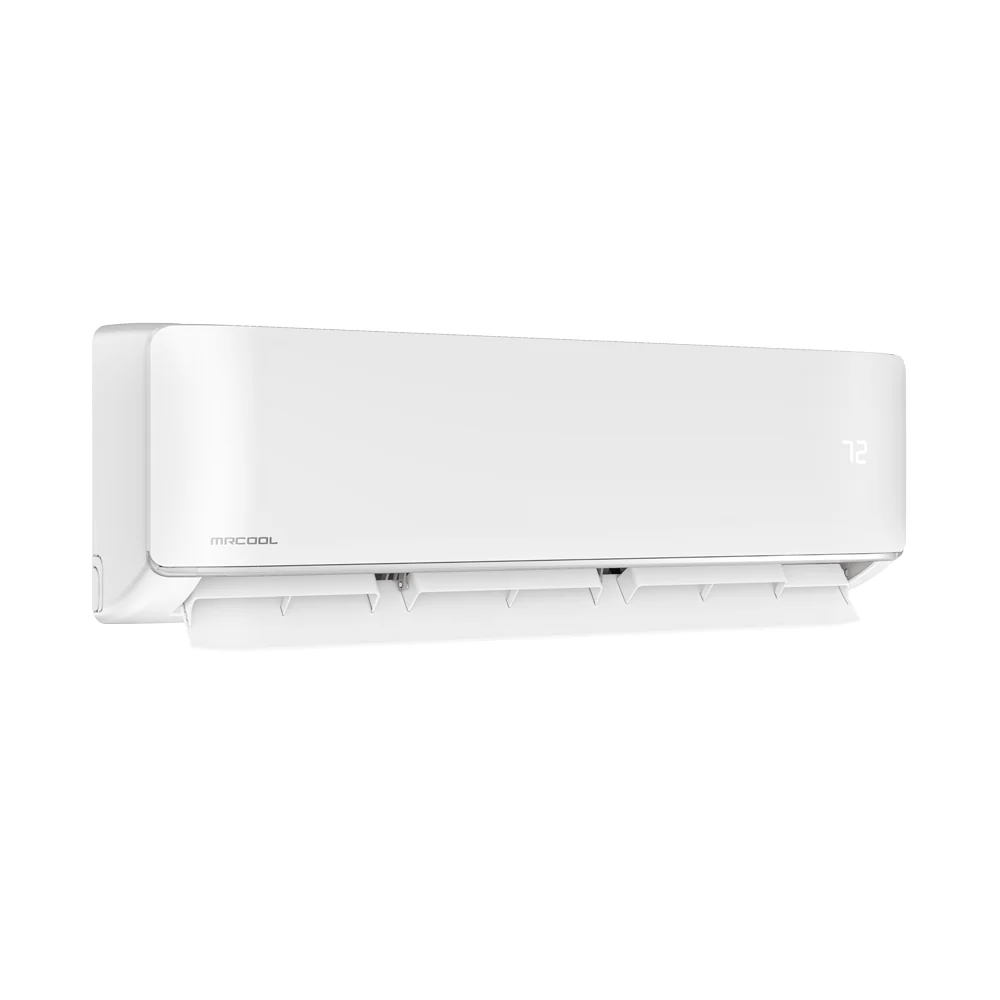

  • Indoor wall-mounted air handler (DIY-09-HP-WMAH-115D25-O)

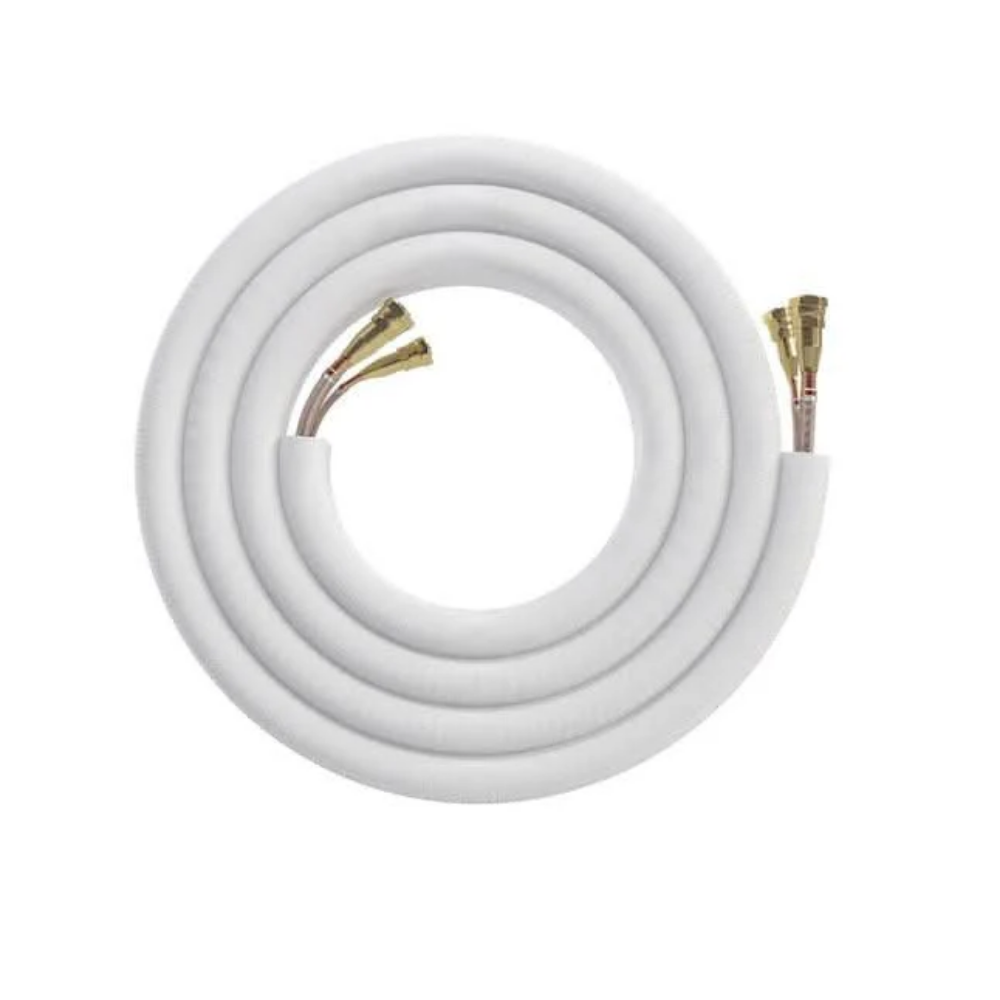

  • 25 ft. pre-charged Quick Connect® line set

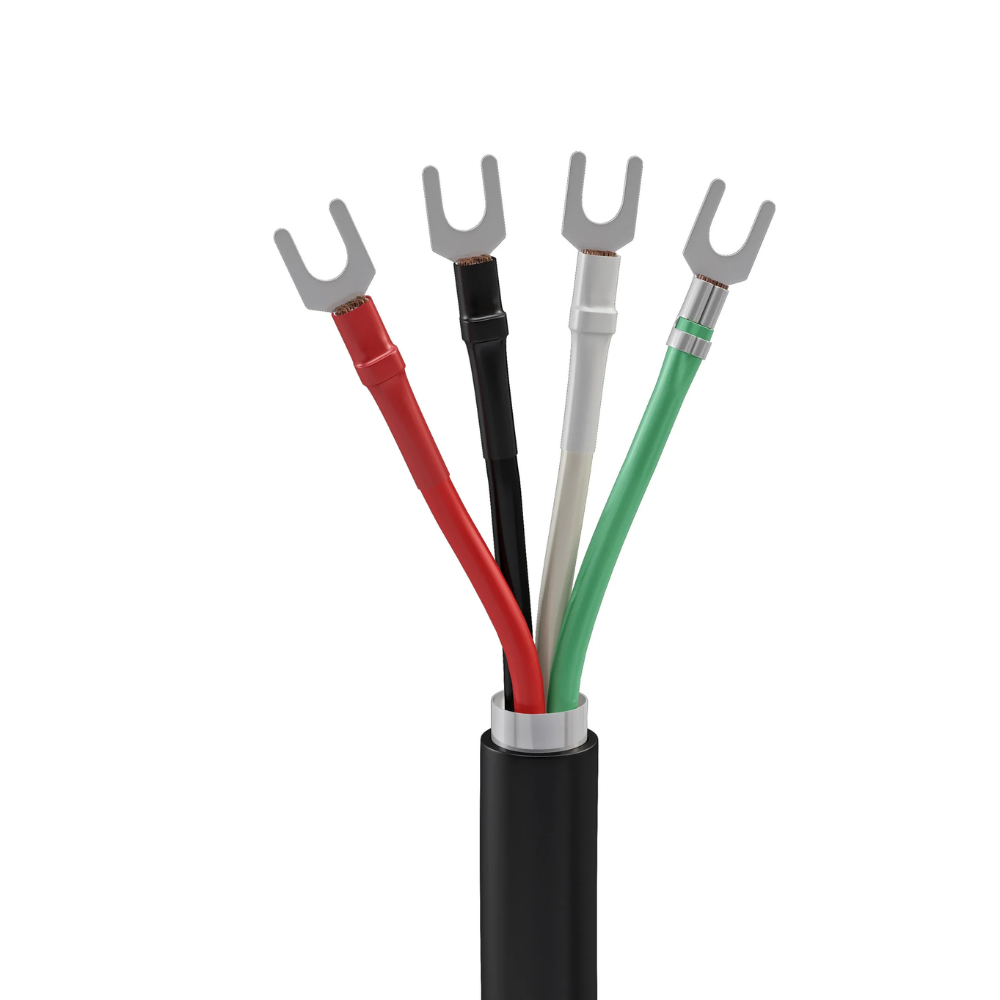

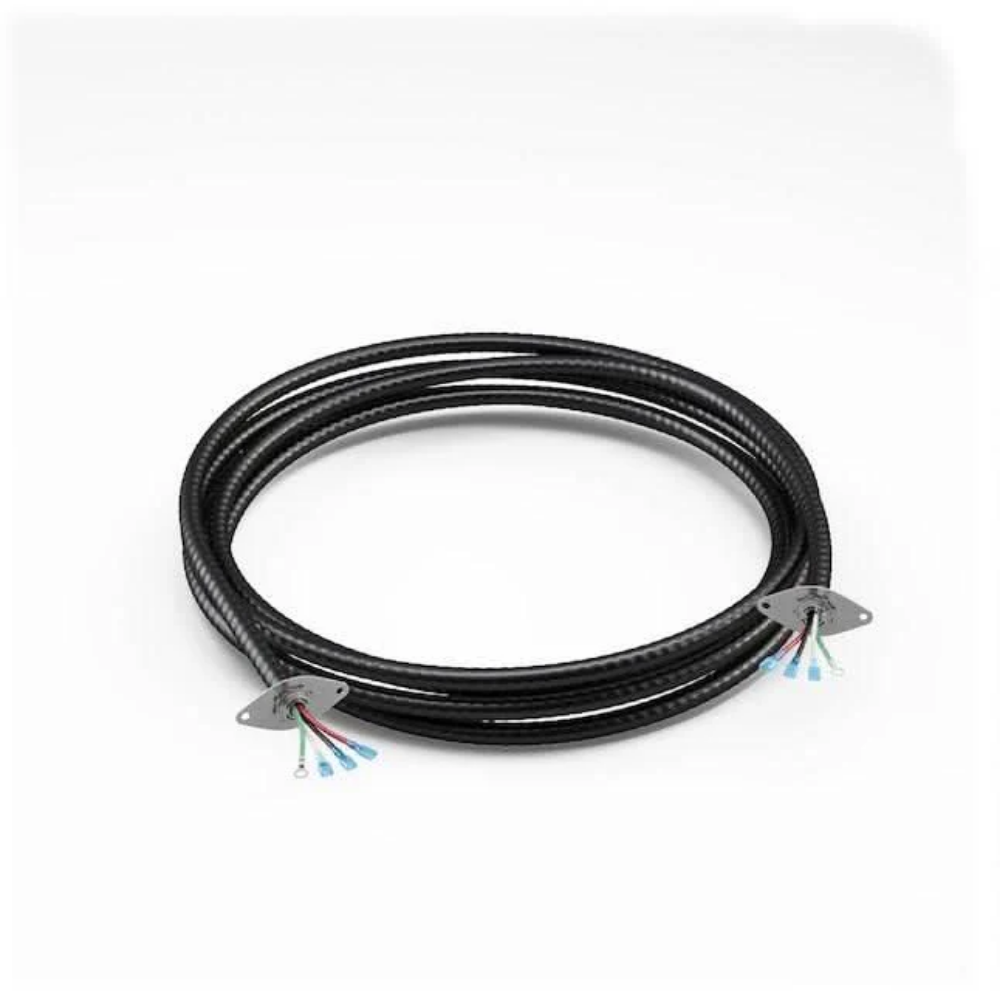

  • DIYPRO® cable

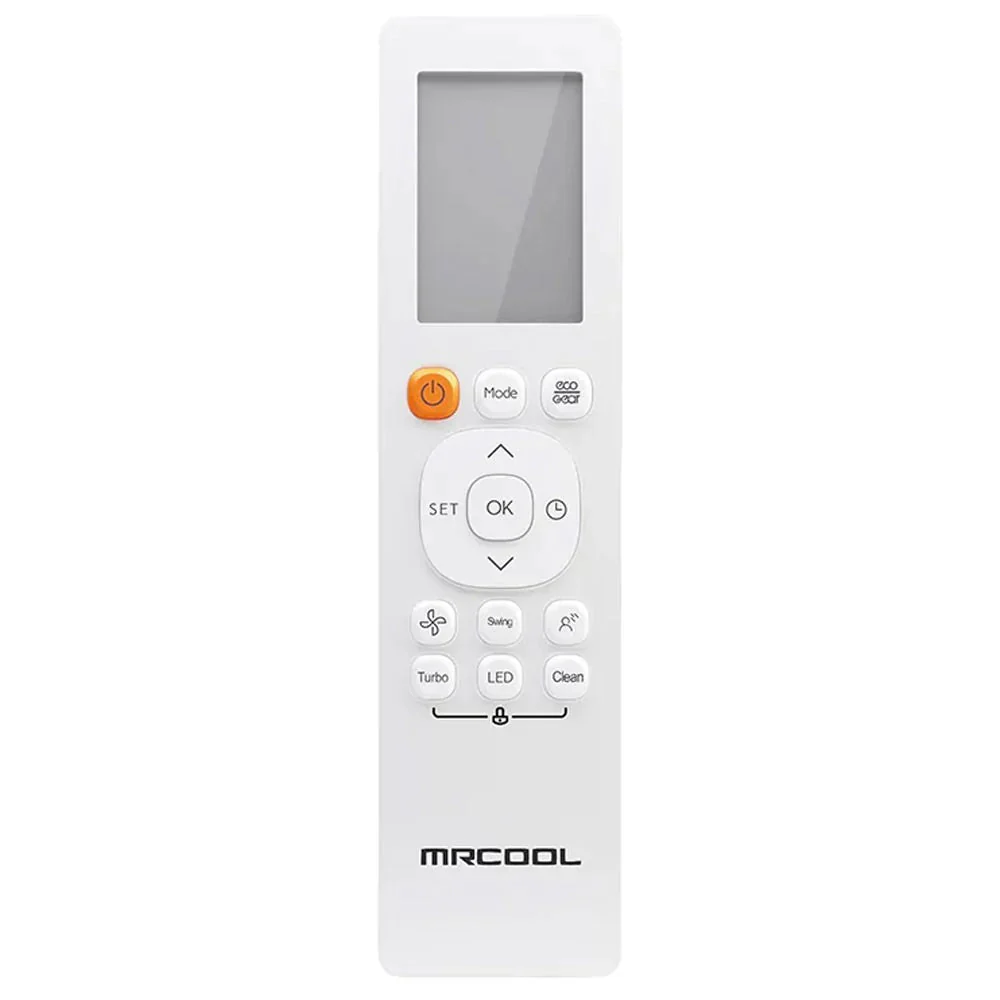

  • Wireless remote control

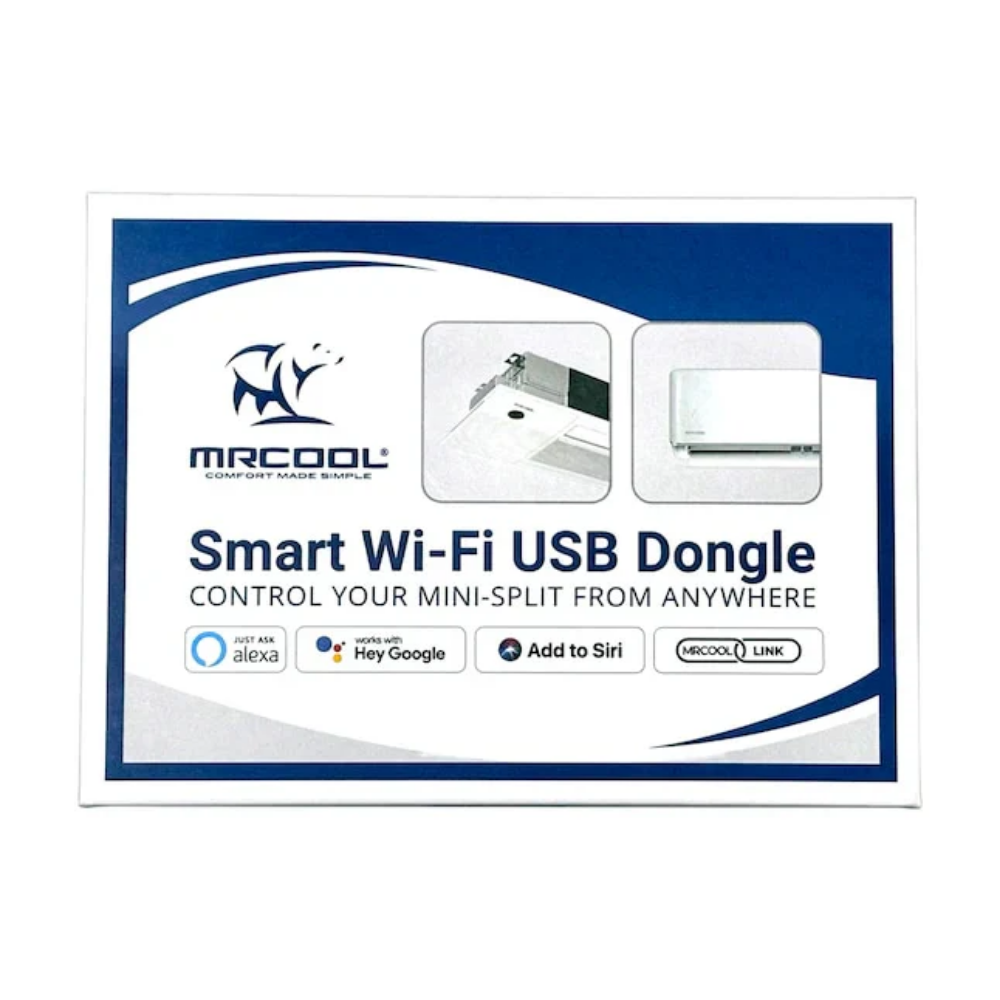

  • WiFi USB controller

Smart phone not included.

FAQs

Does this mini split require professional HVAC installation?

No. The system is designed for DIY installation and includes a factory pre-charged 25 ft. Quick Connect® line set and DIYPRO® cable to simplify installation.

What room size is this system designed for?

The system is designed to heat and cool spaces ranging from approximately 200 to 350 square feet.

Can I control the system from my phone?

Yes. The system features built-in WiFi and is compatible with the SmartHVAC app for remote control.

Does this system work with voice assistants?

Yes. It is compatible with both Amazon Alexa and Google Assistant.

What warranty is included?

The system includes a 7-year compressor warranty and a 5-year parts warranty.

Variant Specs

Variant Voltage Line Set Coverage Area
9,000 BTU Single Zone 115V 25 ft. 200–350 sq. ft.
